15" Achter (glas) montage PC (Extreem)

Rear mount touchscreen
15" Achter (glas) montage PC (Extreem)
Netto prijs (excl.Btw) €1225,00
Art.No.:
1020153679
Brand:
A1Touch Solution
Type: All in one A1Touch Z690M-i5-12400/AOD150-OF; (actief gekoeld)
​​​​Omschrijving: 15 inch rear mount pc met Intel Core I5-12400 6 core 12 threads 2.5 tot 4.4 Ghz processor, met of zonder touchscreen. Optie om te Touchen door glas of door een paneel met afgewerkt gat.
Product is op voorraad.
Monitor specs:
Kleur: Zwart gepoedercoat (andere kleuren op aanvraag)
Model: 15 inch XGA TFT LCD Monitor
Type: 15" Color Active Matrix TFT LCD
 (AUO G150XG03 V5)
Resolutie (max): 1024 x 768 (XGA)
Kleuren: 16,2 miljoen
Pixel: 0.297 x 0.1297 mm
Helderheid: 350 cd/m²
Contrast ratio: 700:1
Kijkhoek: 85°/85° horizontal & 80°/80° vertikal
Responstijd: 8 ms
Groote actieve beeld: 304,1(H) x 228,1 (V) mm
Touchscreen specs: Zie tabblad "opties"

Computer specs:
Type computerboard: Intel Z690M-ITX
Chipset: Intel® Z690M
Processor: Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730,
Geheugen: Ondersteunde geheugen types DDR4-UDIMM Non-ECC mode
Aantal geheugenslots 2
Geheugen slot type DIMM
Geheugen kanaal Dual
Non-ECC Ja
Ondersteunde geheugen kloksnelheden 3200 MHz Natively
Maximum intern geheugen 64 GB
Niet gebufferde geheugen Ja
Bios: BIOS type UEFI AMI
BIOS-geheugen grootte  256 Mbit
ACPI versie 6.0
Wissen CMOS jumper Ja
Plug and play Ja
System Management BIOS (SMBIOS) versie 2.7 support
Grafisch: Architecture (Gen 12) Intel Xe Graphics
Ingebouwde grafische adapter Ja
Grafische adapter-familie Intel
Maximale resolutie 7680x4320 Pixels via DP
Netwerk Ethernet LAN ja, 2 x LAN
Ethernet interface type 2.5 Gigabit Ethernet and 1 Gb Ethernet
LAN controller Realtek RTL8125BG (2.5Gb) and Intel I219V (1Gb)
Wi-Fi Ja, 802.11ax Wi-Fi 6E  Module, supports IEEE 802.11a/b/g/n/ax
Bluetooth Ja, 5.3 High speed class II
Audio Realtek® ALC897 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3  6.0 Gb/s Connectors, 1 x M.2 Socket M2_1 Key M, supports type 2280 PCIe Gen4x4 (64Gb/s) Mode Chipset, 1 x M.2 Socket M2_2 Key M, support type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64Gb/s) modes
RAID: Ja, Raid 0, 1, and 5
Besturingssysteem: Windows 10, 11, Linux, Win CE, Win10IOT.

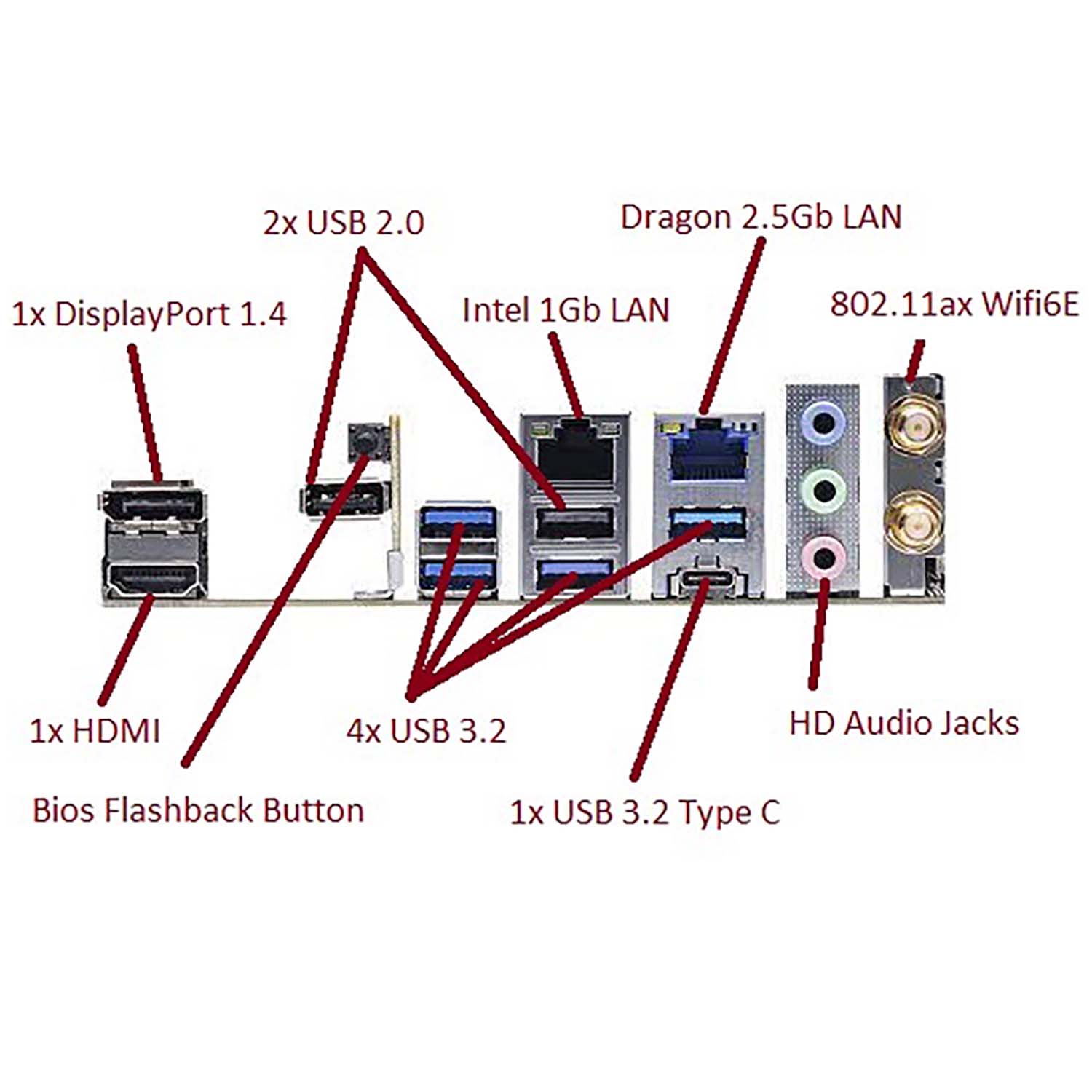

I/O aansluitingen: USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) : 4
USB 3.2 Gen 2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) : 1
Ethernet LAN (RJ-45)-poorten with LED : 2
HDMI-poorten : 1
Display poorten : 1
Bios Flashback Button : 1
Audio jack(s) – Mic – Line in – Line out : 3
Interne I/O: PCI Express 5.0x16 Slot (PCIE1), supports x16 mode : 1
USB 2.0 aansluitingen : 1
USB 3.1 Gen 1 (up to 5Gbps) connectoren : 1
Aantal SATA 6Gb/s connectoren : 4
Audioconnector : Ja

Algemeen:
Stroomverbruik:
35W normal use; 80 W max.; 5 W stand by.
Voeding:
Tafelvoeding 84 W Extern.
Gewicht: 4 Kg
Montage: VESA 100mm
Maatvoering systeem(B x H x D) 350x274x60mm
Opties:
Functionaliteit: Met of zonder touch
- zonder touch: Acrylaatglas of glas

- met touch voor optie;
"Montage achter glas = JA":

Projected Capacitive A1touch en Zytronic®.
Hulp nodig bij uw keuze?  Bel ons op +31 (0)45 5748190 of stuur een bericht via: contactformulier
+ Projected Capacitive (A1touch): -Voor glass tot 5mm of Acrylaat glas upto 2.5mm.
-Touchbaar met vinger, handschoen en pcap stylus.
-10 points touch
-activatiekracht minder dan 1 gram.
+ Projected Capacitive (Zytronic®): -Voor glas tot 20mm of Acrylaat glas tot 10mm.
-Touchable met vinger, handschoen en pcap stylus.
-2 points touch
-activatiekracht minder dan 1 gram
- met touch for optie;
"Montage achter glas = NEE":
5 draads resitief, Surface Accoustic Wave of Projected Capacitive
-    5 draads resistief : -Standaard niet-glanzend.
-Touchbaar via vinger, handschoen en stylus.
-Single touch
-activatiekracht minder dan 40 gram.
-     SAW: -Standarad glanzend.
-Touchbaar via vinger en handschoen.
-Single touch
-activatiekracht minder dan 85 gram.
-     Projected Capacitive: -Standaard glanzend.
-Touchbaar met vinger, handschoen en pcap stylus.
-10 points touch
-activatiekracht minder dan 1 gram.
Externe protectie: Standaard IP44 of IP65 of hoger (niet voor SAW)
Geheugen capaciteit: Geen geheugen (standaard), 2, 4 or 8 Gb SoDimm
Opslag capaciteit Sata: Geen opslag (standaard), Harddisk 250/500 Gb or SSD in 60/120/240 of 480 Gb.
Besturings systeem: Geen OS (standaard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home en Pro, Win10Home en Pro.
Invoer apparatuur: Geen (standaard) of draadloos toetsenbord/muis
Specificaties /Handleiding: specs-manual touch computer
Afmetingen : afmetingen touch computer
Driver downloads : touch driver downloads

U kunt hier uw product bestellen na in te loggen of een account aan te maken door op de blauwe knop "login voor bestellen" te klikken.

Na inloggen ziet u dan de netto prijs excl. BTW voor het product.

Vul vervolgens onderstaande opties in, kies het aantal producten en klik op de blauwe knop "Aan winkelwagen toevoegen".



Opties (incl. installatie):
