17" PCAP Paneel montage PC (Passief Gekoeld)

pcap touchscreen - pcap touchscreen
17" PCAP Paneel montage PC (Passief Gekoeld)
Netto prijs (excl.Btw) €1185,00
Art.No.:
1020153079
Brand:
A1Touch Solution
Type: All in one A1Touch-J3455/AOD170-GPCAP-TPMB (passief gekoeld)
​​​​​​Omschrijving: 17 inch panel pc met pcap touchscreen. Volledig gehard glazen front. Metalen behuizing met mini itx formaat pc voor hufter proof en 24/7 gebruik.
Product is op voorraad.
Monitor specs:
Kleur paneel: Glanzend (glas) met zwarte rand (andere kleuren op aanvraag)
Model: 17 inch XGA TFT LCD Monitor
Type: 17 inch Color Active Matrix TFT LCD  (AUO M170ETN01.1)
Resolutie (max): 1280 x 1024 (WVGA)
Kleuren: 16,2 millioen
Pixel: 0.264 x 0.264 mm
Helderheid: 300 cd/m²
Contrast ratio: 1000:1
Kijkhoek: 88°/88° horizontaal & 85°/85° verticaal
Responstijd: 5 ms
Grootte actieve beeld: 337,9 (H) x 270,3 (V) mm
Computer specs:

Type computerbord
Intel J3455 Quad core tot 2.3 Ghz, passief gekoeld
Chipset
Geen aparte chipset
Geheugen
2 x DDR3/DDR3L SO-DIMM Slots
Bios
  • 64Mb AMI UEFI Legal BIOS with GUI support
  • Supports Plug and Play
  • ACPI 5.0 compliant wake up events
  • Supports jumperfree
  • SMBIOS 3.0 support
Processor
Intel J3455 Quad core tot 2.3 Ghz processor
Flashmodule/ Harddisk
Sata SSD en SATA Harddisk.mogelijk
Grafisch
  • Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz)
  • DirectX 12, Pixel Shader 5.0
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports Triple Monitor
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  • Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
  • Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
  • Supports HDCP with DVI-D and HDMI 2.0 Ports
  • Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
LAN (RJ-45)
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111GR
  • Supports Wake-On-WAN
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  • Supports LAN Cable Detection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Audio
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  • Premium Blu-ray Audio support
  • Supports Surge Protection (ASRock Full Spike Protection)
  • ELNA Audio Caps
IDE, SATA, Flash 2 x SATA2 3.0 Gb/s Connectors, ondersteuning NCQ, AHCI and
Hot Plug
Hardware Monitor + Power Management Temperatuur, Voltage, Case open functie, Watch Dog timer (fabrieksoptie)
Besturingssysteem: Windows 10, 11, Linux, Win CE, Win10IOT

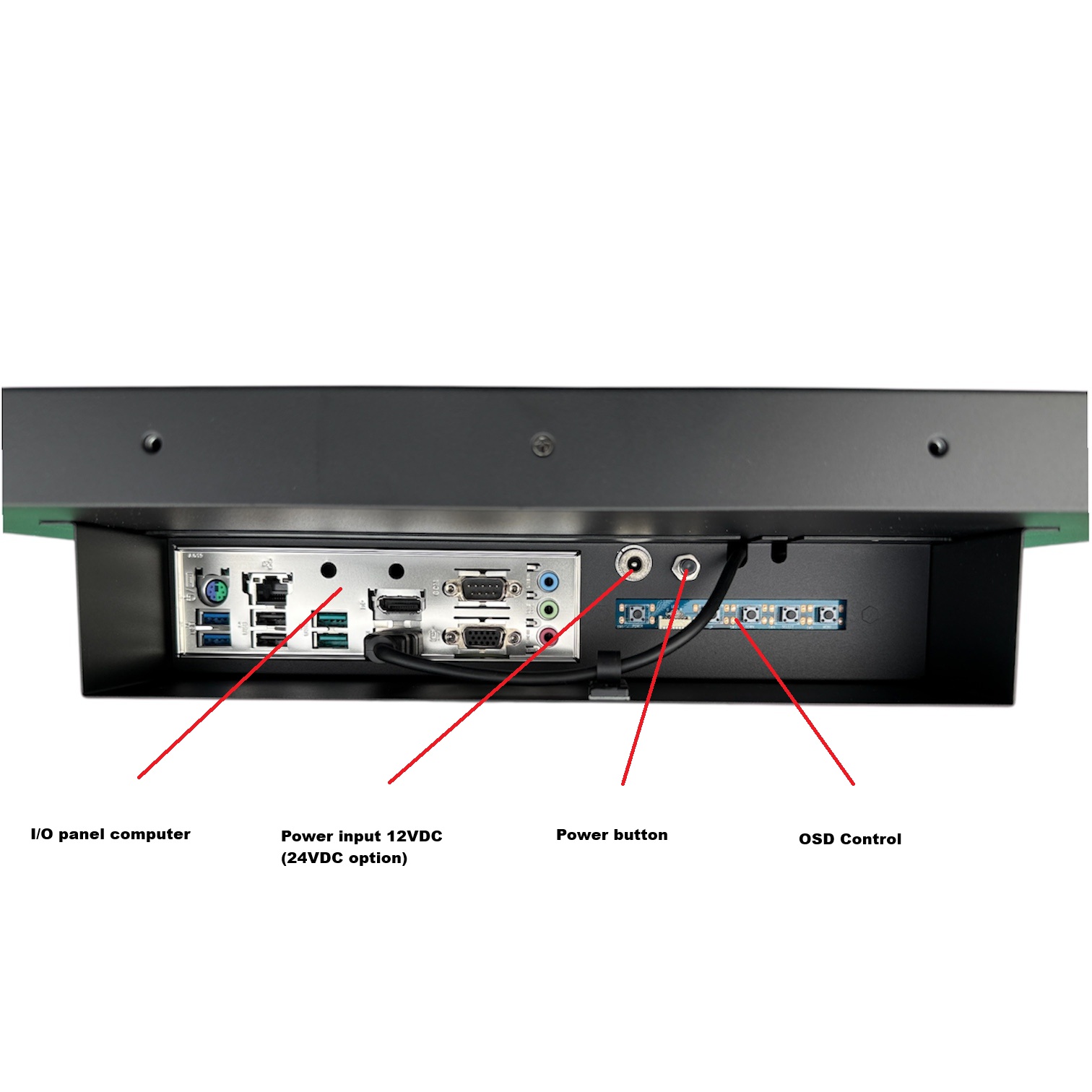

I/O achterzijde system:
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port (occupied)
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Interne I/O:

  • 1 x PCI Express 2.0 x1 Slot
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (3-pin)
  • 1 x Chassis Fan Connector (3-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Stroomverbruik:
35W normal use; 80 W max.; 5 W stand by.
Voeding:
Tafelvoeding 84 W Extern.
Gewicht: 4.5 Kg
Montage: VESA 100mm
Maatvoering systeem (B x H x D) 440x372x87 mm
Touch info:
Touch type: Projected Capacitief touchscreen
Touch spec: -Standaard glanzend,
-Touchable met vinger, handschoen en pcap stylus/pen.
-2, 4 en 10 punts touch (standaard ingesteld op 2)
-activatie kracht minder dan 1 gram.
External protection: Voorzijde volledig glas, dus 100% waterdicht
Glass sensor: 4mm dik glanzend gehard glas met zwarte keramische rand.
Surface hardness: Mohs' hardness = 6
Responstime: Max. 20 msec.
Opties:
Standaard levering: Inclusief tafelvoeding, EU kabel en 1.8mtr DVI kabel. Andere opties op aanvraag.
Geheugen capaciteit: Geen geheugen (standarad), 2, 4 or 8 Gb SoDimm
Opslagcapacitiet Sata: Geen opslag (standaard), Harddisk 250/500 Gb or SSD in 60/120/240 of 480 Gb.
Besturingssysteem: Geen OS (standaard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home en Pro, Win10Home en Pro.
Invoer apparatuur: Geen (standaard) or draadloos toetsenbord/muis
Invoer apparatuur: Geen (standaard) of draadloos toetsenbord/muis
Geluidsopties:
- Geen speakers/microfoon (Standaard),
- Met usb stereo soundbar 2x2 Watt/ geen microfoon of
- Met usb stereo soundbar 2x2Watt en microfoon met 3.5mm plug.
