19" PCAP Domotica PC (Extreem)

pcap touchscreen - pcap touchscreen
19" PCAP Domotica PC (Extreem)
Netto prijs (excl.Btw) €1610,00
Art.No.:
1020153361
Brand:
A1Touch Solution
Type: All in one A1Touch-H310-i5-9400/AOD190-GPCAP-TPMB-DOMO-L (passief gekoeld)
Beschrijving: 19 inch domotica computer met Intel Core I5-9400 6 core 6 threads 2.9 tot 4.1 Ghz processor, met randloos pcap touchscreen van 4mm gehard glas voor inbouw in de muur. Levering compleet met inbouwbak en externe voeding/kabel.
Product is op voorraad.
Monitor specs:
Kleur/ materiaal paneel: Glanzend 4mm gehard glas met zwarte rand (andere kleuren op aanvraag)
Model: 19 inch XGA TFT LCD Monitor
Type: 19 inch Color Active Matrix TFT LCD (LG LM190EOA)
Resolutie (max): 1280 x 1024 (SXGA)
Kleuren: 16,7 millioen
Pixel: 0.0976 x 0.2928 mm
Helderheid: 300 cd/m²
Contrast ratio: 800:1
Kijkhoek: 89°/89° horizontaal & 89°/89° vertikaal
Responstijd: 8 ms
Grootte actieve beeld: 376,32 (H) x 301,056 (V) mm

Computer specs:
Type computerboard: Intel H310-I
Chipset: Intel® H310
Processor: Processor Intel Core i5 9400, 55W, 9th gen. 2.9Ghz, 6 core, 6 thread, UHD Graphics 630,
Geheugen: Ondersteunde geheugen types DDR4-SDRAM
Aantal geheugenslots 2
Geheugen slot type DIMM
Geheugen kanaal Dual
Non-ECC Ja
Ondersteunde geheugen kloksnelheden 2133,2400,2666 MHz
Maximum intern geheugen 32 GB
Niet gebufferde geheugen Ja
Bios: BIOS type UEFI AMI
BIOS-geheugen grootte 128 Mbit
ACPI versie 6.1
Wissen CMOS jumper Ja
Plug and play Ja
System Management BIOS (SMBIOS) versie 3.1
Grafisch: Maximum geheugen grafische adapter 1024 MB
Ingebouwde graficsche adapter Ja
Grafische adapter-familie Intel
Maximale resolutie 4096 x 2160 Pixels
Netwerk Ethernet LAN ja
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Wi-Fi Nee (optie)
Bluetooth Nee (optie)
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3 Connectors, 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
RAID: Nee
Besturingssysteem: Windows 10, 11, Linux, Win CE, Win10IOT

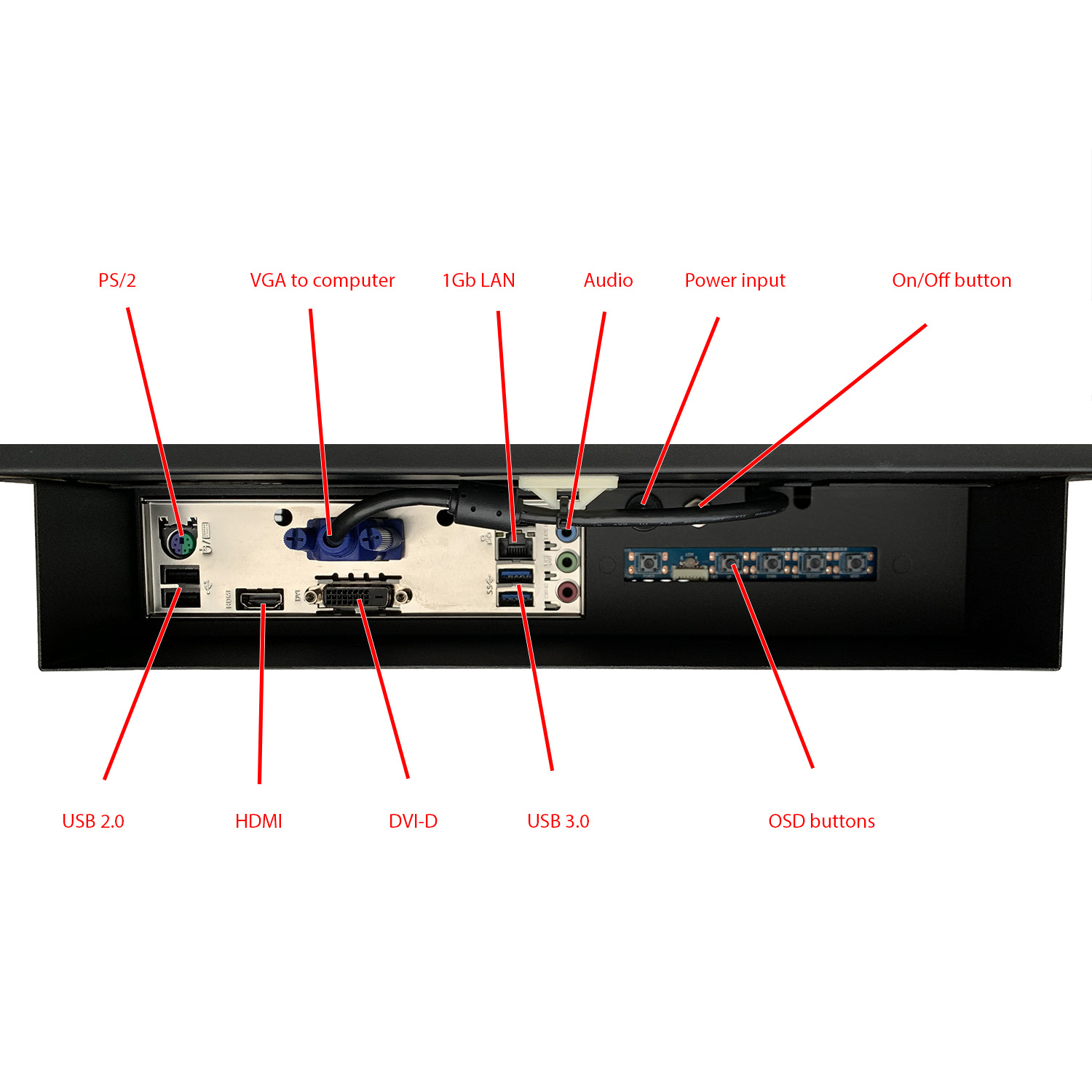

I/O aansluitingen: USB 3.1 Gen1 (blue) Type-A up to 5Gbps : 2
USB 2.0 : 2
Ethernet LAN (RJ-45)-poorten : 1
HDMI-poorten : 1
DVI-D poorten : 1
S/PDIF-out : Ja
Audio jack(s) – Mic – Line in – Line out : 3
PS/2 keyboard/mouse combo poorten : 1
Interne I/O: PCI Express x16 (Gen 3.x) sloten : 1
USB 2.0 aansluitingen : 1
USB 3.1 Gen 1 (up to 5Gbps) connectoren : 1
Aantal SATA 6Gb/s connectoren : 4
Audioconnector : Ja

Stroomverbruik:
35W normal use; 80 W max.; 5 W stand by.
Voeding:
Tafelvoeding 84 W Extern.
Gewicht: 5 Kg
Montage: VESA 100mm
Maatvoering systeem (B x H x D) 485x413x95 mm
Touch info:
Touch type: Projected Capacitief
Touch spec: -Standaard glanzend.
-Touchable met vinger, handschoen en pcap stylus/pen.
-2, 4, 10 punts touch (2 ingesteld)
-activatie kracht minder dan 1 gram.
External protection: Voorzijde volledig glas, dus 100% waterdicht
Glass sensor: 4mm dik glanzend gehard glas met zwart keramische rand.
Surface hardness: Mohs' hardness = 6
Responstime: Max. 20 msec.
Opties:
Geheugen capaciteit: Geen geheugen (standarad), 2, 4 or 8 Gb SoDimm
Opslagcapacitiet Sata: Geen opslag (standaard), Harddisk 250/500 Gb or SSD in 60/120/240 of 480 Gb.
Besturingssysteem: Geen OS (standaard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home en Pro, Win10Home en Pro.
Invoer apparatuur: Geen (standaard) or draadloos toetsenbord/muis
Invoer apparatuur: Geen (standaard) of draadloos toetsenbord/muis
Geluidsopties:
- Geen speakers/microfoon (Standaard),
- Met usb stereo soundbar 2x2 Watt/ geen microfoon of
- Met usb stereo soundbar 2x2Watt en microfoon met 3.5mm plug.

Specificaties / Handleiding :

Afmetingen :
Driver downloads : More Info

U kunt hier uw product bestellen na in te loggen of een account aan te maken door op de blauwe knop "login voor bestellen" te klikken.

Na inloggen ziet u dan de netto prijs excl. BTW voor het product.

Vul vervolgens onderstaande opties in, kies het aantal producten en klik op de blauwe knop "Aan winkelwagen toevoegen".

Beschikbare opties:
