19" PCAP In-wall mount PC (Extreme)
Net price (excl.VAT) €2349,00
Art.No.:
1020153693 Brand:
A1Touch Solution
Type: All in one A1Touch Z790M-i5-12400/AOD170-GPCAP-TPMB-DOMO-L2 (active Cooled)
Description: 19 inch home automation bezel free pcap touchsreen computer with Intel Core I5-12400 6 core 12 threads 2.5 up to 4.4 Ghz processor, for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock.
| Monitor specs: | |
| Color/material panel: | 4mm tempered Glass with black ceramic borders |
| Model: | 19 inch XGA TFT LCD Monitor |
| Type: | 19 inch Color Active Matrix TFT LCD (LG LM190EOA) |
| Resolution (max): | 1280 x 1024 (SXGA) |
| Color: | 16,7 million |
| Pixel: | 0.0976 x 0.2928 mm |
| Brightness: | 300 cd/m² |
| Contrast ratio: | 800:1 |
| Viewing angle: | 89°/89° horizontal, 89°/89° vertical |
| Response time | 8 ms |
| Active area: | 376,32 (H) x 301,056 (V) mm |
| Computer specs: | |
| Type computerboard | Intel Z790M-ITX |
| Chipset | Intel® Z790M |
| Processor | Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)* - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Bios |
- 128Mb AMI UEFI Legal BIOS with GUI support
|
| Flashmodule/ Harddisk | • 2 x Hyper M.2 Sockets, supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes • 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 5 |
| Graphics | - Intel® UHD Graphics - Intel® Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| LAN (RJ-45) | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V) 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| Operating system | Windows 7, 8, 10, 11, Linux, Win CE, Win7emb, Win10IOT or 11IOT. |

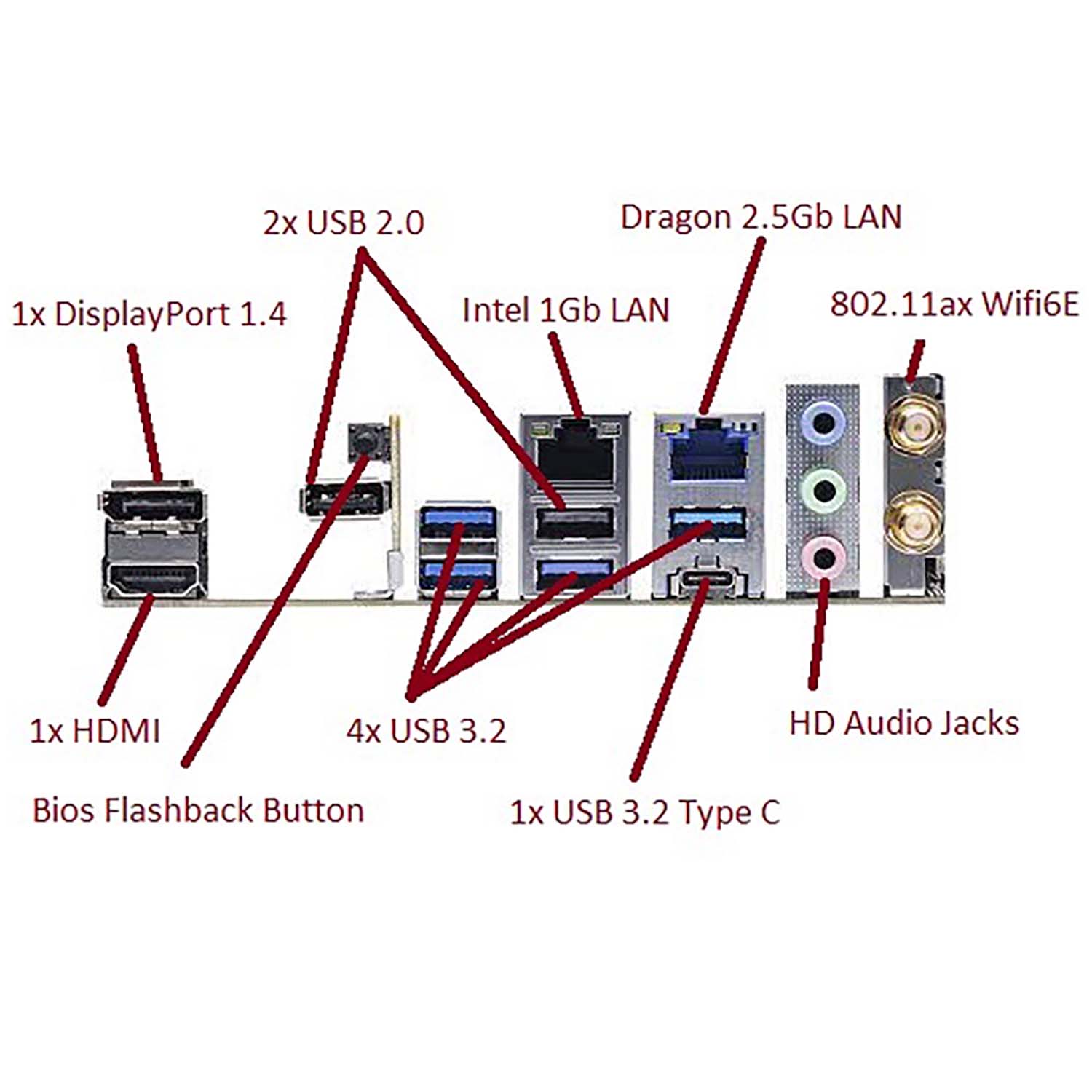

| Rear Panel I/O: | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1 x USB 2.0 Port 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| Internal connectors: | 1 x eDP Signal Connector 1 x RGB LED Header* 1 x Addressable LED Header** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis Fan Connectors (4-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Energy requirements | 35W normal use; 80 W max.; 5 W stand by. |
| Power | Power supply 84 W External |
| Weight | 5 Kg |
| Mounting: | VESA 100mm |
| Dimensions system(B x H x D) | 485x413x95 mm |
| Touch info: | |
| Touch type: | Projected Capacitive |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -2, 4, 10 points touch (2 default) -activation force less than 1 gramm. |
| External protection: | Front completely glass, so 100% watertight |
| Glass sensor: | 4mm thick tempered glass with black ceramic borders.. |
| Surface hardness: | Mohs' hardness = 6 |
| Responstime: | Max. 20 msec. |
| Options: | ||
| Standaard levering: | Inclusief tafelvoeding en EU kabel. Andere opties op aanvraag. | |
| Geheugen capaciteit: | Geen geheugen (standarad), 2, 4, 8 of 16 Gb SoDimm | |
| Opslagcapacitiet Sata: | Geen opslag (standaard), Harddisk 2TB of SSD in 120/240/480 of 980 Gb. | |
| Besturingssysteem: | Geen OS (standaard), Win10/11, Win 10 or 11 IOT, Linux | |
| Invoer apparatuur: | Geen (standaard) or draadloos toetsenbord/muis | |
| Accoustic opties: | Geen speakers/ microfone (standard), Soundbar 2x2Watt geintegreerd, Soundbar + microfoon geintegreerd. |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Driver downloads : |  |
You can purchase here after you have logged in or made account by pushing the blue button "Login to proceed" below.
After you are logged in, you will see your net.price excl.VAT for the product.
Next fill in below mentioned options, add amount of products and push the button "Add to cart"
Available options:
