21.5" Black Panel mount PC (Passive Cooled)
Net price (excl.VAT) €795,00
Art.No.:
1020153867 Brand:
A1Touch Solution
Type: All in one A1Touch N100/AOD215-PMB; (passive cooled)
Description: 21,5 inch stainless steel panel pc with Intel N100 Quad core upto 3.4Ghz Ghz processor with or without touchscreen. Unit made of black powder coated metal with mini itx format computer for hufter proof and long life use.
Unit is in stock
| Monitor specs: | |
| Color panel: | Black powder Coated (other colors on request) |
| Model: | 21,5 inch XGA TFT LCD Monitor |
| Type: | 21.5 inch, 16:9 Color Active Matrix TFT LCD LM215WF3 (LG Philips LCD) |
| Resolution (max): | 1920 x 1080 (Full HD) |
| Color: | 16,7 million |
| Pixel: | 0.2475mm x 0.2475mm |
| Brightness: | 300 cd/m² |
| Contrast ratio: | 300:1 |
| Viewing angle: | 89°/89° horizontal & 89°/89° vertical |
| Response time | 5 ms |
| Active area: | 476.64 (H) x 268.11 (V) mm |
| Touchscreen specs: | See tab "options". |
| Computer specs: | |
| Type computerboard | Intel N100 Quad core upto 3.4 Ghz, passive cooled |
| Chipset | No seperate chipset |
| Memory | 1 x SO-DIMM, Max. 16GB, DDR4 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Processor | Intel N100 Quad core upto 3.4 Ghz processor |
| Flashmodule/ Harddisk | Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMITM 2.1. |
| LAN (RJ-45) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Operating system | Windows 7, 8, 10, 11, Linux, Win CE, Win7emb, Win10IOT or 11IOT. |

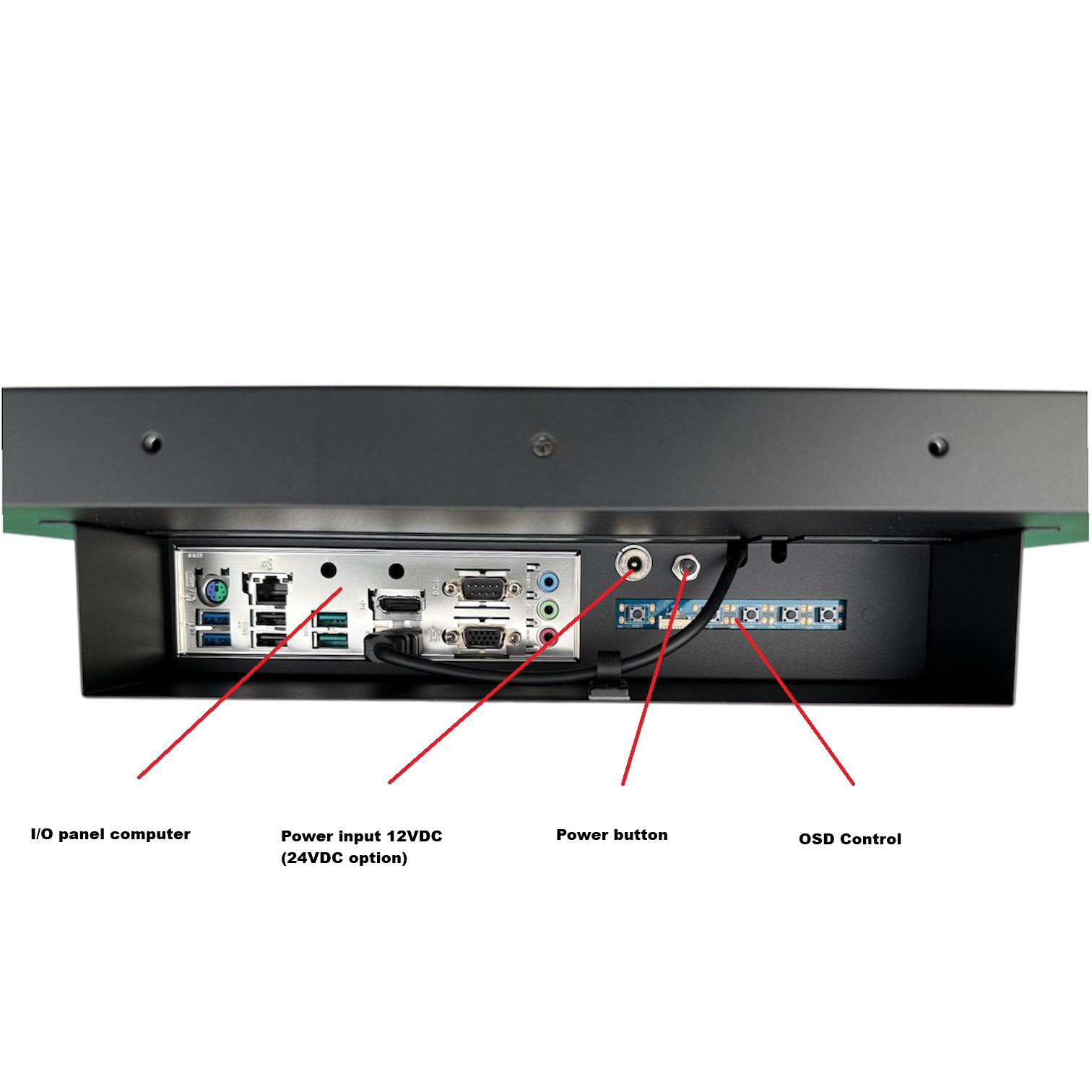

| I/O system: | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A） 1 x DisplayPort 1 x VGA port 1 x HDMITM Port 1 x COM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O: | Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector |
| Energy requirements | 35W normal use; 80 W max.; 5 W stand by. |
| Power | Power supply 84 W External |
| Weight | 7 Kg |
| Mounting: | VESA 200x100mm |
| Dimensions system(B x H x D) | 579x373x88 mm |
| Options: | |
| Standard delivery: | With PSU and EU power cable but without vesa stand. Other options on request. |
| Functionality: | With or without touch |
| - without touch: | Acrylic or glass |
| - with touch: Type of Touch: |
5 wire resitive, Surface Accoustic Wave or Projected Capacitive Not sure what to use? Call us at +31 (0)45 5748190 or send us e-mail |
| - 5 wire resistive : | -Standard non-glare. -Touchable with finger, glove and stylus. -Single touch -activation force less than 40 gramm. |
| - SAW: | -Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm. |
| - Projected Capacitive: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Standard IP44 or IP65 or higher (not for SAW) |
| Memory capacity: | No memory (standard), 2, 4, 8 or 16 Gb SoDimm |
| Storage capacity Sata: | No storage (standard), Harddisk 2Tb or SSD in 120/240/480 GB or 1TB. |
| Operating system: | NO OS (standard), Win7/8/10/11, Win 10 or 11 IOT, Linux |
| Input equipment: | None (standard) or wireless keyboard/mouse |
| Accoustic options: | No speakers/ microfone (standard), Soundbar 2x2Watt integrated, Soundbar + microfone integrated. |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
