A1Touch-V4, i7 passive cooled micro pc
Net price (excl.VAT) €599,00
Art.No.:
1020153577 Brand:
A1Touch Solution
Type: A1Touch-V4-i7-10510U black barebone.

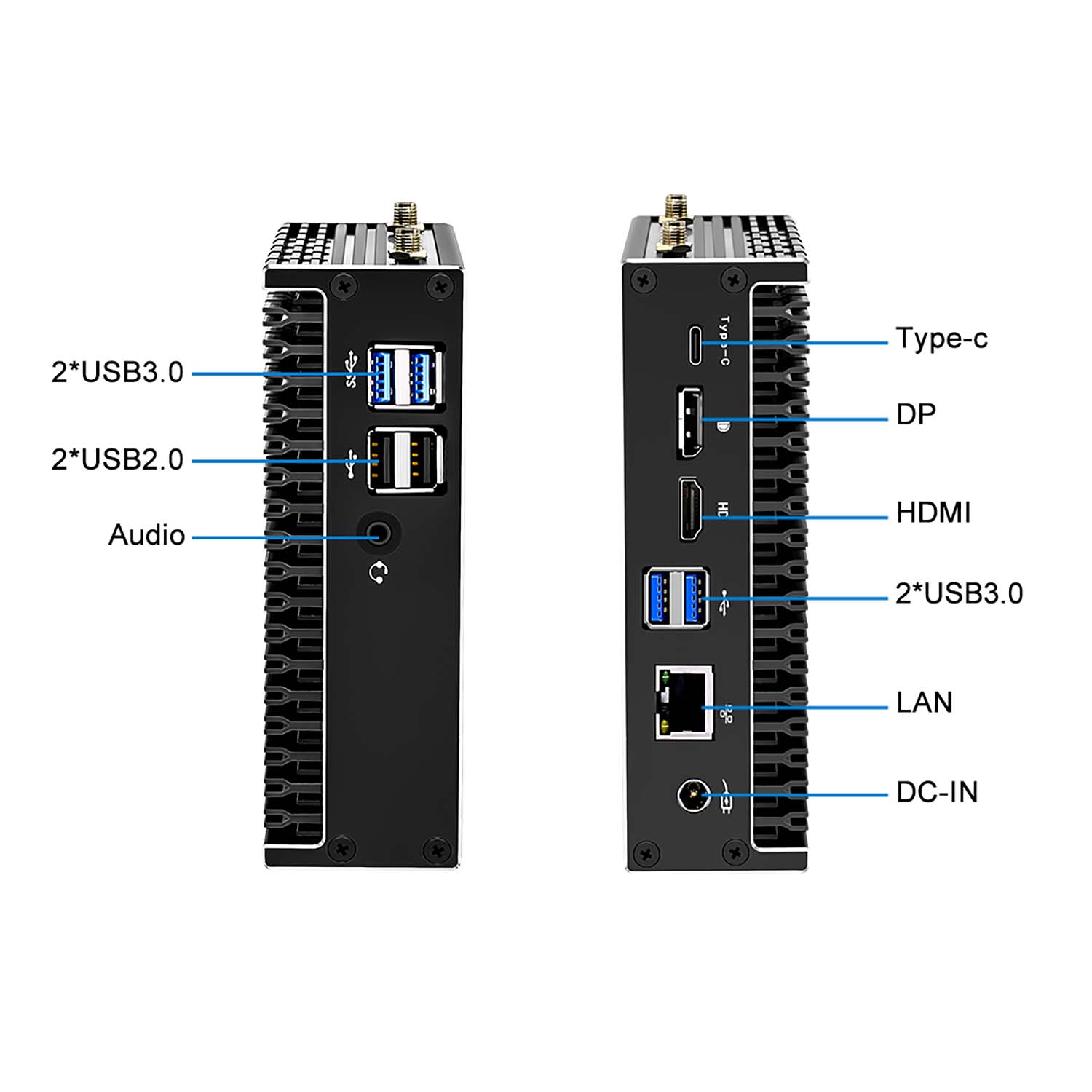

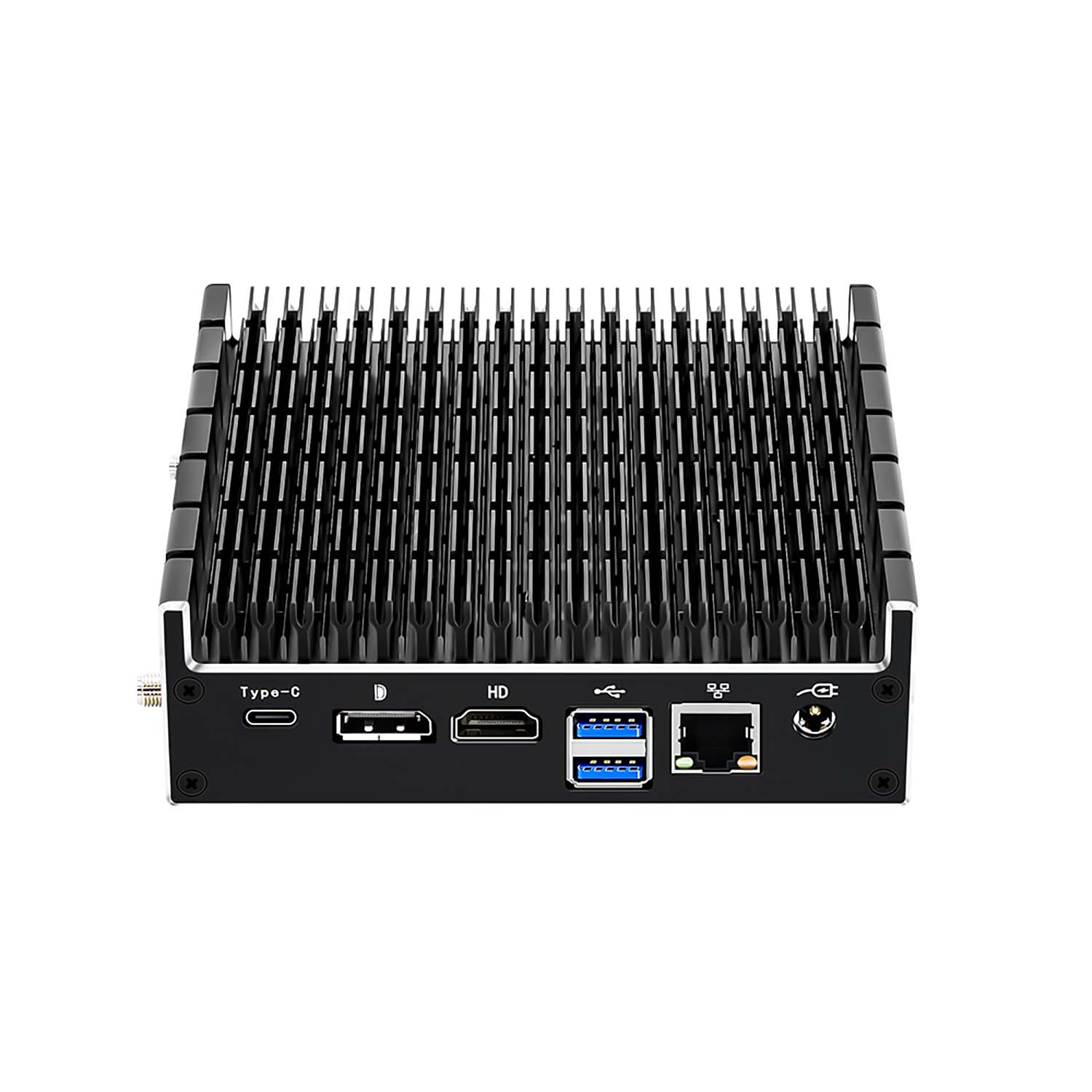

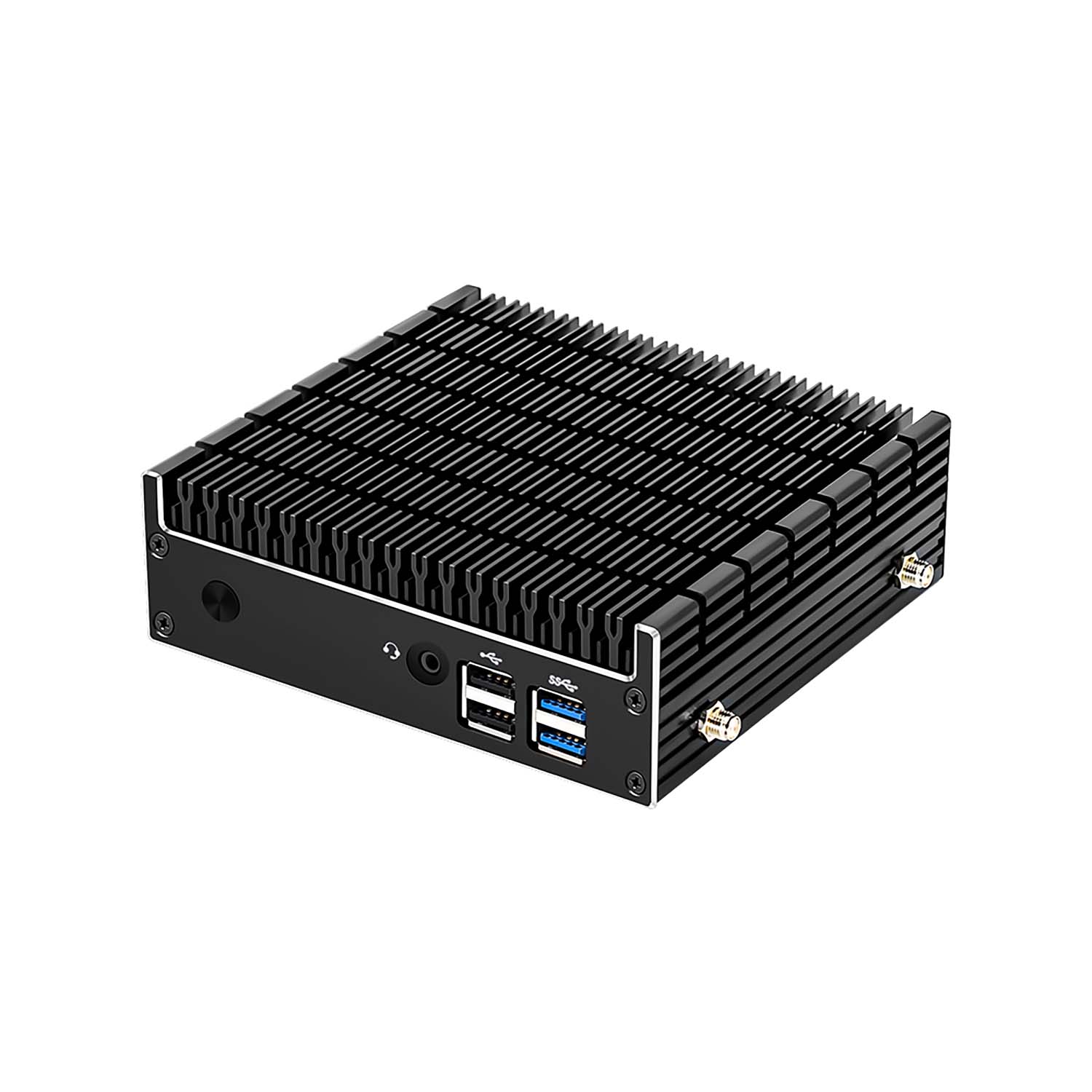

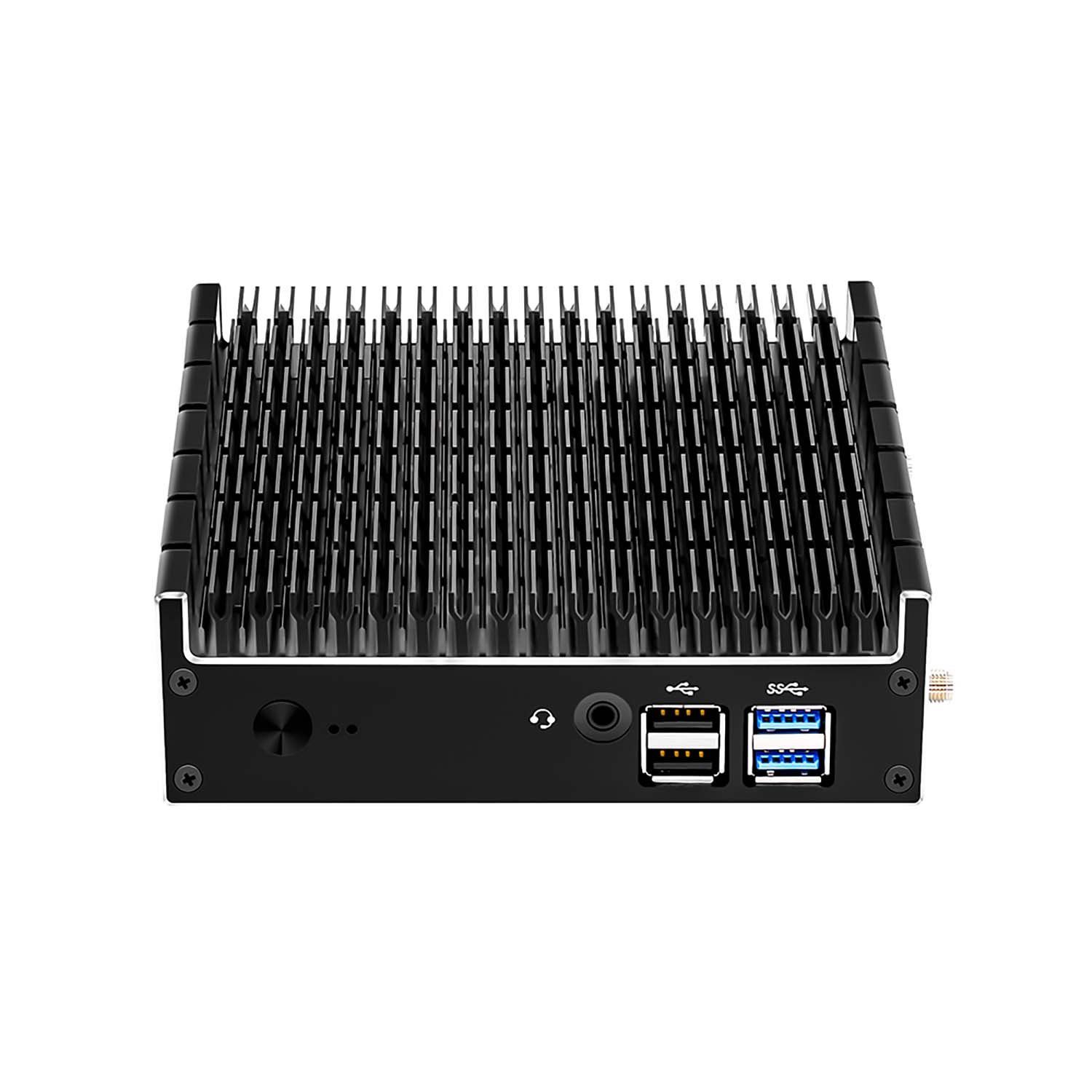

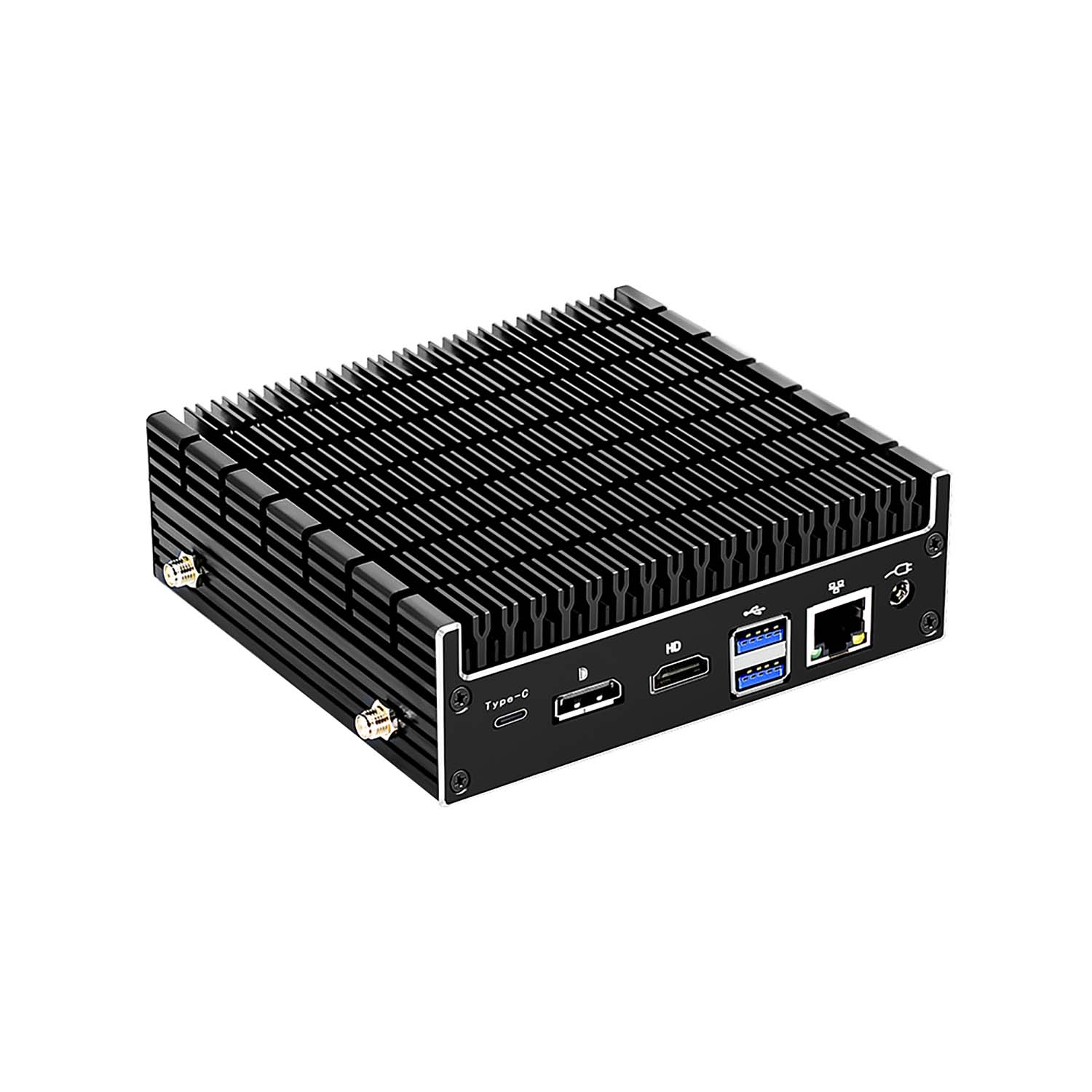

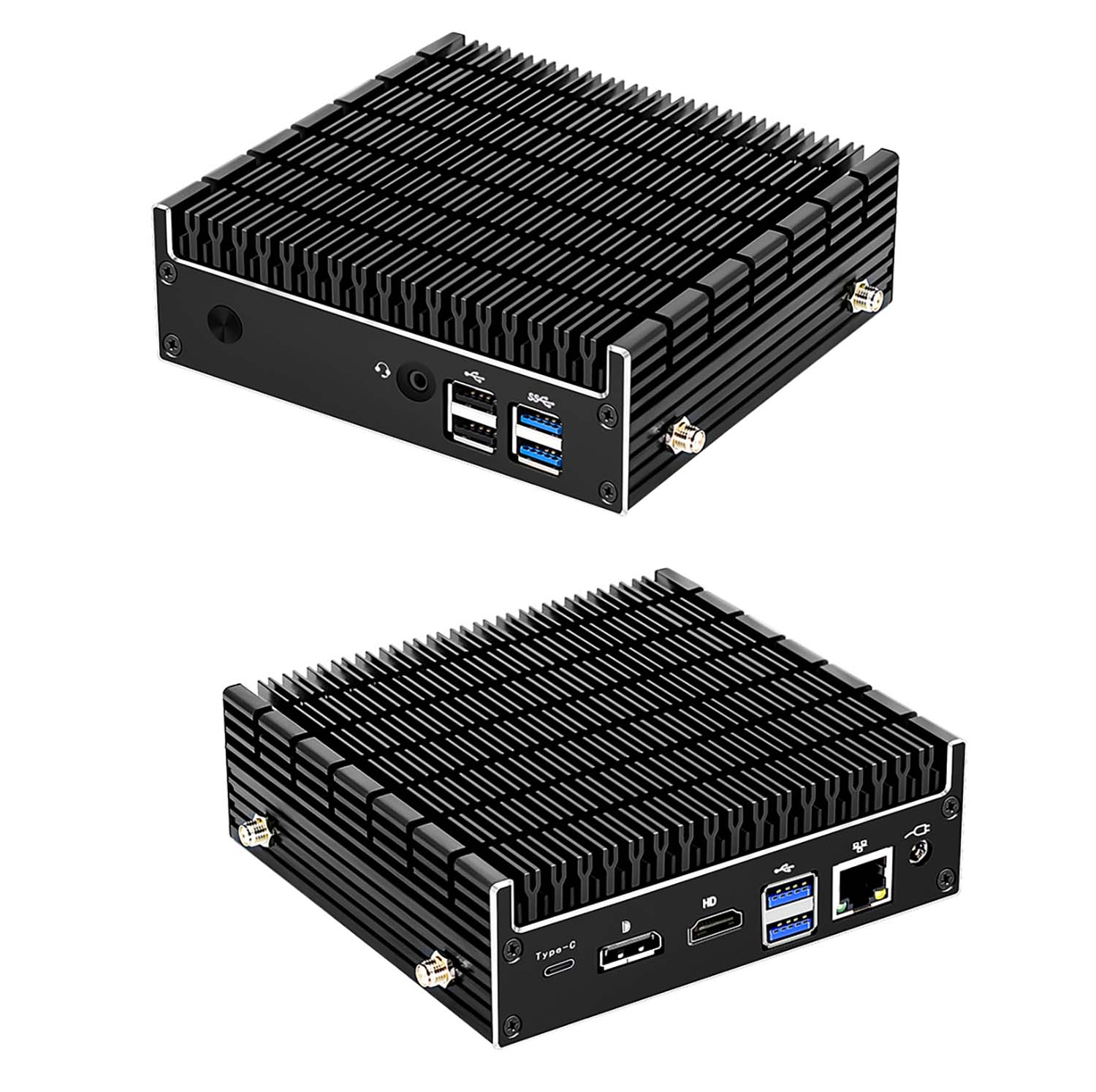

Description: Passive cooled micro computer, model V4, with Intel i7 4M Cache, 4 cores 8 threads, 1.8GHz up to 4.9GHz Processor.This black aluminium pc in Intel Nuc Format is build for space saving but high performance applications with connections: Front: On/Off button, 2x USB3.0, 2x USB2.0, 1x Audio 3.5 jack. Back: 1xUSB-C, 2x USB3.0, 1x DP, 1x HDMI, 1x LAN, 1x 19VDC-in. Incl. PSU+EU pwr cable. Dimension: 128*128*38mm.
Unit is in stock.
| Processor | |||
|---|---|---|---|
| Type | Intel i7-10510U, Comet Lake | ||
| Cores | 64-bit 4 core, 8 thread | ||
| Clock speed | 1.8 up to 4.9 Ghz | ||
| Cache | 4 Mb smartCache | ||
| TDP | 7.5 - 15W | ||
| Chipset | Intel Comet Lake | ||
| Memory | |||

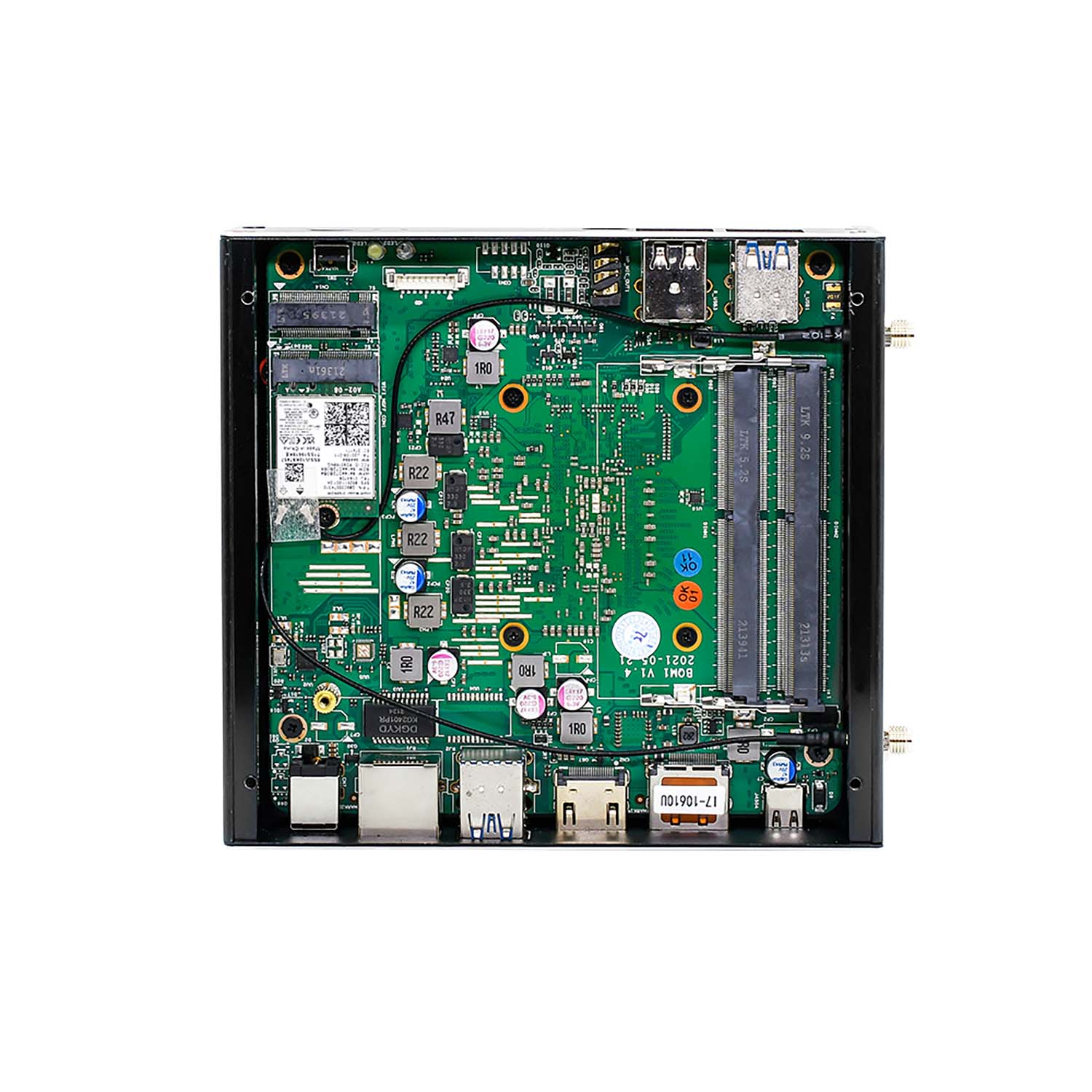

| Supported | 2x SO-DIMM 204-pin DDR4 SDRAM memory slots | ||
| Up to 64GB (4/8/16/32/64Gb) | |||
| Installed | None; option 1*4, 1*8, 1*16, 2*4, 2*8, 2*16 Gb | ||
| Storage | |||
| Supported | 1x SATA (2.5"ssd/hd) | ||
| 1 x M.2 slot for 22*80 SSD, support 6Gb/s, support PCIE*4 and SATA3.0 | |||
| Installed SATA SSD/ M.2 SSD | None, Option: 120, 240, 480Gb and 1Tb | ||
| Graphics | |||
| GPU | Intel® UHD Graphics | ||
| Base Frequency 300 Mhz | |||
| Graphics Max Dynamic Frequency: 1.15 Ghz | |||
| Graphics Video Max Memory 32 GB | |||
| Display Interface 1 | HDMI up to 4096 x 2304@60Hz | ||
| Display Interface 2 | Display port up to 4096 x 2304@60Hz | ||
| Supported: | Dual display mode supported | ||
| 4K/ 3D blue ray mode supported | |||
| DirectX* Support: 12 | |||
| OpenGL* Support 4.5 | |||
| Intel® Quick Sync Video | |||
| Intel® InTru™ 3D Technology | |||
| Intel® Clear Video Technology | |||
| Intel® Clear Video HD Technology | |||
| Device ID0x9B41/0x9BCC | |||
| Audio | |||
| Codec | Realtek High Definition Audio Azalia Codec support 2.1 channel output | ||
| Audio Input/Output | 1X Headphone-out/ MIC-in phone jack | ||
| Networking | |||
| LAN | 1x GbE LAN ports: | ||
| LAN1: Onboard RTL8168E PCI-E Gigabit Ethernet NIC | |||
| installed Wireless/ Bluetooth | none, option via mini PCIe (internal antenna pre-installed) | ||
| Connectivity | |||
| USB | 4x USB 3.0 | ||
| 2x USB 2.0 | |||
| 1x Type-C USB 3.1 | |||
| Serials | - | ||
| Special ports/connections | - | ||
| Expansion | 1 x M.2 NGFF slot for Wi-Fi & Bluetooth module | ||
| Advanced Technologies | |||
| • Intel® Optane™ Memory Supported • Intel® Speed Shift Technology • Intel® Thermal Velocity Boost • Intel® Turbo Boost Technology • Intel® Hyper-Threading Technology • Intel® Transactional Synchronization Extensions • Intel® 64 • Instruction Set64-bit • Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2 • Intel® My WiFi Technology • Idle States • Enhanced Intel SpeedStep® Technology • Thermal Monitoring Technologies • Intel® Flex Memory Access • Intel® Identity Protection Technology |
|||
| Security & Reliability | |||
| • Intel® AES New Instructions • Secure Key • Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME • Intel® Memory Protection Extensions (Intel® MPX) • Intel® OS Guard • Execute Disable Bit • Intel® Boot Guard • Intel® Virtualization Technology (VT-x) • Intel® Virtualization Technology for Directed I/O (VT-d) • Intel® VT-x with Extended Page Tables (EPT) |
|||
| Special Functionality | Auto-On | ||
| Bootloader | |||
| Vendor | AMI (American Megatrends) | ||
| Features | ACPI supported | ||
| UEFI 2.4 supported | |||
| support call on function automatically | |||
| Operating System | |||
| Supported | Windows 7/8/10/11/ 10IOT ent 2021, 32-bits and 64-bits | ||
| Windows Server 2019 | |||
| Linux 32-bit and 64-bit | |||
| Embedded OS | |||
| Official Linux | Linux Ubuntu 20.04 LTS (64-bits) | ||
| Installed | None, Optional | ||
| Operating Conditions | |||
| Input Voltage | DC 19V, 40W | ||
| Power Consumption | 6W – 25W, Idle: 0.5W | ||
| Storage Temperature | -20°C~80°C | ||
| Operating Temperature | HDD models: 0°C – 50°C | ||
| SSD models: 0°C – 70°C | |||
| Humidity | 10%-85% | ||
| Enclosure | |||
| Material | Full Aluminum enclosure, black anodized | ||
| Cooling | Passive Cooling Fanless Design | ||
| Dimensions (WxDXH) | 128*128*38mm | ||
| Weight computer | 800 gramm | ||
| Weight total package | 1200 gramm | ||
| Certifications | |||
| Documents | CE | ||
| Package | |||
| In the Box | 1. Computer | ||
| 2. Power supply: input 100-240VAC 50/60Hz, 40W output 19VDC 2.1A, | |||
| EU power cable (UK or USA on request) | |||
| 3. Audio 3.5mm cable (on request) | |||
| 4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option) | |||
| 5. Vesa bracket (option) | |||
| Warranty | 2 years bring-in | ||
|
General specifications : |
 |
|
Specifications processor Intel i7-10510U : |
|
| Driver downloads : |  |
| Options: | (including installation) |
| Standard delivery: | With PSU and EU power cable, audio cable 3.5mm plug and vesa mount bracket. |
| Memory capacity: | No memory (standard), 2, 4, 8 or 16 Gb SoDimm |
| Storage capacity mSata: | No storage (standard), 30/ 60/ 120/ 240 or 480 Gb mSata |
| Operating system (OS): |
No OS (standard), Ubuntu 16.04LTS, Win7 embedded WSP7 multilangual, Win7Pro, Win10Home and Pro.
OS will be installed by default on the mSata SSD if sata and msata storage is chosen.
|
| Wlan/ Bluetooth |
-Without Wlan/ Bluetooth (strandard),
-with Wlan Wifi card DNXA-95 incl. kabels en 2 antennes, of
-with WLAN+BlueTooth; MiniPCIe Qualcom Atheros model: QCWB335,driver: QCA 9565, Freq. Range: 2.4GHz/5GHz Dual band, 802.11a/b/g,802.11n + Bluetooth 4.0 incl.cables and 2 antennas
|
| Input equipment: | None (standard) or wireless keyboard/ mouse |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
