Type A1Touch-M2A-N200-16-256-W11PRO
Description: Micro pc, model M2A, with Intel N200 4-core, 4-thread processor upto 3.7 Ghz Processor standard delivered with 16Gb DDR5 memory and 256 Gb NVME with (activated) Windows 11 Pro multilanguage installed. This very small Mini pc is build for easy integration on spots with less space.

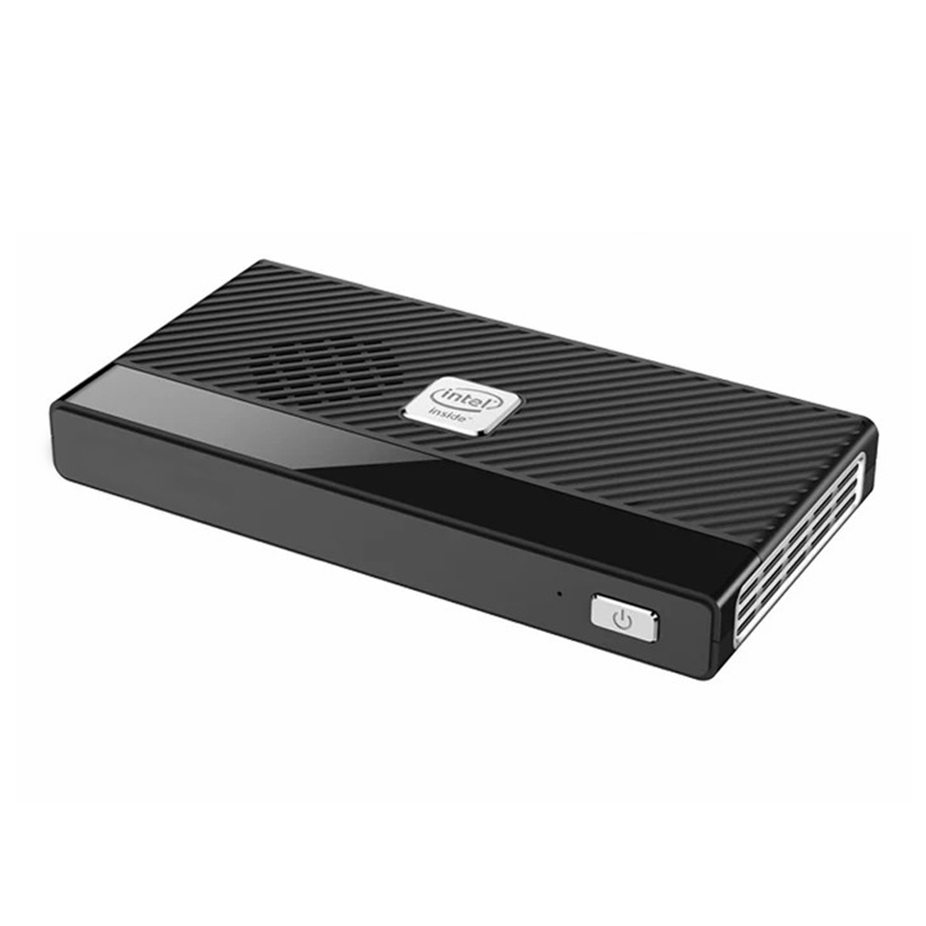

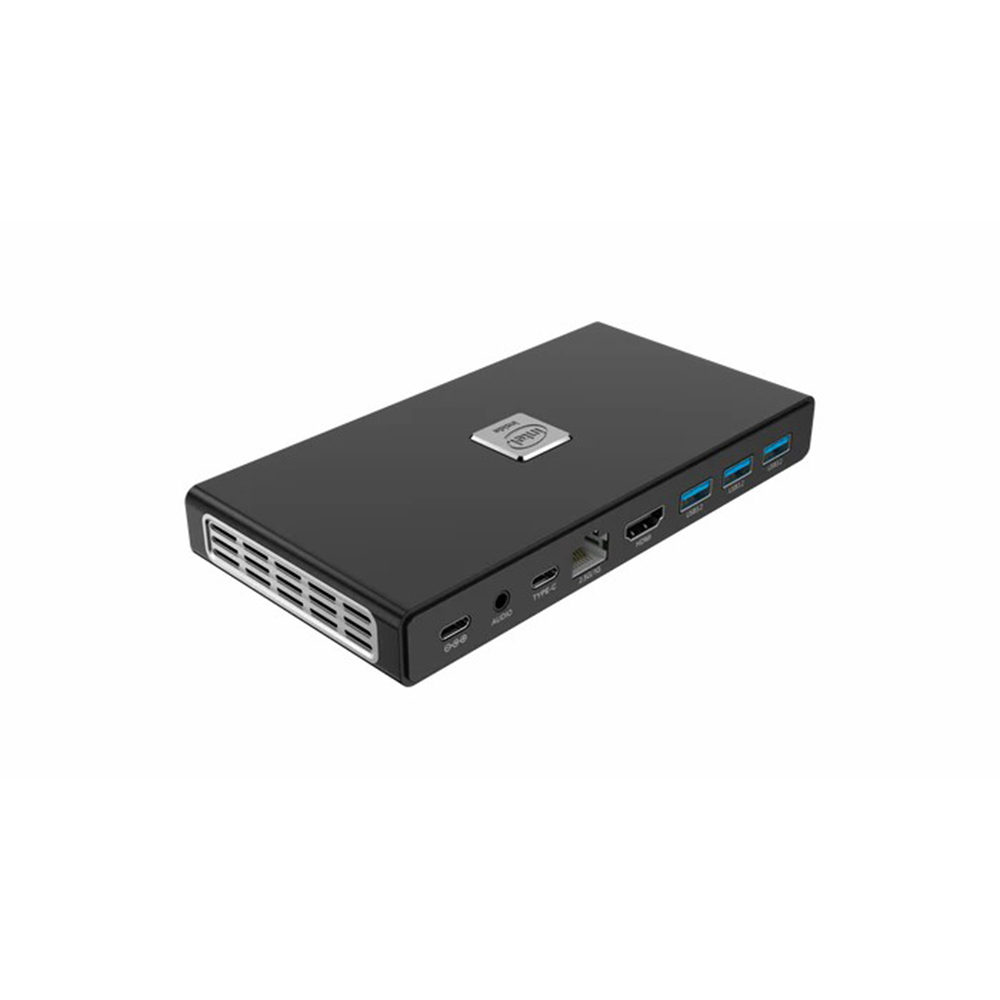

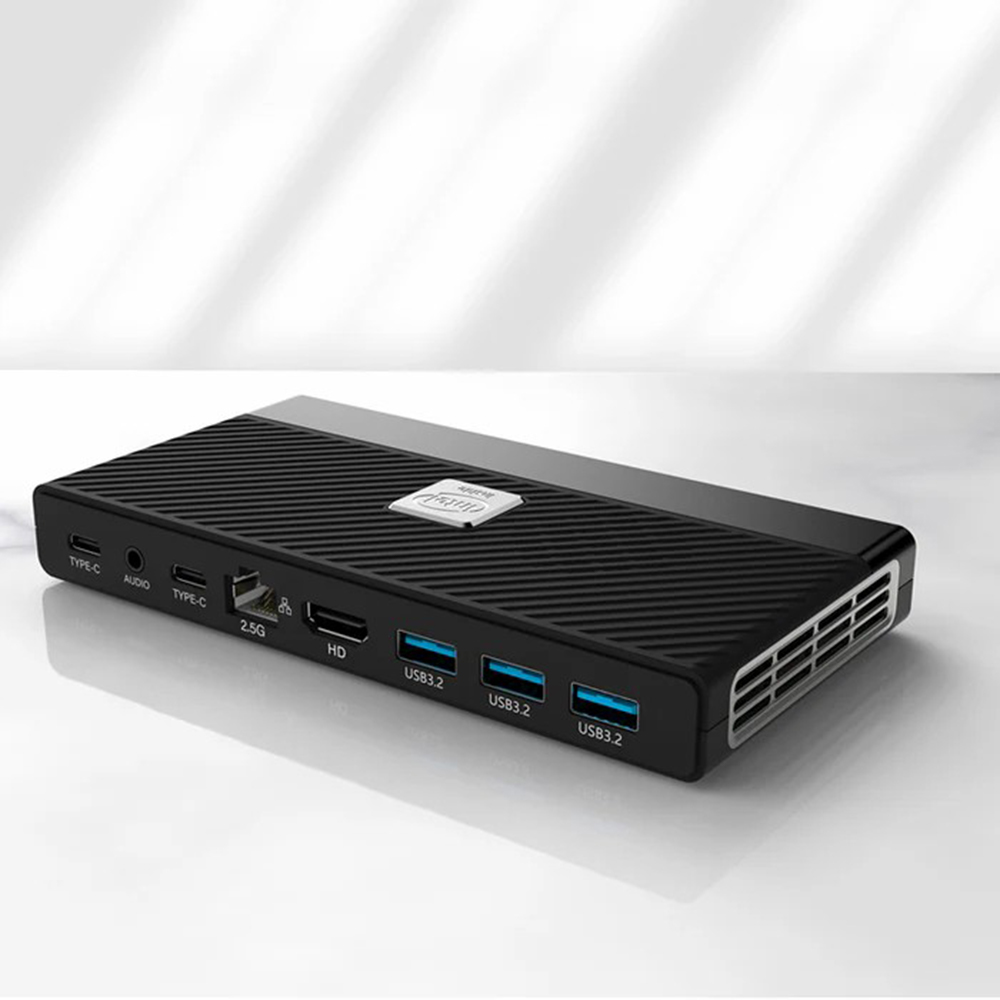

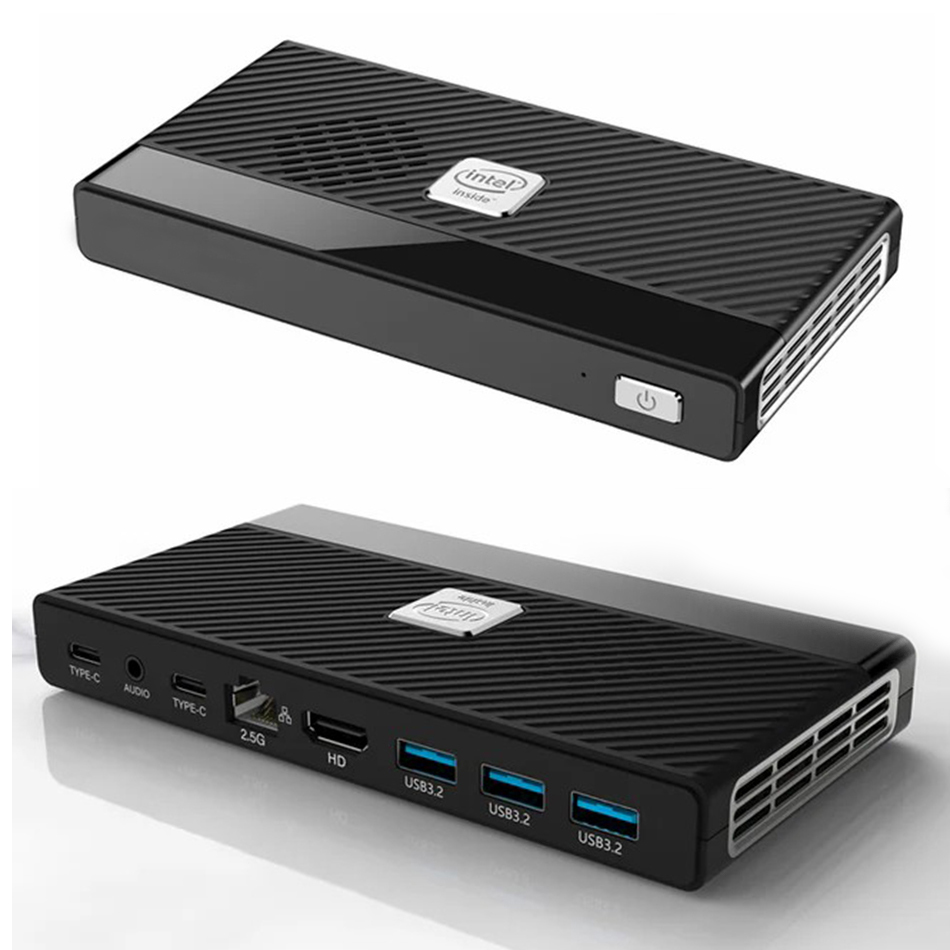

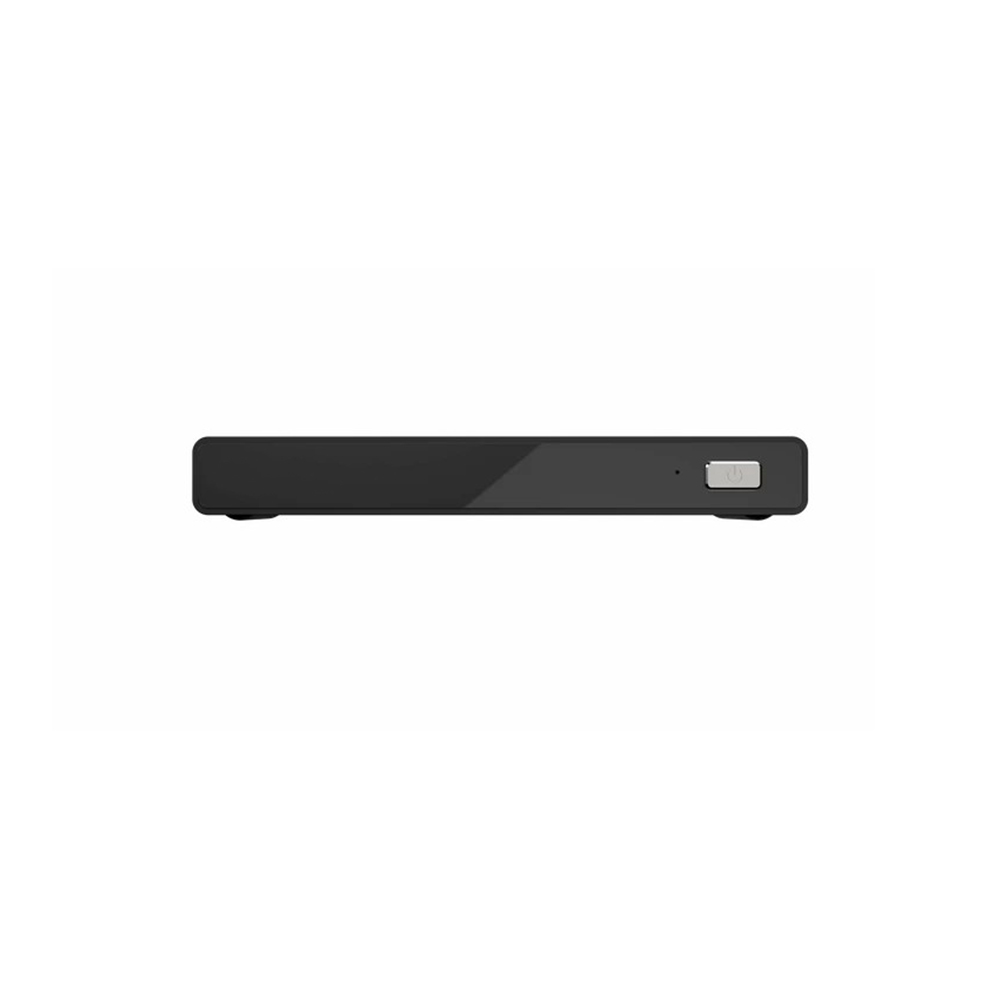

FRONT: On/Off button. BACK: 1x 2.5Gb LAN, 1x HDMI, 3x USB3.2, 1x USB-C, 1x Audio, 1x input 12VDC. Dimensions:155x80x19 mm. Weight:196 Gramm.
Unit is in stock
Product Features:
- Fast solution with N150/N200 Intel processor up to 6Mb Cache – 3.7 Ghz.
- Very small: only 155x80x19 mm
- Very Light: unit including psu only 196 gramm
- Easy solution for integration in product.
- Auto-on after power failure.
Applications:
|
Travel computer
|
Integration in machines.
|
|
Exhibition
|
Education training
|
|
Public query machine
|
Self-service machine
|
|
Surveillance system
|
And more
|
Specifications:
|
General |
|
|
Model: |
A1Touch-M2A-N200-16-256-W11PRO |
|
Case: |
Black Aluminum Alloy+ABS |
|
Functions: |
TPM2.0, PXE, RTC, Wake on LAN, Auto power on |
|
Cooling mode: |
Ultra-quiet Large fan |
|
Processor |
|
|
Type: |
Intel® Processor N150/N200 |
|
Platform: |
Intel Alder Lake-N |
|
Performance: |
4-core, 4-threads, 6MB Cache, up to 3.7 GHz |
|
GPU: |
Gen12 |
|
Dimensions |
|
|
Outside dimensions frame (wxdxh) |
155x80x19mm |
|
Memory / Storage |
|
|
Ram: |
16GB Ram DDR5 4800 MHz, LPDDR5 4800 MHz |
|
Storage: |
1 x M.2 2280 Nvme pcie SSD, up to 2TB - 256Gb Nvme installed. |
|
Additional storage: |
1 x M.2 2280 Nvme/Sata SSD, up to 2TB - options: 120-240-480-1Tb |
|
Wifi / Bluetooth |
|
|
Yes, (Internal) type: |
1 x M.2 2230(Key E) slot for Wi-Fi 6module(2.4G/5G Wi-Fi B/G/N/AC/AX and |
|
Audio |
|
|
Yes, type: |
High Definion Audio Controller |
|
Ports |
|
|
USB: |
3 x USB3.2 1x USB3.1 Type C Support 4 k |
|
HDMI: |
1x HDMI 2.0，Support 4 k |
|
Ethernet: |
1x ethernet RJ45, 2.5 Gb LAN with led indication. |
|
Power: |
1x button |
|
LED: |
1x LED |
|
Reset: |
1x hole |
|
Environment |
|
|
Temperature: |
Operating: -10°C ~ 60°C Storage: -20°C ~ 70°C |
|
Relative Humidity: |
Operating: 0-90%(non-condensing at max 40°C) Storage: 0-90%(non-condensing at max 40°C) |
|
Altitude: |
Up to 3000m |
|
Electrical |
|
|
Operation Voltage: |
Typical +DC 12V, +/- 1.5V |
|
Power Supply: |
110-220V AC to 12Volt DC, min. 2A |
|
Power: |
6-10 W, Idle: 0.5 W |
|
Packing |
|
|
Weight net.: |
196 gramm, (incl psu: tot. 258 gramm) |
|
Delivery |
1xMini PC, 1xPower Adapter, 1x Vesa bracket with screws |
Downloads:
|
General specifications : |
 |
| Driver downloads : |  |
Options: (including installation where applicable)
| Standard delivery: | With Power Supply |
| Input equipment: | None (standard) or wireless keyboard/ mouse |
