A1Touch-V1, i3 -i5- i7 passive cooled mini pc

mini computer
A1Touch-V1, i3 -i5- i7 passive cooled mini pc
Net price (excl.VAT) €415,00
Art.No.:
1020152613
Brand:
A1Touch Solution

Type A1Touch-V1-i3-4030U, V1-i5-4210U or A1Touch-V1-i7-4500U barebone.​

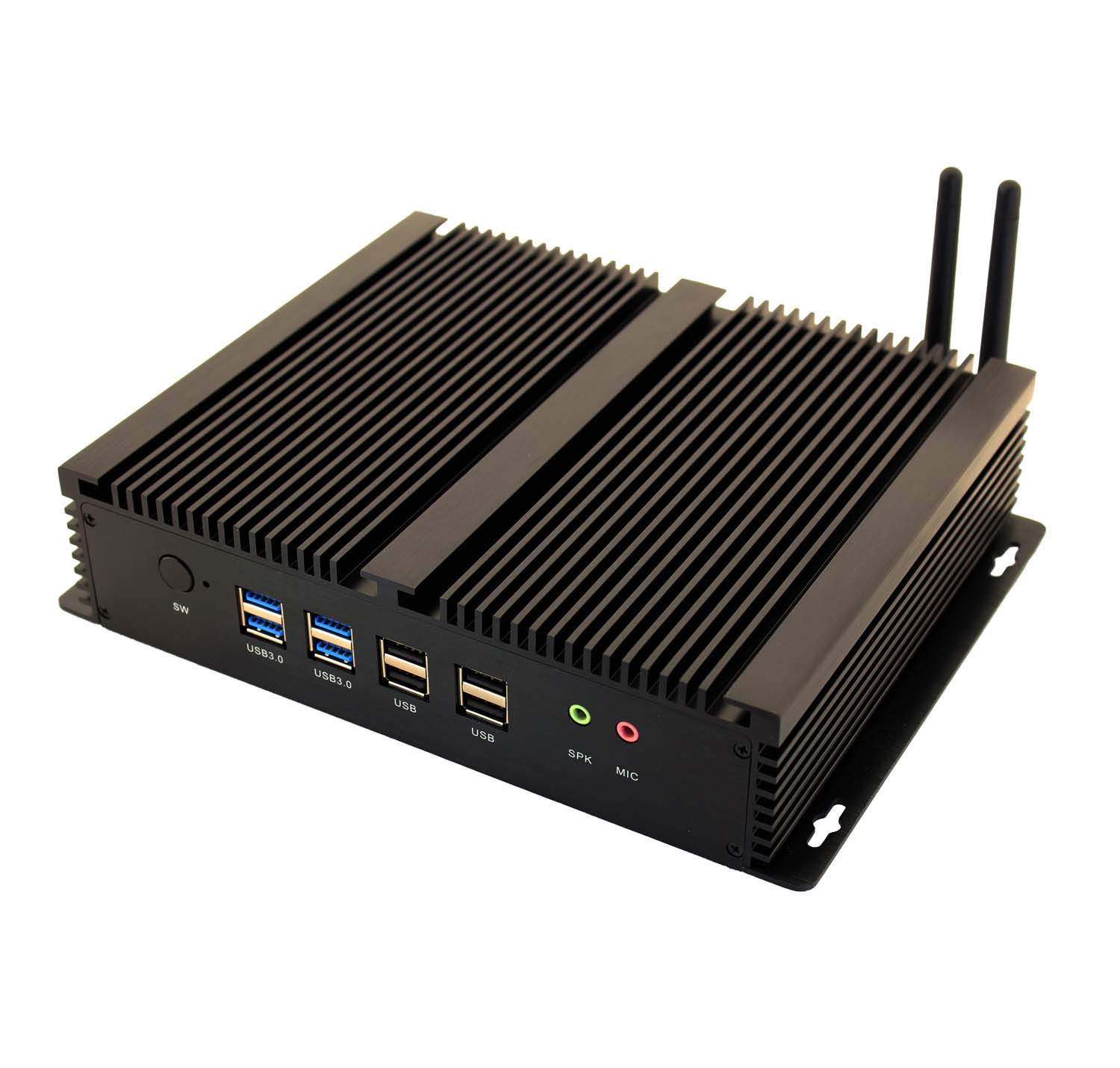

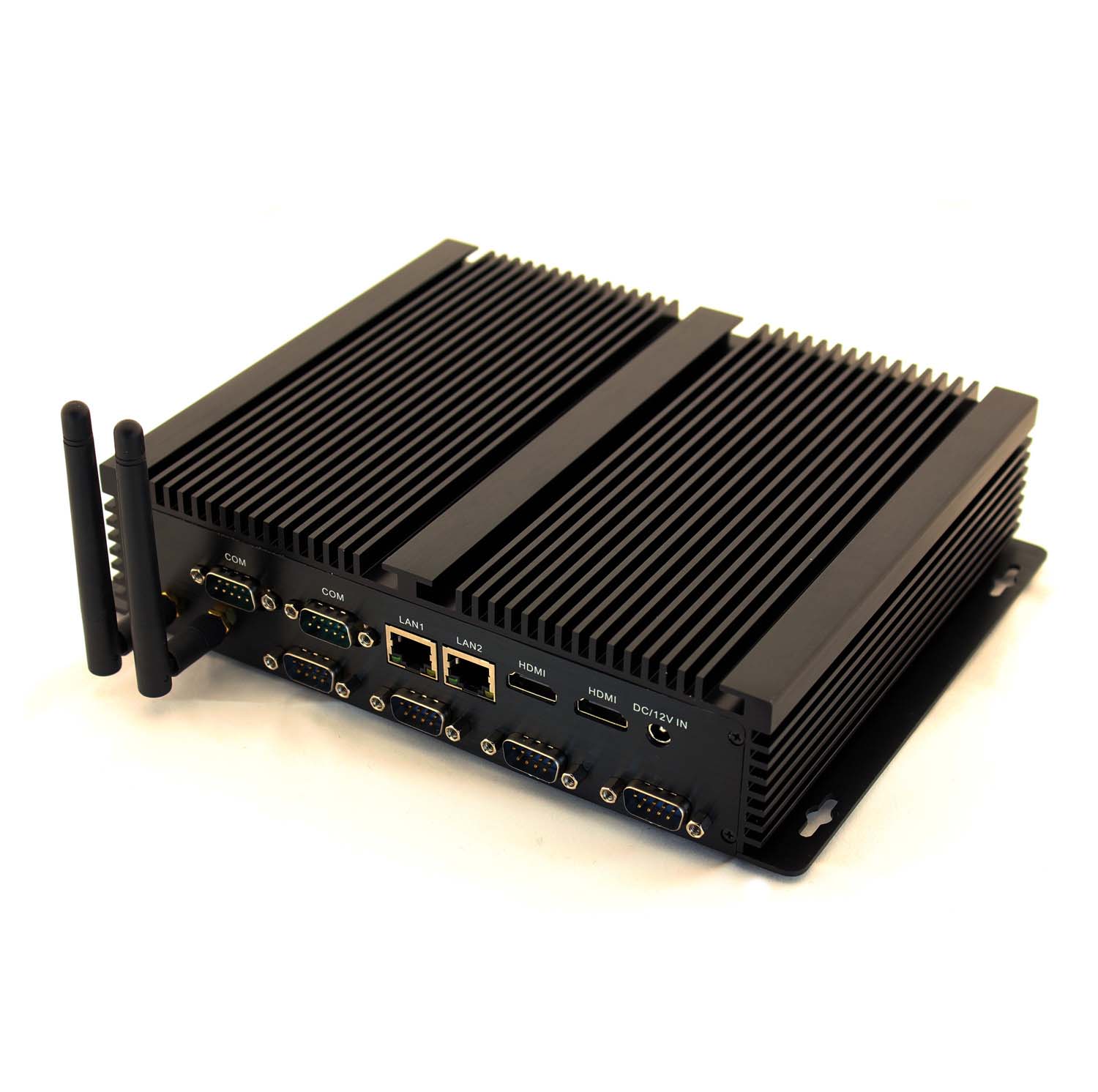

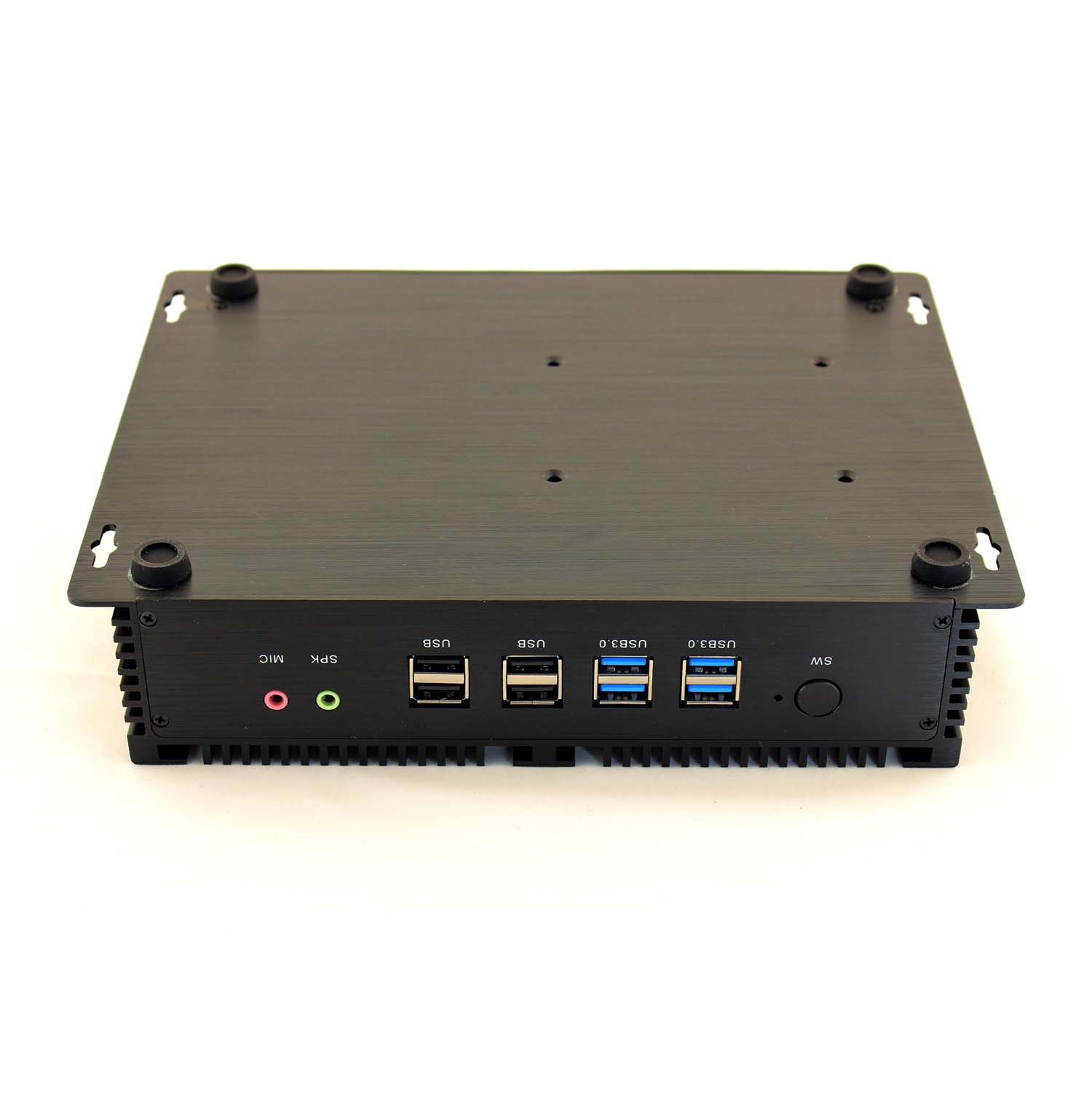

Description: Passive cooled Industrial mini computer, model V1, with Intel i3 dc1.9 Ghz,  i5 dc 2.9 Ghz  or Intel i7 dc 2-3.10 Ghz Processor.This full metal Mini pc is build for long term use with all necessary connections: FRONT: On/Off button, 4xUSB2 4xUSB3, mic, spk. BACK side: 6xRS232, 2xGb LAN, 2x HDMI. 12Vdc  Dimension: 234*150*45mm.
V1-i3, V1-i5  and V1-i7 are in stock.

Processor
Type Intel i3-4030U, i5--4300U or Intel i7-4510U Haswell
Cores 64-bit 2 core, 4 thread
Clock speed i3 version: 1.9Ghz | i7 version: 2 up to 3.10 Ghz
Cache i3 version: 3 Mb smartCache | i7 version: 4 Mb smartCache
TDP 15W
Chipset Haswell Lynx Point LP
Memory
Supported 1x SO-DIMM 204-pin DDR3L SDRAM memory slots
Up to 16GB (1x 16GB) DDR3L-1333/1600 (1.35V only)
Installed None; option 1*2, 1*4, 1*8, 1*16 Gb
Storage
Supported 1x SATA up to 6 Gbps (SATA 3.0) for internal 2.5” HDD/SSD
1x mSATA slot up to 6 Gbps (SATA 3.0)
Installed mSATA SSD None, Option: 30, 60, 120, 240, 480 Gb
Installed SATA HD/SSD None, option: HD: 250, 500 Gb; SSD: 120, 240, 480 Gb
Graphics
GPU Intel HD Graphics 4400 (350~1050MHz)
Base Frequency 200 Mhz
Graphics Max Dynamic Frequency 1.1 GHz
Graphics Video Max Memory 2 GB
Display Interface 1 HDMI 1.4a up to 3200x2000@60Hz
Display Interface 2 HDMI 1.4a up to 3200x2000@60Hz
Supported: Dual display mode supported
  4K mode supported
  DirectX* Support: 11.2/12
  OpenGL* Support 4.3
  Intel® Quick Sync Video
  Intel® InTru™ 3D Technology
  Intel® Flexible Display Interface (Intel® FDI)
  Intel® Clear Video HD Technology
  Intel® Wireless Display
  Intel® Insider™
Audio
Codec Realtek ALC892 HIFI sound chip, 6-channel
Audio Output Analog stereo output
3.5mm jack
Audio Input
Analog stereo Microphone input
  3.5mm jack
Networking
LAN 2x GbE LAN ports:
LAN1:Intel 82583V PCI-E Gigabit Ethernet NIC (RJ-45)
LAN2:Intel 82583V PCI-E Gigabit Ethernet NIC (RJ-45)
installed Wireless/ Bluetooth none, option via mini PCIe dual antenna
Connectivity
USB 4x USB 3.0
  4x USB 2.0
Serials 6x RS232 COM
Special ports/connections -
Expansion 1 * 3G SIM Card slot (option)
1* Half-size mini-PCIe socket
  1* Full-size mini-PCIe/mSATA socket
Advanced Technologies
  Intel® Turbo Boost Technology 2.0 (only i7 version)
  Intel® Hyper-Threading Technology
  Intel® Virtualization Technology (VT-x)
  Intel® Virtualization Technology for Directed I/O (VT-d)
  Intel® VT-x with Extended Page Tables (EPT)
  Intel® 64
  Idle States
  Enhanced Intel SpeedStep® Technology
  Thermal Monitoring Technologies
  Intel® ME Firmware Version 9.5
  Intel® HD Audio Technology
  Intel® Identity Protection Technology
  Intel® Rapid Storage Technology
  Intel® Smart Connect Technology

Special Functionality Auto-On
Wake-on-LAN
Wake-on-Timer
PXE Boot
Watchdog
Bootloader
Vendor AMI (American Megatrends)
Features ACPI supported
UEFI 2.4 supported
support call on function automatically
Operating System
Supported Windows 7/8/10/11/ 10IOT ent 2021, 32-bits and 64-bits
Windows Server 2012 R2
Linux 32-bit and 64-bit
Embedded OS
Official Linux
Linux Ubuntu 20.04 LTS  (64-bits)
Installed None, Optional
Operating Conditions
Input Voltage DC 12V
Power Consumption 6W – 15W, Idle: 1.0W
Storage Temperature -20°C~80°C
Operational Temperature HDD models: 0°C – 50°C
SSD models: 0°C – 70°C
Humidity 10%-90%
Enclosure
Material Full Aluminum enclosure, black anodized
Cooling Passive Cooling Fanless Design
Dimensions (WxDXH) 234*176*52mm (bottom), 212*176*52mm (top)
Weight computer 1500 gramm
Weight total package 2000 gramm
Certifications
Documents CE, FCC, ROHS
Package

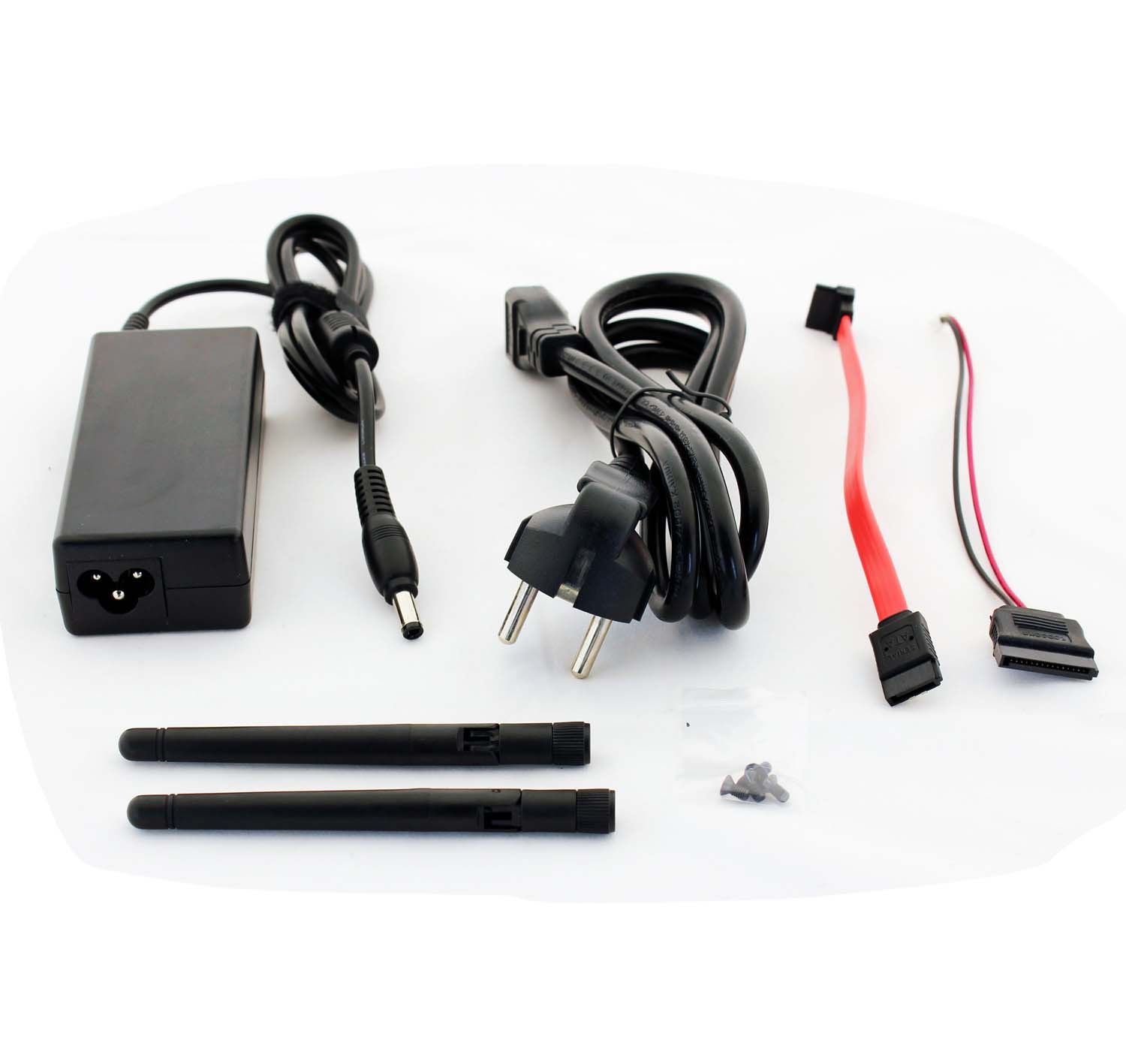

In the Box 1. Computer
2. Power supply: input 100-240VAC 50/60Hz, 30W output 12VDC 2.5A (i3), 5A (i7).
EU power cable (UK or USA on request)
3. Audio 3.5mm cable
4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option)

Warranty 2 years bring-in

General specifications :

Specs 15 inch desktop pc mini ITX Q1900B manual

Specifications processor Intel i3-4030U :

Specs mini pc v1

Specifications processor Intel i7-4510U :

Specs 15 inch desktop pc mini ITX Q1900B manual
Driver downloads : Driver downloads
Options: (including installation)
Standard delivery: With PSU and EU power cable kabel and audio 3.5mm cable.
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity mSata: No storage (standard),  30/ 60/ 120/ 240 or 480 Gb mSata
Storage capacity Sata: No storage (standard), Harddisk 250/500 Gb or SSD in 60/ 120/ 240 or 500 Gb.
Operating system (OS):
No OS (standard), Ubuntu 16.04LTS, Win7 embedded WSP7 multilangual, Win7Pro, Win10Home and Pro.
OS will be installed by default on the mSata SSD if sata and msata storage is chosen.
Wlan/ Bluetooth
-Without Wlan/ Bluetooth (strandard),
-with Wlan Wifi card DNXA-95 incl. kabels en 2 antennes, of
-with WLAN+BlueTooth; MiniPCIe Qualcom Atheros model: QCWB335,driver: QCA 9565, Freq. Range: 2.4GHz/5GHz Dual band, 802.11a/b/g,802.11n + Bluetooth 4.0 incl.cables and 2 antennas
Input equipment: None (standard) or wireless keyboard/ mouse

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
