A1Touch-V5-1, Celeron passive cooled mini pc

mini computer v5-1
A1Touch-V5-1, Celeron passive cooled mini pc
Net price (excl.VAT) €129,00
Art.No.:
1020152694
Brand:
A1Touch Solution

Type A1Touch-V5-1-Cel-N28xx

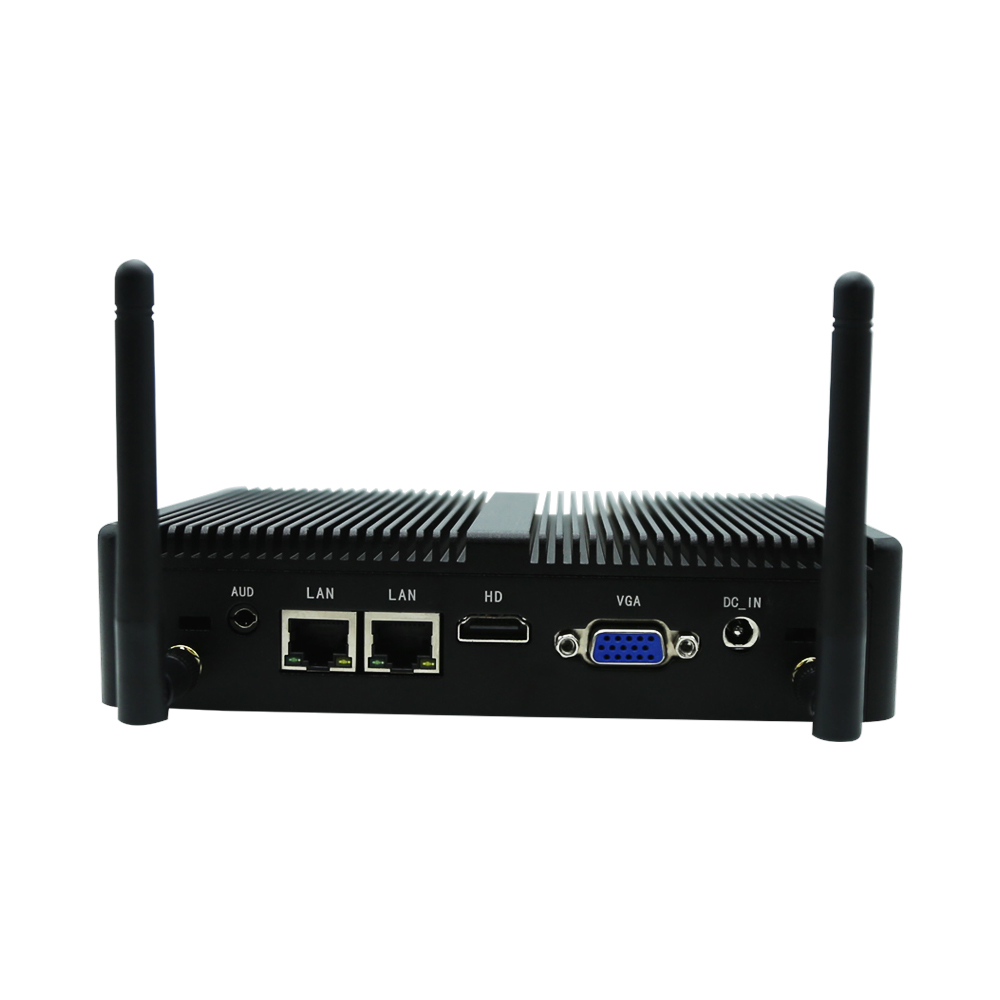

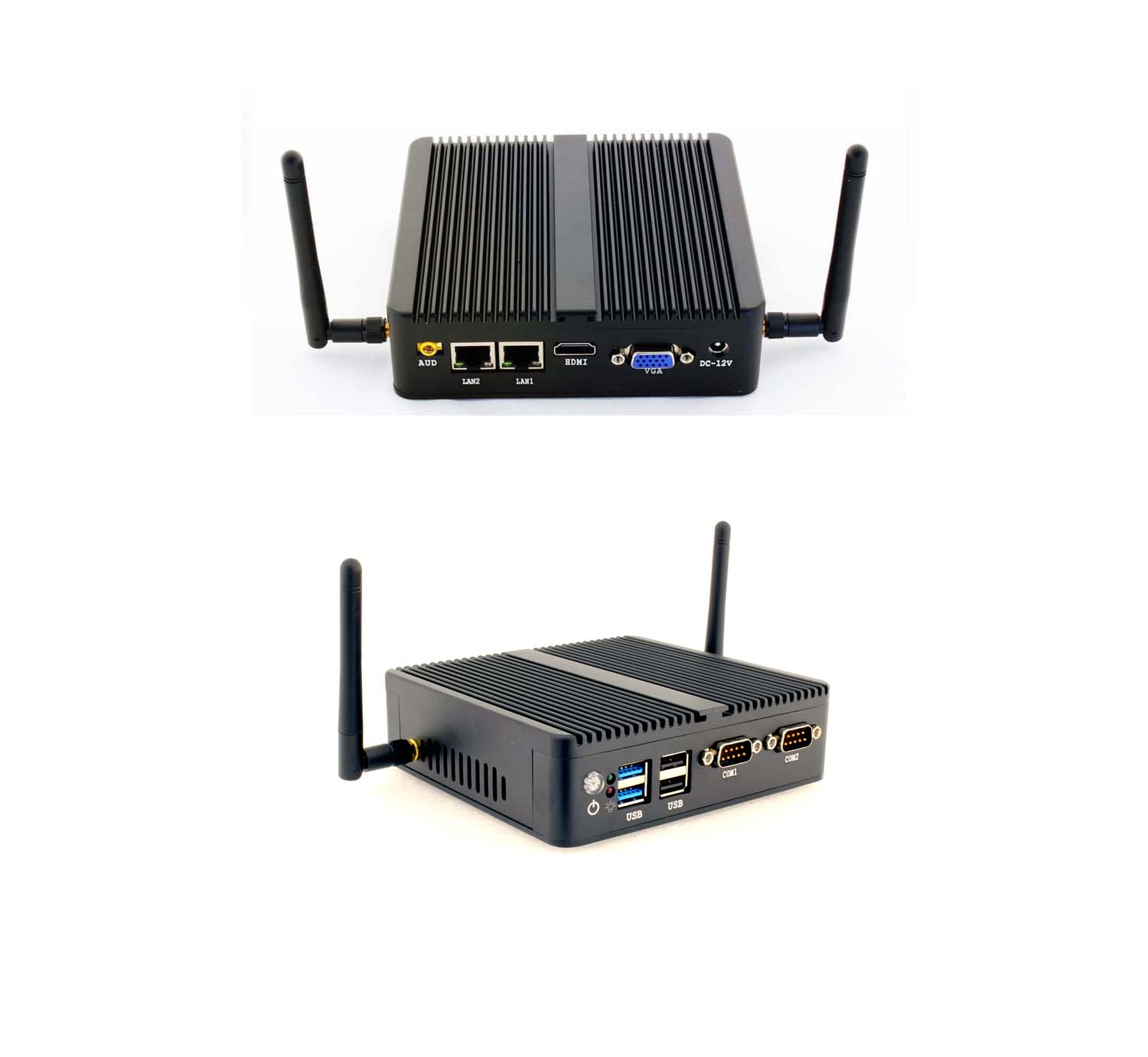

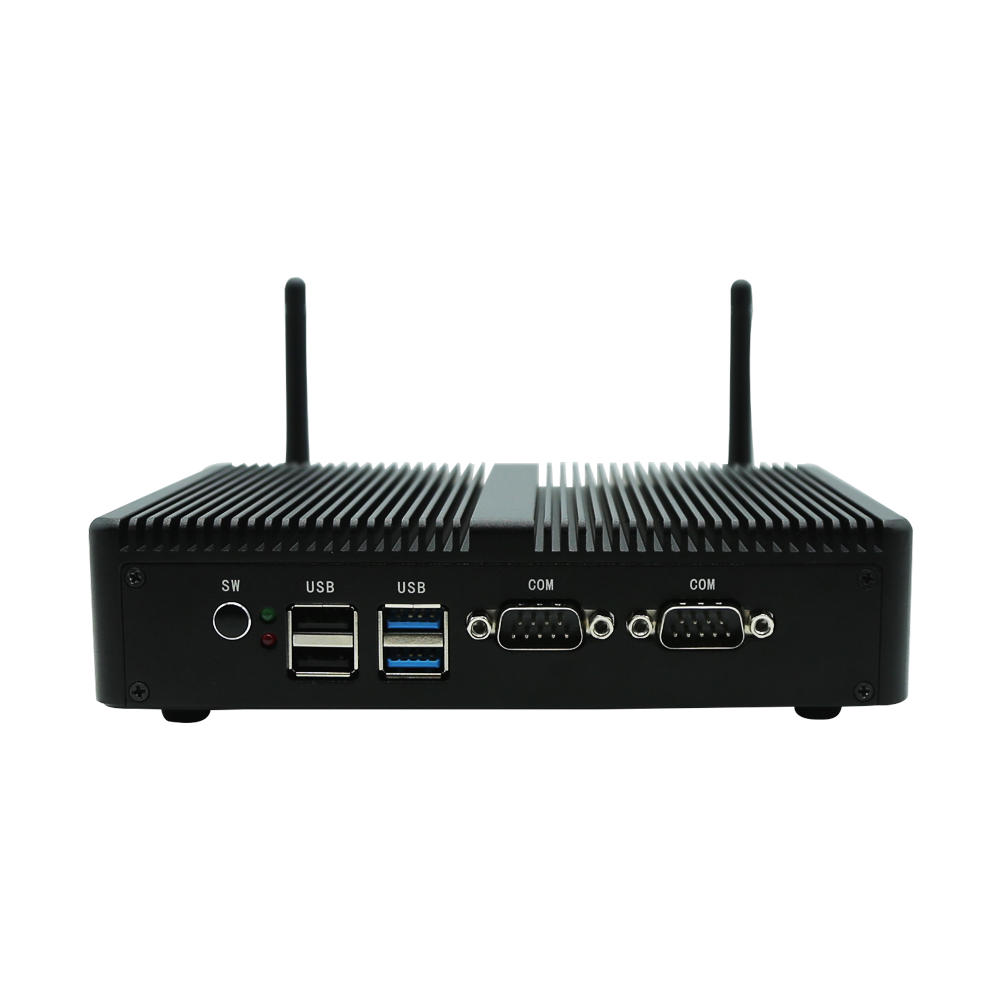

Description: Passive cooled mini computer, model V5, with Intel Celeron dc 2.16 upto 2.58 Ghz Processor standard delivered as barebone. This low budget black aluminium Mini pc is build for logging activities connections: FRONT: On/Off button, 2xUSB2, 2xUSB3, 2xRS23, power led, HDD activity led. BACK: 1x 3.5mm jack for mic/sp, 2xGb LAN, 1x HDMI. 1x VGA, 12Vdc in. Dimension: 136x126x39mm.
​​Unit is in stock.

Processor
Type Intel Celeron N28xx
Cores 64-bit 2 core, 2 thread
Clock speed 2.16 upto 2.58 Ghz
Cache 1 Mb smartCache
TDP 7.5 W
Chipset -
Memory
Supported 1x SO-DIMM 204-pin DDR3L SDRAM memory slots
Up to 16GB (1x 16GB) DDR3L-1333/1600 (1.35V only)
Installed None; option 1*2, 1*4, 1*8, 1*16 Gb
Storage
Supported 1x SATA up to 6 Gbps (SATA 3.0) for internal 2.5” HDD/SSD
1x mSATA slot up to 6 Gbps (SATA 3.0)
Installed mSATA SSD None, Option: 30, 60, 120, 240, 480 Gb
Installed SATA HD/SSD None, option: HD: 250, 500 Gb; SSD: 120, 240, 480 Gb
Graphics
GPU Intel HD Graphics
Base Frequency 100 Mhz
Graphics Max Dynamic Frequency 800 MHz
Graphics Video Max Memory 2 GB
Display Interface 1 HDMI 1.4a up to 3200x2000@60Hz
Display Interface 2 VGA (analog)
Supported: Dual display mode supported
  DirecX* Support: 11.2/12
  Intel® Quick Sync Video
  Intel® InTru™ 3D Technology
  Intel® Flexible Display Interface (Intel® FDI)
  Intel® Clear Video HD Technology
Audio
Codec Realtek high definition
Audio Output Analog stereo output
3.5mm jack
Audio Input Analog stereo Microphone input
3.5mm jack
Networking
LAN 1x GbE LAN port
  LAN1: Onboard RTL8168E PCI-E Gigabit Ethernet NIC
  LAN2: Onboard RTL8168E PCI-E Gigabit Ethernet NIC
installed Wireless/ Bluetooth Qualcomm Atheros AR956x + Bluetooth via mini PCIe dual antenna
Connectivity
USB 2x USB 2.0, 2x USB3.0

Serials 2x RS232 COM
Special ports/connections -
Expansion
1* Half-size mini-PCIe socket
Advanced Technologies
  Intel® Virtualization Technology (VT-x)
  Intel® Virtualization Technology for Directed I/O (VT-d)
  Intel® VT-x with Extended Page Tables (EPT)
  Intel® 64
  Idle States
  Enhanced Intel SpeedStep® Technology
  Thermal Monitoring Technologies
  Intel® Fast Memory Access
  tel® Flex Memory Access
  Intel® Identity Protection Technology

Special Functionality Auto-On
Wake-on-LAN
Wake-on-Timer
PXE Boot
Watchdog
Bootloader
Vendor AMI (American Megatrends)
Features ACPI supported
UEFI 2.4 supported
support call on function automatically
Operating System
Supported Windows 7/8/10, 32-bit and 64-bit
Windows Server 2012 R2
Linux 32-bit and 64-bit
Embedded OS
Official Linux Linux Ubuntu 16.04 LTS  (64-bit)
Installed None, Optional
Operating Conditions
Input Voltage DC 12V
Power Consumption 8W – 15W, Idle: 2.6W
Storage Temperature -20°C~80°C
Operational Temperature HDD models: 0°C – 50°C
SSD models: 0°C – 70°C
Humidity 10%-90%
Enclosure
Material Full Aluminum enclosure, silver anodized
Cooling Passive Cooling Fanless Design
Dimensions (WxDXH) 136x126x39mm
Weight computer 650 gramm
Weight total package 1000 gramm
Certifications
Documents CE, FCC
Package

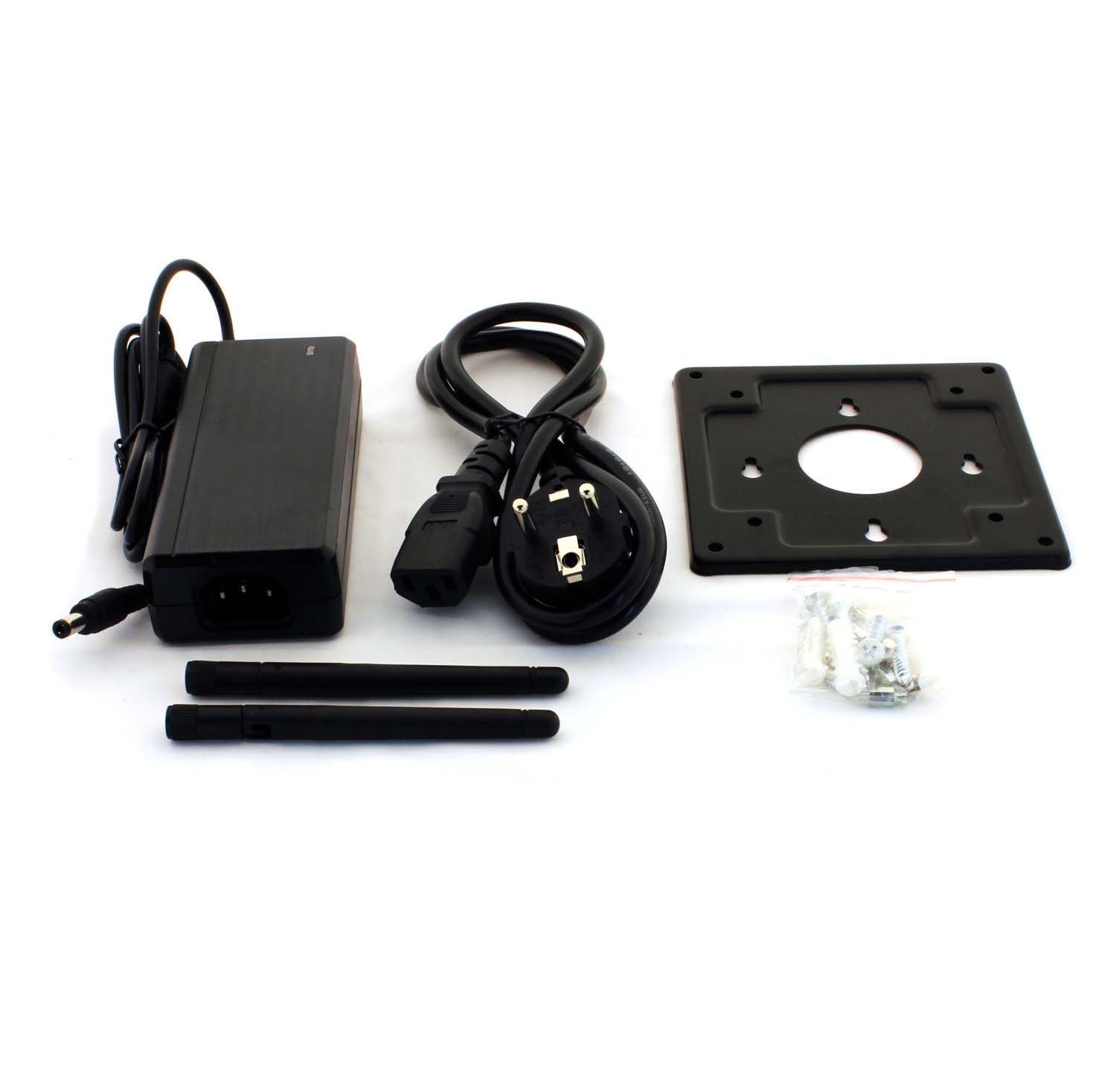

In the Box 1. Computer
2. Power supply: input 100-240VAC 50/60Hz, 60W output 12VDC 5A,
EU power cable (UK or USA on request)
3. Audio 3.5mm cable
4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option)
Warranty 2 years bring-in

General specifications :

Specs 15 inch desktop pc mini ITX Q1900B manual
Driver downloads : Driver downloads
Options: (including installation)

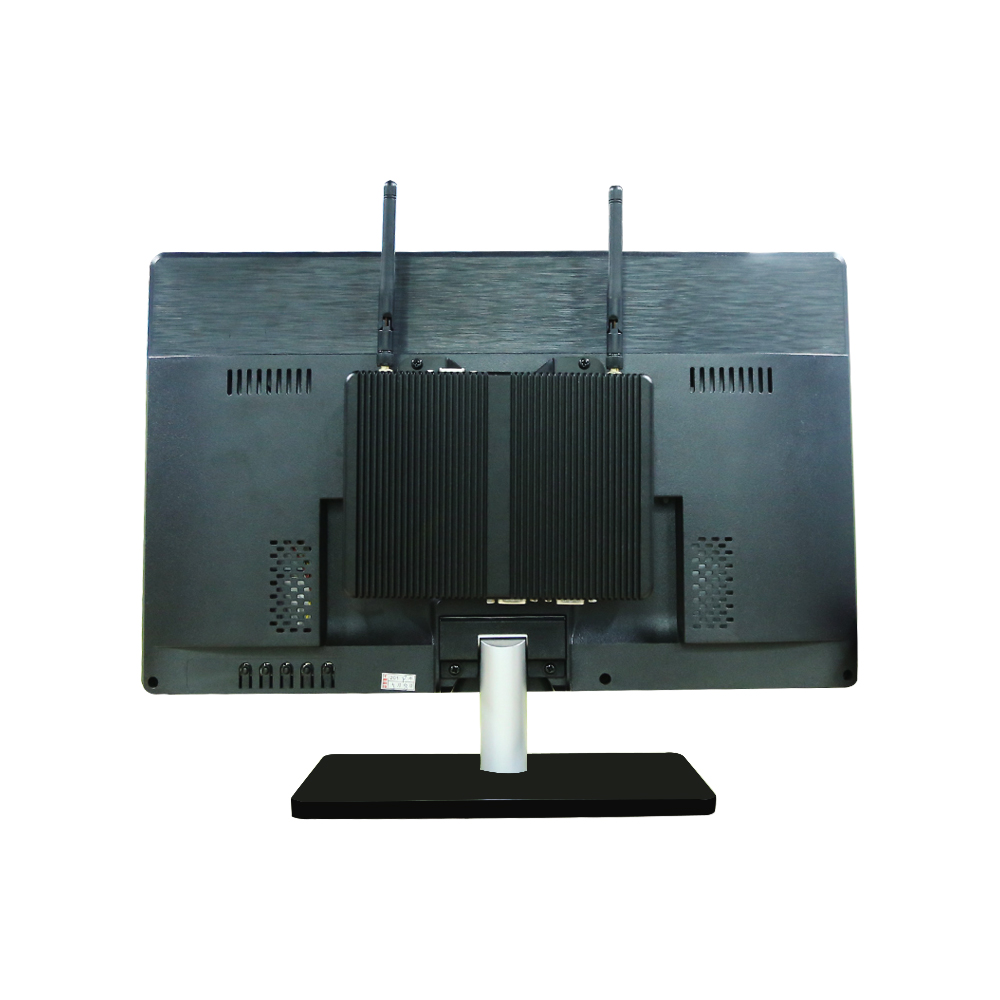

Standard delivery: With PSU and EU power cable, audio cable 3.5mm plug and vesa bracket.
Memory capacity: None (standard), 2, 4 or 8 Gb SoDimm
Storage capacity mSata: None (standard), 120/ 240 or 480 Gb mSata
Storage capacity Sata: No storage (standard), Harddisk 250/500 Gb or SSD in 60/ 120/ 240 or 500 Gb.
Operating system (OS):
No OS (standard), Ubuntu 16.04LTS, Win7 embedded WSP7 multilangual, Win7Pro, Win10Home and Pro.
OS will be installed by default on the mSata SSD if sata and msata storage is chosen. Noitice to use > 32Gb for Windows OS.
Wlan/ Bluetooth
-Without Wlan/ Bluetooth (strandard),
-with Wlan Wifi card DNXA-95 incl. kabels en 2 antennes, or
-with WLAN+BlueTooth; MiniPCIe Qualcom Atheros model: QCWB335,driver: QCA 9565, Freq. Range: 2.4GHz/5GHz Dual band, 802.11a/b/g,802.11n + Bluetooth 4.0 incl.cables and 2 antennas
Input equipment: None (standard) or wireless keyboard/ mouse

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
