Keyboard type: A1touch_299B-1

Keyboard type: A1touch_299B-1
Net price (excl.VAT) €261,00
A1Touch Solution

Unit is in stock

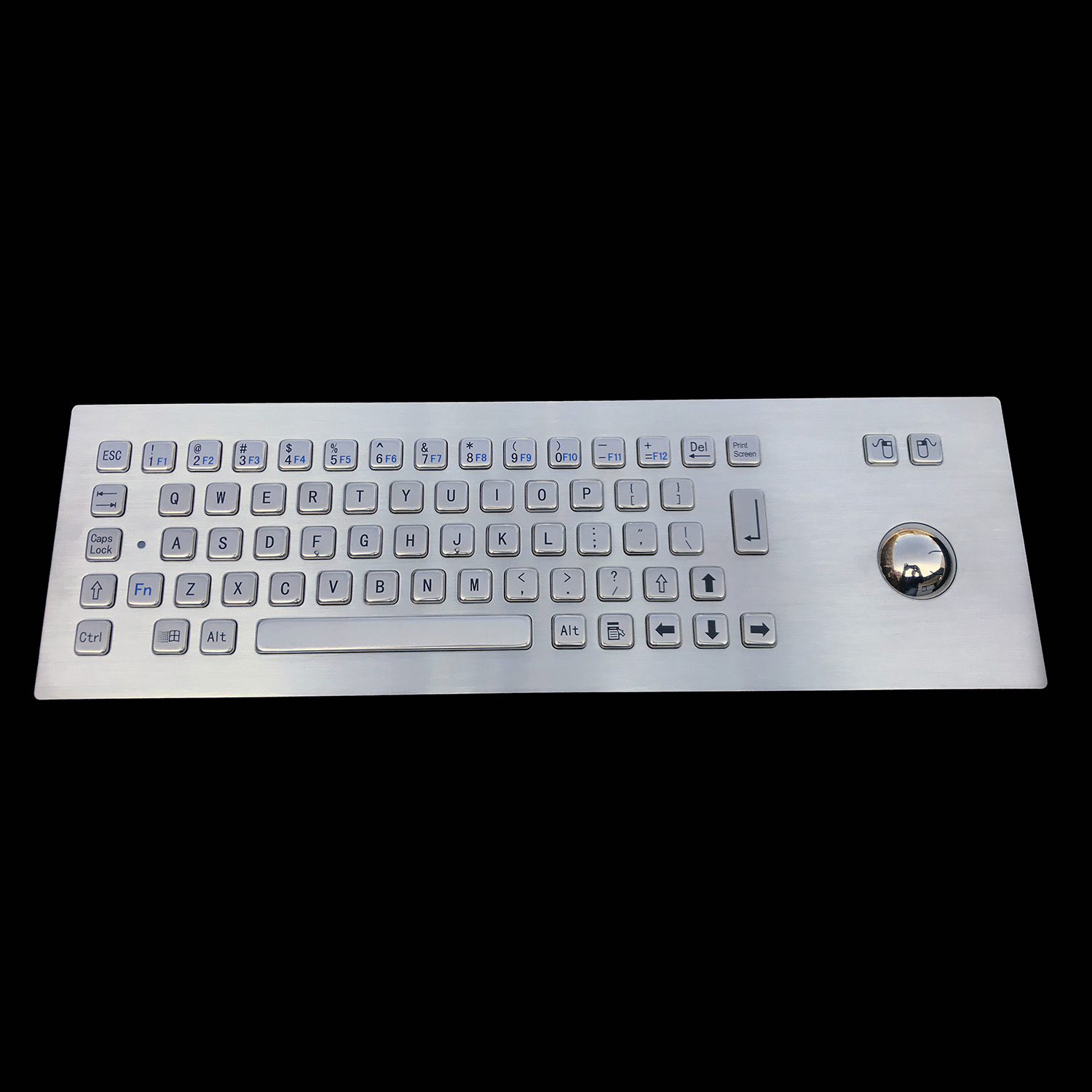

Description: RVS panel mount Keyboard, type 299B with qwerty keyboard for industial use. Vandal- + water- + dust-proof unit for long endurance.


  • 65 keys stainless steel panel mount keyboard
  • Standard layout: QWERTY - US
  • Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux and Unix
  • Waterproof and dustproof
  • Very rugged vandal proof design
  • Can be cleaned with soapy water, disinfectant or other cleaning agents
  • Carbon-on-Gold key switch technology PCB
  • PS/2 or USB interface available
  • Customized language layout available
  • Front Panel mounting solution



  • Front Panel: High quality stainless steel
  • Keys: High quality stainless steel
  • Back panel: Aluminum
  • Trackball: High quality stainless steel



  • Front Panel: 400 ×124mm


Mechanical Performance:

  • Operating Temperature:-10°to+50°
  • Storage Temperature: -30°to +80°
  • Relative humidity: 30%~95%
  • Atmospheric pressure: 50 to 110kPa
  • Lifespan: >1 million operations per key
  • Key trip: 2mm
  • Key pressure: 120g
  • Weight: 2.1kg


Electrical Performance:

  • Voltage: 5.0VDC±5%
  • Electric current: 10mA
  • EMC Emission: EN55022(B)



  • MTBF: >20,000 hours
  • MTTR: < 30 minutes
  • CE, FCC, RoHS compliant
  • Waterproof and dustproof Class: IP65
  • Vandal resistant: IK07

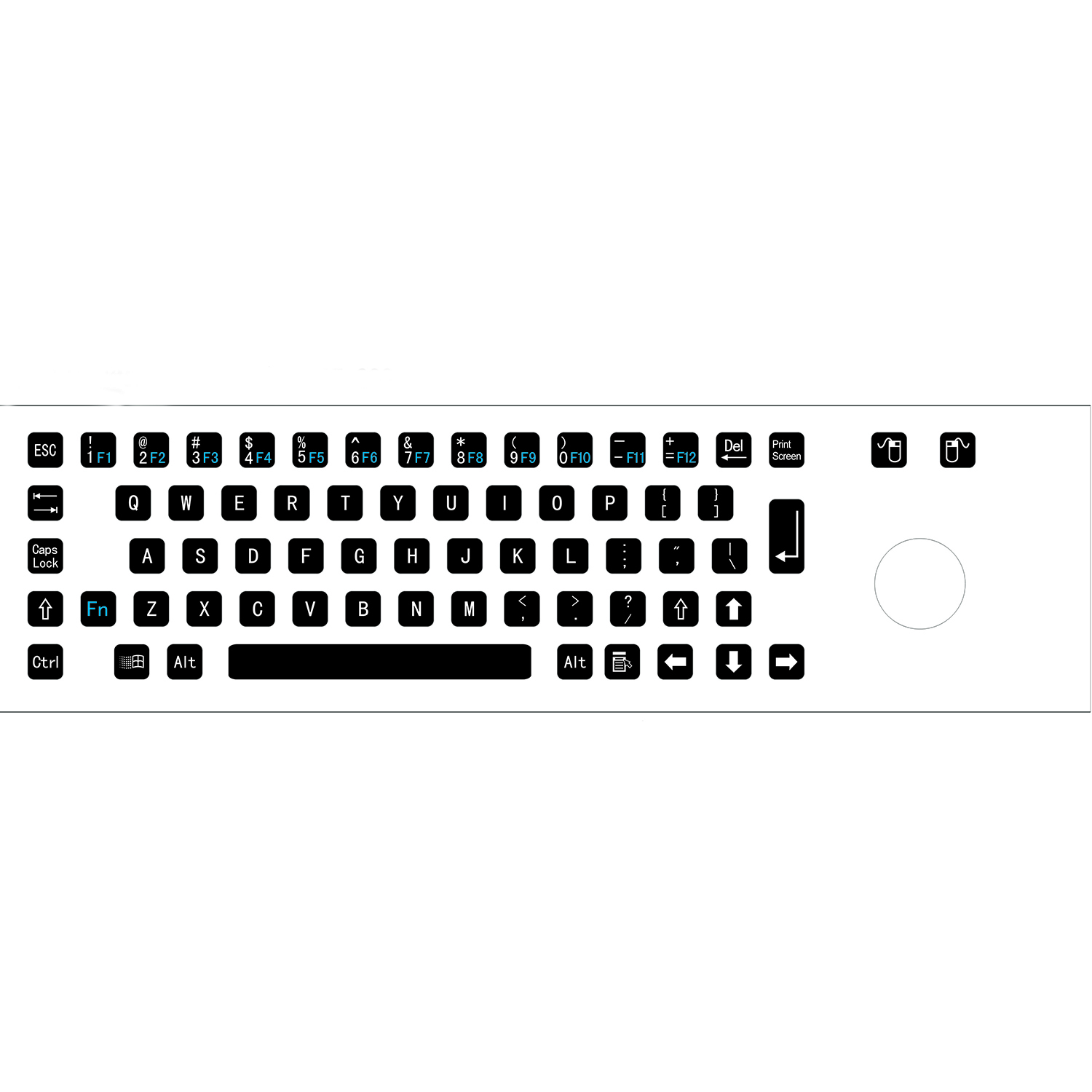

Specifications + Drawing :

Specs Keyboard type A1Touch_299B-1
