Projected Capacitive (PCAP)


Explanation:


The touch sensitive layer of pcap sensor consists of a series of micro-fine wires which are not visible on an active screen. In contrast to the "surface capacitive touch " system, in which the sensor resides on the surface of the touch panel , there is the sensor at the "projected capacitive touch " system in the screen between the laminated glass .
Not only does this technology provides a highly reliable , low-maintenance system , but it also offers unrivaled protection against a wide range of physical threats a cost effective solution for the most demanding ( public ) applications
Projected capacitive ( PCAP ) touch screen sensors , also known as PCT , offer a range of benefits that are not available with any other touch sensor technology.


Benefits:
• Excellent readability - light transmission of up to 91% through a standard sensor.
• Ideal for internal and external use - a proven solution for public locations.
• Excellent optical clarity - the sensor can be improved with various coatings and optical filters.
• Accuracy - less than +/- 1.5% of the set position.
• Response time - <20ms.
• Stability - no drift, therefore no need for calibration.
• Pointing device - works with finger and glove (leather and rubber).
• Immunity to damage - unsurpassed impact, vandal, and scratch resistance.
• External environments - unaffected by dirt, moisture and rain.
• Operating temperature - ranges from -35ºC to + 65ºC. Sub Zero operation can be realized by making use of an integrated heating panel.
• Resistance to infection - is not affected by harsh detergents.
• Supports both RS232 and USB.
• Controller - further improved in terms of reliability and longevity. (HID compatible controllers)
• Number of touches: currently 2 (duotouch), 5, 10 and 32 touches for multiuser applications.
• Supported operating systems - Windows 9x, NT, ME, 2000, XP, XPe, Vista, Windows 7, 8 and 10, Andoid, Mac and Linux. (For Windows 7, 8 and 10, no driver installation required for A1touch sensors).

Specifications:

• The touch sensor consists of laminated glass in which the sensor situated between the glass. The controller is connected to the communication port on your computer (USB or RS232).
• Detection method: Dynamic capacity with the aid of horizontal and vertical wires with a diameter of 10 microns.
• Food: Typical 5mA at 6 to 12 volts, which is provided by RS232 port, USB or external.
• Connector: Female D9 serial connector, 3 wire and 3 meters long. Maximum cable length is 10 meters. Components of the power supply are two diodes, resistor and a capacitor.
• Operating Temperature: -35 ° C to + 65 ° C
• Humidity: 0 to 90% RH at 40 ° C. Unaffected by condensation.
• Response: 13msec through 4mm thick glass.
• Sustainability: Unsurpassed vandal resistant and shock resistance.
• Accuracy: Less than 1.5% of diagonal error within the display area.
• Sensitivity: For A1touch adjustable via firmware, max thichnexx of 6mm glass. |  For Zytouch adjustable by software. A maximum thickness of 20mm from the sensor to the touch surface.
• Detection: Fingers, stylus pen for pcap and gloves.
• Protection from Contamination: Unaffected by harsh detergents, solvents, grease and dirt.
• Light transmission: 88% through the standard sensor.
• Immunity to Damage: Tempered glass protects the touch sensors.
• Stability: Using fixed wires(Zytouch) wafer pattern(A1touch) ensures that there is no drift.
• Glass options: Clear, anti-glare, tempered, depending on top glass you would like to use.
• MTBF (Sensor): Excellent, no known mechanism wear.
• MTBF (Controller): More than 1 million hours - Bellcore TR332.
• Regulatory: Controller will be compatible with the CE and UL when installed in the system.
• Emissions: passes FCC Class B when installed in the system.
• Seal Severability: Ability to be 12 or NEMA 4 compliant to NEMA.
• Bundled Software: Easy calibration and installation under Windows 98, NT, 2000, XP, 7, 8, 10,  and Linux. ( Also Android and Mac for A1touch ) No calibration on windows needed for A1touch.
• Mouse emulation software, to touch Select, to pause, to let go and drop.

Available products:

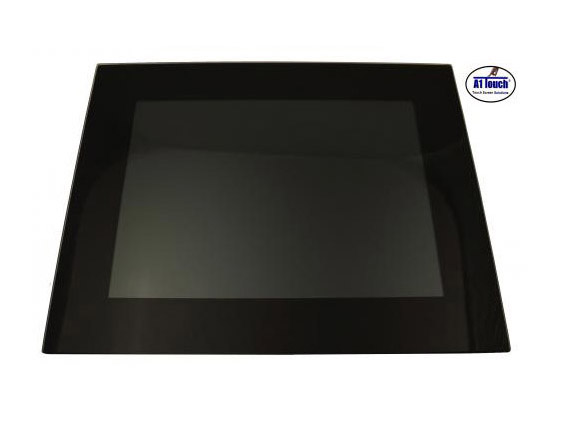

1. Pcap touchscreen A1Touch which we designed with float or tempered glass and painted or ceramic black border, delivery from stock, especially for automation and built- in tables in sizes of 7 t / m 42 inches . ( Customization available on request ) .

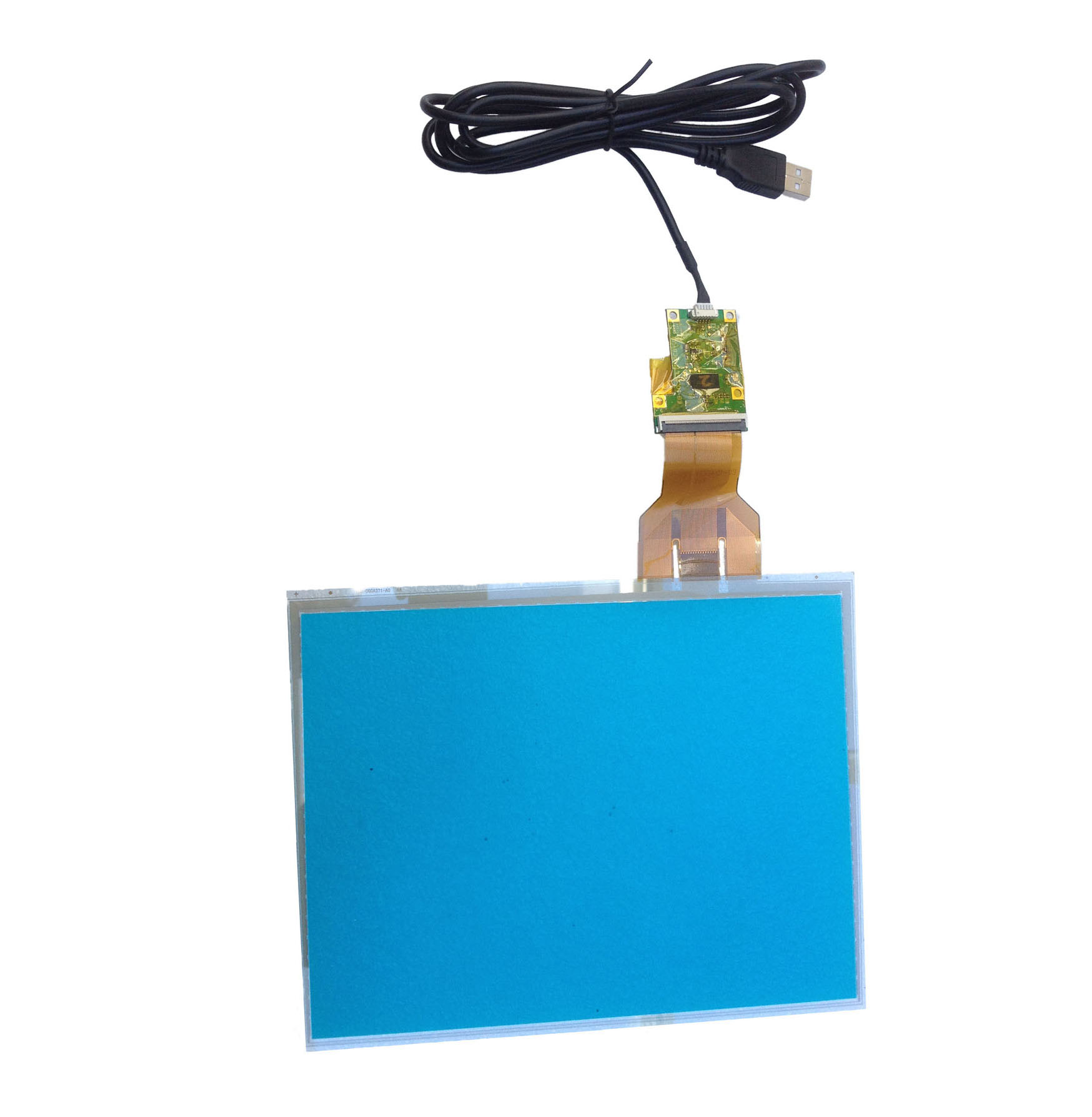

2. Pcap touch sensor A1Touch which we deliver from stock as a component or mounted on a monitor. This sensor can be placed directly behind your own single-walled glass plate max 6mm or 3mm Plexiglas (with or without optical bonding).


3. pcap touchscreen Zytronic where we supply the touch technology that can accommodate up to 2cm thick single-walled glass plate ( available from 10.4 up to 42 inches and are available from 5.7 up to 82 inches. )

More technical information Zytronic units
