26 inch PCAP touch kit Zytouch Zytronic®

pcap touchscreen zytouch
26 inch PCAP touch kit Zytouch Zytronic®
Net price (excl.VAT) €159,00
Art.No.:
BI-TFT26-PCAP-USB
Brand:
Zytronic
Model: ZYBX26-0.0019
Name: BI-TFT26-PCAP-USB
Description: The 26 inch touch panel is a non-glare pane which can be placed under glass of max 20mm thick (or 10mm acrylic glass) to build hufter proof single or dualtouch system for outside or inside applications.
Unit is in stock

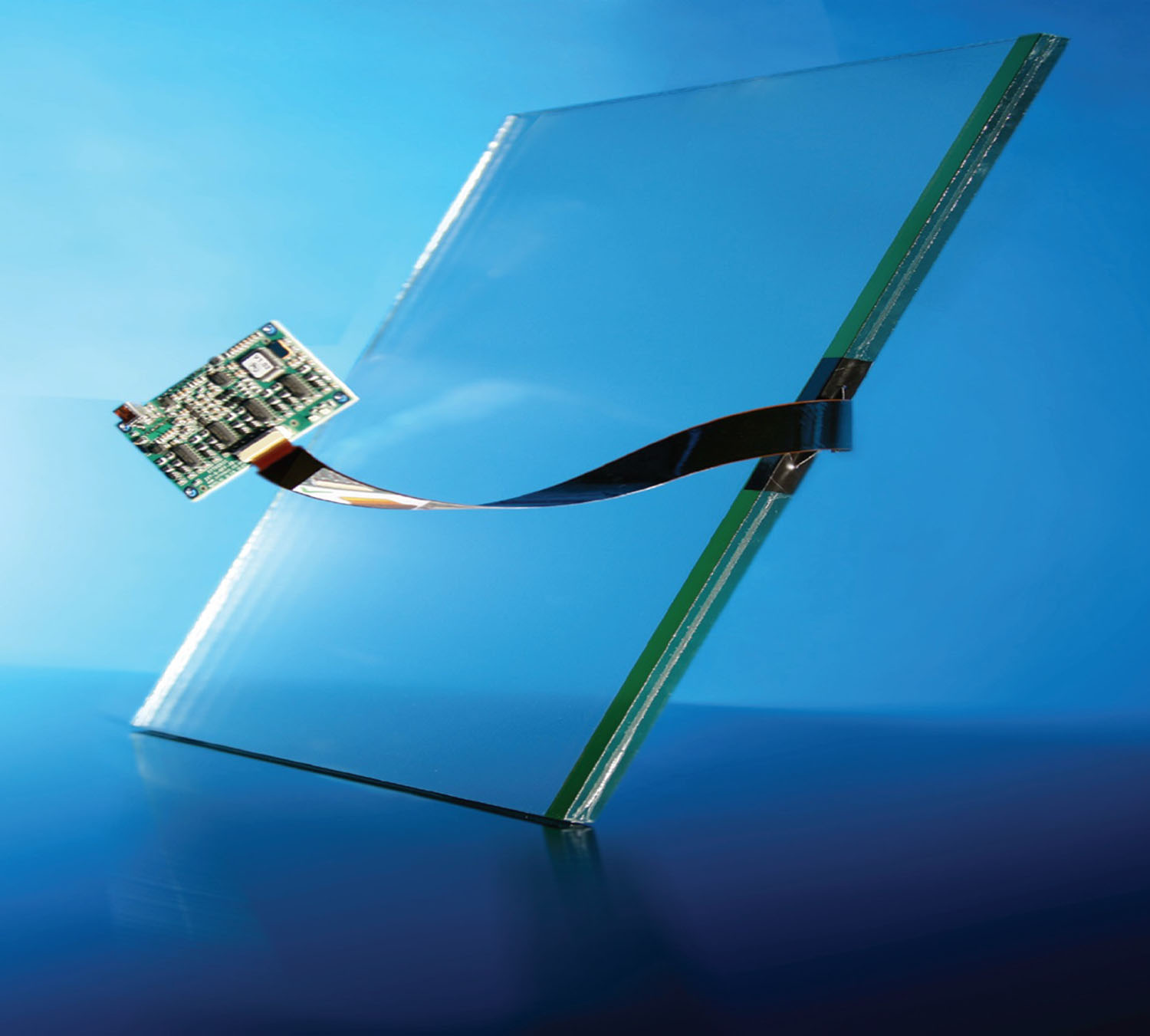

Our kit includes: sensor + controller + cables.

Specs:

Outside dimensions (wxhxt) 603.3 x 361.7 x 3.23 mm
Active area (wxh) 575.8 x 323.7 mm
Glass options: touchable through max. 20mm float-, hardened- or laminated glass or max. 10mm acrylic/plexy glass
Detected touches 1 or 2 touches (adjustable).
Detection Method: PCT™ and MPCT™
Connection: USB
Controller type: ZXY100-U-OFF-64-A
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: Refer to Controller data sheet
Operating Temperature: -35°C to +70°C
Humidity: 0 to 90% RH @ 40°C. Unaffected by condensation
Speed of Response: <10 mS
Durability: Unsurpassed vandal and shock resistance
What it Detects: Finger, gloved or ungloved. Conductive stylus
Resistance to Contamination: Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96
Light Transmission: 90% through standard ZYTOUCH®
Immunity to Damage: Inert glass front – sensing media is not touched by the operator. No moving parts
Stability: Use of fixed electrodes ensures one time calibration and no drift with usage or time
MTBF (Sensor): Excellent, no known wear-out mechanism
Regulatory: CE, FCC and UL when installed in system
Sealability: Ability to be NEMA 12 or NEMA 4 compliant
Protocol: Protocol available to allow users to customise their driver design
Connectivity: Serial RS-232 or USB v1.1, compatible with USB v2.0 (refer to Controller data sheet)

Spec. USB controller

Specs Pcap Zytouch components

Spec. sensor

Specs Pcap Zytouch sensor

Dimensions sensor

Specs Pcap Zytouch sensor
Driver downloads : Driver touchscreen Pcap Zytouch
General information : More Info
