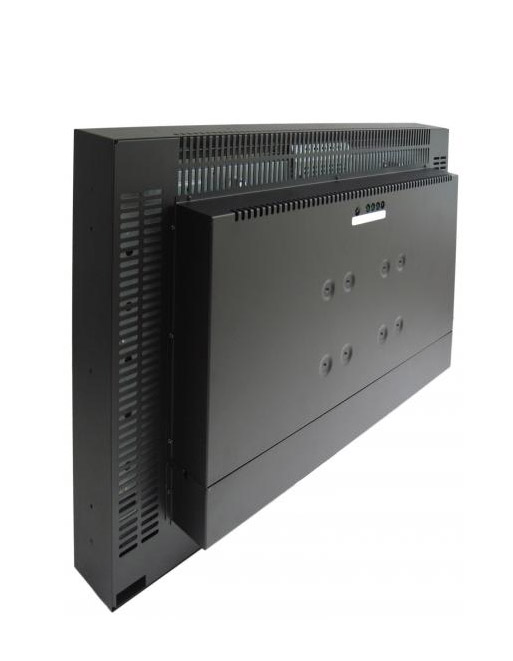

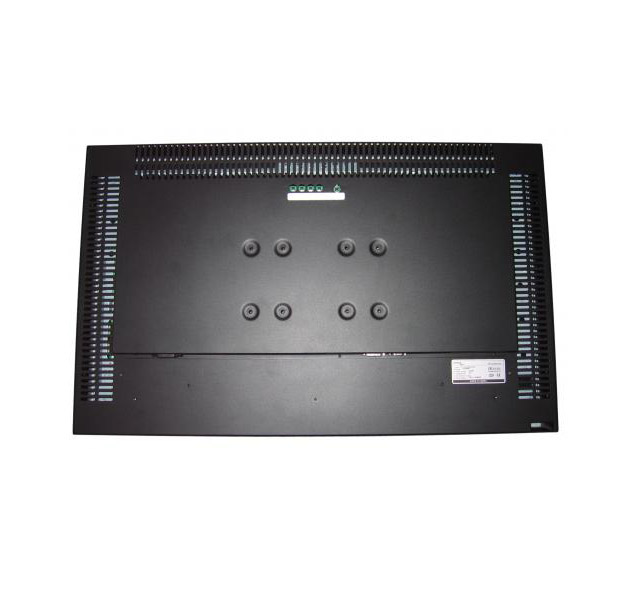

42" Rear (glass) mount PC Q1900B

Rear mount touchscreen
42" Rear (glass) mount PC Q1900B
Net price (excl.VAT) €1250,00
Art.No.:
All in one A1Touch Q1900B-quatro 2.0Ghz/.../AOD420-...-OF
Brand:
A1Touch Solution
Name: AOD / ATS 42" Rear (glass) mount (touch)Computer Q1900B
​​​Description: 42 inch rear mount pc with or without touchscreen. Option to touch through glass/acrylic or behind panel with hole.
Unit is in stock
Monitor specs:
Color panel: Black powder Coated (other colors on request)
Model: 42 inch Color Active Matrix TFT LCD
Type: AUO T420HVN01.1
Resolution (max): FULL HD 1920 x 1080 WUXGA
Color: 16,7 million
Pixel pitch: 0.4845
Brightness: 350 cd/m²
Contrast ratio: 3.000:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 5 ms
Active area: 930.24(H) x 523.26(V)
Touchscreen specs: See tab "Options"
Computer specs:
Type computerboard Intel Q1900B Quad core 2Ghz, passive cooled
Chipset No seperate chipset
Memory 2 x DDR3/DDR3L SO-DIMM Slots
Processor Intel Q1900B Quad core 2Ghz processor
Flashmodule/ Harddisk Sata SSD and SATA Harddisk.possible
VGA Intel® 7th generation (Gen 7) graphics
LAN (RJ-45) • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Wake-On-WAN
• Supports Wake-On-LAN
Audio 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
IDE, SATA, Flash 2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and
Hot Plug
Hardware Monitor + Power Management Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)
Operating system Windows 7, 8, 10 Linux, Win CE, XPe.
I/O  system: 1 x On/Off switch
1 PS2 mouse port
1 PS2 keyboard port
1 Serial port (COM1)
1 parallel port (ECP/EPP support)
1 VGA port (occupied)
1 HDMI port
1 RJ-45 LAN connector
3 USB 2.0 ports
1 USB 3.0 port
3 Audio jacks for MIC-In, Line-In & Line-Out
Internal I/O: 1 x Mini-PCI socket
1 x PCI-Express x1 slot
Energy requirements 240 W max.; 10 W max stand by.
Power 110 - 230 Volt internal
Weight 43 Kg
Mounting: VESA 200x100mm, max 400x200mm;  (No bracket/ stand included in delivery; See: mounting_brackets)
Dimensions system(B x H x D) 1064x657x132mm
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch for option "Mounting behind glass = YES":
Type of Touch:
Projected Capacitive A1touch and Zytronic.
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
+ Projected Capacitive (A1touch): -For glass upto 5mm or Acrylic glass upto 2.5mm.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
+ Projected Capacitive (Zytronic): -For glass upto 20mm or Acrylic glass upto 10mm.
-Touchable with finger, glove and pcap stylus.
-2 points touch
-activation force less than 1 gramm.
-        with touch for option "Mounting behind glass = NO": 5 wire resitive, Surface Accoustic Wave or Projected Capacitive
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse

Specifications / Manual :

Specs 42 incht rear (glass) mount pc1900B manual
Dimensions : Specs 42 incht rear (glass) mount pc1900B manual
Driver downloads : Driver downloads 42 incht rear (glass) mount pc1900B
