18.5" (touch) Monitor in 19" Rackmount

18.5 inch monitor in 19inch rackmount - front
18.5" (touch) Monitor in 19" Rackmount
Net price (excl.VAT) €438,00
Art.No.:
1020153173
Brand:
A1Touch Solution
Type: A1touch-19RM185; 18.5" powder coated 19 inch rack mount (touch) monitor, VGA+DVI+HDMI.
Description: 18.5 inch monitor in black powder coated 19" rack mount, 6HE, on/off button on left front side,  VGA/DVI/HDMI, resolution 1366x768px or FHD 1920x1080(Option), 19" Rack mount touch monitor with or without touchscreen; touchscreen options like resistive, ir or protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is not in stock.
Color panel: Black powder Coated (other colors on request)
Model: 18.5 inch WXGA TFT LCD Monitor
Type: 18.5 inch-wide Color a-Si TFT-LCD Module
Resolution (max): 1366(x3) x 768 or FHD:1920x1080 (option)
Color: 16,2 million
Pixel: 300 (per one triad) × 300
Brightness: 250 cd/m²
Contrast ratio: 1000:1
Viewing angle: 85°/85° horizontal & 80°/80° vertical
Response time 5 ms
Active area: 409.8 (H) x 230.4 (V)

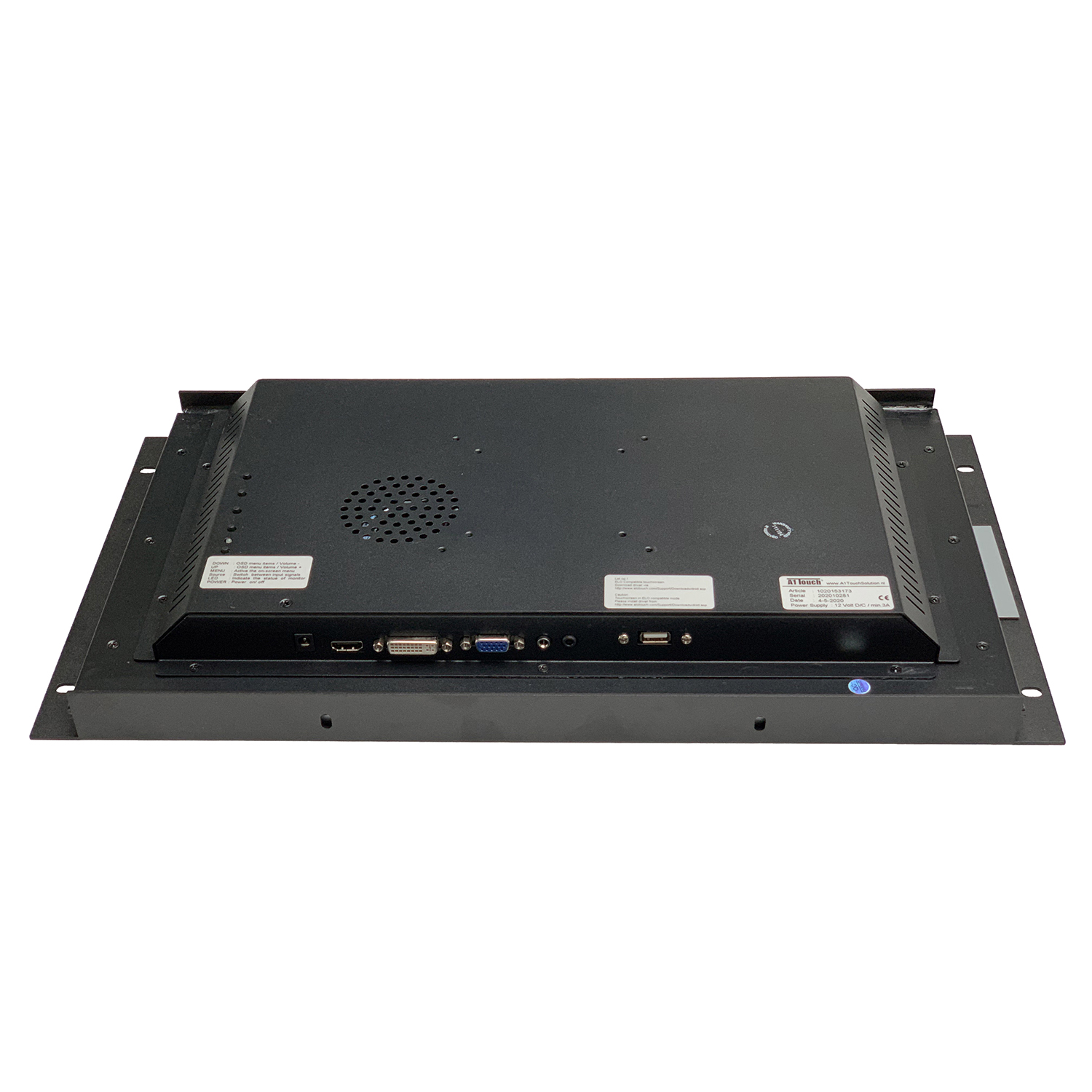

VGA input Analog RGB (D-Sub 15-pins) + DVI + HDMI
Plug and play: Yes DDC1 /DDC2B
Power: 230-100VAC to 12VDC power supply and  EU power cable included
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 483x264x50mm (wxhxd)
Weight 5.4 Kg
Mounting: VESA 100mm
Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65  (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI+HDMI


Specifications / Manual :

Specs 19 inch AOD touch Monitor in 19 inch rackmount manual
Dimensions : Dimensions 19 inch AOD touch Monitor in 19 inch rackmount
Driver downloads : Touchscreen driver downloads
