4 wire resistive touchscreen

Introduction of 4Wire Resistive Touch Screen:
  ATouch's 4 Wire Resistive Touch Screen is of the most extensive application. It is capable of working by any kinds of physical touches, such as finger, gloved hand (any kinds of gloves). It is liquid resistance and contamination proof and even works in bad environment such as foul, dirt, greasiness. 4 Wire Resistive touch screen is also noted for its high accuracy and reliability with low cost advantage. Therefore it becomes the most popular touch screen in applications, especially in handset device uses.
 ATouch 4 Wire Resistive Touch Screen supports RS-232 & USB interfaces for:
。LCD flat display: 5.6"–20.1"
。CRT flat display: 17"




4 Wire Resistive Touch Screen Benefits:
。Low cost
。Finger, gloved hand and stylus activation
。High accuracy and sensitivity
。High durability and reliability
。Contaminant proof and liquid resistance.

4Wire Resistive Touch Screen Working Principle:
The 4 Wire Resistive Touch Screen is a two-layer structure,
1. ITO glass substrate with one side uniform resistive ITO coating.
2. A very thick polyester ITO film which tightly suspended over the top of ITO glass substrate. This PET film has a hard, durable coating on the outer side, on inner side with ITO coating.
3. ITO glass and the ITO film are separated by printed small, transparent insulation spacer dots.

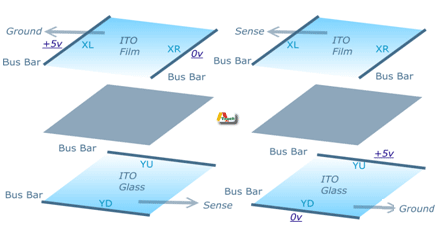

4wire workspic

When the screen is touched, it pushes the ITO film to have an electrical contact with ITO glass (both on the ITO coating side). It produces a voltage which is the analog representation of the position touched.

 In 4 Wire Resistive, the ITO glass (glass substrate) is set as Y axis, and ITO film as X axis. The microprocessor of controller applies +5V voltage to XL (X axis left) on the ITO film, and the voltage uniformly decreases to XR(X axis right) in zero voltage. In the same process, the microprocessor applies +5V voltage to YU (Y axis up) on the ITO glass, and the voltage uniformly decreases to YD (Y axis down) in zero voltage. When the screen is not touched, the controller detects the voltage on ITO glass / ITO film as zero voltage.

 When the screen is touched, the voltage on the ITO film proportional to the X axis (horizontal) position of the touch point appears on the ITO glass. Next, the voltage on the ITO glass proportional to the Y axis (vertical) position of the touch point appears on the ITO film. These two voltages appearing on the ITO film and ITO glass are digitized by the A/D converter and then transmitted to the host.

 The controller will receive all data to get the touched position according to the established calculating mode to figure out the exact X and Y coordinates.

Applications:
。Light industrial
。Home appliances
。Portable sport devices
。Access control terminals
。Portable medical devices
