15" Desktop PC (Passive Cooled)

Desktop touchscreen computer
15" Desktop PC (Passive Cooled)
Net price (excl.VAT) €745,00
Art.No.:
1020153069
Brand:
A1Touch Solution
Type All in one A1Touch J4125/AOD150-DNB (passive cooled)
​​Description: 15 inch desktop computer with Intel Celeron quatro upto 2.7 Ghz processor with or without touchscreen. Unit made of black powder coated metal with mini itx format computer for hufter proof and long life use.
​​Unit is in stock.
Monitor specs:
Color panel: Black powder Coated (other colors on request)
Model: 15 inch XGA TFT LCD Monitor
Type:

15" Color Active Matrix TFT LCD
(AUO G150XG03 V5)

Resolution (max): 1024 x 768 (XGA)
Color: 16,2 million
Pixel: 0.297 x 0.1297 mm
Brightness: 350 cd/m²
Contrast ratio: 700:1
Viewing angle: 85°/85° horizontal & 80°/80° vertical
Respons time 8 ms
Active area: 304,1 (H) x 228,1 (V) mm

Computer specs:



Type computerboard

Intel J4125 Quad core upto 2.7 Ghz, passive cooled

Chipset

No seperate chipset

Memory

2 x DDR4 SO-DIMM Slots

Bios

- 128Mb AMI UEFI Legal BIOS with GUI support

- Supports Plug and Play

- ACPI 5.0 compliant wake up events

- Supports jumperfree

- SMBIOS 3.0 support

Processor

Intel J4125 Quad core upto 2.7 Ghz processor

Flashmodule/ Harddisk

Sata SSD and SATA Harddisk possible

Graphics

- Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 750MHz)

- DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2

- HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit

- HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports Triple Monitor

- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

LAN (RJ-45)

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111H

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- ELNA Audio Caps

IDE, SATA, Flash

2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and
Hot Plug

Hardware Monitor + Power Management

Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)

Operating system

Windows 10, 11, Linux, Win CE, Win10IOT

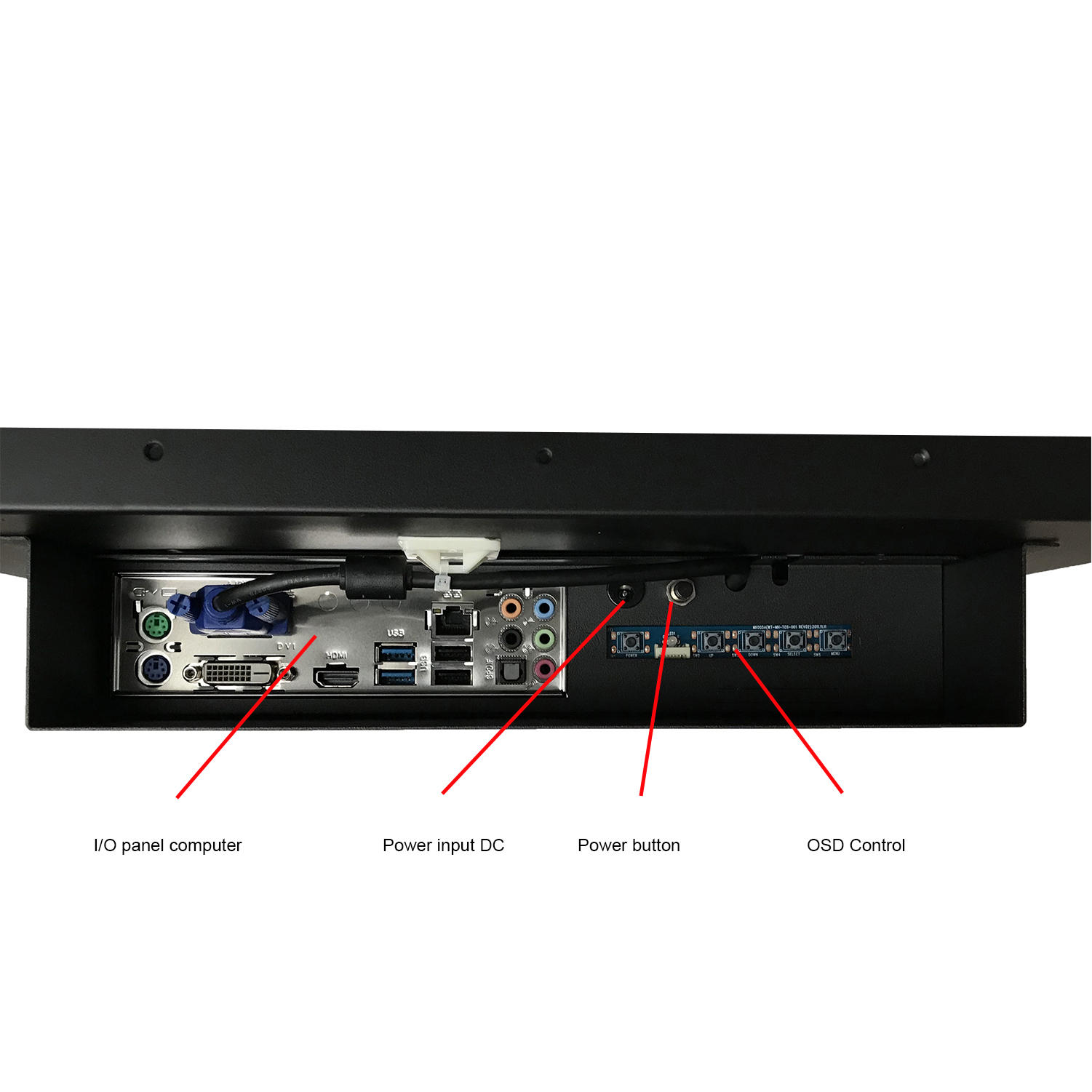

Rear Panel I/O:

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Internal I/O:

- 1 x COM Port Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (3-pin)

- 1 x Chassis Fan Connector (3-pin)

- 1 x 24 pin ATX Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*



*USB3_0_1 and USB_0_1 cannot be occupied simultaneously. Please connect a USB cable to one of these headers only.

Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 4 Kg

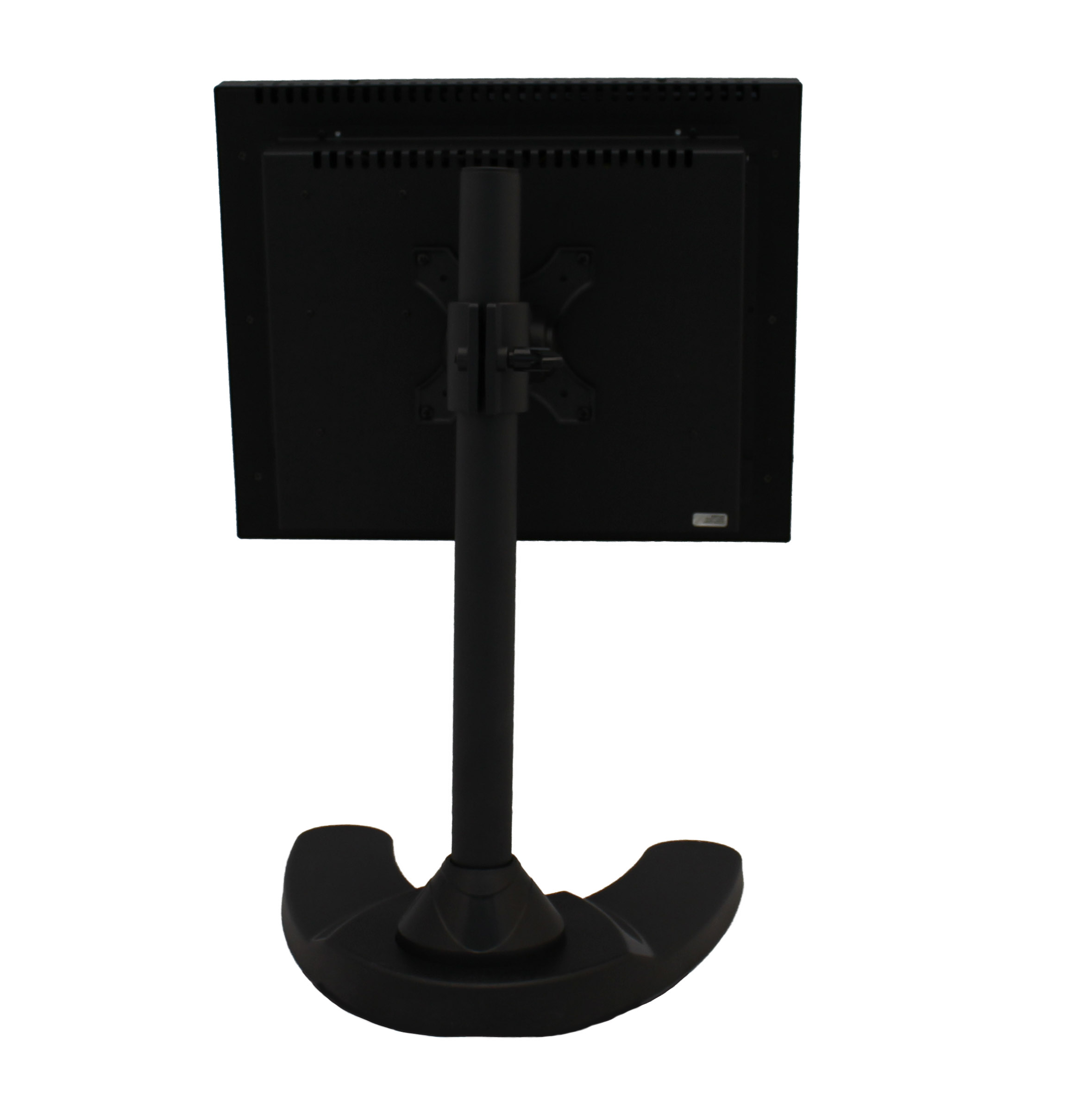

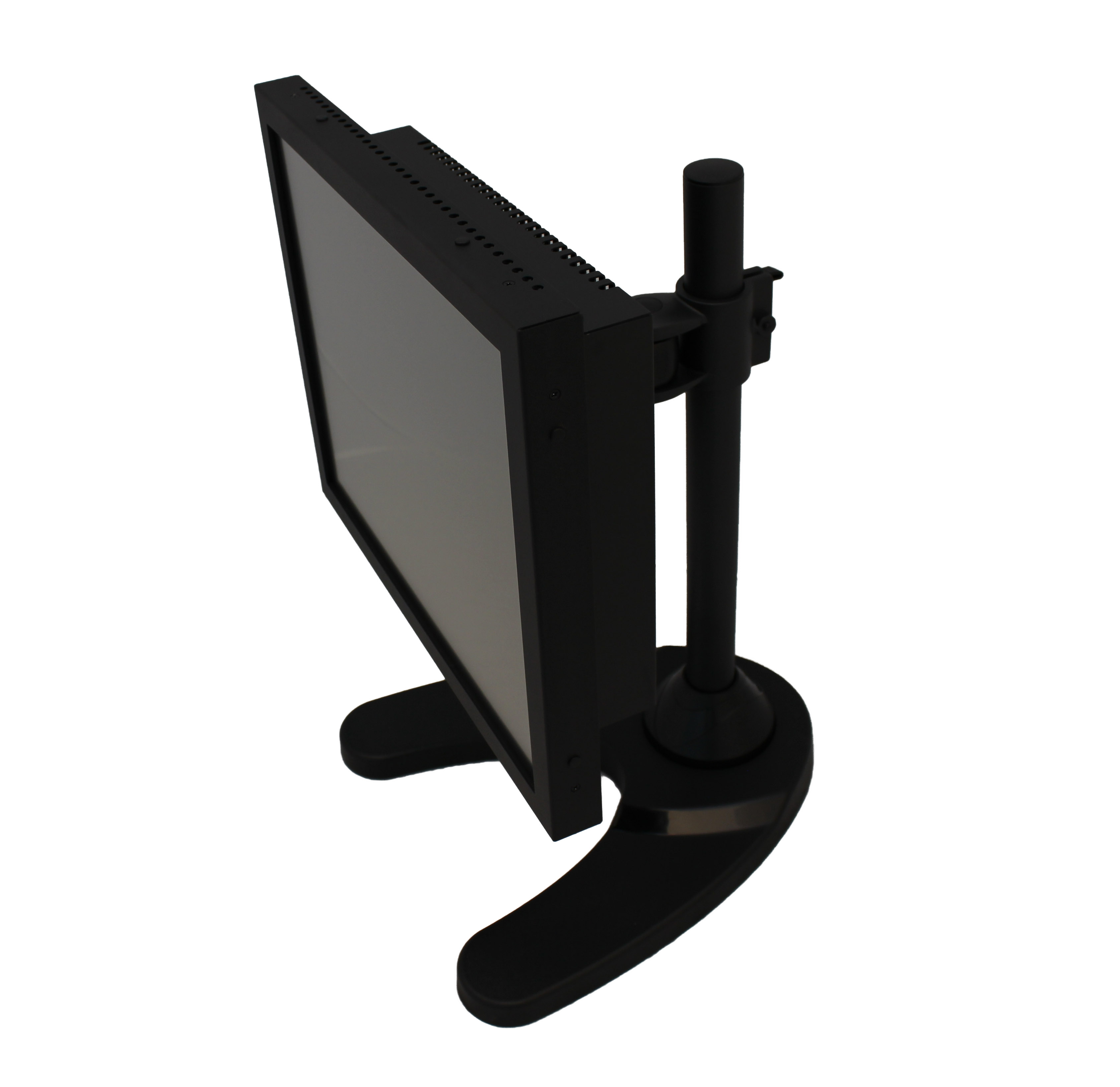

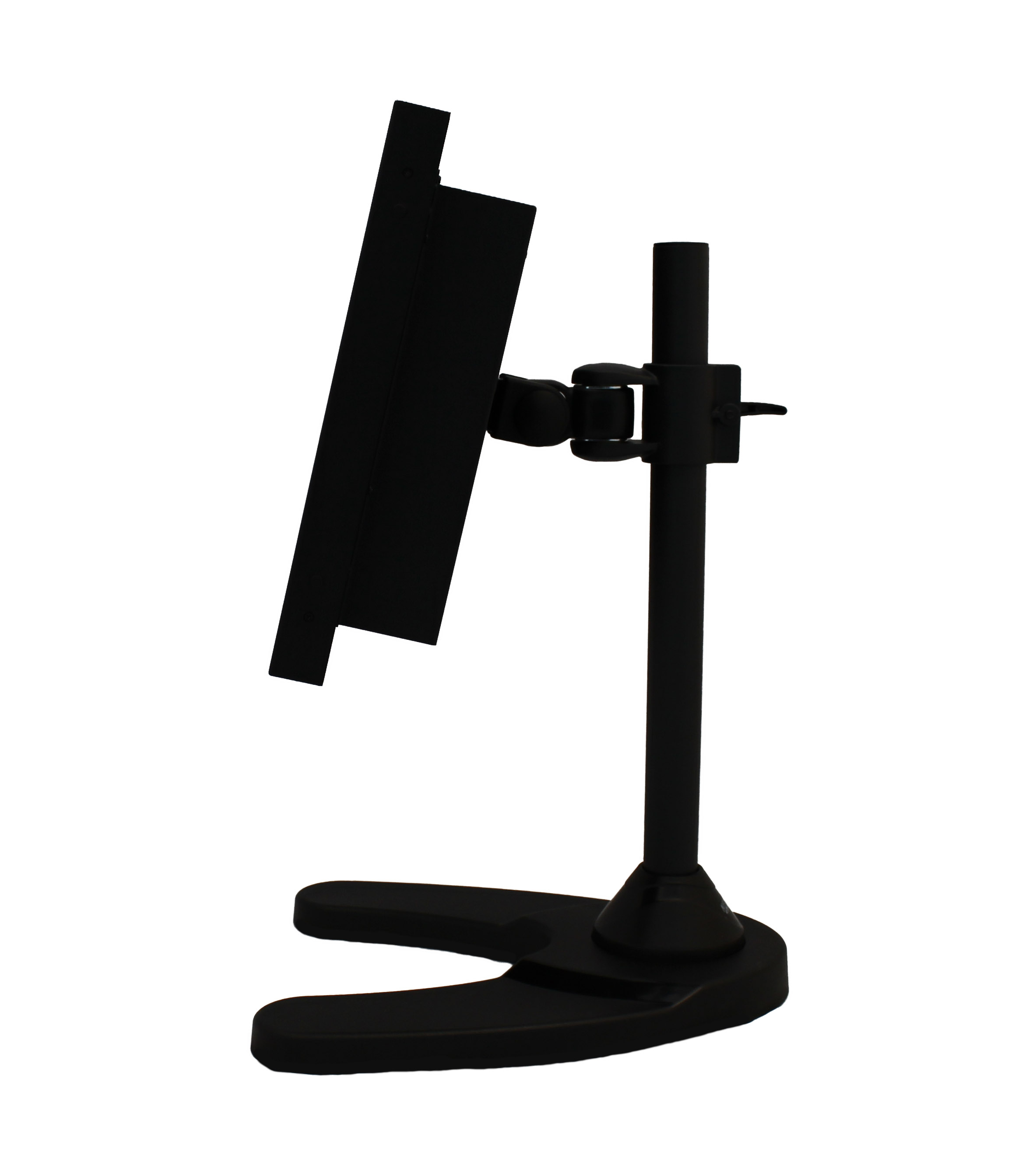

Mounting: VESA 100mm; (Bracket/ stand is optional; See: mounting_brackets)
Dimensions system(B x H x D) 350x274x60 mm
Options:
Standard delivery: With PSU and EU power cable but without vesa stand. Other options on request.
Functionality: With or without touch
- without touch: Acrylic or glass
- with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform
- 5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
- SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
- Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win10 and 11 Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse


Specifications / Manual :

Specs 15 inch desktop pc mini ITX J3455 manual
Dimensions : Dimensions 15 inch desktop pc mini ITX Q1900B
Driver downloads : Driver downloads
