19" Desktop PC (Extreme)

Desktop touchscreen computer
19" Desktop PC (Extreme)
Net price (excl.VAT) €985,00
Art.No.:
1020153323
Brand:
A1Touch Solution
Type: All in one A1Touch H310-i5/AOD190-DNB; active cooled
Description: 19 inch desktop computer with Intel Core I5-9400 6 core 6 threads 2.9 up to 4.1 Ghz processor, with or without touchscreen. Unit made of black powder coated metal with mini itx format computer for hufter proof and long life use.​
Unit is in stock
Monitor specs:
Standard delivery: With psu, EU power cable and dvi cable but without vesa stand. Other options on request.
Color panel: Black powder Coated (other colors on request)
Model: 19 inch XGA TFT LCD Monitor
Type: 19 inch Color Active Matrix TFT LCD  (LG LM190EOA)
Resolution (max): 1280 x 1024 (SXGA)
Color: 16,7 million
Pixel: 0.0976 x 0.2928 mm
Brightness: 300 cd/m²
Contrast ratio: 800:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 8 ms
Active area: 376,32 (H) x 301,056 (V) mm

Computer specs:
Type computerboard: Intel H310-I
Chipset: Intel® H310
Processor: Processor Intel Core i5 9400, 55W, 9th gen. 2.9Ghz, 6 core, 6 thread, UHD Graphics 630,
Memory Supported memory types DDR4-SDRAM
Amount of memory slots 2
Memory slot type DIMM
Memory Channel Dual
Non-ECC yes
Supported memory clock speeds 2133,2400,2666 MHz
Maximum internal memory 32 GB
Not gebufferd memory yes
Bios BIOS type UEFI AMI
BIOS-memory size 128 Mbit
ACPI version 6.1
Clear CMOS jumper yes
Plug and play yes
System Management BIOS (SMBIOS) version 3.1
Graphics Maximum memory grafical adapter 1024 MB
Built-in grafical adapter yes
Grafical adapter-family Intel
Maximum resolution 4096 x 2160 Pixels
Network Ethernet LAN yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Wi-Fi No (option)
Bluetooth No (option)
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3 Connectors, 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
RAID: No
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

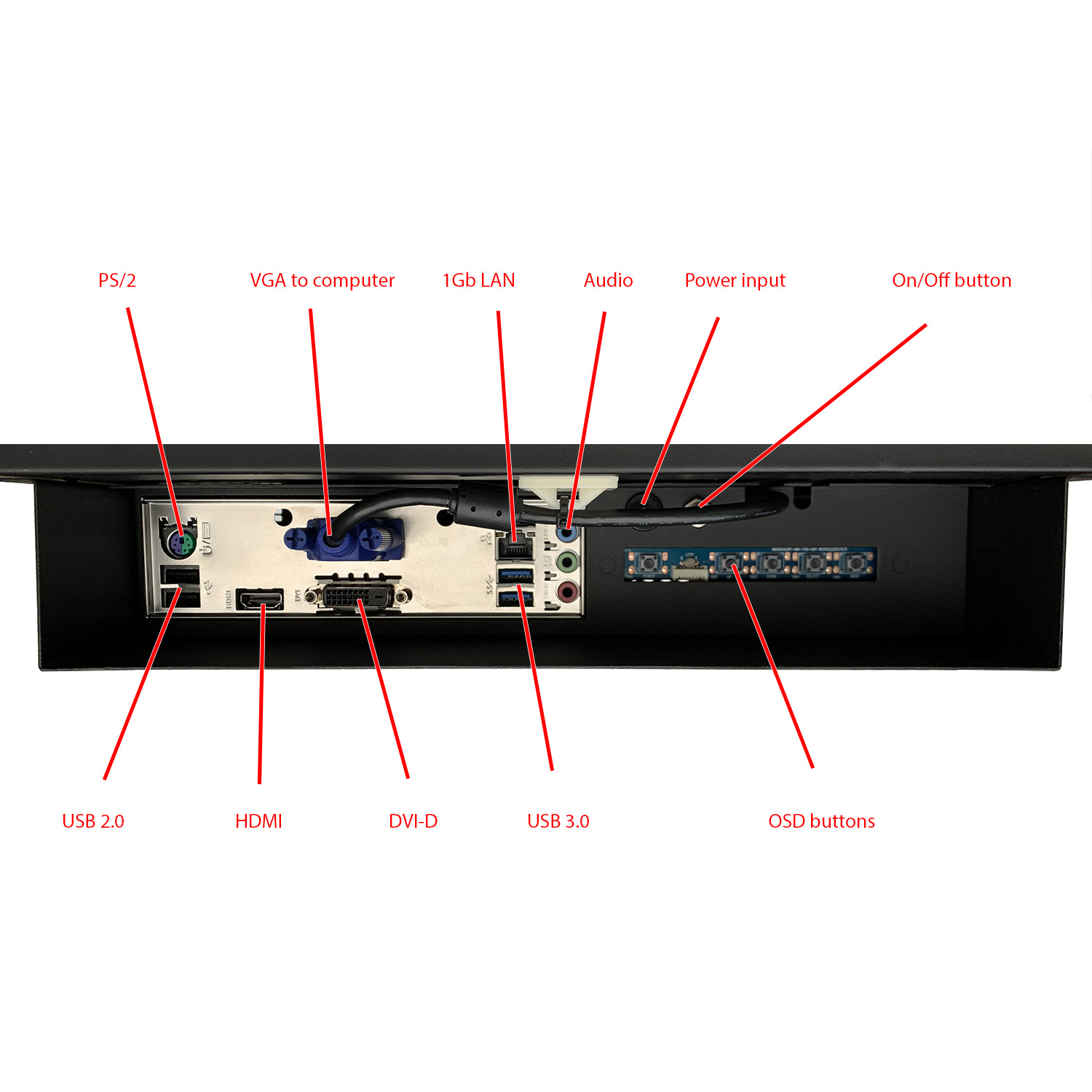

I/O connections back: USB 3.1 Gen1 (blue) Type-A up to 5Gbps : 2
USB 2.0 : 2
Ethernet LAN (RJ-45)-ports : 1
HDMI-ports : 1
DVI-D ports : 1
S/PDIF-out : yes
Audio jack(s) – Mic – Line in – Line out : 3
PS/2 keyboard/mouse combo port(s) : 1
Internal I/O: PCI Express x16 (Gen 3.x) slots : 1
USB 2.0 connections : 1
USB 3.1 Gen 1 (up to 5Gbps) connectors : 1
Amount of SATA 6Gb/s connectors : 4
Audioconnector : yes

Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 5 Kg
Mounting: VESA 100mm; (No bracket/ stand included in delivery; See: mounting_brackets)
Dimensions system(B x H x D) 424x350x88 mm
Options:
Standard delivery: With PSU and EU power cable but without vesa stand. Other options on request.
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse

Specifications / Manual :

Dimensions :
Driver downloads : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
