19" St.Steel Panel mount PC (Extreme)

panelmount touchcomputer
19" St.Steel Panel mount PC (Extreme)
Net price (excl.VAT) €1399,00
A1Touch Solution
Type: All in one A1Touch Z690M-i5-12400/AOD190-PMR (active cooled)
​​​​​Description: 19 inch stainless steel panel pc with Intel Core I5-12400 6 core 12 threads 2.5 up to 4.4 Ghz processor, with or without touchscreen. Casing made of black powder coated metal with mini itx format computer for hufter proof and long life use.
Unit is in stock
Monitor specs:
Color/material  panel: Brushed Stainless Steel
Model: 19 inch XGA TFT LCD Monitor
Type: 19 inch Color Active Matrix TFT LCD  (LG LM190EOA)
Resolution (max): 1280 x 1024 (SXGA)
Color: 16,7 million
Pixel: 0.0976 x 0.2928 mm
Brightness: 300 cd/m²
Contrast ratio: 800:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 8 ms
Active area: 376,32 (H) x 301,056 (V) mm
Touchscreen specs: Zie tab "options".
Computer specs:
Type computerboard: Intel Z690M-ITX
Chipset: Intel® Z690M
Processor: Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730
Memory Supported memory types DDR4-UDIMM Non-ECC mode
Amount of memory slots 2
Memory slot type DIMM
Memory Channel Dual
Non-ECC yes
Supported memory clock speeds 3200 Mhz Natively
Maximum internal memory 64 GB
Not gebufferd memory yes
BIOS-memory size 256 Mbit
ACPI version 6.0
Clear CMOS jumper yes
Plug and play yes
System Management BIOS (SMBIOS) version 2.7 support
Graphics Architecture (Gen 12) Intel Xe Graphics
Built-in grafical adapter yes
Grafical adapter-family Intel
Maximum resolution 4096 x 2160 Pixels HDMI, 7680x4320 Pixels via DP
Network Ethernet LAN yes, 2 x LAN
Ethernet interface type 2.5 Gigabit Ethernet and 1 Gb Ethernet
LAN controller Realtek RTL8125BG (2.5Gb) and Intel I219V (1Gb)
Wi-Fi Yes, 802.11ax Wi-Fi 6E  Module, supports IEEE 802.11a/b/g/n/ax
Bluetooth Yes, 5.3 High speed class II
Audio Realtek® ALC897 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3  6.0 Gb/s Connectors, 1 x M.2 Socket M2_1 Key M, supports type 2280 PCIe Gen4x4 (64Gb/s) Mode Chipset, 1 x M.2 Socket M2_2 Key M, support type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64Gb/s) modes
RAID: Yes, Raid 0, 1, and 5
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

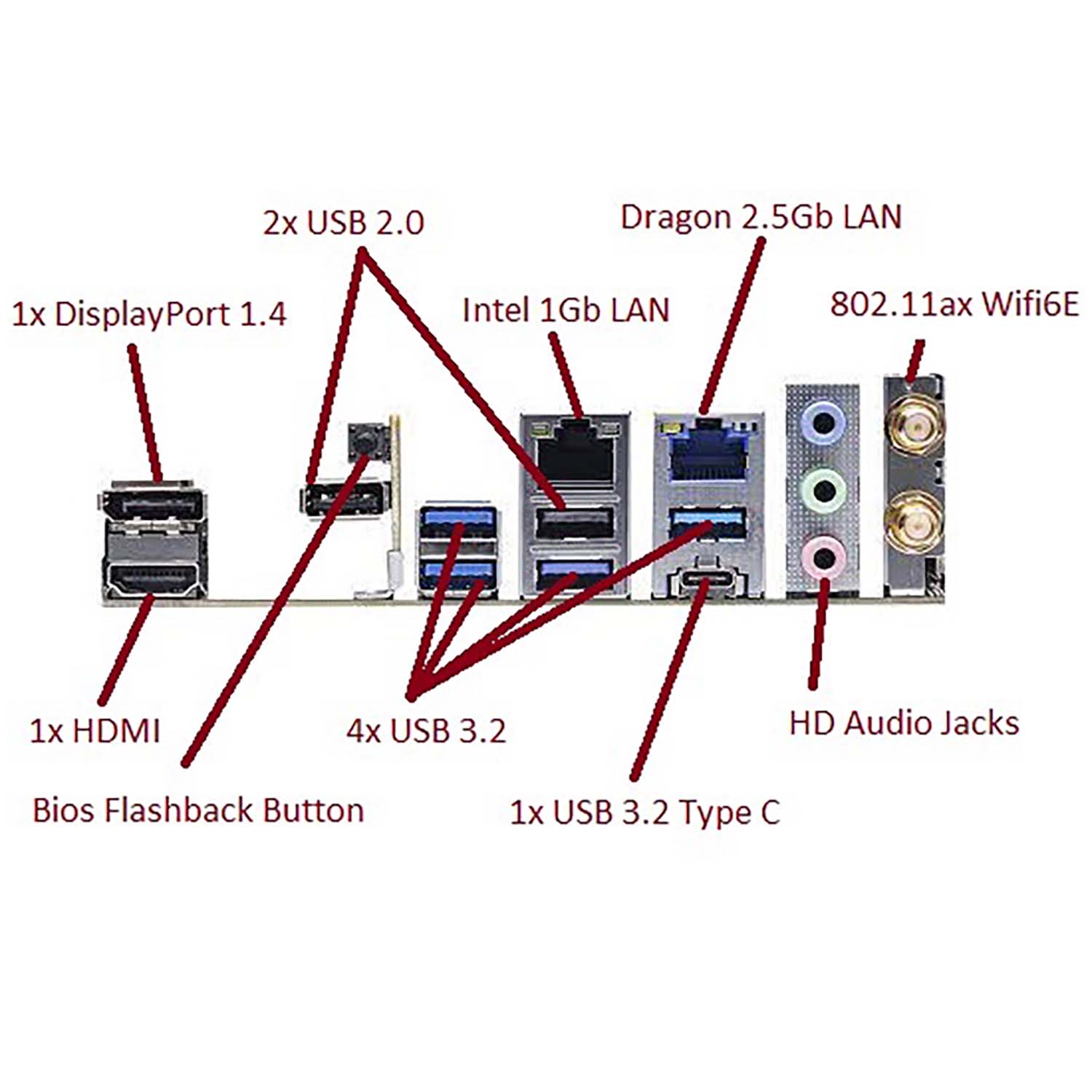

I/O connections back: USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) : 4
USB 3.2 Gen 2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) : 1
Ethernet LAN (RJ-45)-ports : 2
HDMI-ports : 1
Display ports : 1
Bios Flashback Button : 1
Audio jack(s) – Mic – Line in – Line out : 3
Internal I/O: PCI Express 5.0x16 Slot (PCIE1), supports x16 mode : 1
USB 2.0 connections : 1
USB 3.1 Gen 1 (up to 5Gbps) connectors : 1
Amount of SATA 6Gb/s connectors : 4
Audioconnector : yes
Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 5 Kg
Mounting: VESA 100mm
Dimensions system(B x H x D) 485x410x88 mm
Standard delivery: With psu, EU power cable and dvi cable. Other psu-cable options on request.
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.

Specifications / Manual :

Dimensions :
Driver downloads : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
