18.5 inch SAW touch kit 4mm

18.5 saw touchscreen
18.5 inch SAW touch kit 4mm
Net price (excl.VAT) €19,00
Art.No.:
1020152595.
Brand:
General Touch
Model: SAW touchscreen SCTL4B18D5BR-102401 with usb controller ST6001SU
Name: BI-TFT18.5-GSAW-USB

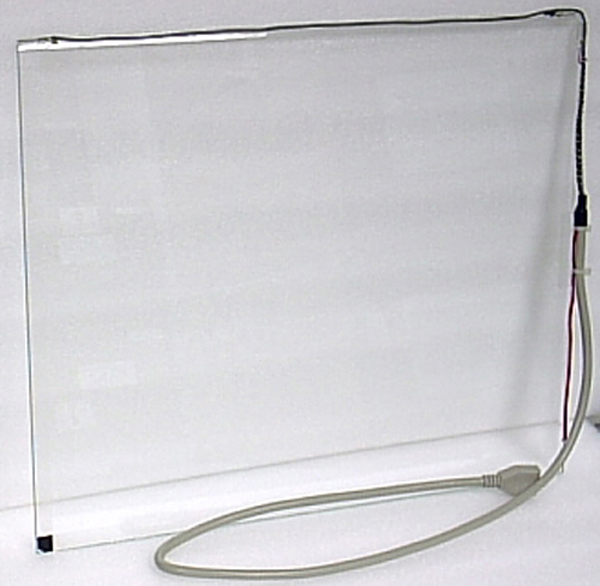

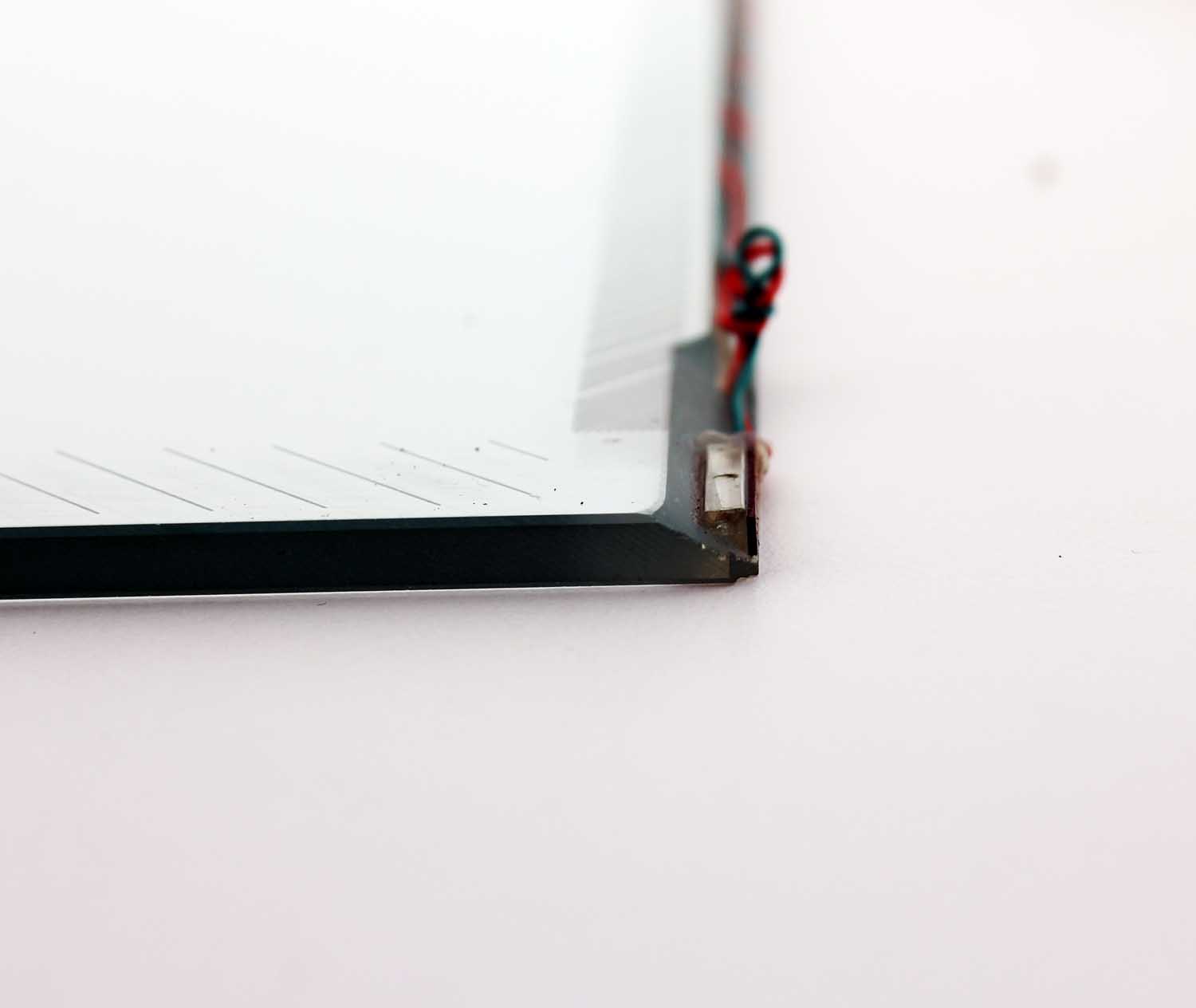

Description: The 18.5 inch saw touchscreen sensor is a glare sensor which can be used in public(clean) inside applications where superior image clarity and high light transmission and scratch resistance is needed.
Unit is in stock

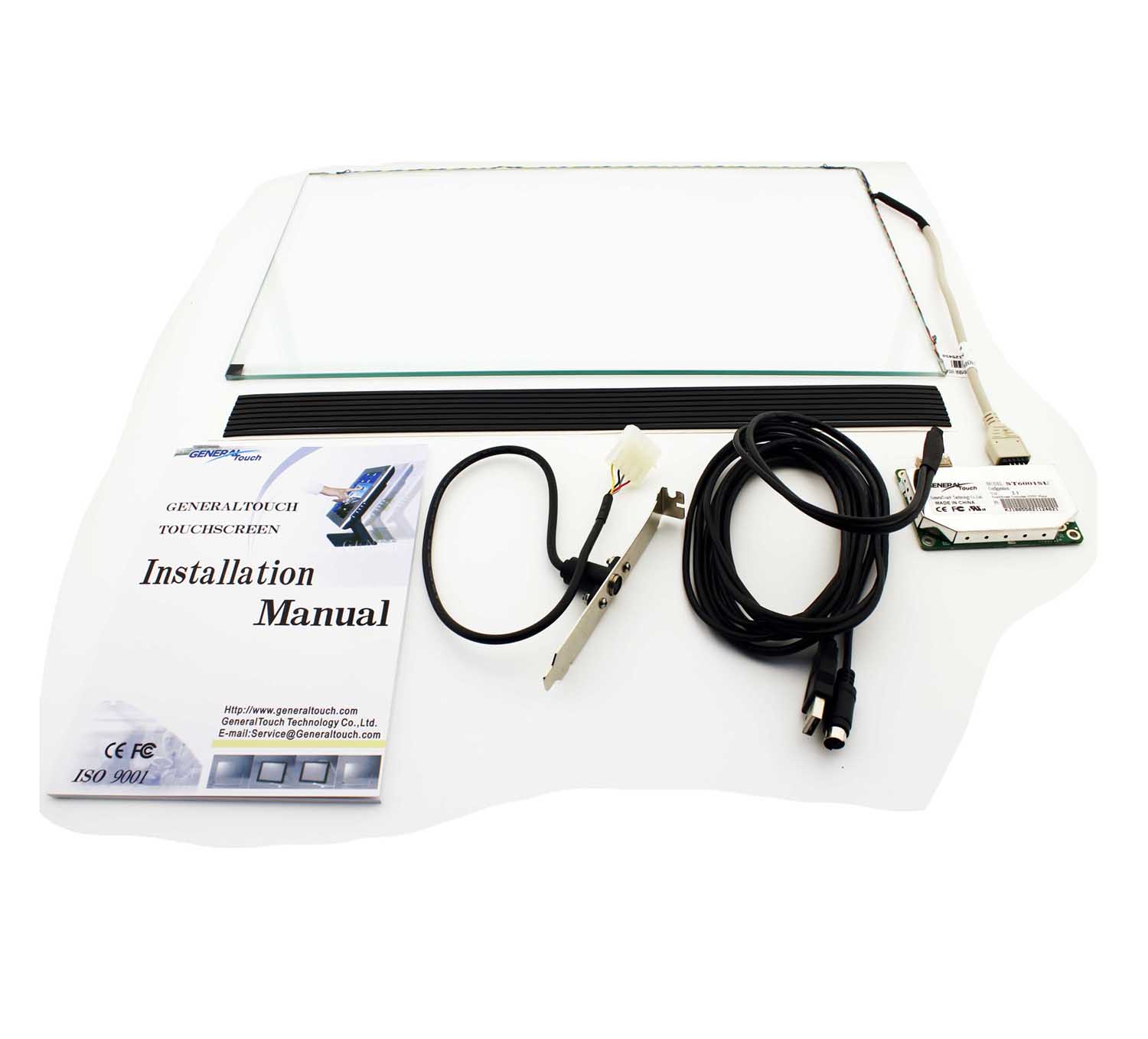

Our kit includes: sensor + controller + sealing strips + cables.

Specs:

Outside dimensions (wxhxt) 431 x 255 x 4 mm
Active area (wxh) 411 x 231 mm
Surface Durability: Glare optical glass surface, Mohs' hardness rating : 7.
Detected touches 1 touch

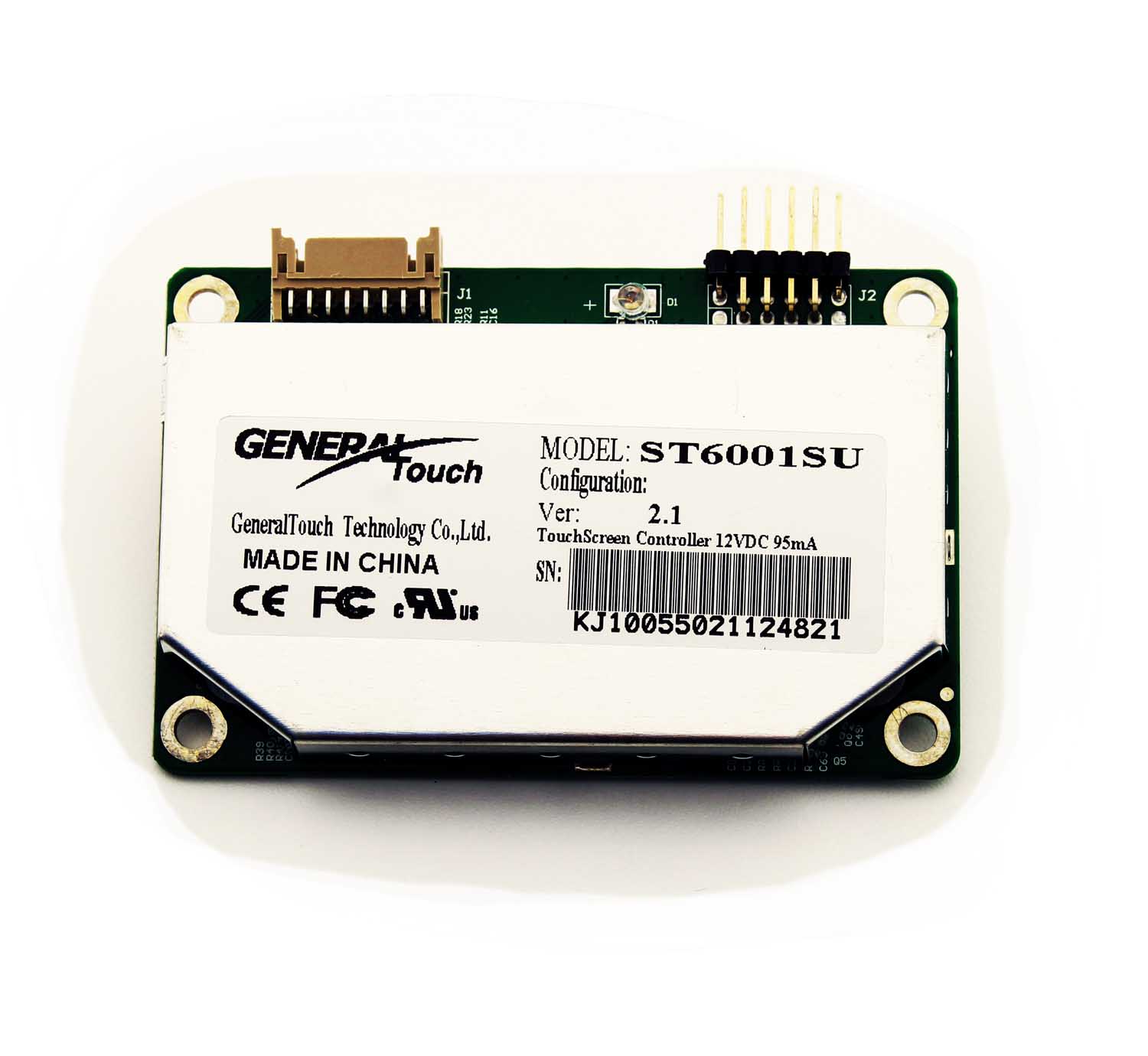

Controller type: ST6001SU
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: +12VDC
Operating Temperature: 0°C to +50°C
Humidity: 0 to 90% RH @ 40°C.(no dew falls)
Speed of Response: <15 mS
Life Performance: More than 50 million touches in one location.
(Tested by a stylus similar as finger).
What it Detects: Finger, gloved or ungloved.
Touch Activation Force: Less than 85 grams
Light Transmission: 90% (per ASTM D1003)
MTBF (Sensor): Excellent, no known wear-out mechanism
Regulatory: CE, FCC and UL when installed in system
Connectivity: Serial RS-232 or USB v1.1, compatible with USB v2.0 (refer to Controller data sheet)

Spec general + USB controller

Specs Saw controller
Driver downloads : SAW touchscreen driver
Theory of SAW touch technology : General information SAW touchscreen
