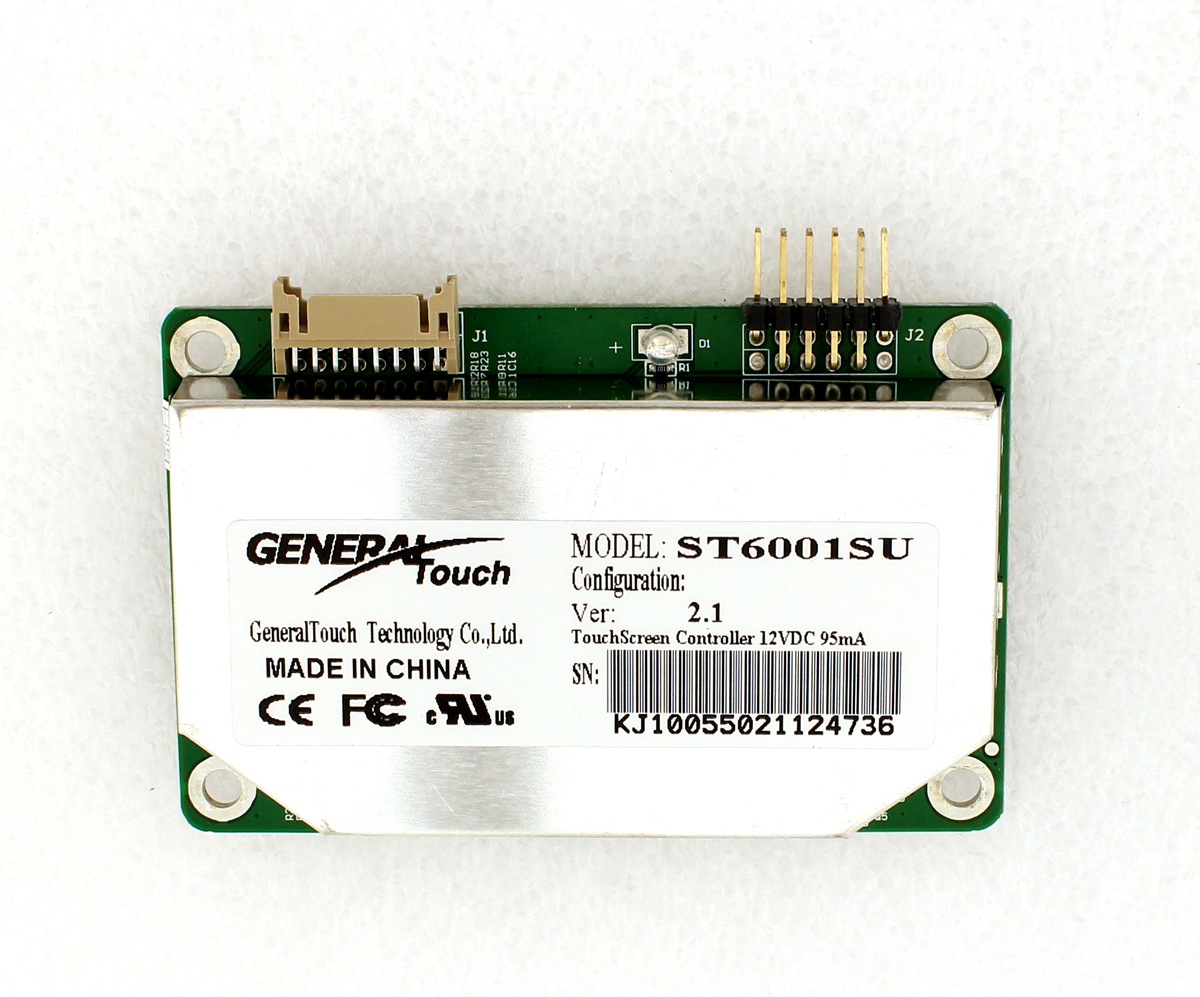

SAW TOUCH CONTROLLER ST6001SU

saw touchscreen controller usb st6001su
SAW TOUCH CONTROLLER ST6001SU
Net price (excl.VAT) €9,95
Art.No.:
1020152753
Brand:
General Touch
Model: SAW touchscreen  USB controller ST6001SU
Name: SAW

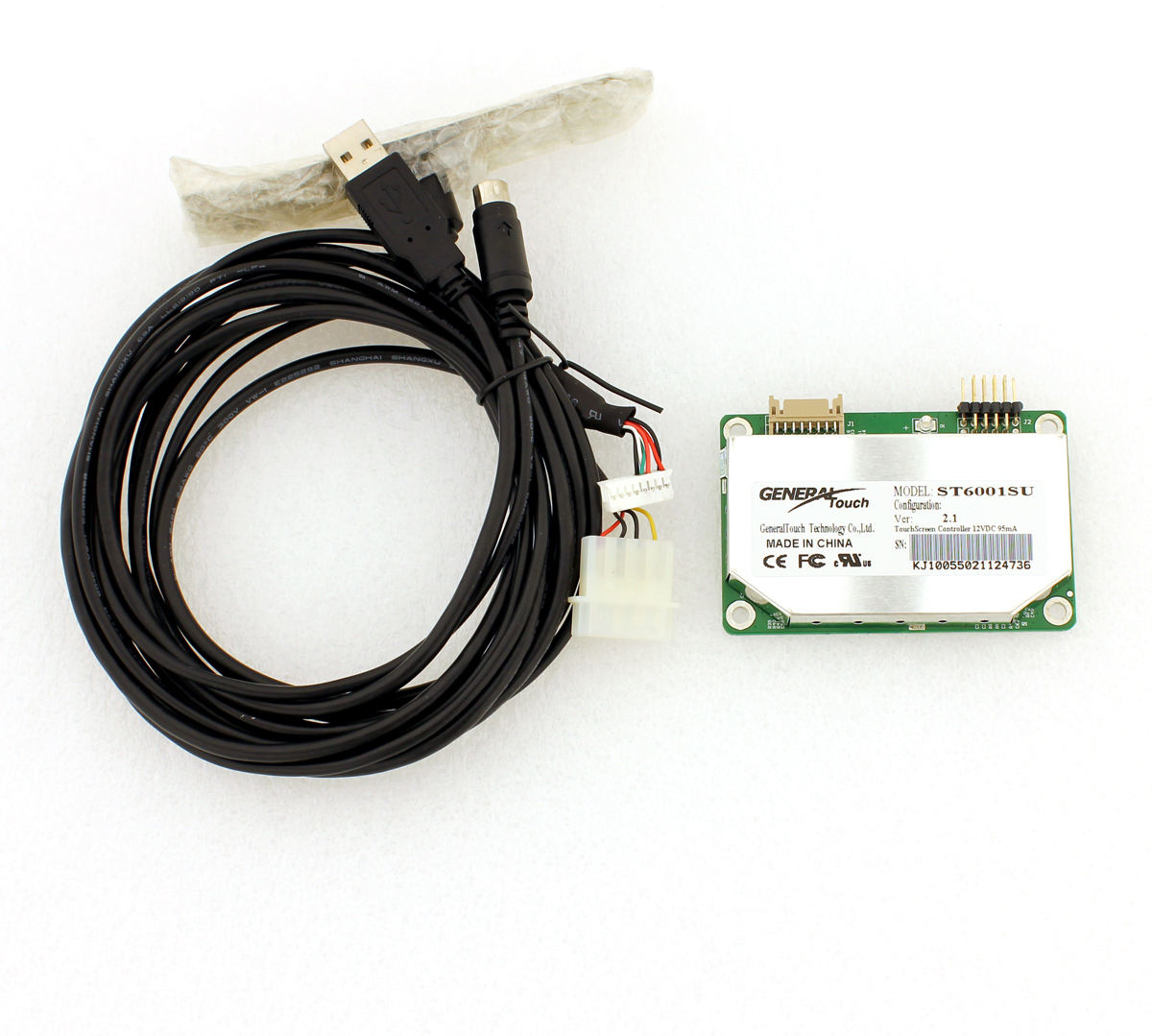

Description: The saw touchscreen controller can be used as replacement unit for Saw touchscreens from 7 inch upto 26 inch. The unit will be delivered with usb cable and PS/2 connector and internal power cable for 12 VDC connection..
Unit is in stock

Specs:

Outside dimensions (wxhxt) 62 x 85 x 12mm (incl. Connector)
Construction: Multi-layer surface-mount design with internal ground plane for EMI suppression.
Controller type: ST6001SU
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: +12VDC
Operating Temperature: 0°C to +65°C
Humidity: 0 to 90% RH @ 40°C.(no dew falls)
Speed of Response: <15 mS
Life Performance: More than 50 million touches in one location.
(Tested by a stylus similar as finger).
What it Detects: Finger, gloved or ungloved.
MTBF (Sensor): Excellent, no known wear-out mechanism
Regulatory: CE, FCC and UL when installed in system
Connectivity: USB v1.1, compatible with USB v2.0 (refer to Controller data sheet)

Spec USB controller

Specs Saw controller
Driver downloads : SAW touchscreen driver
Theory of SAW touch technology : General information SAW touchscreen
