15.1 inch 4wire resistive

 5wr resistive touchscreen - 5 draads resistief touchscreen
15.1 inch 4wire resistive
Net price (excl.VAT) €79,00
Art.No.:
BI-TFT151-AN4WR-....
Brand:
Atouch
Model: 15.1" - 4wire
Name: BI-TFT 15.1 inch 4 wire.

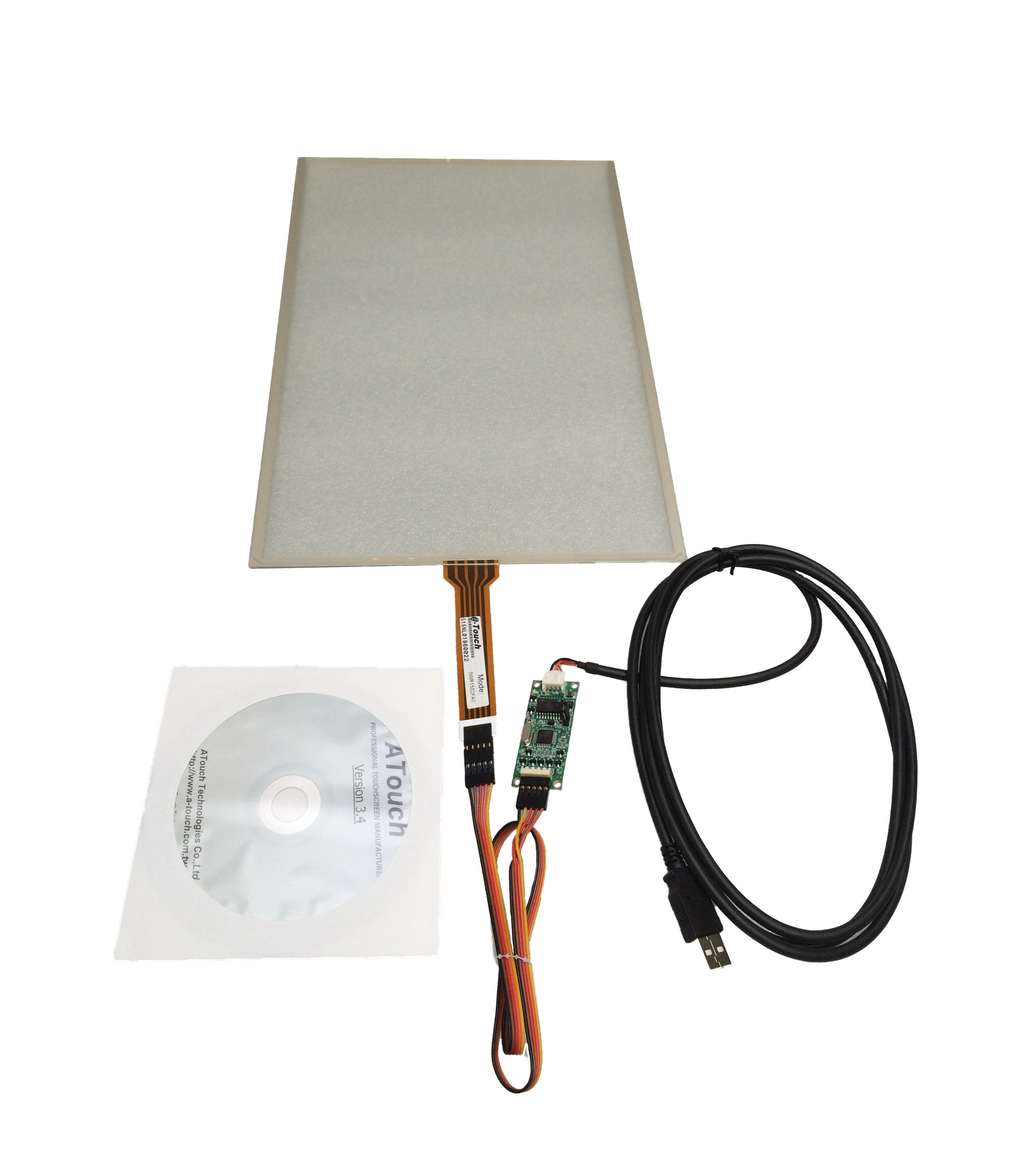

Description: The 15" touch kit contains a non-glare resistive sensor, usb touch controller or RS232 touch controller and cables.
Unit is in stock

The 15,1 inch touch panel is a non-glare panel. It can be connected with USB or RS232.

Dimensions:
320 x 244 x 2,1 mm

Standard provided is a driver cd.

The touch panel works on the following operating systems:

Touchkit mode:
32 bit computers (jumper on controller not used):
MAC 9.x, 10.x until 10.5.6 (choose ELO mode for versions 10.5.6)
RedHat 7.x, 8.x
Windows 95/98, ME, 2000, NT, CE.NET, CE3.0/5.0, XP, Vista, 7, 8 and 10.

ELO mode: Use for 64 bit computers (jumper on controller used - bridge pin 1+2) or for MAC versions > 10.5.6.
In this mode only use Elo Compatible drivers.

Controller information:
USB, The signal is delivered to the USB port and the power also comes from the USB port.
RS232 with PS/2, The signal is delivered to the RS232 port and the power comes from the PS/2 port.
RS232 internal power, The signal is delivered to the RS232 port and the power you can get it from the monitor.

Spec. USB controller

Spec. RS232 controller

Spec. sensor

Dimensions :
Driver downloads : More Info
General information : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
