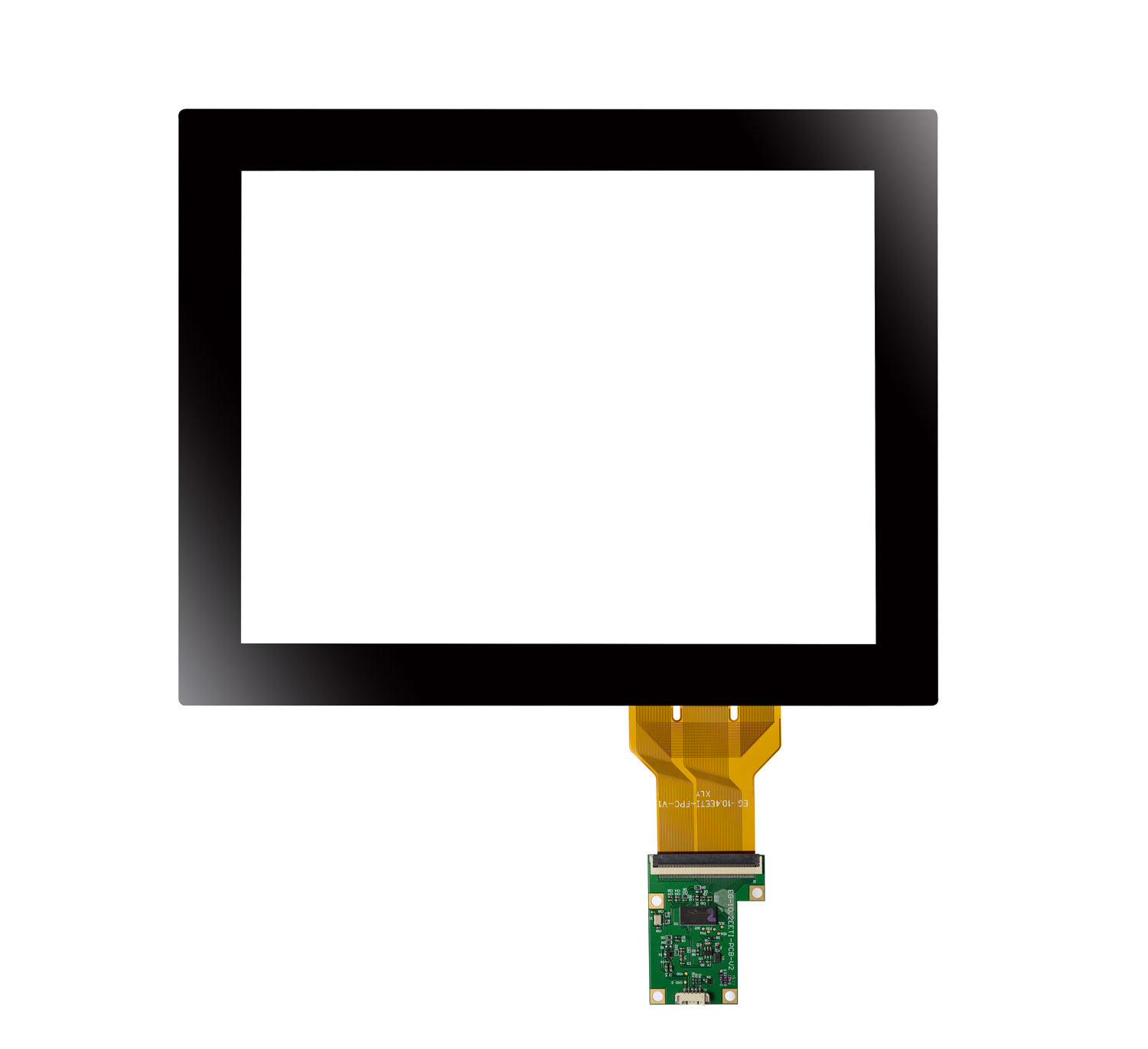

10.4" PCAP touchscreen kit with 3mm cover glass

pcap touchscreen
10.4" PCAP touchscreen kit with 3mm cover glass
Net price (excl.VAT) €82,90
Art.No.:
1020152167
Brand:
A1Touch Solution
Model: A1touch-BI-TFT10.4-GPCAP10-3T-USB
Name: A1touch PCT 10.4" touchscreen with 3mm cover glass, transparent border, drawing EG-10.4-JH-V1, USB controller EETI chipset, 10pts
Description: The 10.4 inch touch sensor of clear G+G glass and cover glass can be used on all 10.4 inch lcd systems for building hufter proof (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is in stock

Our kit includes: sensor + controller + cables

Size: 10.4"
Structure: G+G
Structure cover glass: Glare float glass with TRANSPARENT border
Outside dimensions cover glass (wxh) 252.80 x 200.30 +/-0.15mm
Outside dimensions sensor (wxh) 225.40 x 189.85 +/-0.15mm
Visual area cover glass (wxh) 211.20 x 158.70 +/-0.2mm
Active area (wxh) 212.80 x 160.20 +/-0.2mm
Thickness sensor: 0.55 mm
OCA bonding thickness: 0.2 mm
Thickness cover glass: 3 mm
Total Thickness: 3.75 mm
Sensor Process: Print process (ITO Pattern + Metal line)
Surface Hardness: >6H
Detected touches 10 touches.
Endurance: >300.000.000 times
Maximum Pixel: 4096x4096
Response time: <10ms
Interface: USB, 4 wire, 2.0 Full speed
Controller type: EETI chipset 31xx.
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: 3.5 - 5.5 Volt,  Typical 5 Volt
Power Dissipation: <0.35W
Operating Temperature: -10°C to +70°C
Humidity: 0 to 95% RH @ 60°C. RH non condensing
Durability: Unsurpassed vandal and shock resistance
What it Detects: Finger, gloved or ungloved. Conductive stylus
Resistance to Contamination:

Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96
MTBF (Sensor): Excellent, no known wear-out mechanism
Drawing  sensor :
Specs touchscreen kit :

Spec.  controller :

Driver downloads : More Info
General information : More Info
