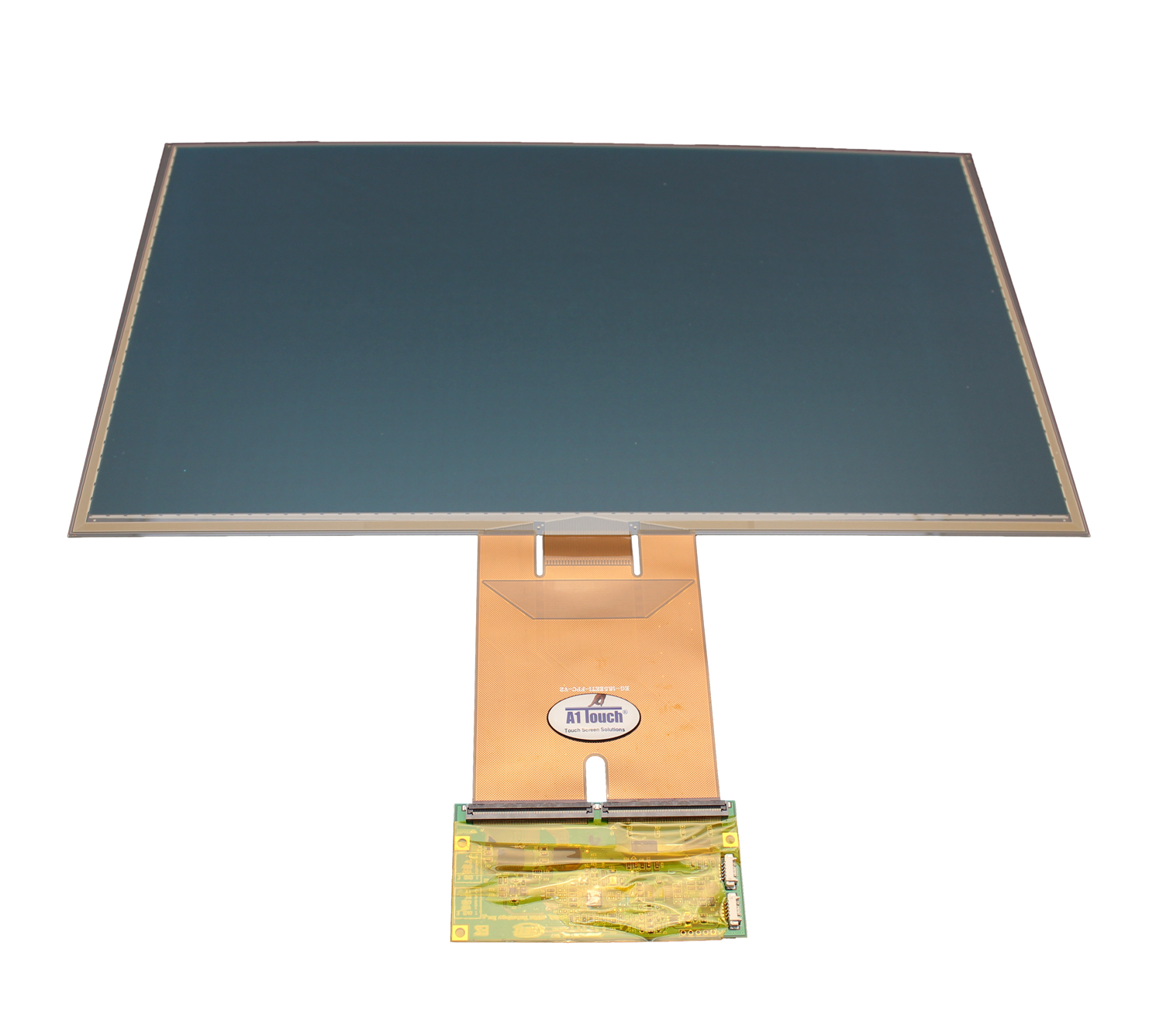

18.5" PCAP touchscreen kit without cover glass

pcap touchscreen
18.5" PCAP touchscreen kit without cover glass
Net price (excl.VAT) €163,00
Art.No.:
1020152221
Brand:
A1Touch Solution
Model: A1touch-BI-TFT18.5-PCAP10-USB
Name: A1touch PCT 18.5" sensor without cover glass, drawing EG-18.5-sensor-FPC-v1, USB controller EETI chipset, 10pts
Description: The 18.5 inch touch sensor of clear G+G glass can be placed under glass of max 6mm thick (or 3mm acrylic glass) to build hufter proof multitouch (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is in stock

Our kit includes: sensor + controller + cables

Size: 18.5"
Structure: G+G
Outside dimensions (wxh) 426.00 x 247.28 +/-0.15mm
Active area (wxh) 410.80 x 231.40 +/-0.2mm
Thickness sensor: 0.55 mm
Sensor Process: Print process (ITO Pattern + Metal line)
Glass options:

touchable through max. 6mm float-, hardened- or laminated glass or max. 3mm acrylic/plexy glass
Detected touches 10 touches.
Endurance: >300.000.000 times
Maximum Pixel: 4096x4096
Response time: <10ms
Interface: USB, 4 wire, 2.0 Full speed
Controller type: EETI chipset 31xx.
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: 3.5 - 5.5 Volt,  Typical 5 Volt
Power Dissipation: <0.35W
Operating Temperature: -10°C to +70°C
Humidity: 0 to 95% RH @ 60°C. RH non condensing
Durability: Unsurpassed vandal and shock resistance
What it Detects: Finger, gloved or ungloved. Conductive stylus
Resistance to Contamination:

Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96
MTBF (Sensor): Excellent, no known wear-out mechanism
Drawing  sensor :
Specs touchscreen kit :

Spec.  controller :

Driver downloads : More Info
General information : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
