19" wide PCAP touchscreen kit without cover glass

pcap touchscreen

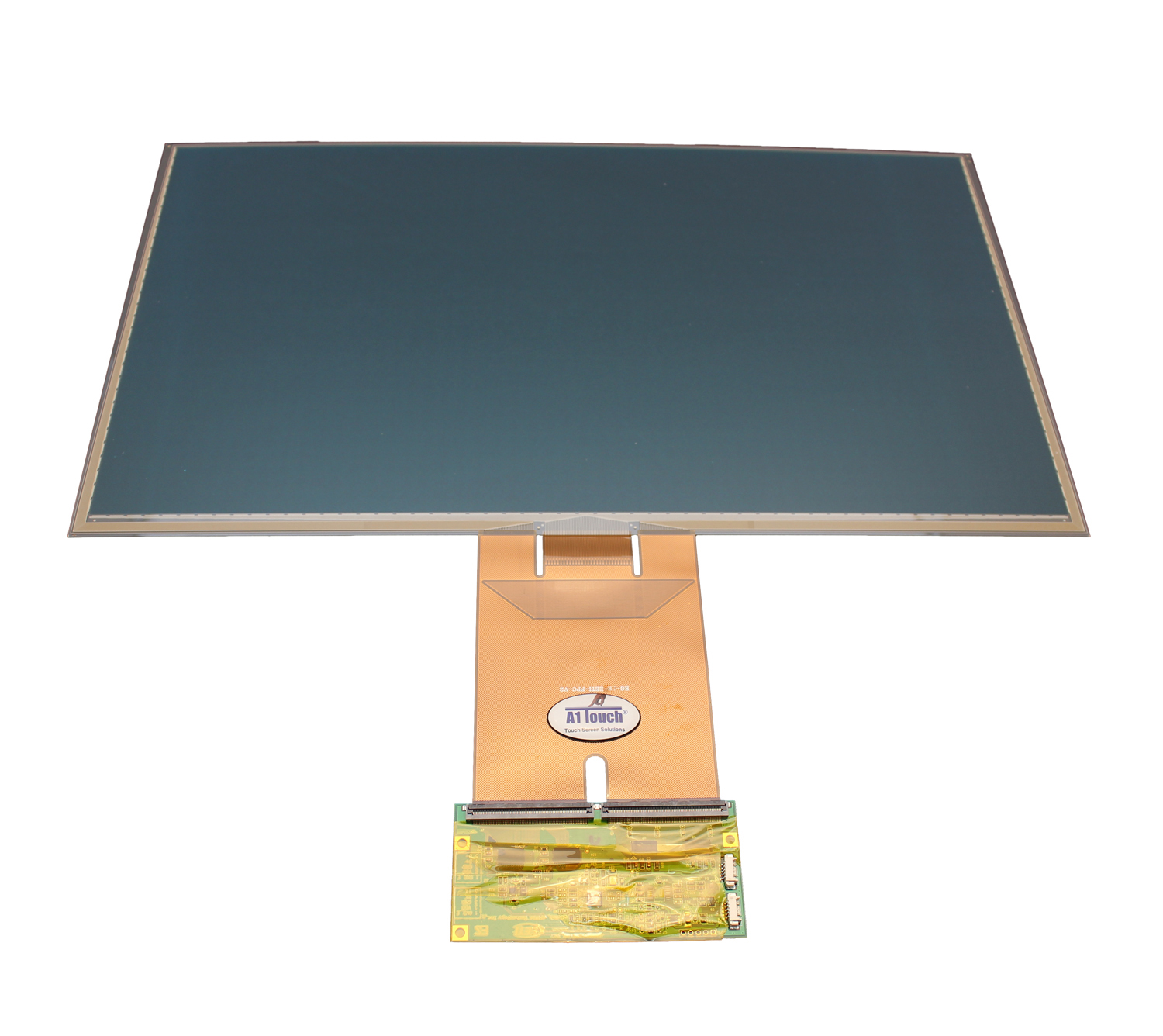

19" wide PCAP touchscreen kit without cover glass
Net price (excl.VAT) €137,00
A1Touch Solution
Model: A1touch-BI-TFT19w-PCAP10-USB
Name: A1touch PCT 19" wide sensor without cover glass, drawing EG-19-1610-sensor-v1, USB controller EETI chipset, 10pts
Description: The 19 inch wide touch sensor of clear G+G glass can be placed under glass of max 6mm thick (or 3mm acrylic glass) to build hufter proof multitouch (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is in stock

Our kit includes: sensor + controller + cables

Size: 19" wide
Structure: G+G
Outside dimensions (wxh) 427.12 x 274.70 +/-0.15mm
Active area (wxh) 411.40 x 257.50 +/-0.2mm
Thickness sensor: 0.7 mm
Sensor Process: Print process (ITO Pattern + Metal line)
Glass options:
touchable through max. 6mm float-, hardened- or laminated glass or max. 3mm acrylic/plexy glass
Detected touches 10 touches.
Endurance: >300.000.000 times
Maximum Pixel: 4096x4096
Response time: <10ms
Interface: USB, 4 wire, 2.0 Full speed
Controller type: EETI chipset 31xx.
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: 3.5 - 5.5 Volt,  Typical 5 Volt
Power Dissipation: <0.35W
Operating Temperature: -10°C to +70°C
Humidity: 0 to 95% RH @ 60°C. RH non condensing
Durability: Unsurpassed vandal and shock resistance
What it Detects: Finger, gloved or ungloved. Conductive stylus
Resistance to Contamination:
Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96
MTBF (Sensor): Excellent, no known wear-out mechanism
Drawing  sensor :
Specs touchscreen kit :

Spec.  controller :

Driver downloads : More Info
General information : More Info
