Add On IR Touchscreen 50 inch

32 inch infrared touchscreen
Add On IR Touchscreen 50 inch
Net price (excl.VAT) €284,00
Art.No.:
1020152796
Brand:
A1Touch Solution
Type: AO-TFT50-IR-10-USB-PNB or -TNB

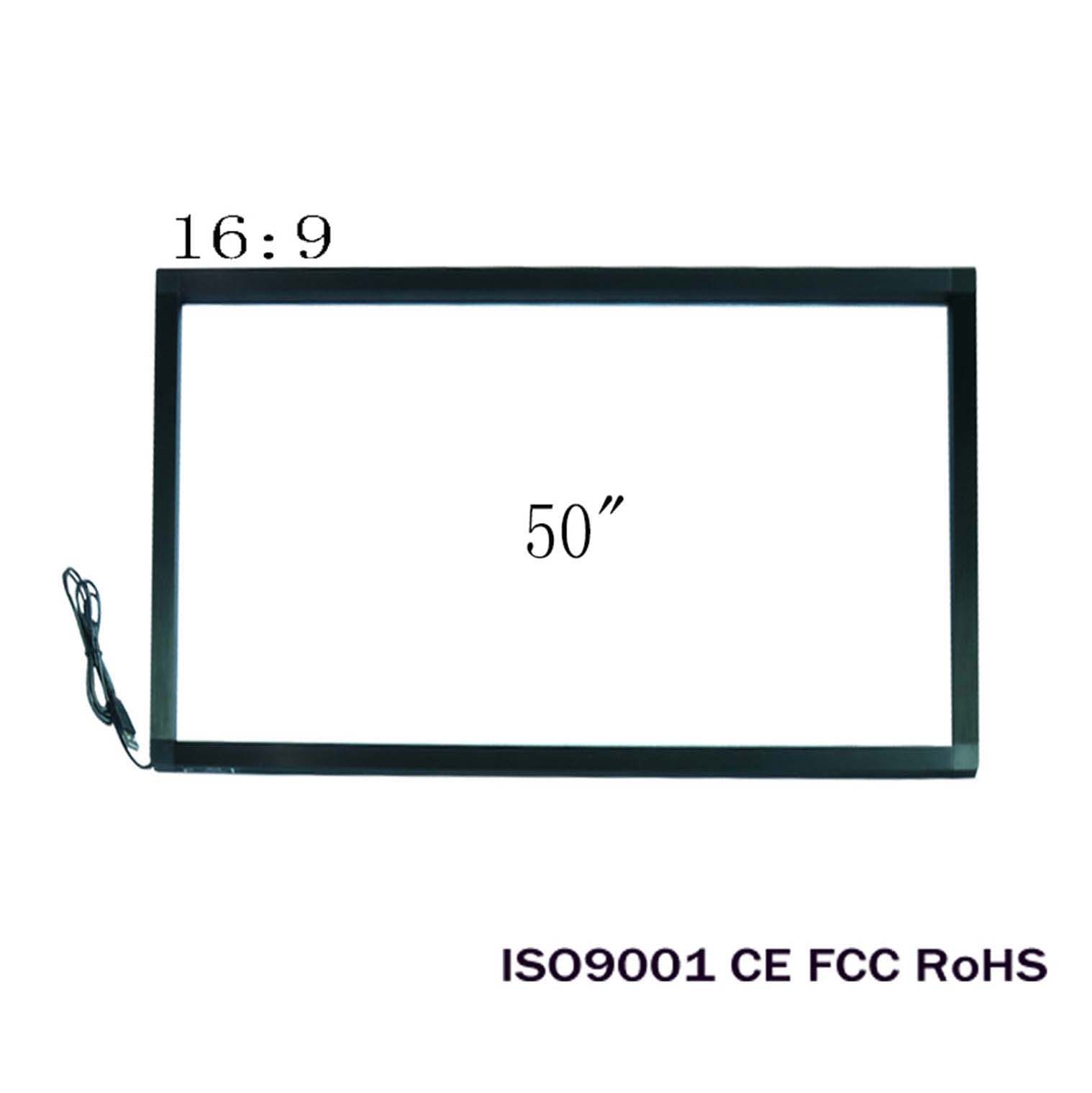

Description: The 50 inch infrared touchscreen overlay can easily make your monitor or whiteboard into an interactive experience with 10 points touch detection. The unit can be placed with double sided tape (permanent = -PNB) or with velcron tape (temporarily= TNB). The unit is connected via usb and no driver is needed for win7 upto win10 and MAC or with driver for Linux or Android. The unit is standard delivered without glass.
NOT in stock

Delivery:

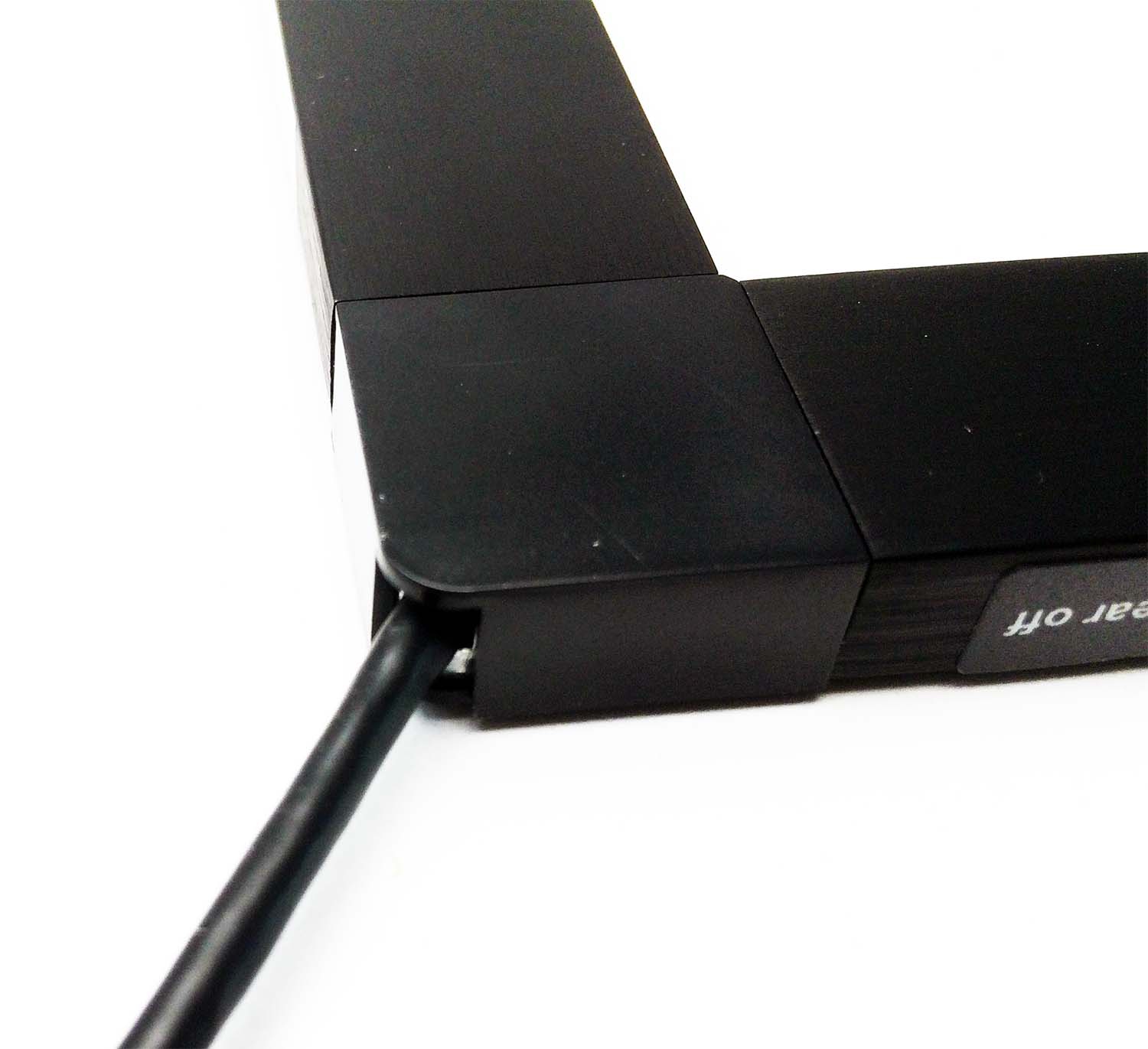

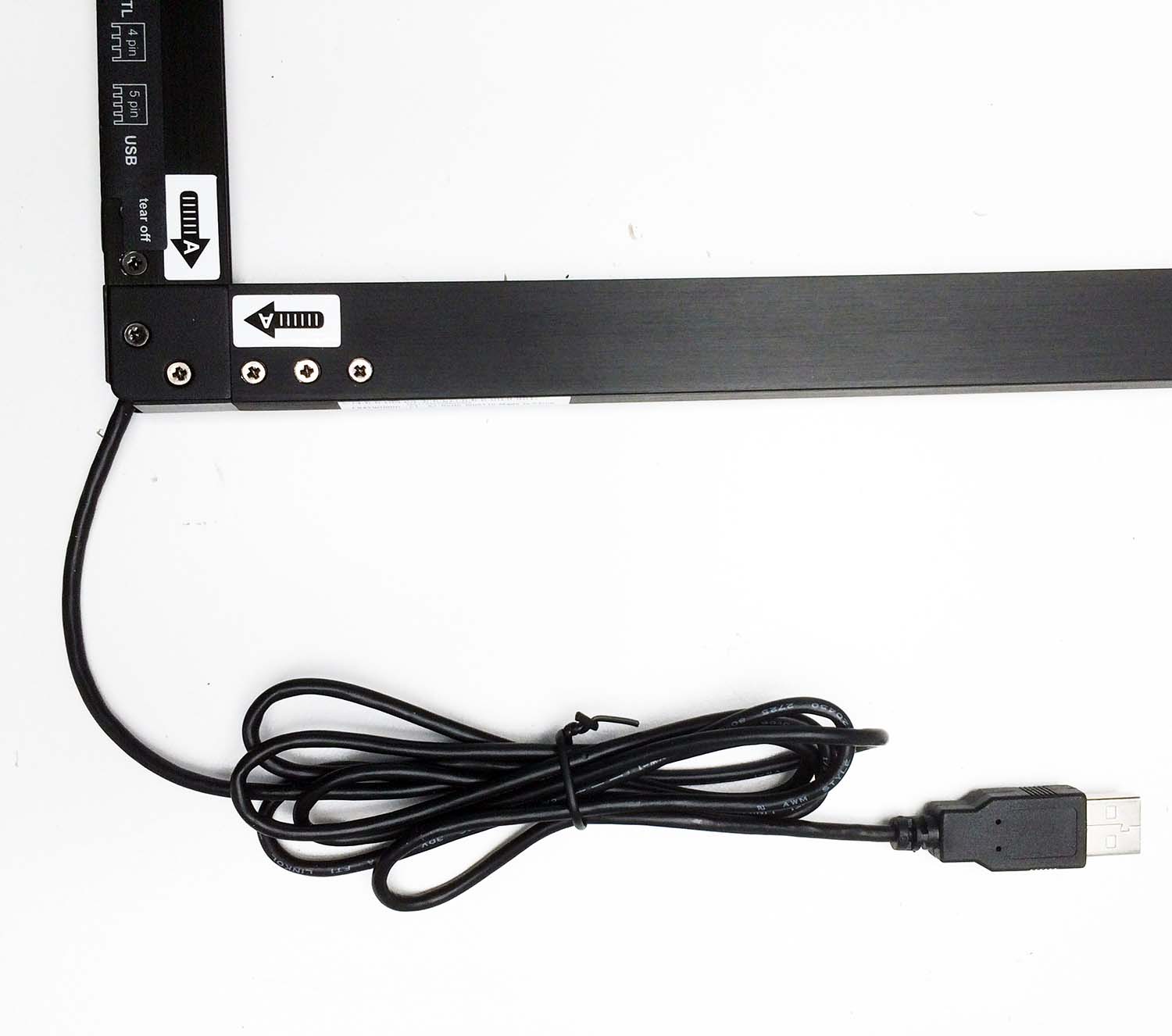

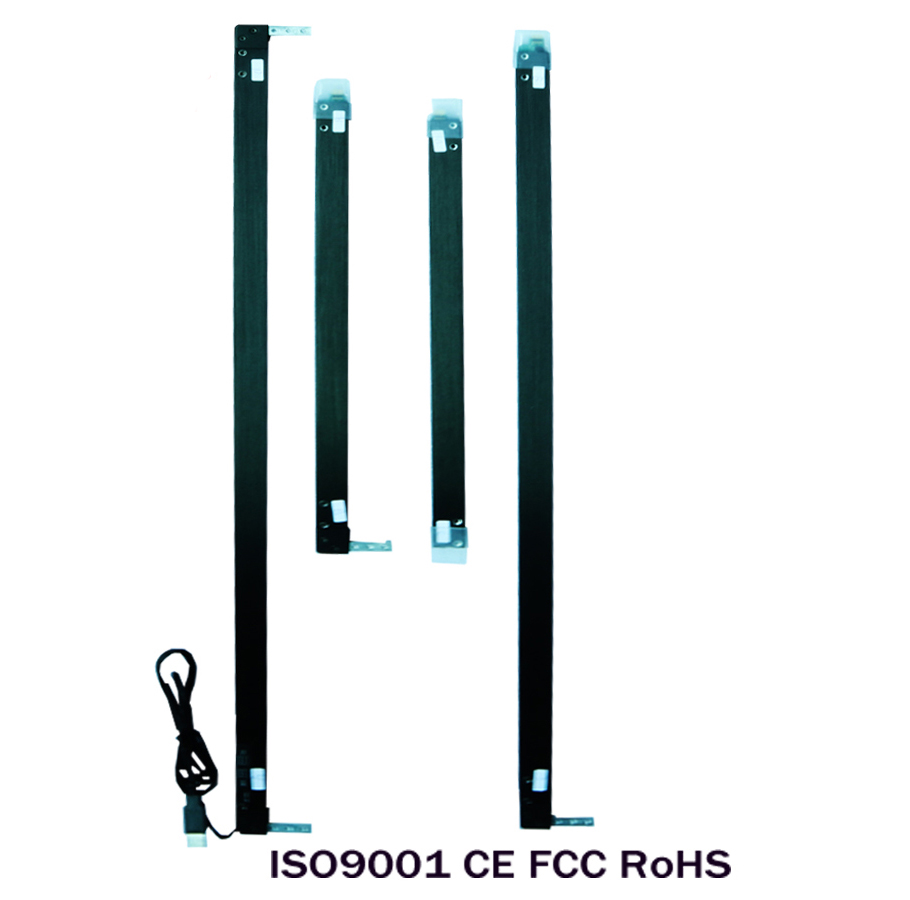

Our add-on kit includes: touchscreen with integrated USB controller, USB-A cable 1.45 meter and depending on chosen option: Double sided tape (permanent mounting) or Velcro-tape (temporarily mounting).

Product Features:
1. Precise multi-point (10 points) touching.
2. USB interface, Intelligent automatic calibration.
3. Maintenance free.
4. Aluminium alloy shell with strong stability.
5. Delivered without glass (Tempered glass or Float glass on request).
6. Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
7. No touching tools,no special touching pen is required, only your finger.
8. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
other undesirable phenomena

Specifications:

Size:

50" ( 50” active area)

Touch Technology:

Infrared Touch

Color:

Black

Material:

Brushed black aluminium

Dimensions



Outside dimensions frame (wxh)

1144.8 x 665.4+/- 1mm

Inside dimensions frame UP (wxh)

1101 x 621.5 +/- 1mm

Inside dimensions frame DOWN (wxh)

1098.8 x 619.4 +/- 1mm

Active area (wxh)

1095.8 x 616.4 mm +/- 1mm

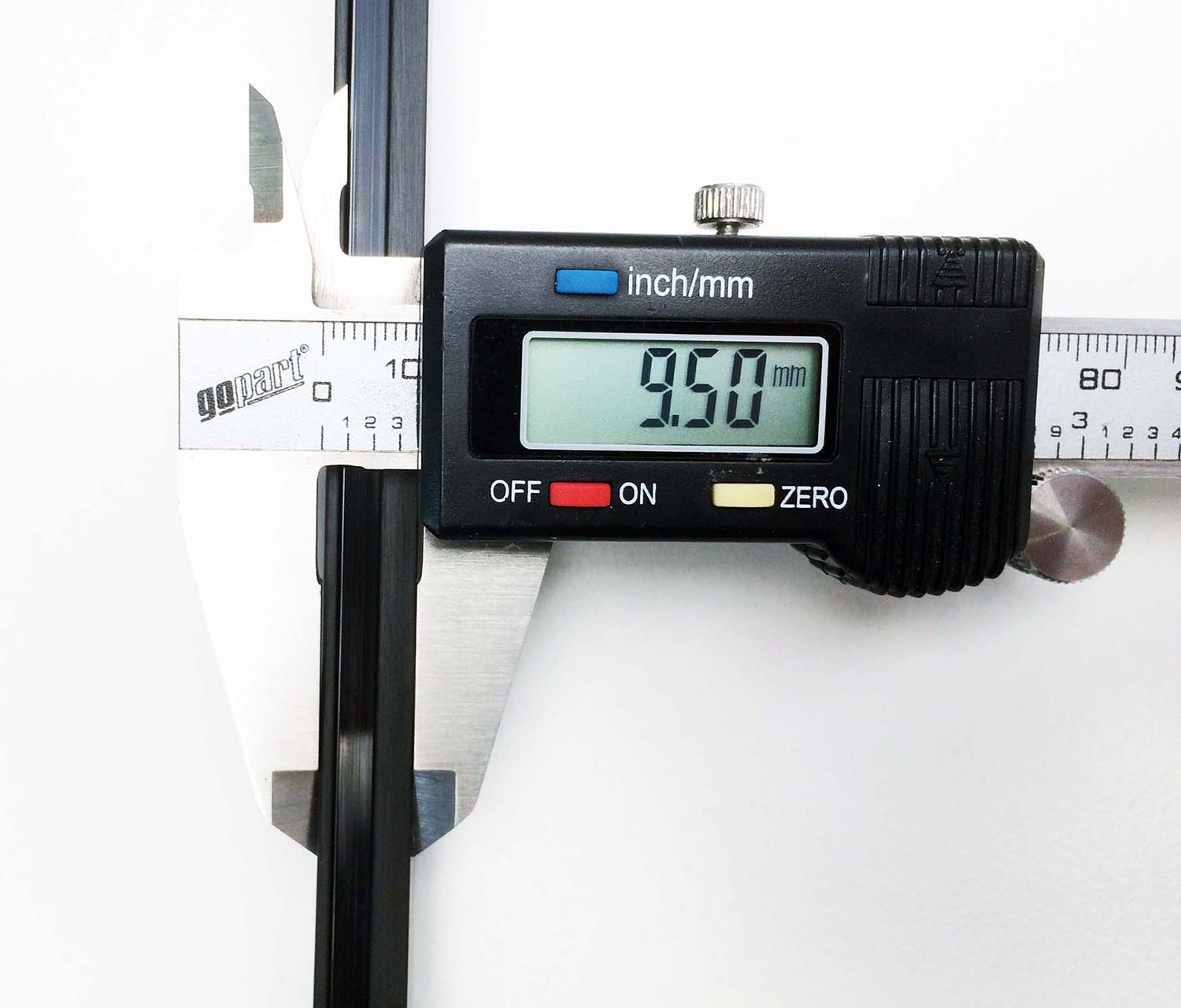

Thickness frame:

9.5 +/- 0.2 mm

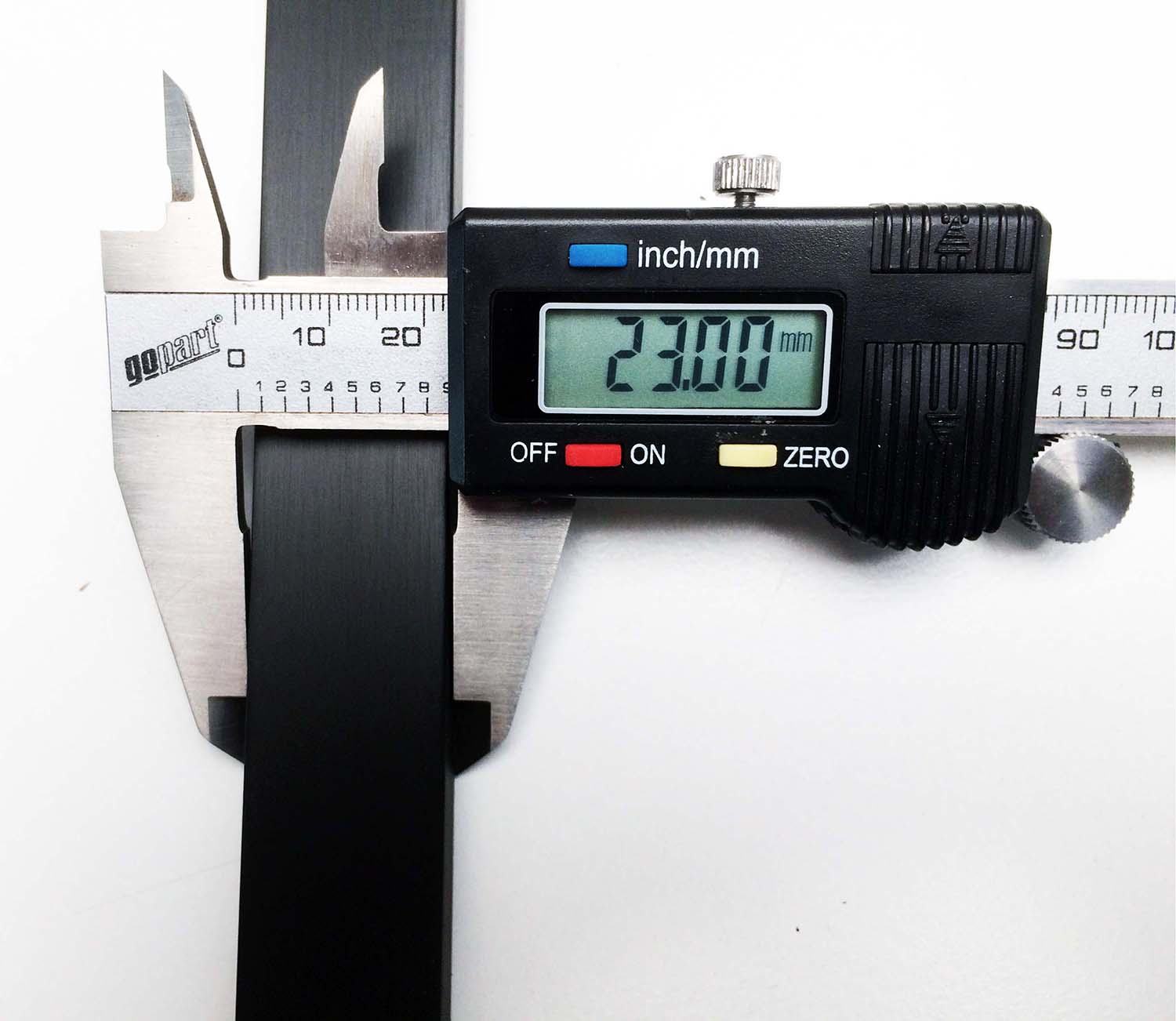

Width frame:

23 +/- 0.2 mm

Performance



Resolution(Interpolation):

4096*4096

Ratio:

16:9

Detected touches

10 touches.

Linearity error:

1.5 mm

Response time:

<15ms

Mechanical



Input Method:

Finger, gloved hand, or opaque object

Touch times:

Unlimited

Touch Activation Force:

No minimum touch activation force is required.

Minimum Touch Object:

5mm

Environmental suitablity



Temperature:

Operating: -20°C ~ 70°C

Storage: -40°C ~ 85°C

Relative Humidity:

Operating: 90%(non-condensing at max 40°C)

Storage: 90%(non-condensing at max 40°C)

Altitude:

Up to 3000m

Life Time (MTBF):

At least 7-year

Electrical



Scan frequency:

60Hz

Commnication interface:

USB 2.0 or RS232

Output Format:

Coordinate output

Touch Accuracy:

2mm (over 90% area)

Operation Voltage:

Typical +DC 5V, +4.75V to +5.25V

Power Supply:

Via USB, power ripple max. 200 mV rms

Power:

<2W, operating current<180mA

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Agency Approvals:

CE, FCC Class B, RoHS



Applications:
• TV
• Monitor
• Gaming device
• Exhibition
• Education training
• Public query machine
• Self-service machine
• Interactive whiteboard
• Any interactive machine

Spec. sensor

Specs built in 6.4 inch 4 wire resistive sensor
Dimensions : Dimensions built in 6.4 inch 4 wire resistive touchscreen
Manual assembly IR Frame : Dimensions built in 6.4 inch 4 wire resistive touchscreen
Driver downloads : Driver downloads built in 6.4 inch 4 wire resistive touchscreen
General information : General information built in 6.4 inch 4 wire resistive touchscreen

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
