Add On IR Touchscreen 75 inch

add on touchscreen
Add On IR Touchscreen 75 inch
Net price (excl.VAT) €398,00
Art.No.:
1020152800
Brand:
A1Touch Solution
Type: AO-TFT75-IR-10-USB-PNB or -TNB
Description: The 75 inch add on touchscreen overlay with infrared technology can easily make your monitor or whiteboard into an interactive experience with 10 points touch detection. The unit can be placed with double sided tape (permanent = -PNB) or with velcron tape (temporarily= TNB). The unit is connected via usb and no driver is needed for win7 upto win10 and MAC or with driver for Linux or Android. The unit is standard delivered without glass.
Unit is in stock

Delivery:

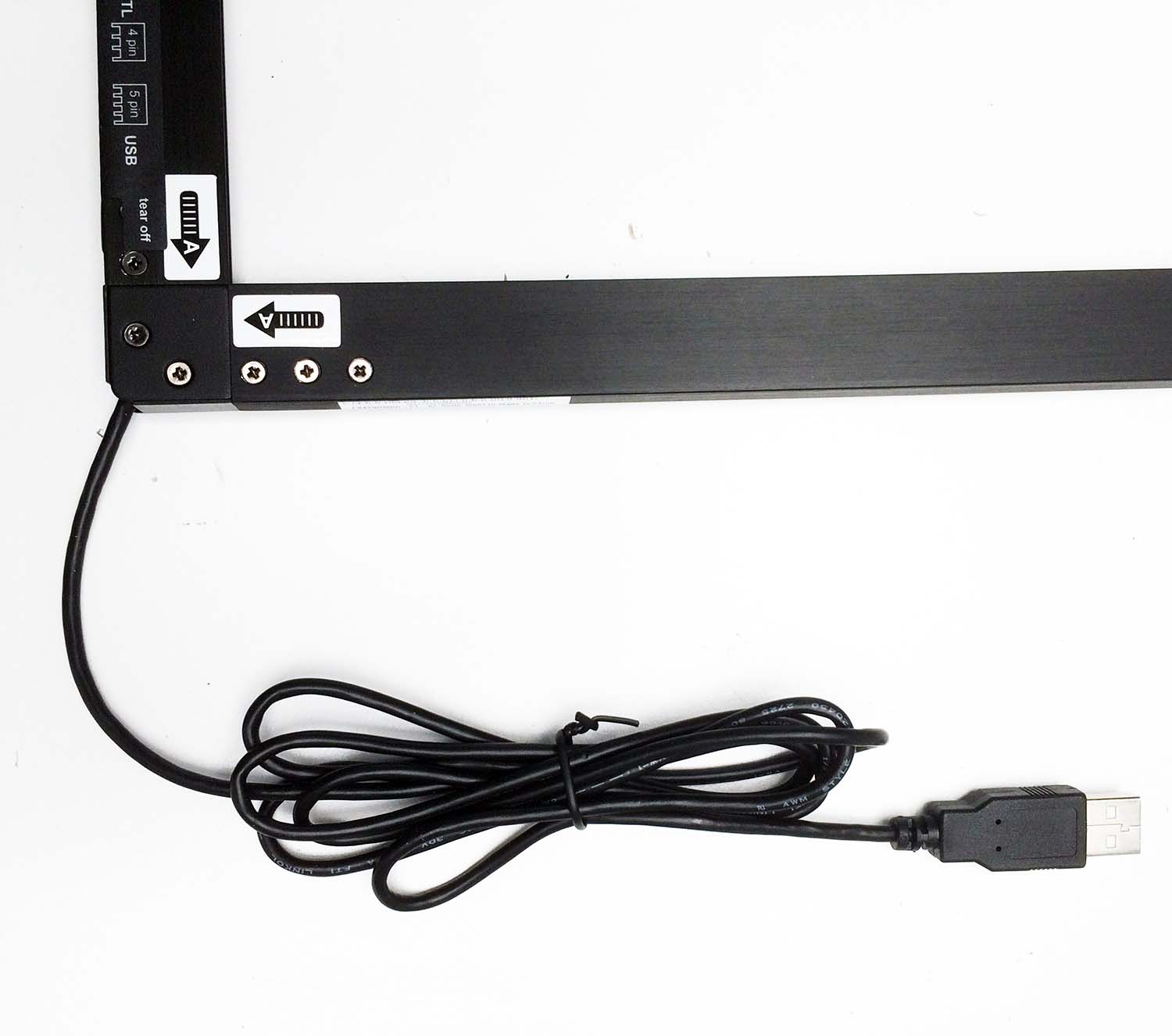

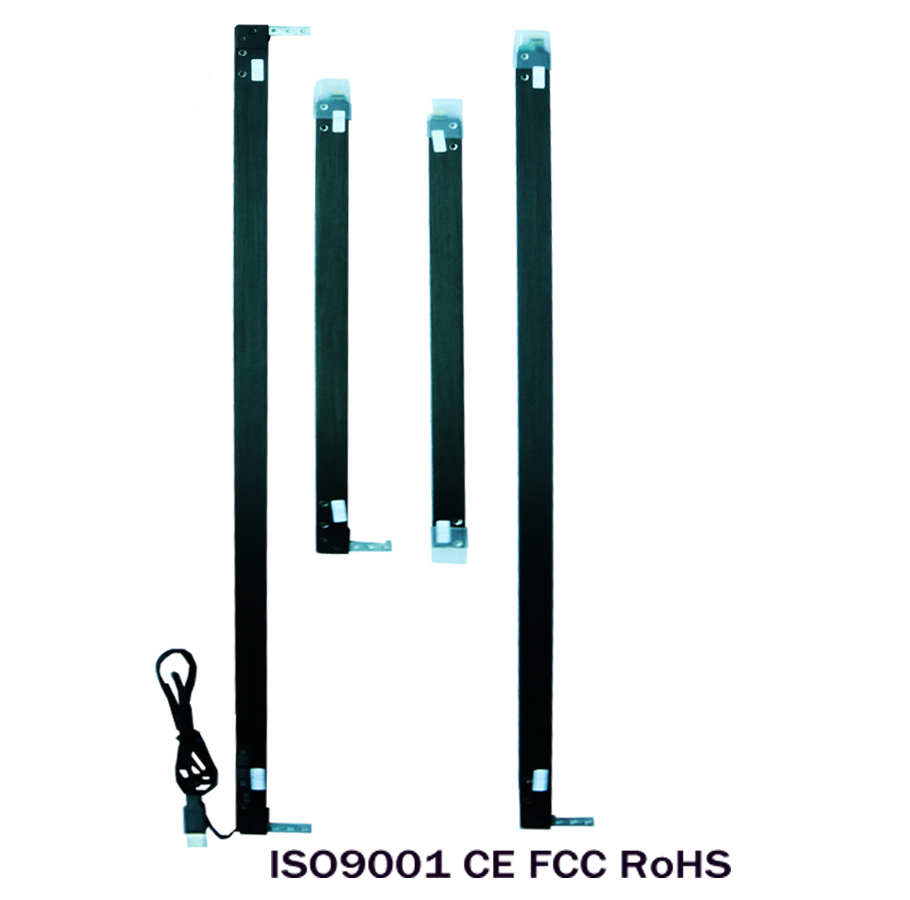

Our add on kit includes: touchscreen with integrated USB controller, USB-A cable 1.45 meter and depending on chosen option: Double sided tape (permanent mounting) or Velcro-tape (temporarily mounting).

Product Features:
1. Precise multi-point (10 points) touching.
2. USB interface, Intelligent automatic calibration.
3. Maintenance free.
4. Aluminium alloy shell with strong stability.
5. Delivered without glass (Tempered glass or Float glass on request).
6. Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
7. No touching tools,no special touching pen is required, only your finger.
8. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
other undesirable phenomena

Specifications:

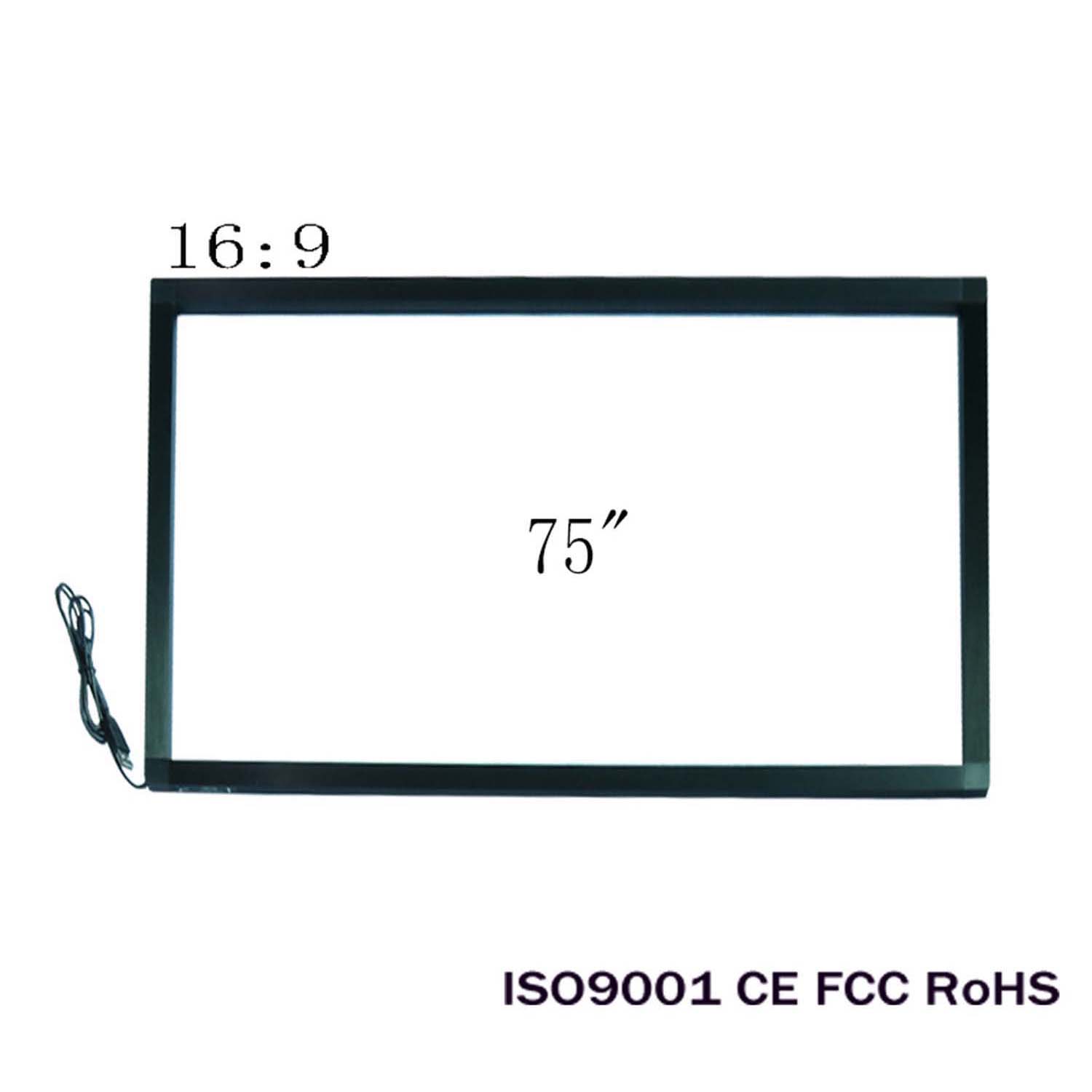

Size:75

75" ( 75” active area)

Touch Technology:

Infrared Touch

Color:

Black

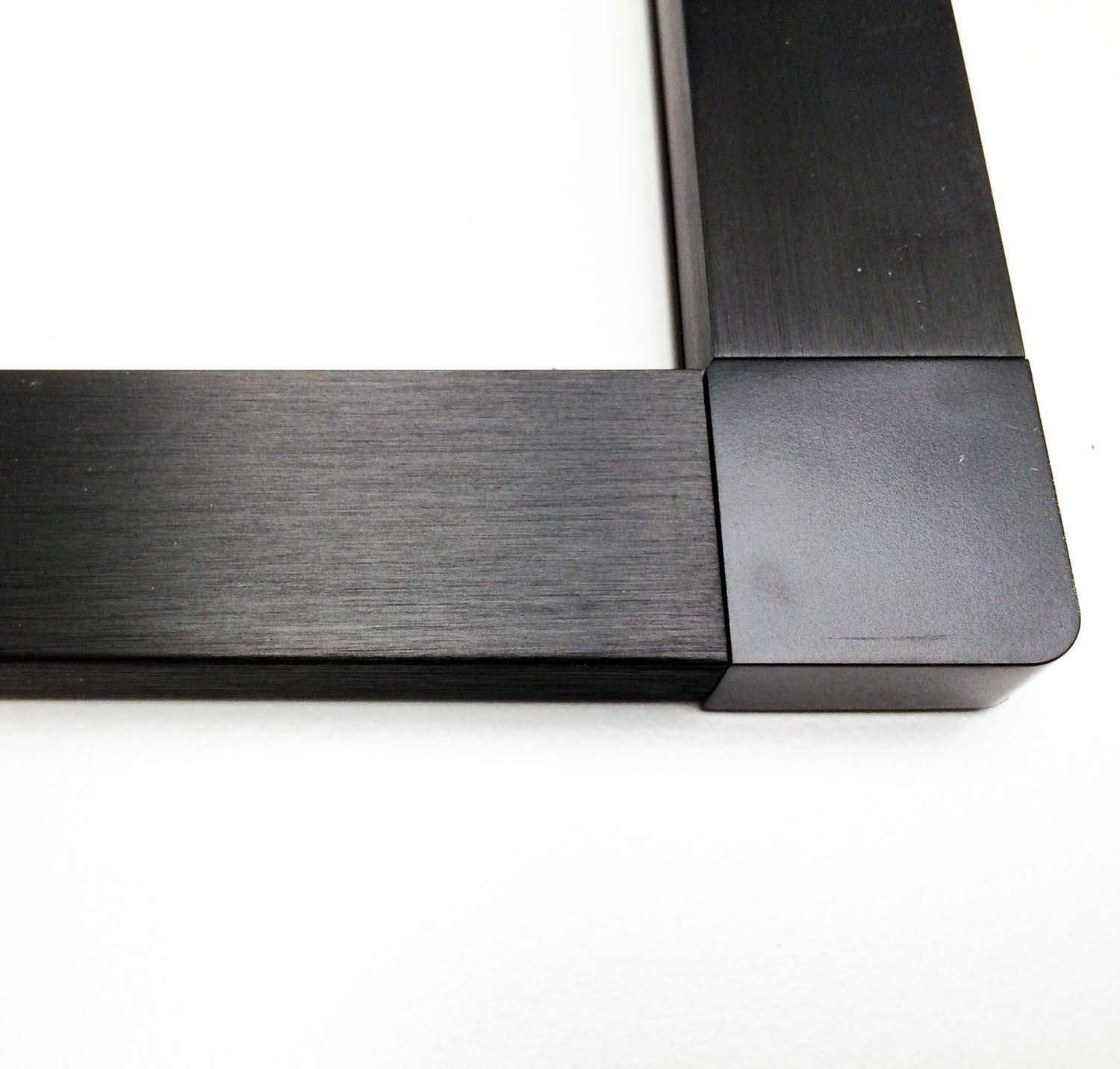

Material:

Brushed black aluminium

Dimensions



Outside dimensions frame (wxh)

1697.3 x 976.2 +/- 1mm

Inside dimensions frame UP (wxh)

1653.4 x 932.3 +/- 1mm

Inside dimensions frame DOWN (wxh)

1651.3 x 930.2 +/- 1mm

Active area (wxh)

1650.24 x 928.26 mm

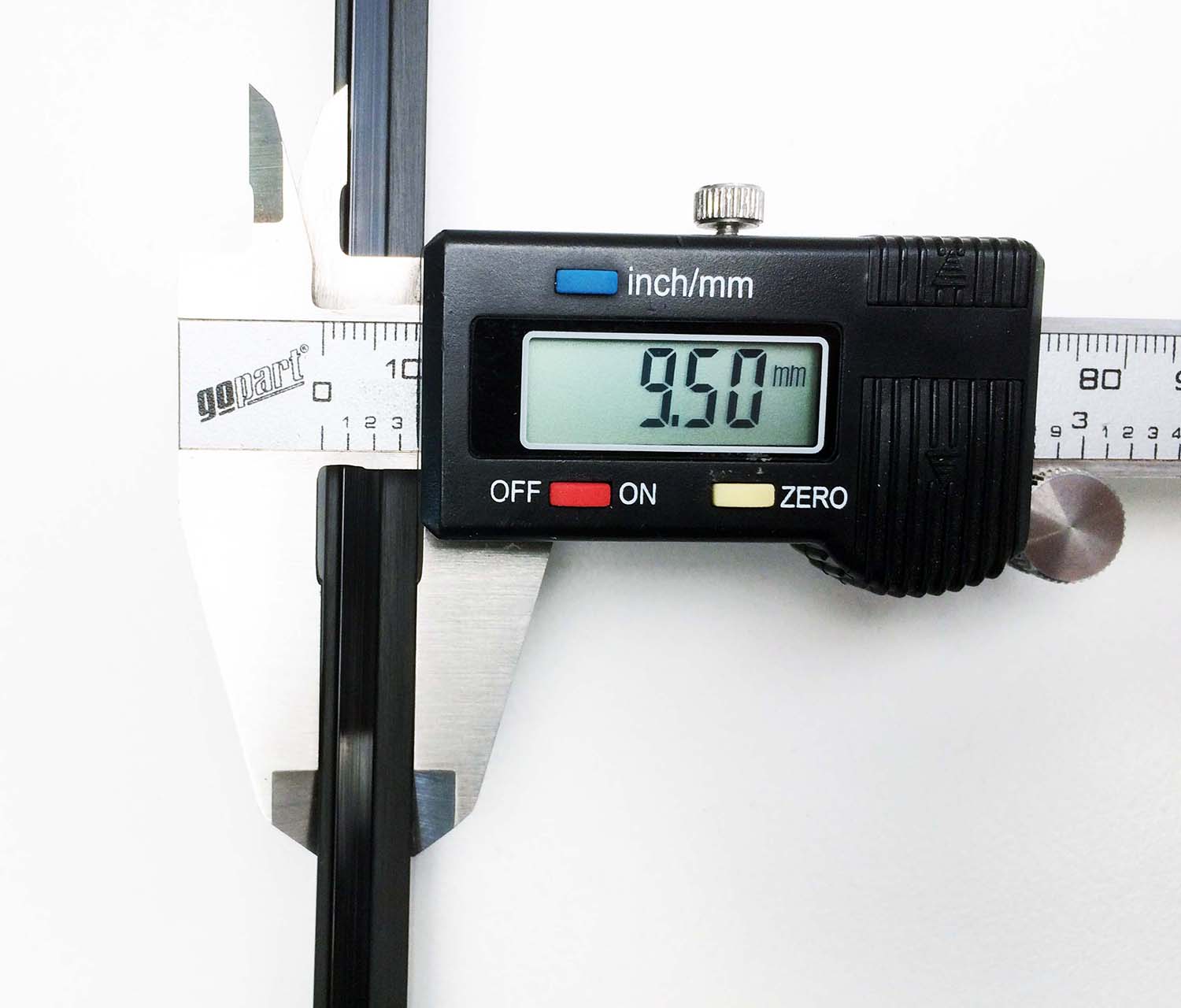

Thickness frame:

9.5 +/- 0.2 mm

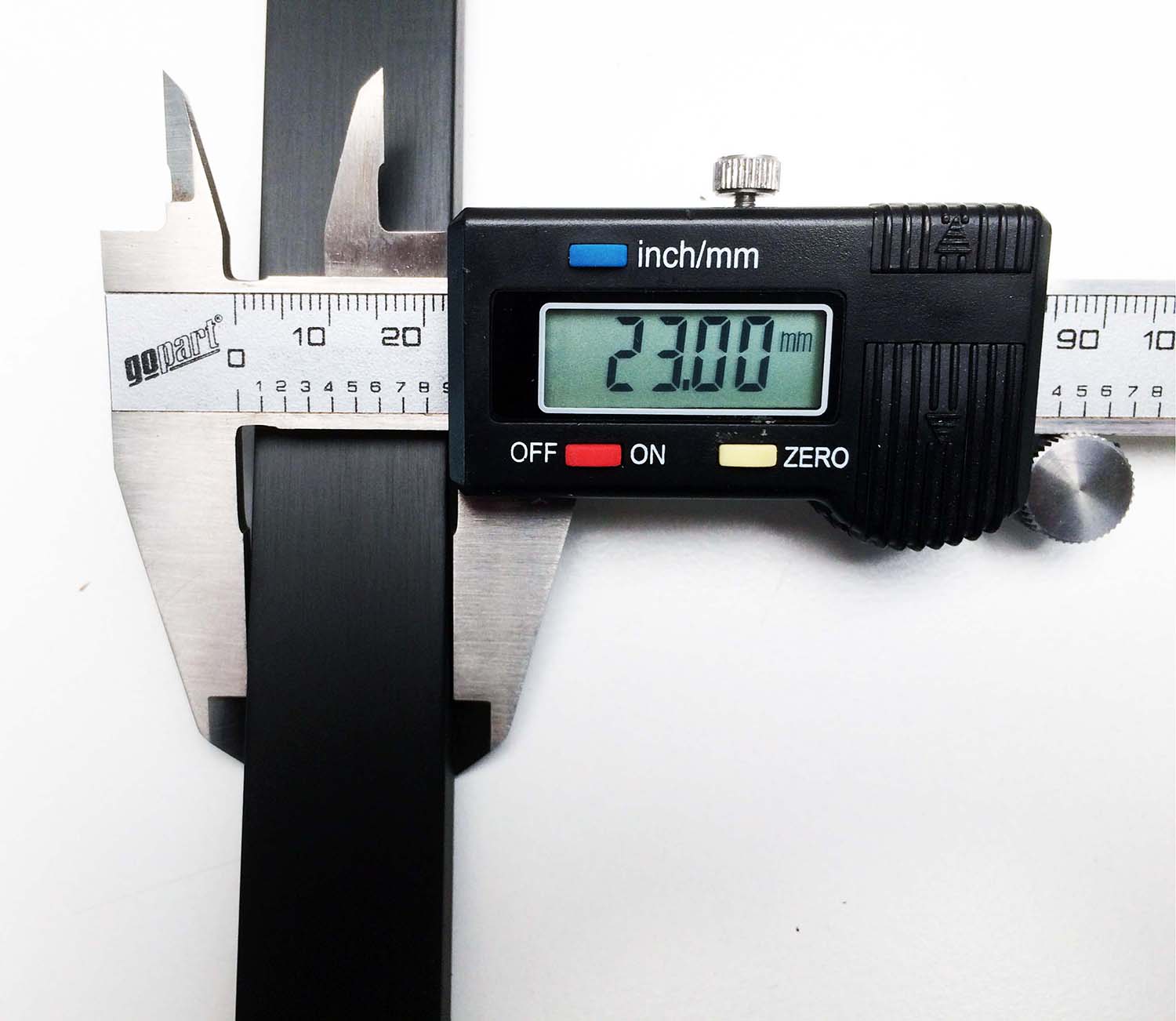

Width frame:

23 +/- 0.2 mm

Performance



Resolution(Interpolation):

4096*4096

Ratio:

16:9

Detected touches

10 touches.

Linearity error:

1.5 mm

Response time:

<15ms

Mechanical



Input Method:

Finger, gloved hand, or opaque object

Touch times:

Unlimited

Touch Activation Force:

No minimum touch activation force is required.

Minimum Touch Object:

5mm

Environmental suitablity



Temperature:

Operating: -20°C ~ 70°C

Storage: -40°C ~ 85°C

Relative Humidity:

Operating: 90%(non-condensing at max 40°C)

Storage: 90%(non-condensing at max 40°C)

Altitude:

Up to 3000m

Life Time (MTBF):

At least 7-year

Electrical



Scan frequency:

60Hz

Commnication interface:

USB 2.0 or RS232

Output Format:

Coordinate output

Touch Accuracy:

2mm (over 90% area)

Operation Voltage:

Typical +DC 5V, +4.75V to +5.25V

Power Supply:

Via USB, power ripple max. 200 mV rms

Power:

<2W, operating current<180mA

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Agency Approvals:

CE, FCC Class B, RoHS



Applications:
• TV
• Monitor
• Gaming device
• Exhibition
• Education training
• Public query machine
• Self-service machine
• Interactive whiteboard
• Any interactive machine

Spec. sensor

Specs built in 6.4 inch 4 wire resistive sensor
Dimensions : Dimensions built in 6.4 inch 4 wire resistive touchscreen
Manual assembly IR Frame : Dimensions built in 6.4 inch 4 wire resistive touchscreen
Driver downloads : Driver downloads built in 6.4 inch 4 wire resistive touchscreen
General information : General information built in 6.4 inch 4 wire resistive touchscreen
