Add-On IR Touchscreen 65 inch

Add-On IR Touchscreen 65 inch
Net price (excl.VAT) €342,00
A1Touch Solution
Type: AO-TFT365-IR-20-USB-PNB or -TNB
Description: The 65 inch infrared touchscreen overlay can easily make your monitor or whiteboard into an interactive experience with 20 points touch detection. The unit can be placed with double sided tape (permanent = -PNB) or with velcron tape (temporarily= TNB). The unit is connected via usb and no driver is needed for win7 upto win10 and MAC or with driver for Linux or Android. The unit is delivered without glass.
Unit is in stock

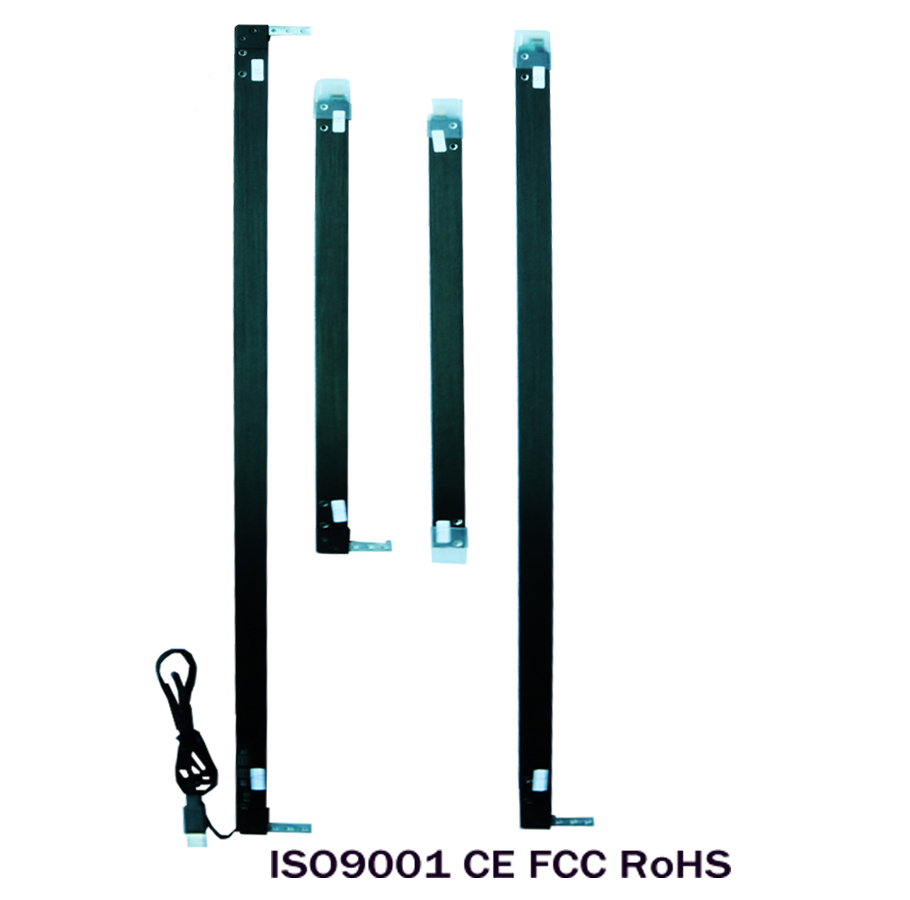

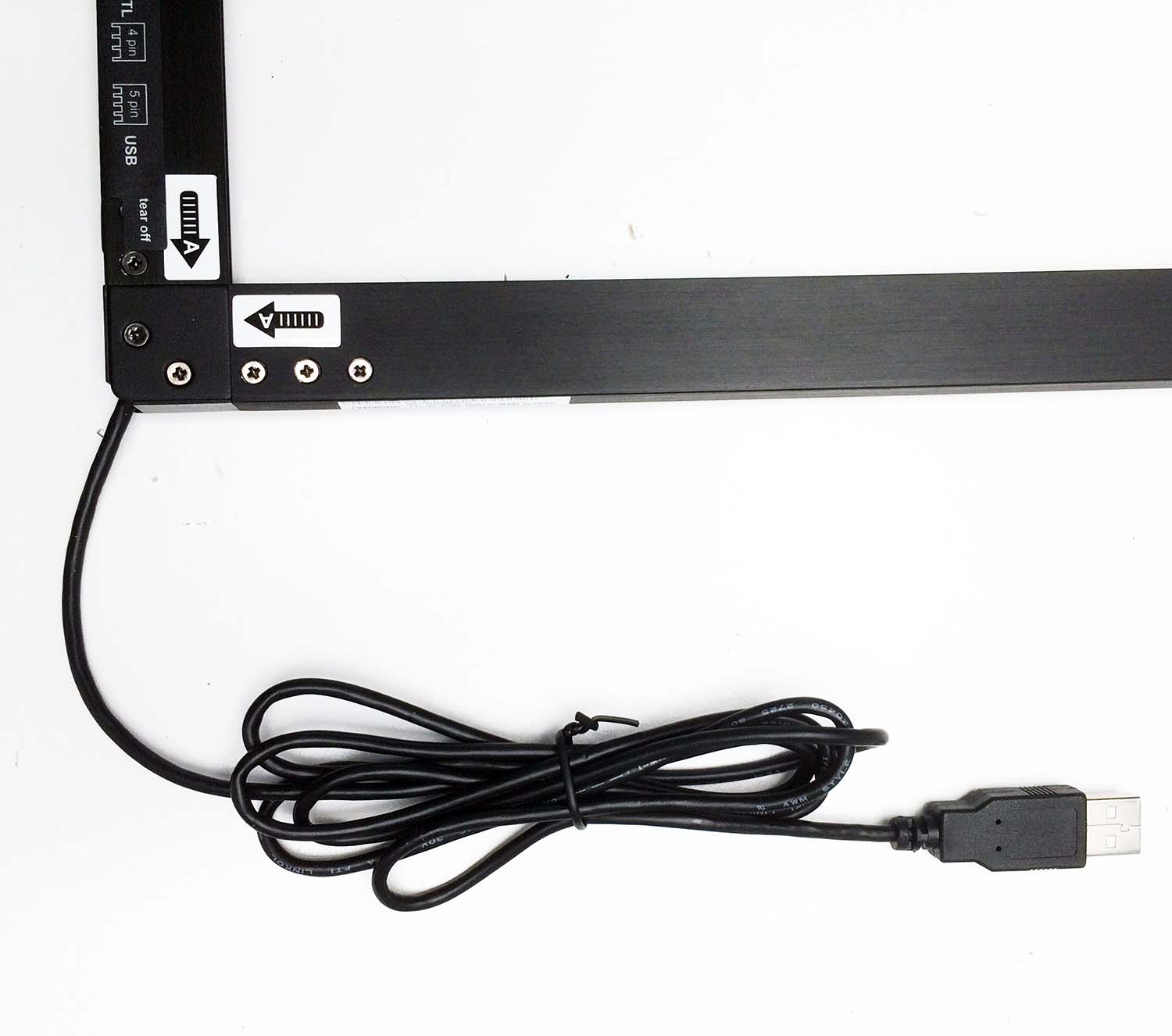

Our add-on kit includes: touchscreen with integrated USB controller, USB-A cable 1.45 meter and depending on chosen option: Double sided tape (permanent mounting) or Velcro-tape (temporarily mounting).

Product Features:
1. Precise multi-point (10 points) touching.
2. USB interface, Intelligent automatic calibration.
3. Maintenance free.
4. Aluminium alloy shell with strong stability.
5. Delivered without glass (Tempered glass or Float glass on request).
6. Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
7. No touching tools,no special touching pen is required, only your finger.
8. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
other undesirable phenomena

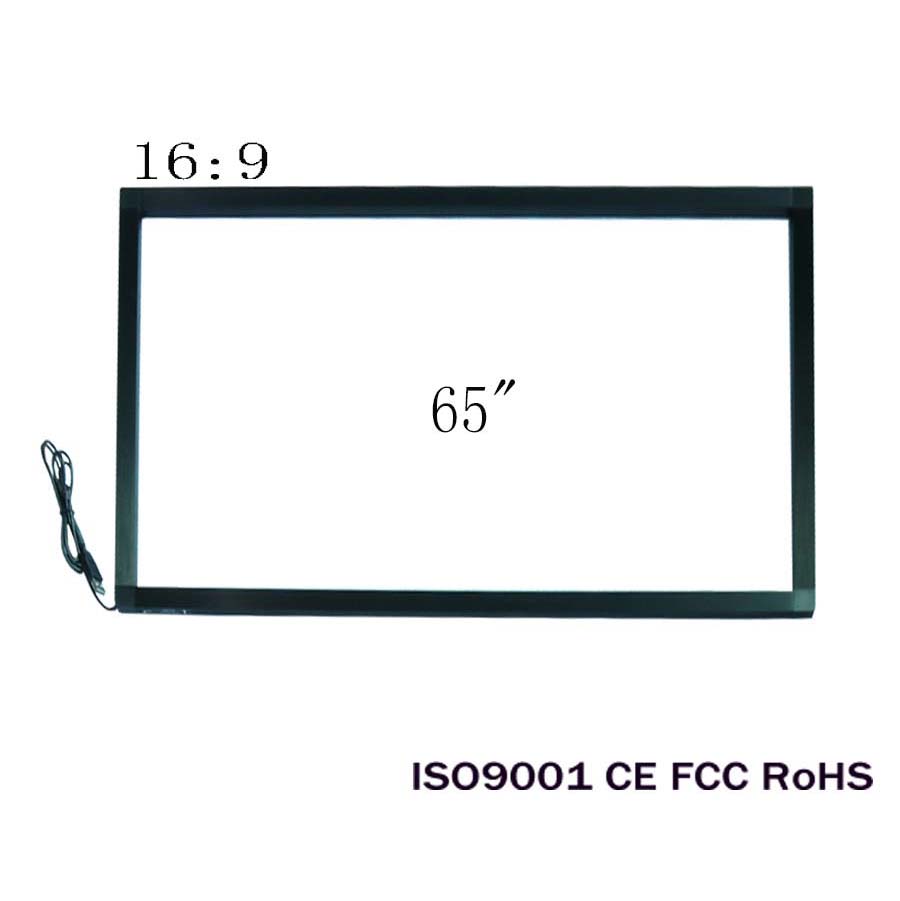

65" ( 65” active area)

Touch Technology:

Infrared Touch

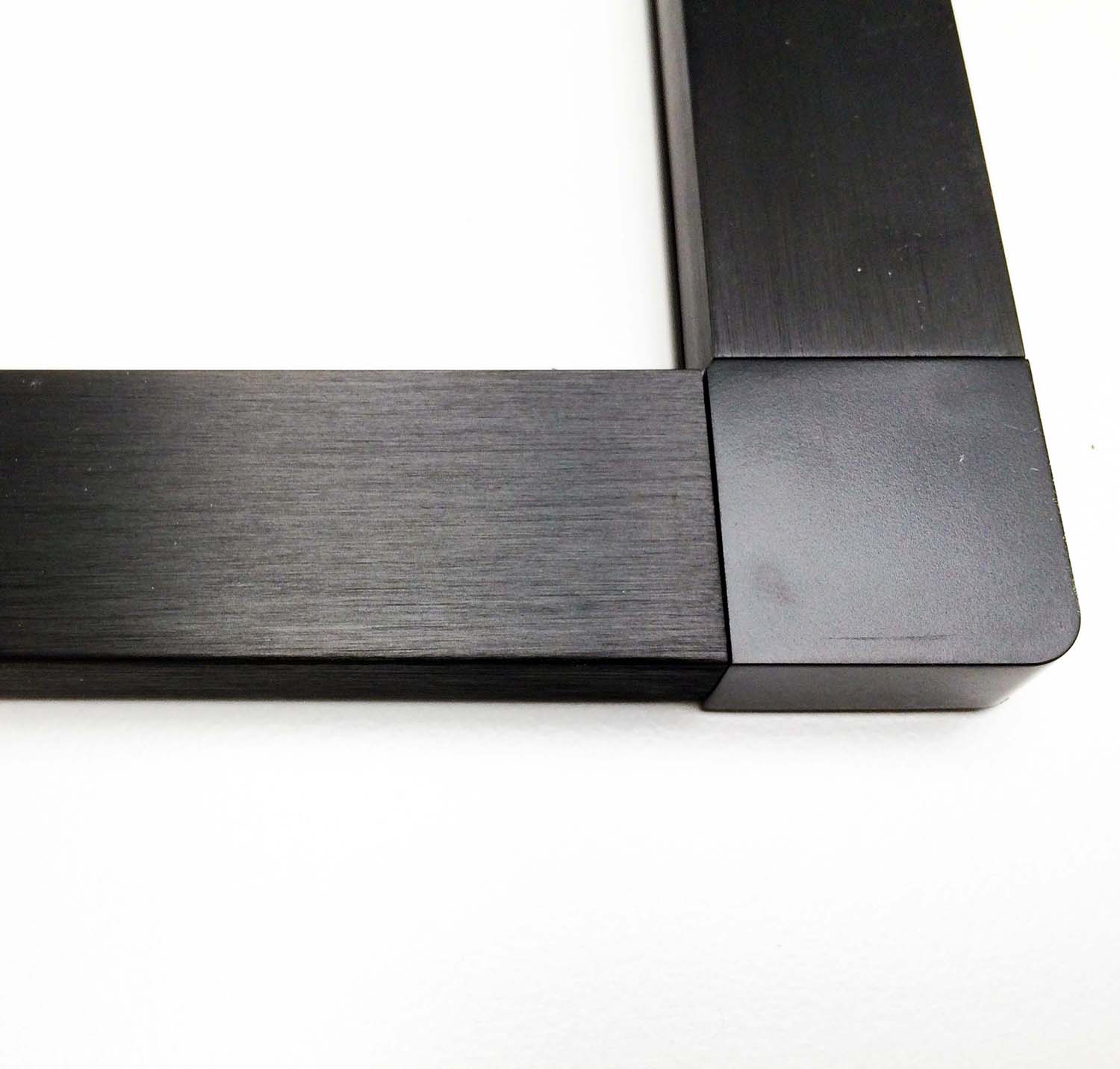

Brushed black aluminium



Outside dimensions frame (wxh)

1475.76x850.76 +/- 1mm

Inside dimensions frame (wxh)

1436x811 +/- 1mm

Active area (wxh)

1434x809 mm

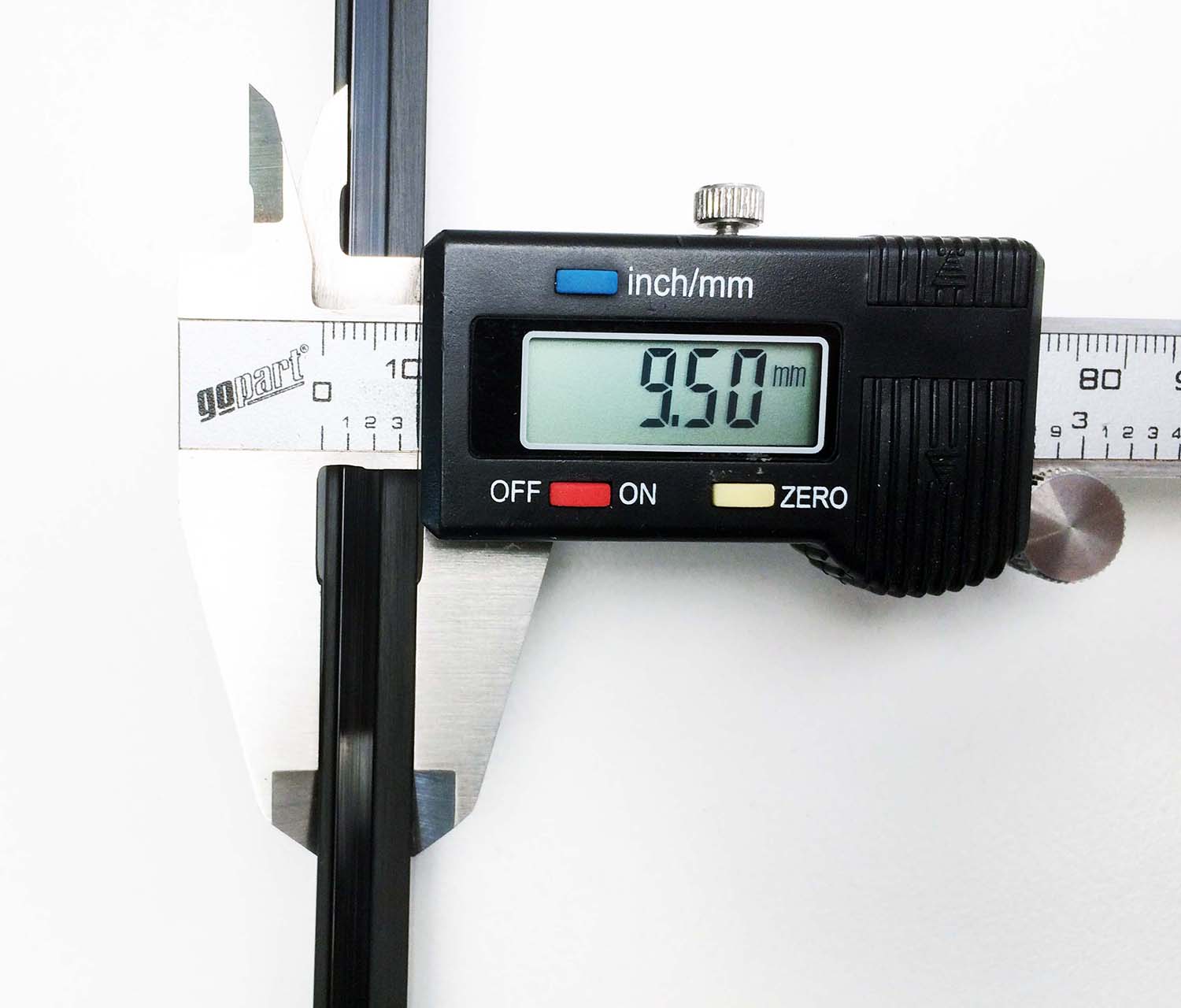

Thickness frame:

9.5 +/- 0.2 mm

Width frame:

20.88 +/- 0.2 mm







Detected touches

20 touches.

Linearity error:

1.5 mm

Response time:




Input Method:

Finger, gloved hand, or opaque object

Touch times:


Touch Activation Force:

No minimum touch activation force is required.

Minimum Touch Object:


Environmental suitablity



Operating: -20°C ~ 70°C

Storage: -40°C ~ 85°C

Relative Humidity:

Operating: 90%(non-condensing at max 40°C)

Storage: 90%(non-condensing at max 40°C)


Up to 3000m

Life Time (MTBF):

At least 7-year



Scan frequency:


Commnication interface:

USB 2.0 or RS232

Output Format:

Coordinate output

Touch Accuracy:

2mm (over 90% area)

Operation Voltage:

Typical +DC 5V, +4.75V to +5.25V

Power Supply:

Via USB, power ripple max. 200 mV rms


<2W, operating current<180mA

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Agency Approvals:

CE, FCC Class B, RoHS


• TV
• Monitor
• Gaming device
• Exhibition
• Education training
• Public query machine
• Self-service machine
• Interactive whiteboard
• Any interactive machine

Spec. sensor

Specs built in 6.4 inch 4 wire resistive sensor
Manual assembly IR Frame : Dimensions built in 6.4 inch 4 wire resistive touchscreen
Driver downloads : Driver downloads built in 6.4 inch 4 wire resistive touchscreen
General information : General information built in 6.4 inch 4 wire resistive touchscreen

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
