Product Features: |

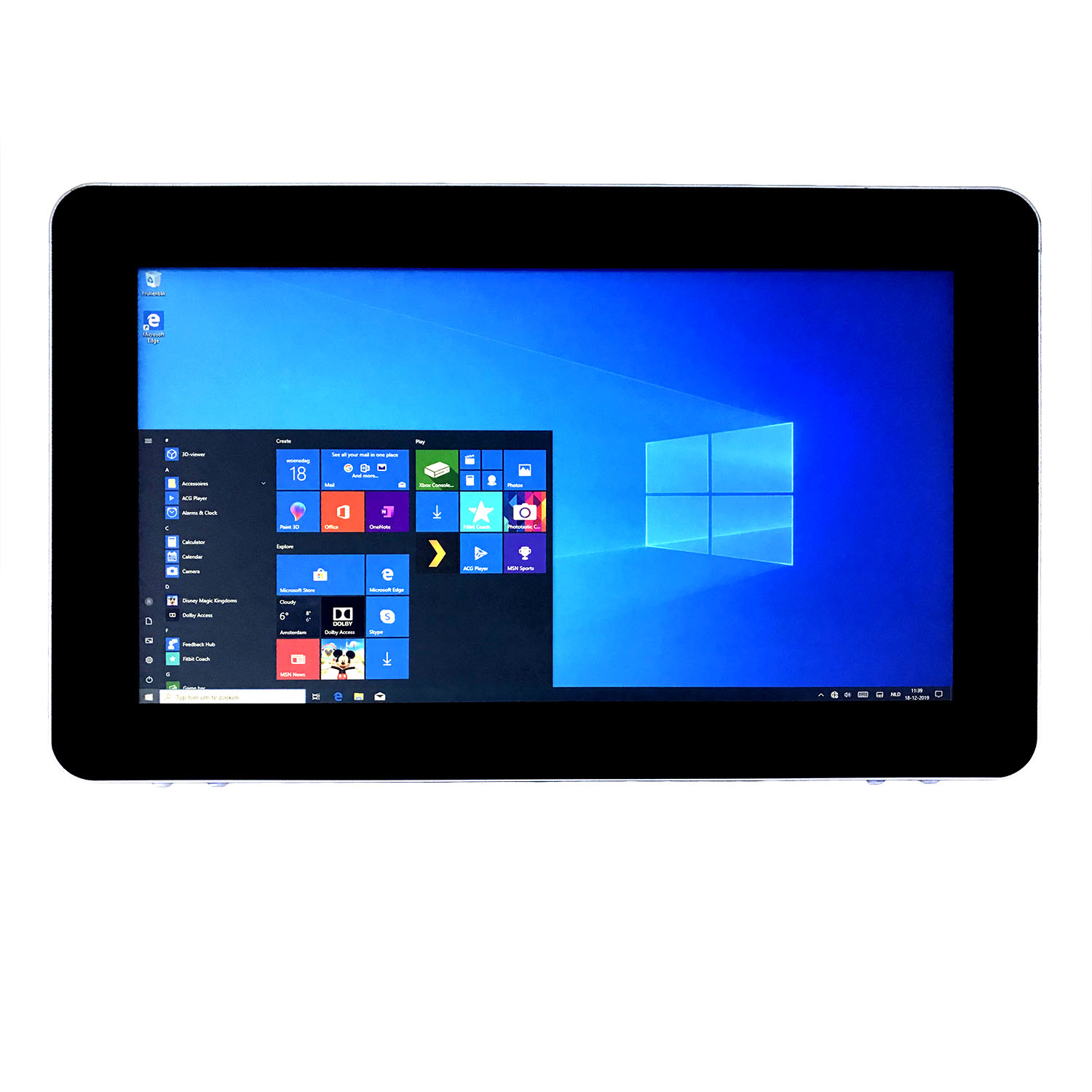

| - Win10 Pro multipurpose system. |
| - Bezel free design with glass surface. |
| - Precise multi-point (10 points) touching. |
| - Maintenance free. |
| - Complete metal monitor with strong stability. |
| - Auto on after power failure. |
| - Unit can be touched with finger, hand gloves or stylus pencil. |
| - Fast touch response (less than 10 ms). |
Specifications:
|
General
|
|
|
Model:
|
BFR133-M1A-DNB
|
|
Size:
|
13.3"
|
|
Panel Type:
|
IPS |
|
Backlight:
|
LED
|
|
Display colour:
|
262K
|
|
Color:
|
Black
|
|
Material:
|
Metal housing, Glass cover glass
|
|
Mounting Option:
|
VESA 75x75 and 100x100 mm
|
|
Video Inputs
|
Inputs: VGA/ HDMI/ BNC/ Composite/ USB
|
|
Dimensions
|
|
|
Outside dimensions frame (wxhxd)
|
354*224*38 mm
|
|
Active area (wxh)
|
293.76*165.24 mm
|
|
Display
|
|
|
Native resolution:
|
1920*1080 @60HZ
|
|
Ratio:
|
16:9
|
|
Contrast:
|
800:1
|
|
Brightness:
|
350 cd/m
|
|
Viewing Angle (H/V):
|
178/178
|
|
Backlight life:
|
Min.15.0000 hrs
|
|
Control:
|
OSD Control
|
|
Processor |
|
|
Type: |
Intel® Celeron® Processor N3450 |
|
Platform: |
Intel Apollo Lake(APL) Platform N3450 |
|
Performance: |
4-core, 4-threads, 2MB Cache, up to 2.24 GHz |
|
GPU: |
Gen9 LP 12EUs |
|
Memory / Storage |
|
|
Ram: |
4GB Ram DDR3L |
|
ROM Flash: |
32GB (Emmc) storage with Windows10Pro installed |
|
Additional (internal) storage: |
1x mSata SSD slot, Option:120-240-480 Gb 1x Micro/TF card reader |
|
Wifi / Bluetooth |
|
|
Yes, (Internal) type: |
Intel Stone Peak 3165, 802.11 a/b/g/n/ac 1x1 MIMO and Bluetooth 4.2 Combo Module |
|
Ports |
|
|
USB: |
1x USB3.0 external available, 1x USB 2.0, 1x USB3.1 Type C Support 4 k internal available |
|
Ethernet: |
1x ethernet RJ45, 1Gb with led indication external available. |
|
Power: |
1x button (only on request) Normally unit starts when power on. |
|
Touchscreen
|
|
|
Touch Technology:
|
Projected capacitive Touch (G+G)
|
|
Detected touches
|
10 touches.
|
|
Response time:
|
<10ms
|
|
Input Method:
|
Finger, hand gloves, or conductive stylus
|
|
Touch times:
|
Unlimited
|
|
Touch Activation Force:
|
No minimum touch activation force is required.
|
|
Controller type:
|
EETI chipset 31xx
|
|
Operating System Support:
|
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
|
|
Environment
|
|
|
Temperature:
|
Operating: 0°C ~ 50°C Storage: -20°C ~ 60°C
|
|
Relative Humidity:
|
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
|
|
Altitude:
|
Up to 3000m
|
|
Electrical
|
|
|
Scan frequency:
|
60Hz
|
|
Operation Voltage:
|
Typical +DC 12V, +/- 10% (24 volt option).
|
|
Power Supply:
|
110-220V AC to 12Volt DC, min. 3.5A
|
|
Power:
|
15 W
|
|
Packing
|
|
|
Agency Approvals:
|
CE, FCC, RoHS
|
|
Weight net.:
|
3.5 kg (without stand) 4.4 kg (with stand)
|
|
Options: |
|
| Standard delivery: Our touchscreen system standard includes: pcap touchscreen with integrated computer and windows10 plug and play installed + 220 – 12 Volt Power Supply. | |
| Cooling: - With active cooling (standard) : the silent cooler is ideal for rooms without ventilation to achieve optimal cooling of processor - With passive cooling : Use this option if you have dirty air or need absolute no noise (room should be ventilated to provide processor with cool air stream). |
|
| Storage capacity mSata: - Diskless (standard) (unit has 32Gb storage and no extra storage is needed). - Options: 60 - 120 - 250 - 500 Gb extra mSata SSD can be chosen for extra storage capacity |
|
| Input equipment: - None (standard) (if you do not need extra keyboard/ mouse but only use touchscreen. - Wireless keyboard + mouse. - Wireless keyboard with integrated mousepad. |
|

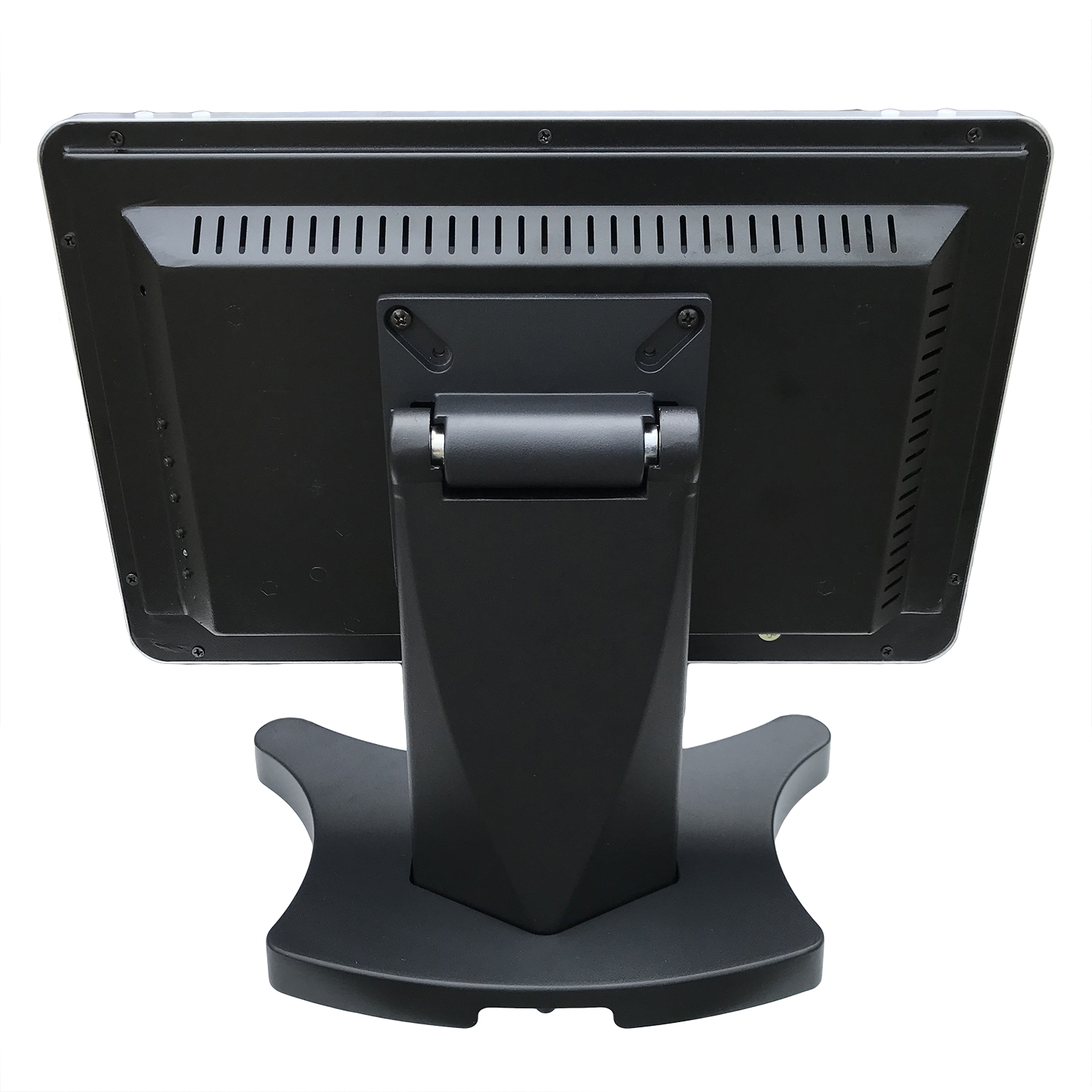

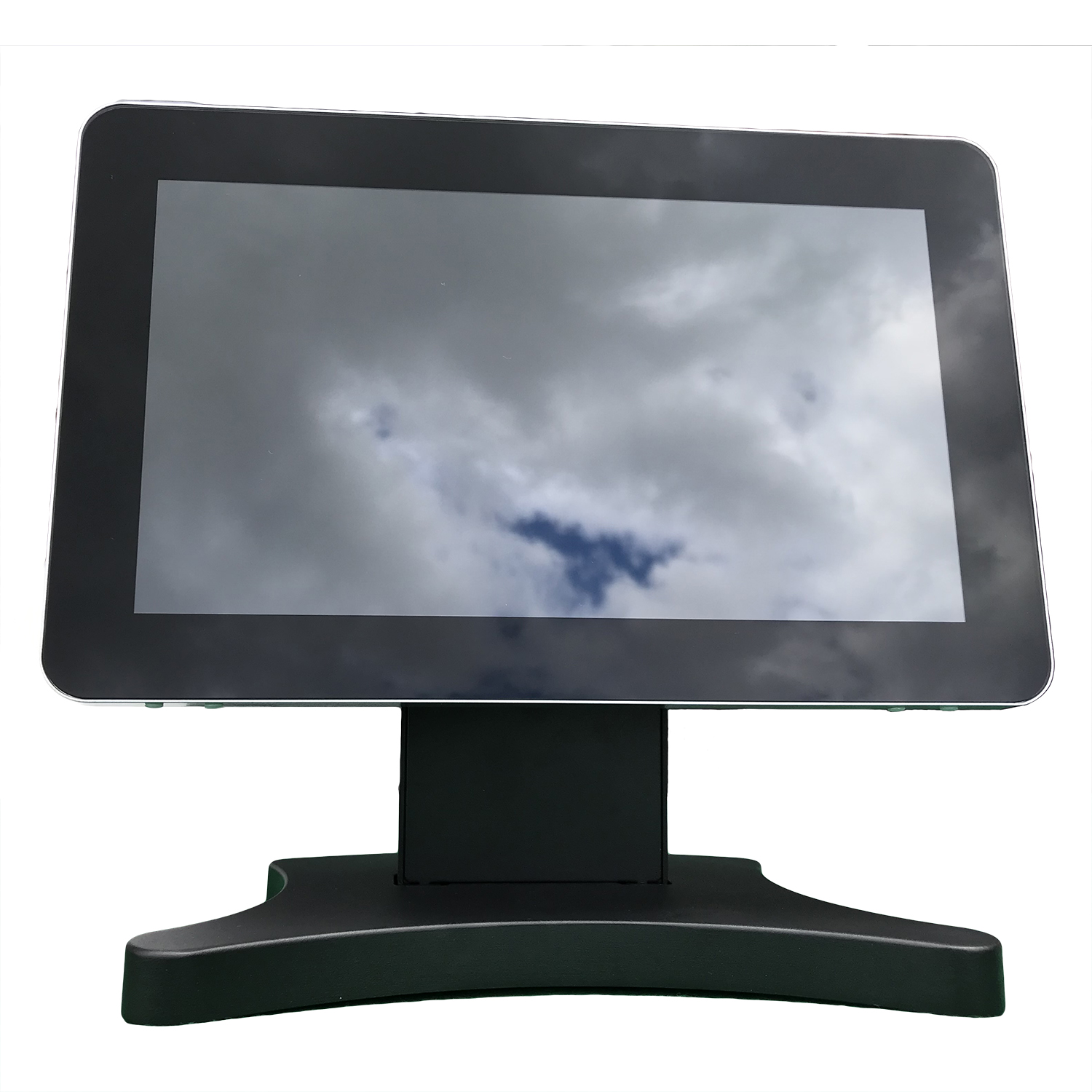

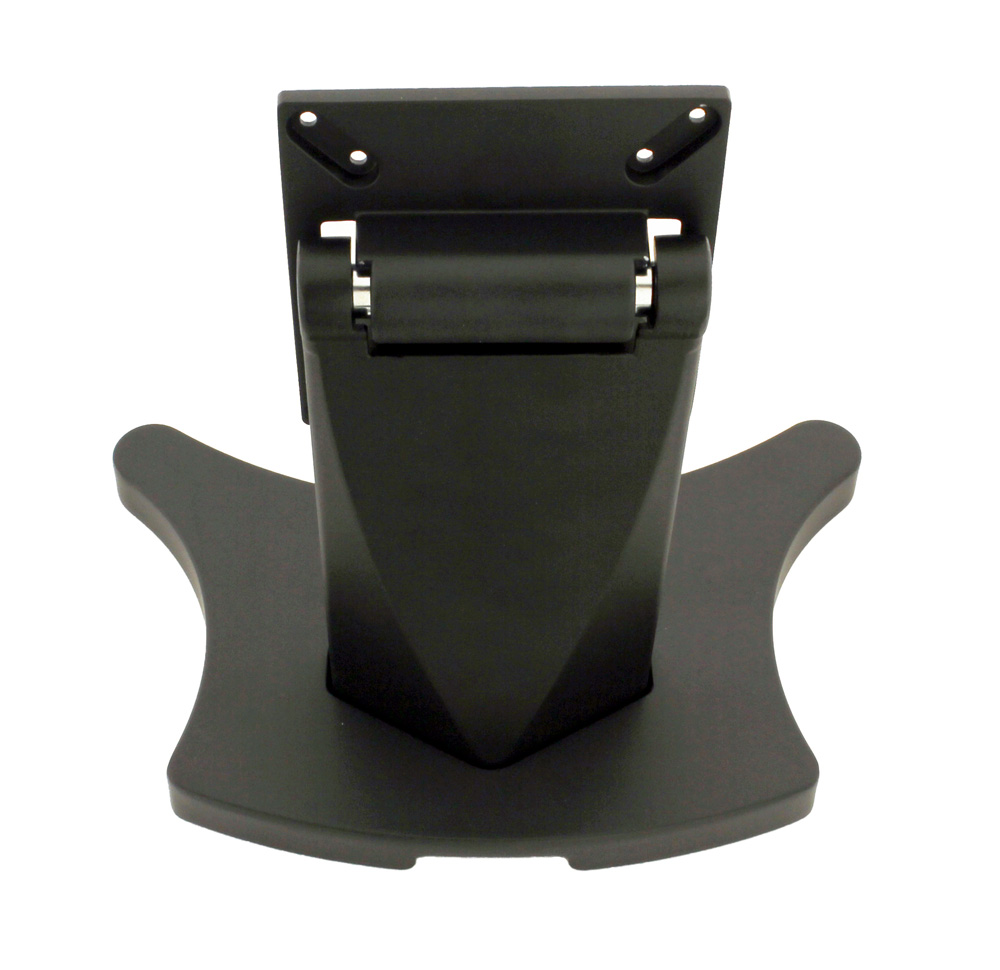

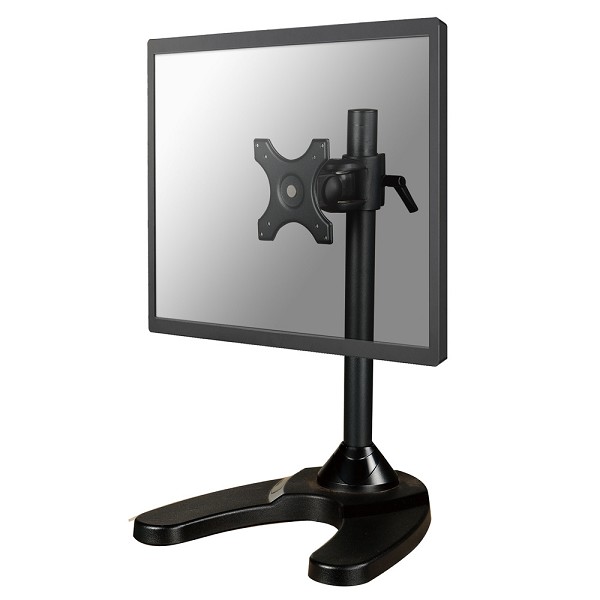

| Vesa desktop mount bracket: - Without stand (standard). You can use your own vesa standard. - With our heavy duty desktop stand:  - With height adjustable desktop stand from brand Newstar:  |
|

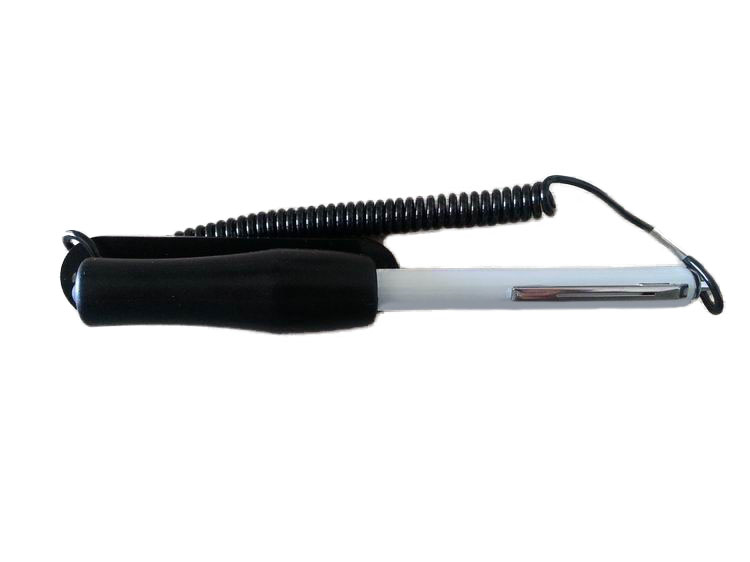

| Accessories: - No accessories (standard) - With stylus pen and holder:  |
|
Specifications touchmonitor: |
 |
| Specifications integrated computer: | |
| Driver downloads : |  |
