12.1" PCAP In-wall mount touchmonitor

pcap touchscreen - pcap touchscreen
12.1" PCAP In-wall mount touchmonitor
Net price (excl.VAT) €539,00
Art.No.:
1020151963
Brand:
A1Touch Solution
Type: AOD 121 PG-GPCAP10-USBSC-FPMB-DOMO; AOD / ATS 12,1 inch projected capacitive In-wall mount (touch) monitor, VGA+DVI.

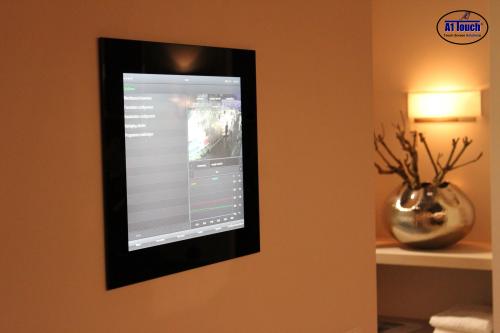

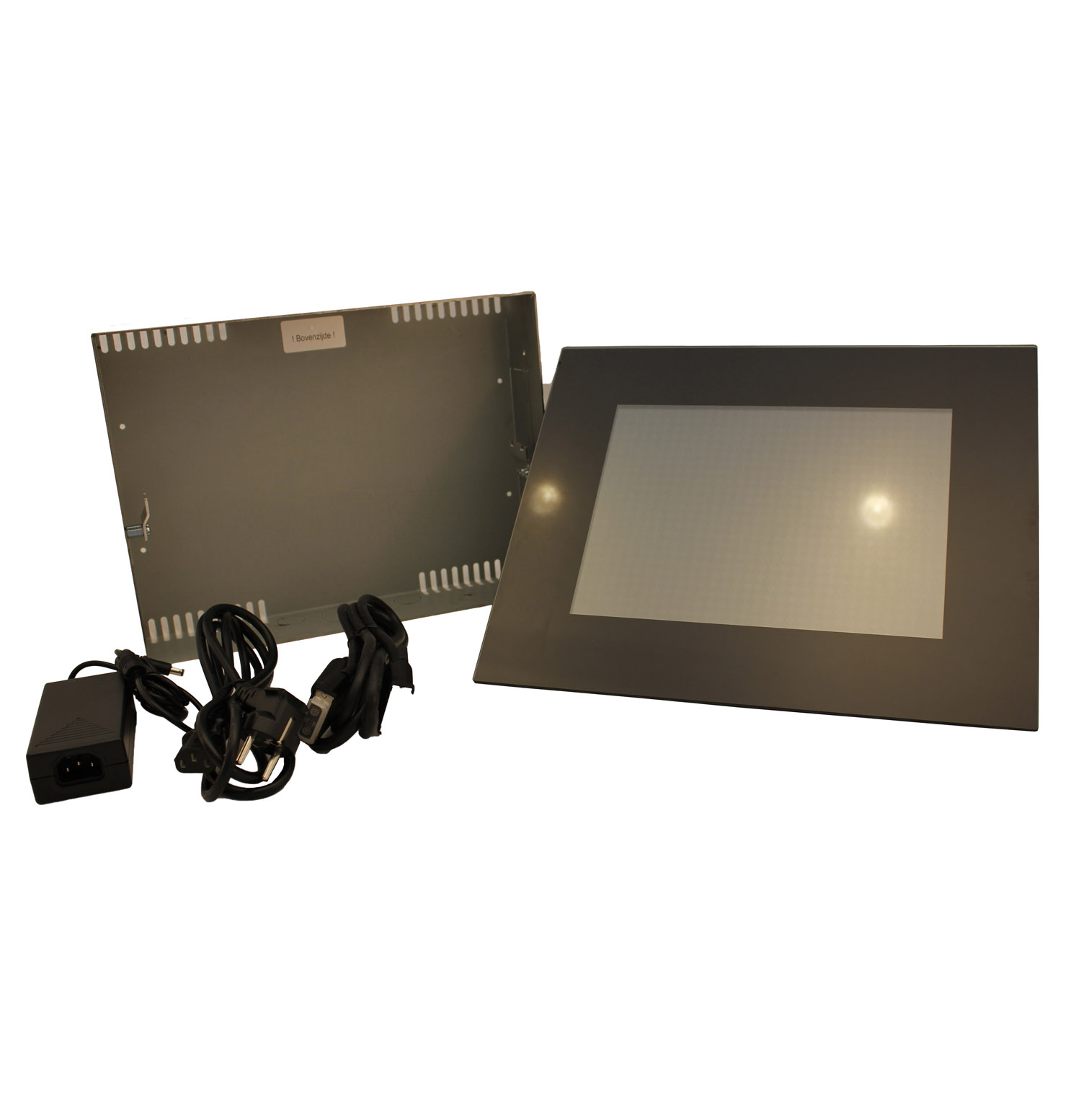

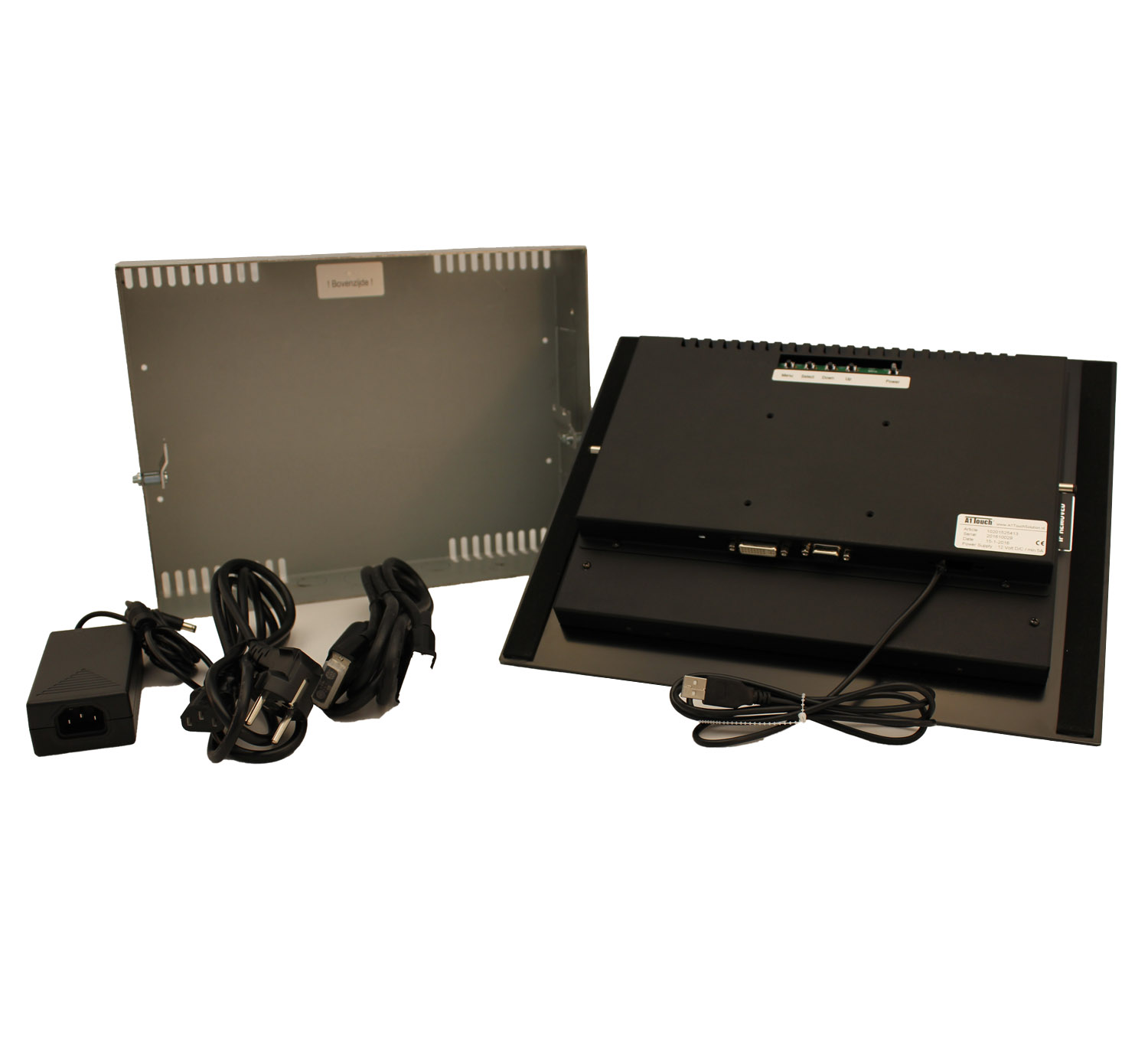

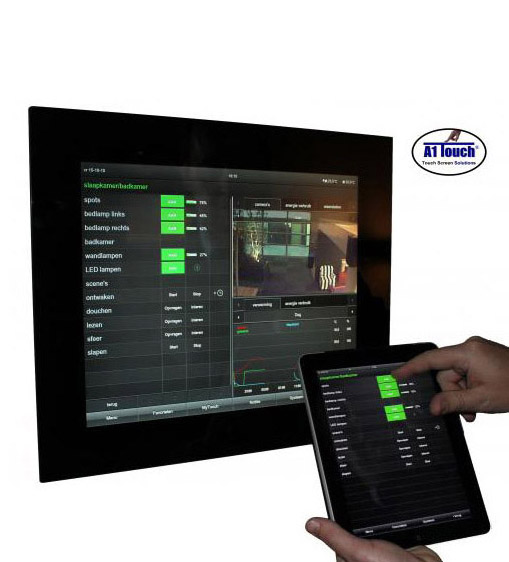

​​Description: 12.1 inch home automation bezel free pcap touchsreen monitor for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock.

Color panel: Glass with black borders
Model: 12.1 inch XGA TFT LCD Monitor
Type: 12,1" Color Active Matrix TFT LCD (AUO G121XN01 V0 )
Resolution (max): 1024 x 768 (SVGA)
Color: 262,144 (6bit)
Pixel: 0.24 x 0.24 mm
Brightness: 500 cd/m²
Contrast ratio: 700:1
Viewing angle: 80°/80° horizontal & 80°/80° vertikal
Respons time 35 ms
Active area: 246 (H) x 184,5 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 360x299x75mm (wxhxd)
Weight 2,4 Kg
Mounting: VESA 75mm

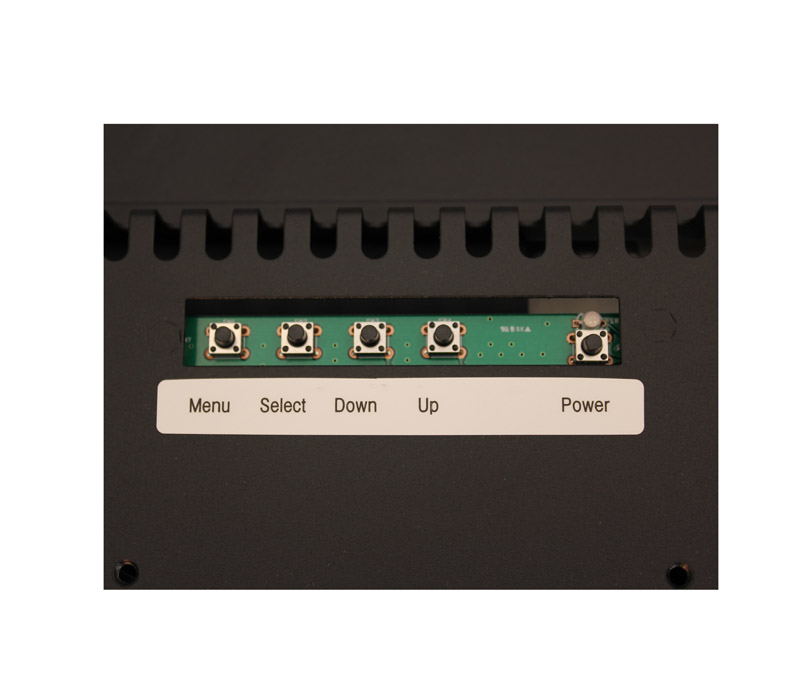

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-4 points touch
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick float glass with black borders.
Surface hardness: Mohs' hardness = 6
Responstime: Max. 20 msec.

Options:
Touch controller interface: USB, RS232 with external power or RS232 with internal power

Specifications / Manual :

Specs 12.1 pcap in-wall mount touch monitor manual
Dimensions : Dimensions 12.1 pcap in-wall mount touch monitor
Driver downloads : Touchscreen driver downloads
