17" PCAP In-wall mount (touch)Monitor

pcap touchscreen - pcap touchscreen

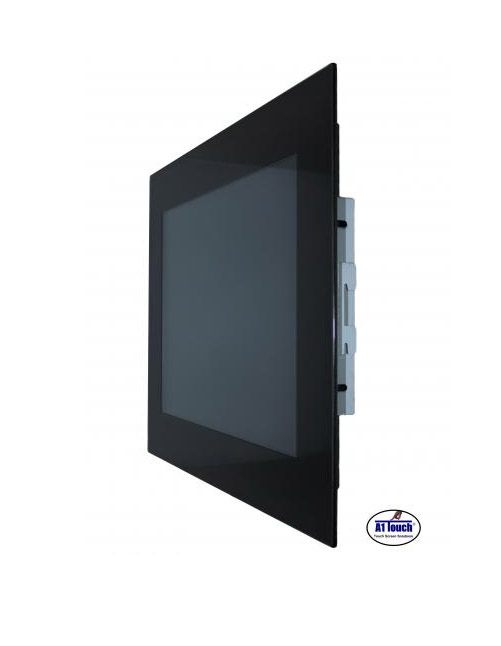

17" PCAP In-wall mount (touch)Monitor
Net price (excl.VAT) €775,00
Art.No.:
1020152909
Brand:
A1Touch Solution
Type: AOD 170 PG-GPCAP10-USBSC-TPMB-DOMO-L; AOD / ATS 17 inch projected capacitive In-wall mount (touch) monitor, VGA+DVI.

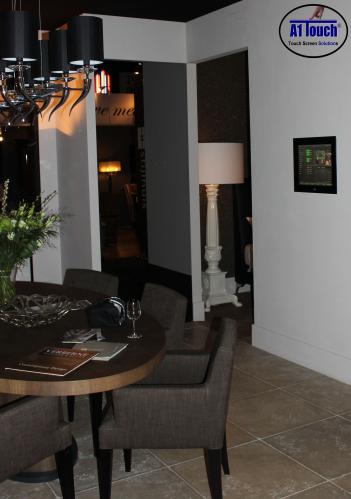

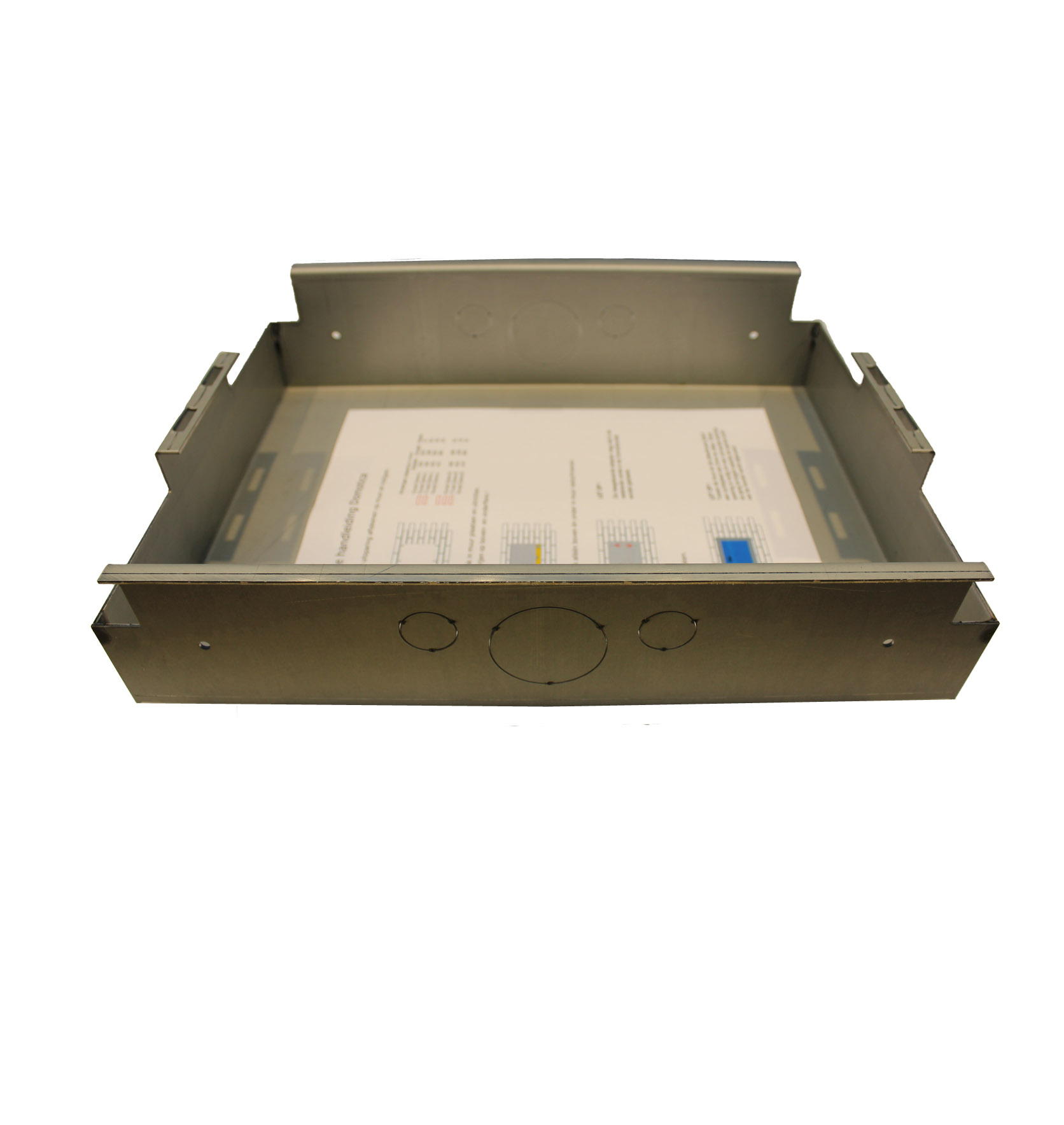

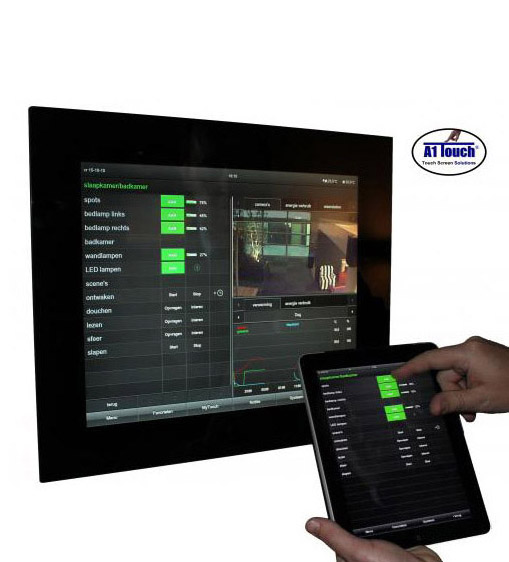

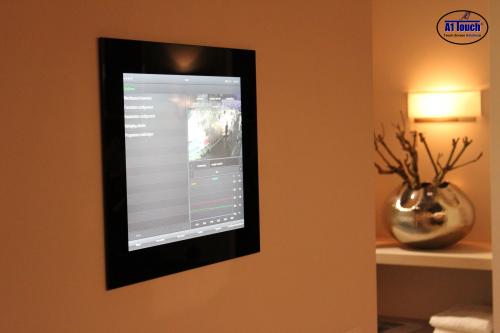

​​Description: 17 inch home automation bezel free pcap touchscreen monitor for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock.

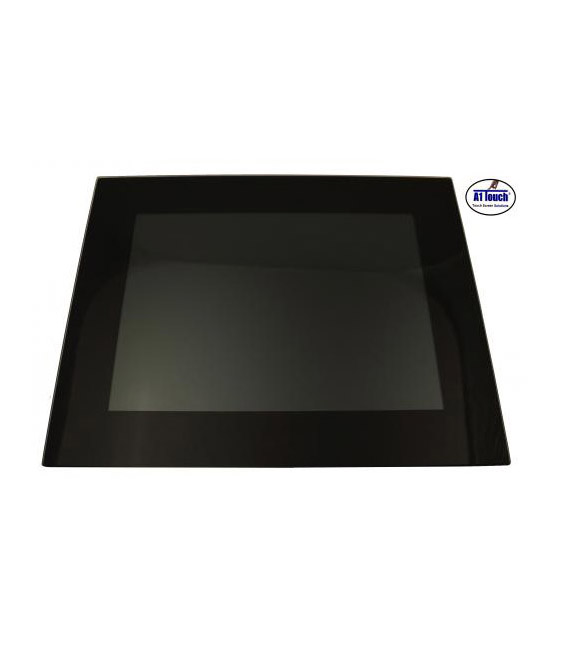

Color panel: Glass with black borders
Model: 17 inch XGA TFT LCD Monitor
Type: 17 inch Color Active Matrix TFT LCD  (AUO M170ETN01.1)
Resolution (max): 1280 x 1024 (WVGA)
Color: 16,2 million
Pixel: 0.264 x 0.264 mm
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Viewing angle: 88°/88° horizontal & 85°/85° vertical
Response time 5 ms
Active area: 337,9 (H) x 270,3 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 440x371x95mm (wxhxd)
Weight 4,7 Kg

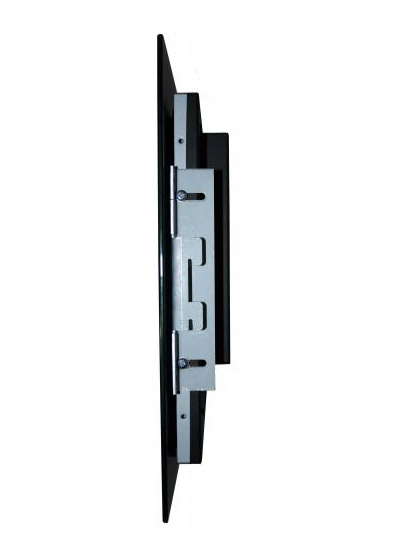

Mounting: VESA 100mm

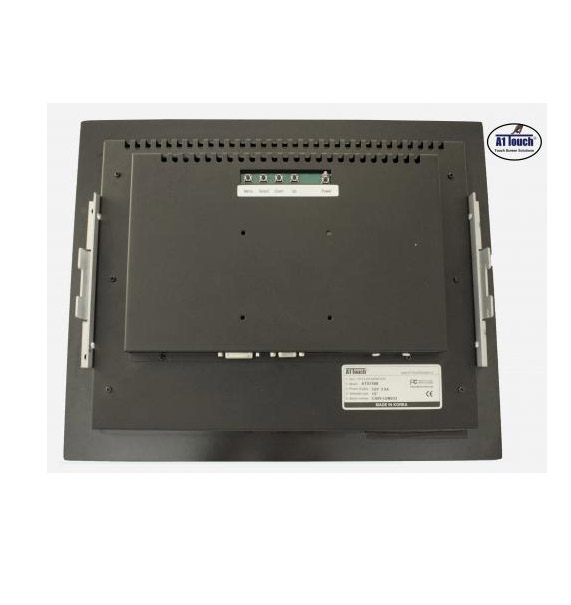

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-4 points touch
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight

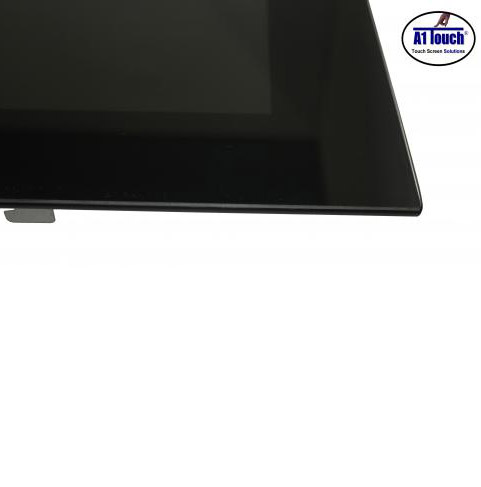

Glass sensor: 4mm thick heat tempered glass with black ceramic borders, C-grinded r=2mm.
Surface hardness: Mohs' hardness = 7
Responstime: Max. 20 msec.
Options:
Touch controller interface: USB, RS232 with external power or RS232 with internal power


Specifications / Manual :

specs 17 inch pcap in wall mount touch monitor manual
Dimensions : Dimensions 17 inch pcap in wall mount touch monitor
Driver downloads : Touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
