17" St.Steel In-wall mount (touch)Monitor

panel stainless steel AOD touchscreen  - RVS paneel aod touchsceen
17" St.Steel In-wall mount (touch)Monitor
Net price (excl.VAT) €502,00
Art.No.:
1020152939
Brand:
A1Touch Solution
Type: AOD 170 PG-NPMR-DOMO-L; AOD / ATS 17" brushed stainless steel In-walll mount (touch) monitor, VGA+DVI.

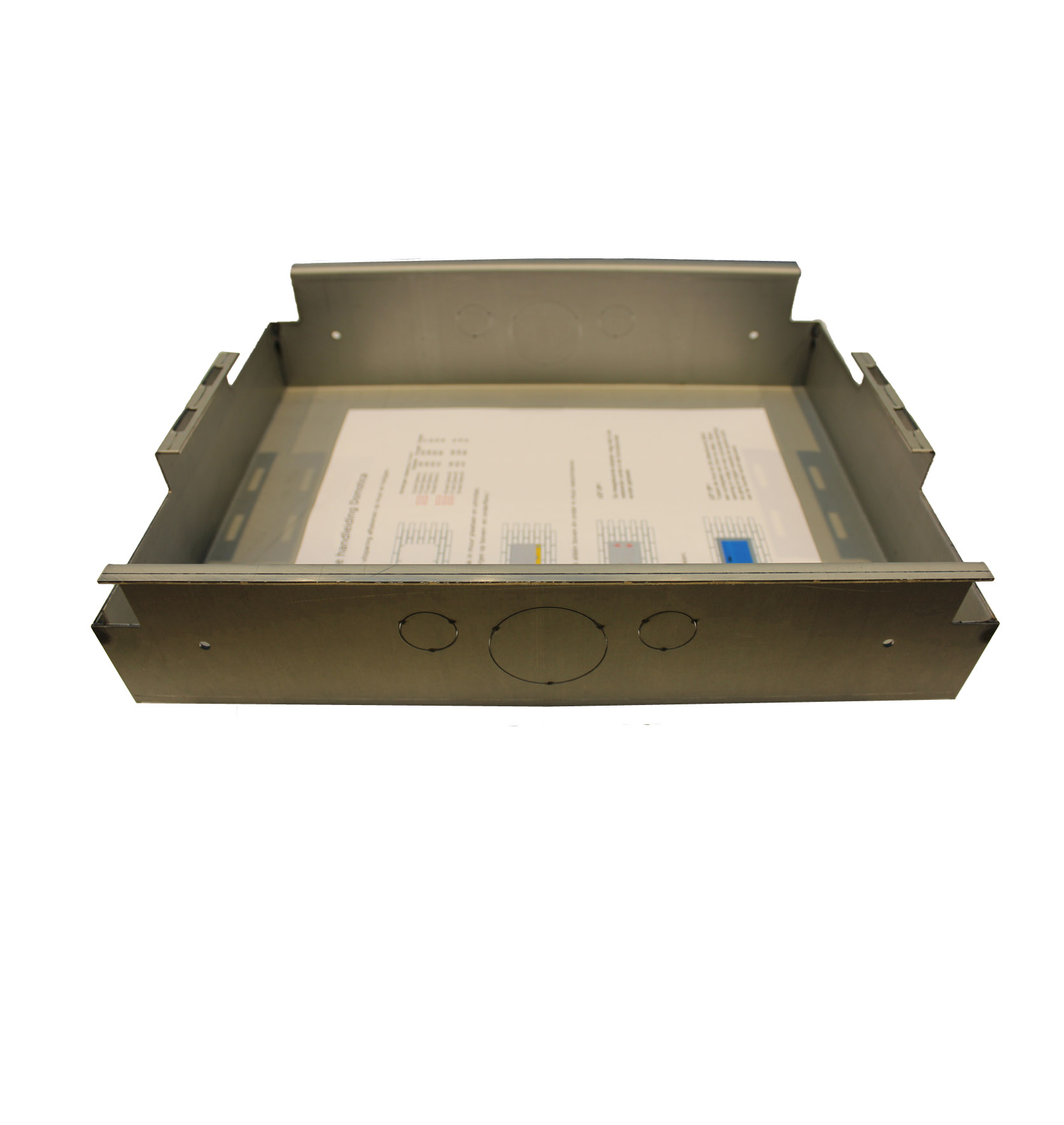

Description: 17 inch domotics monitor with or without touchscreen for assembly inside wall. Delivery complete with enclosure and psu + power and DVI cable
Unit is in stock.
Color panel: Brushed Stainless Steel
Model: 17 inch XGA TFT LCD Monitor
Type: 17 inch Color Active Matrix TFT LCD  (AUO M170ETN01.1)
Resolution (max): 1280 x 1024 (WVGA)
Color: 16,2 million
Pixel: 0.264 x 0.264 mm
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Viewing angle: 88°/88° horizontal & 85°/85° vertical
Response time 5 ms
Active area: 337,9 (H) x 270,3 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 440x371x95mm (wxhxd)
Weight 4,7 Kg
Mounting: VESA 100mm
Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC

Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.


Specifications / Manual :

Specs 17 inch AOD St. Steel In-Wall Mount touch Monitor manual
Dimensions : Dimensions 17 inch AOD St. Steel In-Wall Mount touch Monitor
Driver downloads : Touchscreen driver downloads
