12.1" Rear (glass) mount (touch)Monitor

Rear mount touchscreen
12.1" Rear (glass) mount (touch)Monitor
Net price (excl.VAT) €310,00
Art.No.:
AOD121-....-OF
Brand:
A1Touch Solution
Name: AOD / ATS 12,1" Rear (glass) mount (touch)Monitor, VGA+DVI.

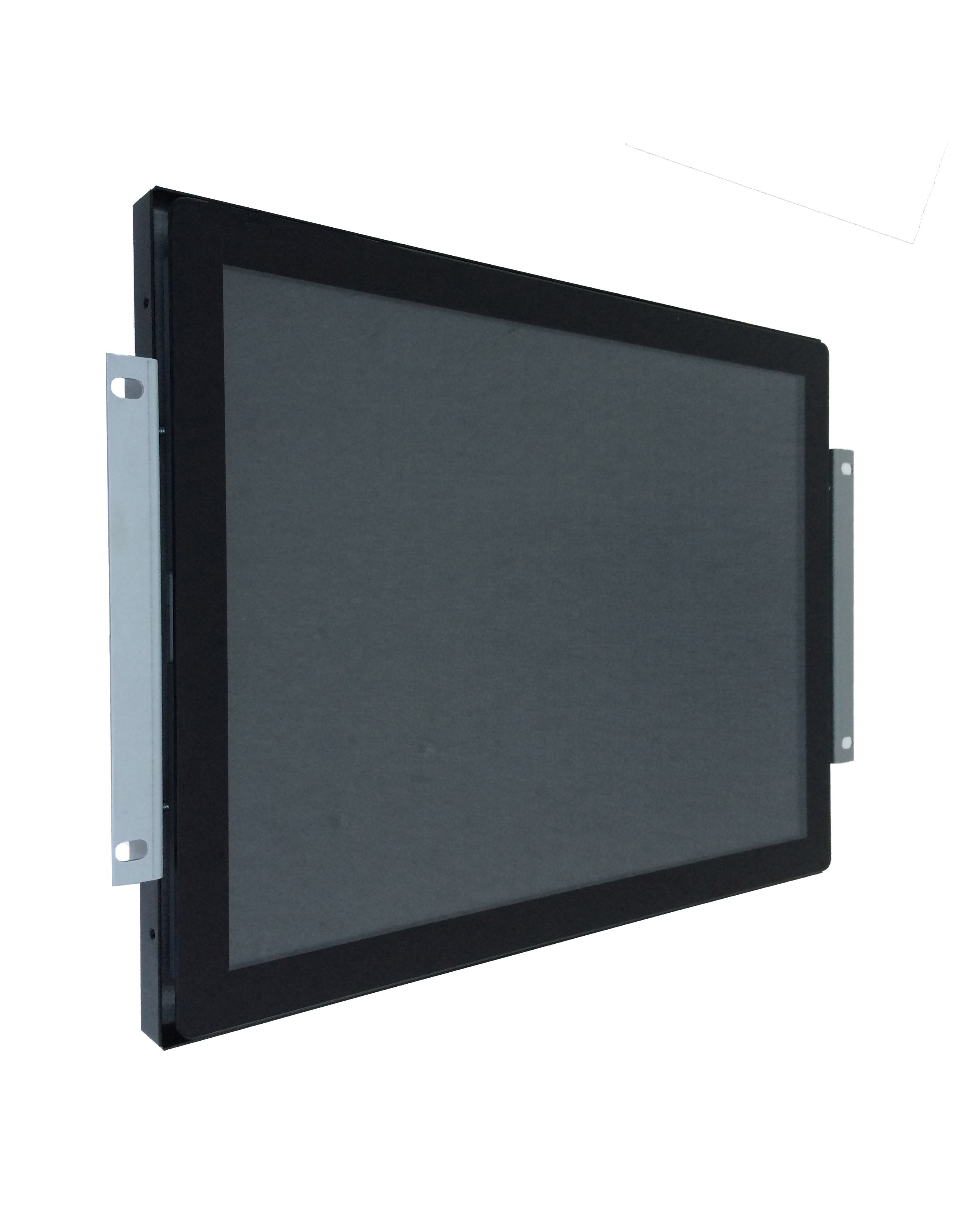

Description: 12.1 inch rear mount monitor to be assembled behind glass or a finished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap behind glass or resistive, saw, ir or protection glass behind hole. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
Color panel: Black powder Coated (other colors on request)
Model: 12.1 inch XGA TFT LCD Monitor
Type: 12,1" Color Active Matrix TFT LCD (AUO G121XN01 V0 )
Resolution (max): 1024 x 768 (SVGA)
Color: 262,144 (6bit)
Pixel: 0.24 x 0.24 mm
Brightness: 500 cd/m²
Contrast ratio: 700:1
Viewing angle: 80°/80° horizontal & 80°/80° vertical
Respons time 35 ms
Active area: 246 (H) x 184,5 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 300x239x46mm (wxhxd)
Weight 2,4 Kg

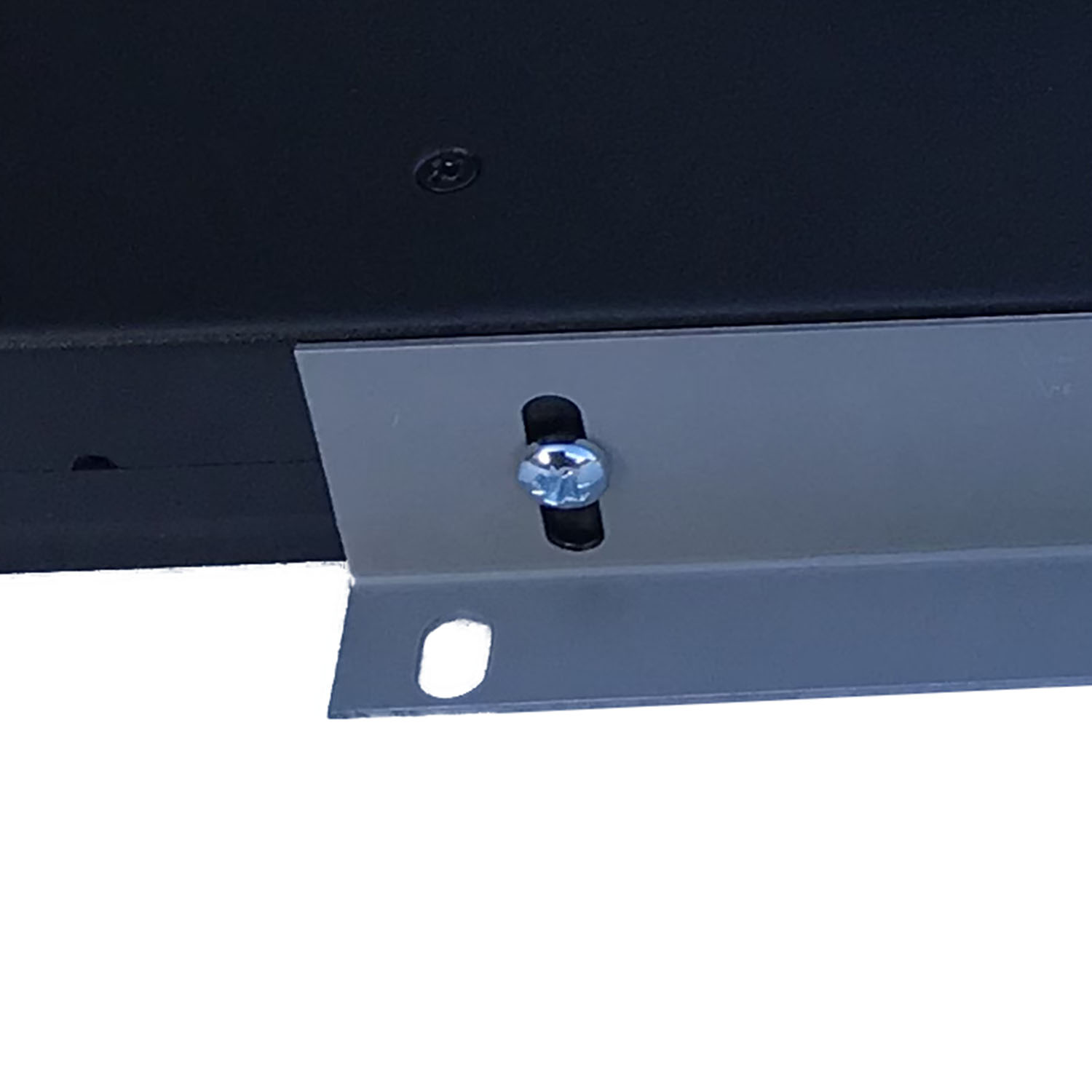

Mounting: VESA 75mm; (No bracket/ stand included in delivery; See: mounting_brackets)

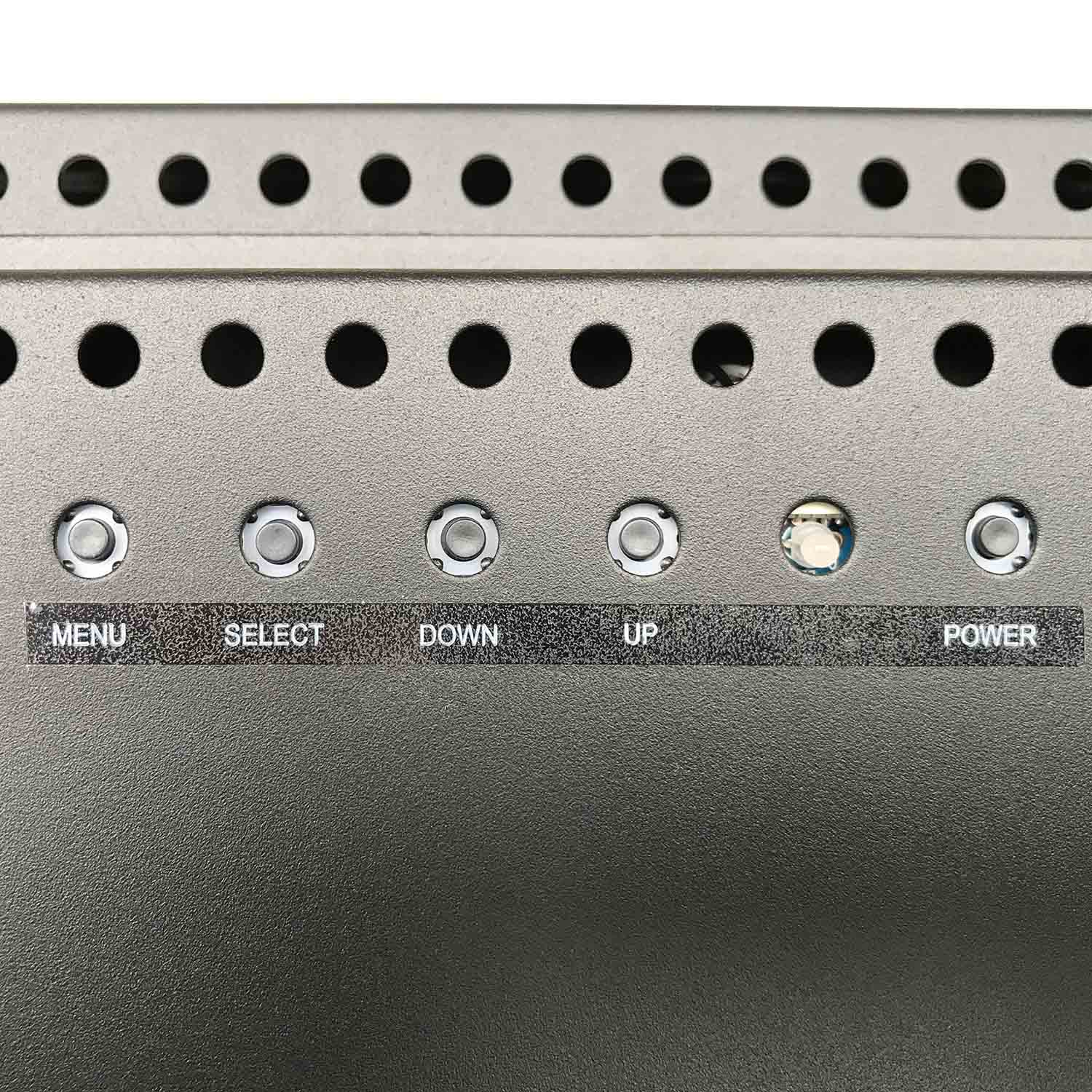

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch for option "Mounting behind glass = YES":
Type of Touch:
Projected Capacitive and Zytronic.
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
+ Projected Capacitive (Atouch): -For glass upto 5mm or Acrylic glass upto 2.5mm.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
+ Projected Capacitive (Zytronic): -For glass upto 20mm or Acrylic glass upto 10mm.
-Touchable with finger, glove and pcap stylus.
-2 points touch
-activation force less than 1 gramm.
-        with touch for option "Mounting behind glass = NO": 5 wire resitive, Surface Accoustic Wave or Projected Capacitive
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI

Specifications / Manual :

Dimensions :
Driver downloads : More Info

You can purchase here after you have logged in or made account by pushing the blue button "Login to proceed" below.

After you are logged in, you will see your net.price excl.VAT for the product.

Next fill in below mentioned options, add amount of products and push the button "Add to cart"

Available options:
