23.8" rear mount PCAP touch monitor

23.8 inch rear mount pcap monitor
23.8" rear mount PCAP touch monitor
Net price (excl.VAT) €733,00
Art.No.:
1020152983
Brand:
A1Touch Solution
Type: ATS238 PG-GPCAP-OF; AOD / ATS 23.8 inch projected capacitive desktop (touch) monitor, VGA+DVI.

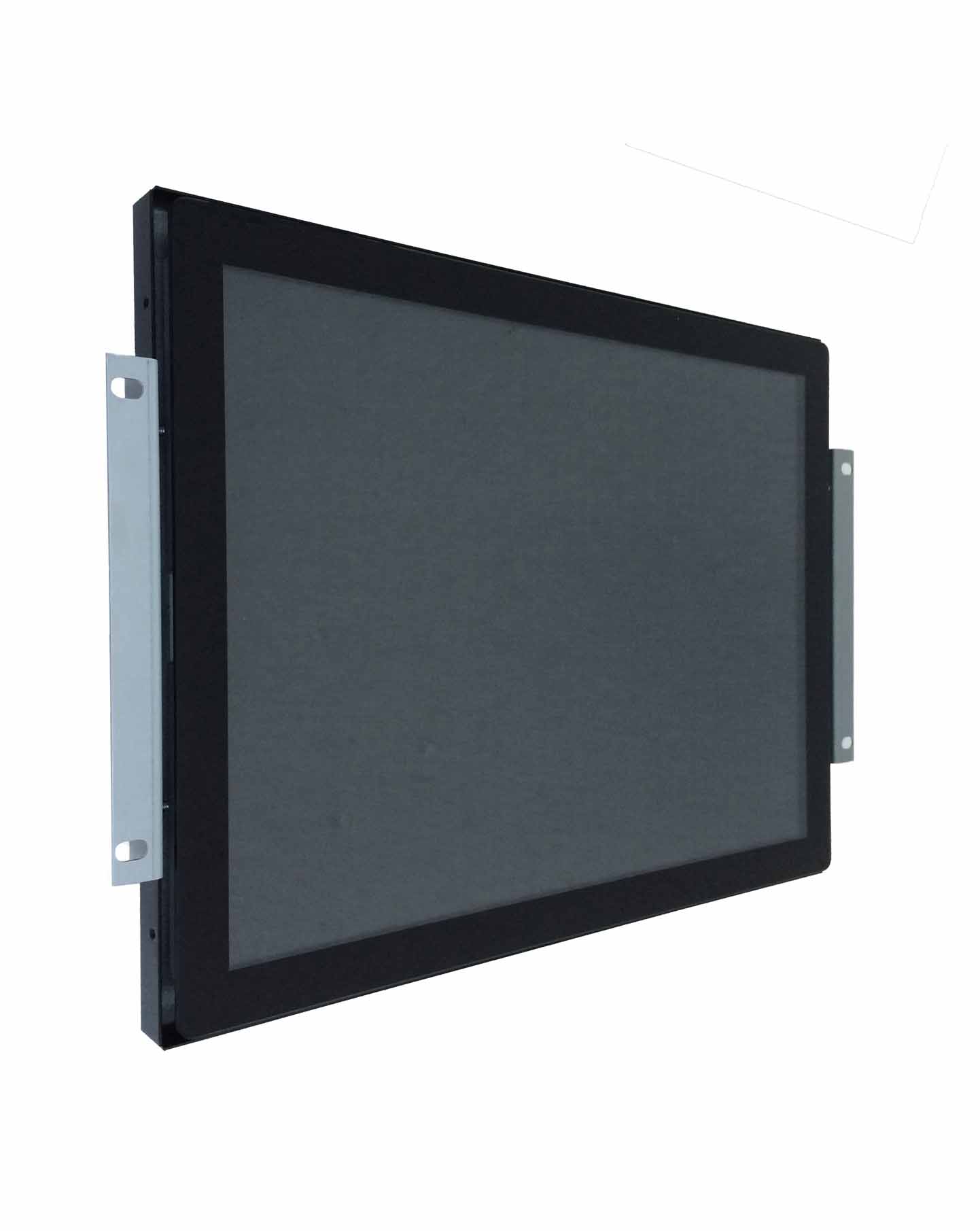

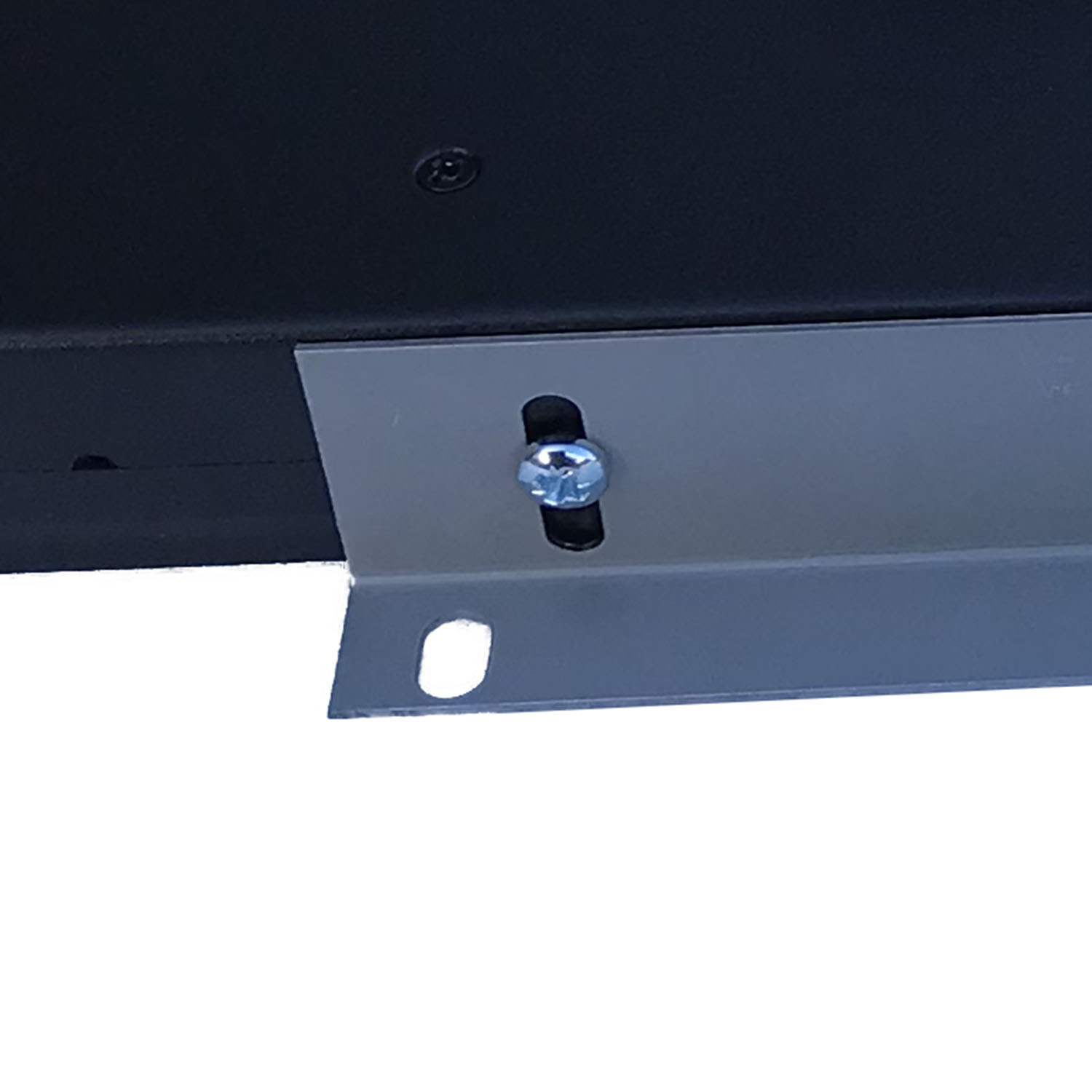

Description: 23,8 inch rear mount monitor to be assembled behind glass or a finished hole of panel or control box.. Built-in PCAP 10 points touchscreen. Unit can be delivered with USB or RS232 interface. Very stable and good looking solution for use with finger, gloves or pencil. Unit is delivered with psu, cables and profiles.
Unit is in stock.
Color monitor: Black powder coated touchscreen
Model: M238HVN01.0 (AUO)
Type: 23.8 inch, 16:9, a-Si TFT-LCD
Resolution (max): 1920 x 1080 Full HD
Color: 16,7 miljoen
Pixel: 0.2745×0.2745 mm (H×V)
Brightness: 250 cd/m²
Contrast ratio: 3000:1
Viewing angle: 89°/89° horizontal & 89°/89° vertikal
Respons time 5 ms
Active area: 527.04×296.46 mm (H×V)
VGA input VGA + DVI
Plug and play: Yes VESA DDC 1/2B
Power: 12 Volts. included Adapter (24 volt on request)
Power consumption: 29 watt stand, 40 watt max.
Power consumption stand by: 4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size Enclosure560x337x50 mm (wxlxd) (without included profiles)
Weight 9 Kg
Mounting: VESA 200x100mm

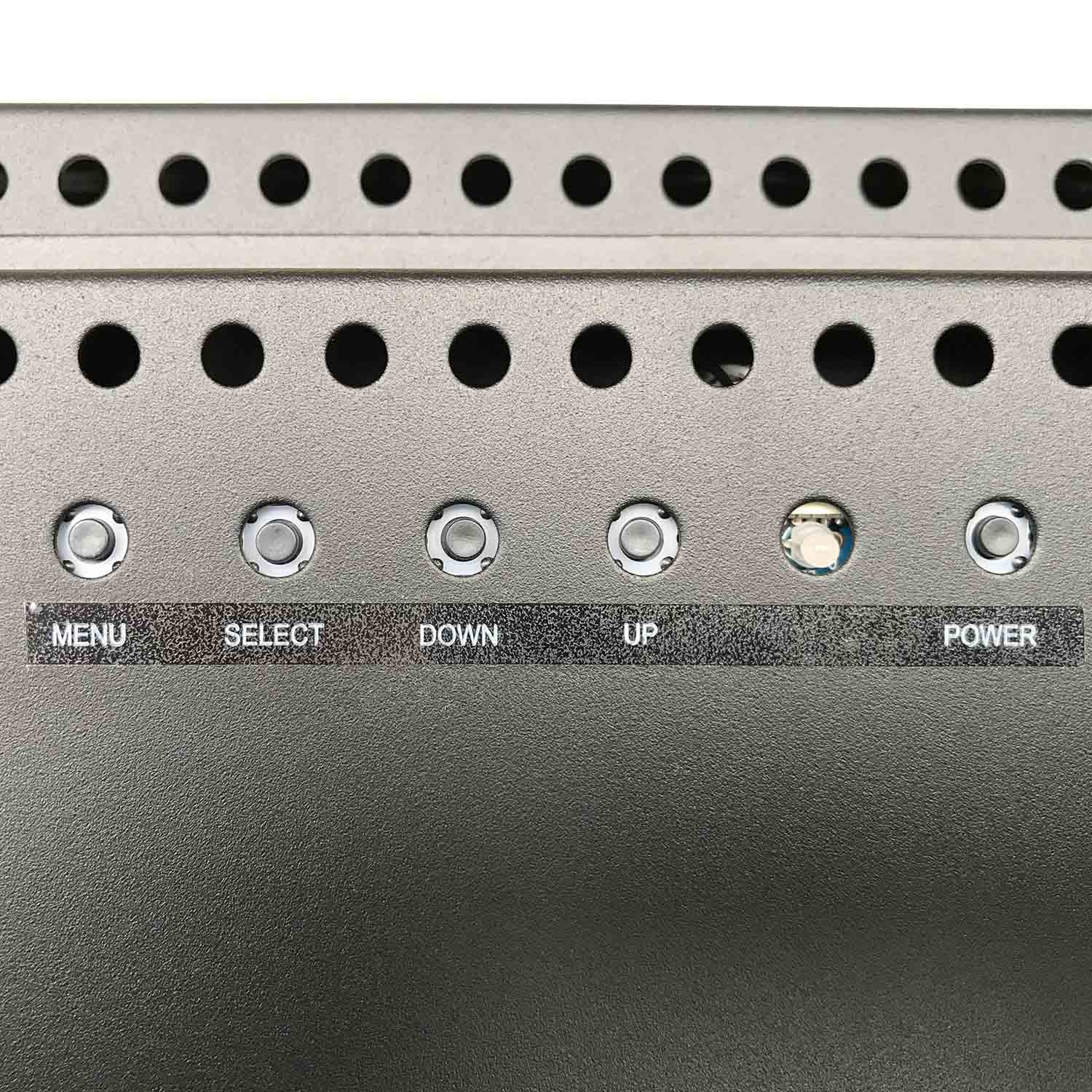

Users Mode: OSD Key: Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Front IP65 sealed
Glass sensor: 4mm thick float glass with black borders. (other type of glass or colour on request)
Surface hardness: Mohs' hardness = 5
Responstime sensor: Max. 20 msec.

Options:
Touch controller interface: USB, RS232 with external power or RS232 with internal power

Specifications / Manual :

specs pcap 15 inch panel mount touchmonitor
Driver downloads : touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
