15.6" Rear (glass) mount (touch)Monitor

Rear mount touchscreen
15.6" Rear (glass) mount (touch)Monitor
Net price (excl.VAT) €339,00
Art.No.:
AOD156-....-OF
Brand:
A1Touch Solution
Name: AOD / ATS 15.6" rear mount (touch) monitor, VGA+DVI.

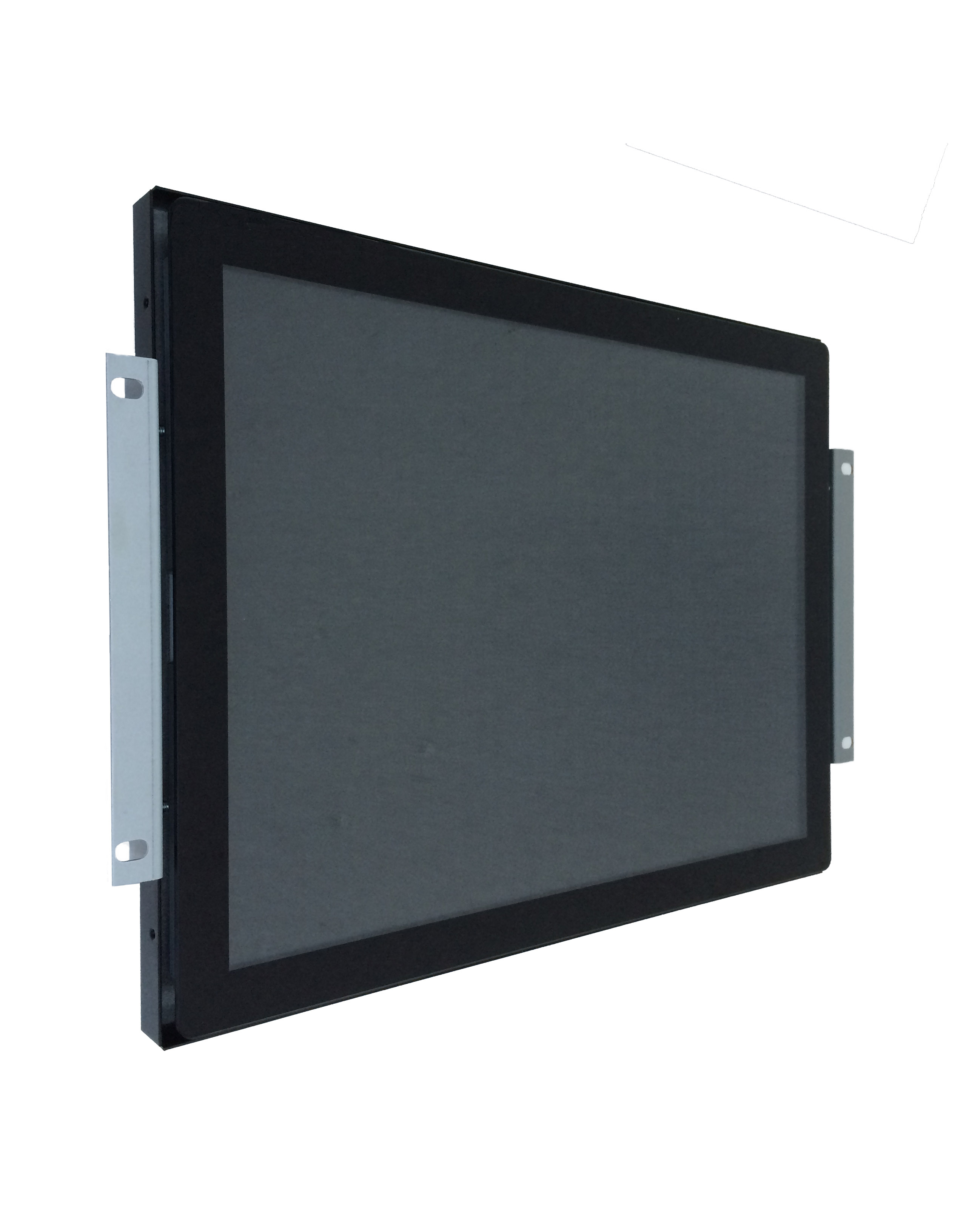

Description: 15,6 inch rear mount monitor to be assembled behind glass or a finished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap behind glass or resistive, saw, ir or protection glass behind hole. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
Color/material panel: Black powder Coated, metal chassis (other colors on request)
Model: 15.6 inch-wide Color a-Si TFT-LCD
Type: 15.6" Color Active Matrix TFT LCD (AUO G156XW01)
Resolution (native): 1366(x3) x 768 or 1920x1080 FHD (option)
Color: 262,144 (6bit)
Pixel: 252 (per one triad) ×252
Brightness: 300 cd/m²
Contrast ratio: 500:1
Viewing angle: 85°/85° & 85°/85° (vert/Hor)
Respons time 8 ms
Active area: 344.232 (H) x 193.536 (V)
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <13 watt max.
Power consumption stand by: <3 watt max.
Temperature opration mode: 0 °C - +60 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 380x233.8x45mm (bxhxd)
Weight 4,1 Kg

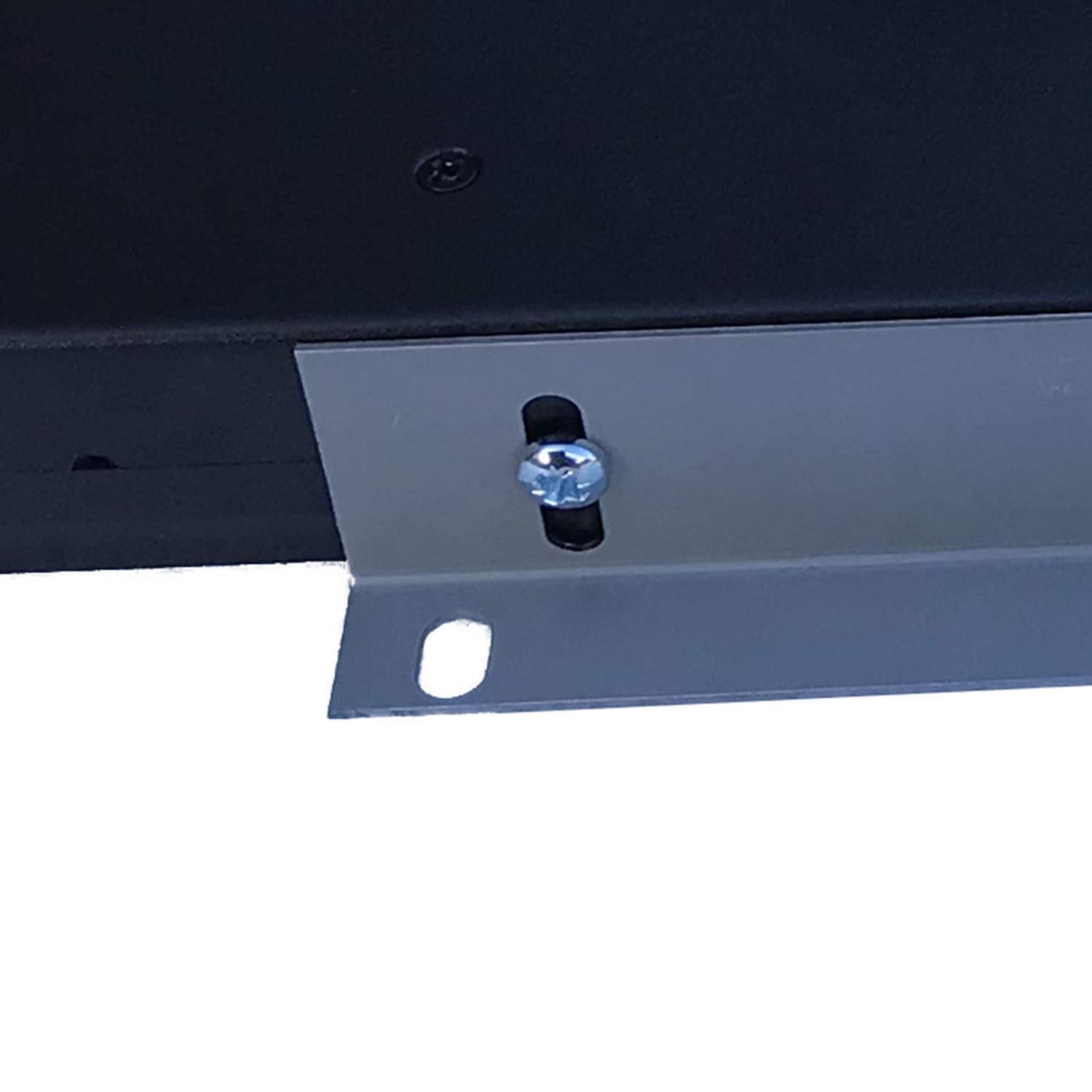

Mounting: VESA 100mm,  (No bracket/ stand included in delivery; See: mounting_brackets)

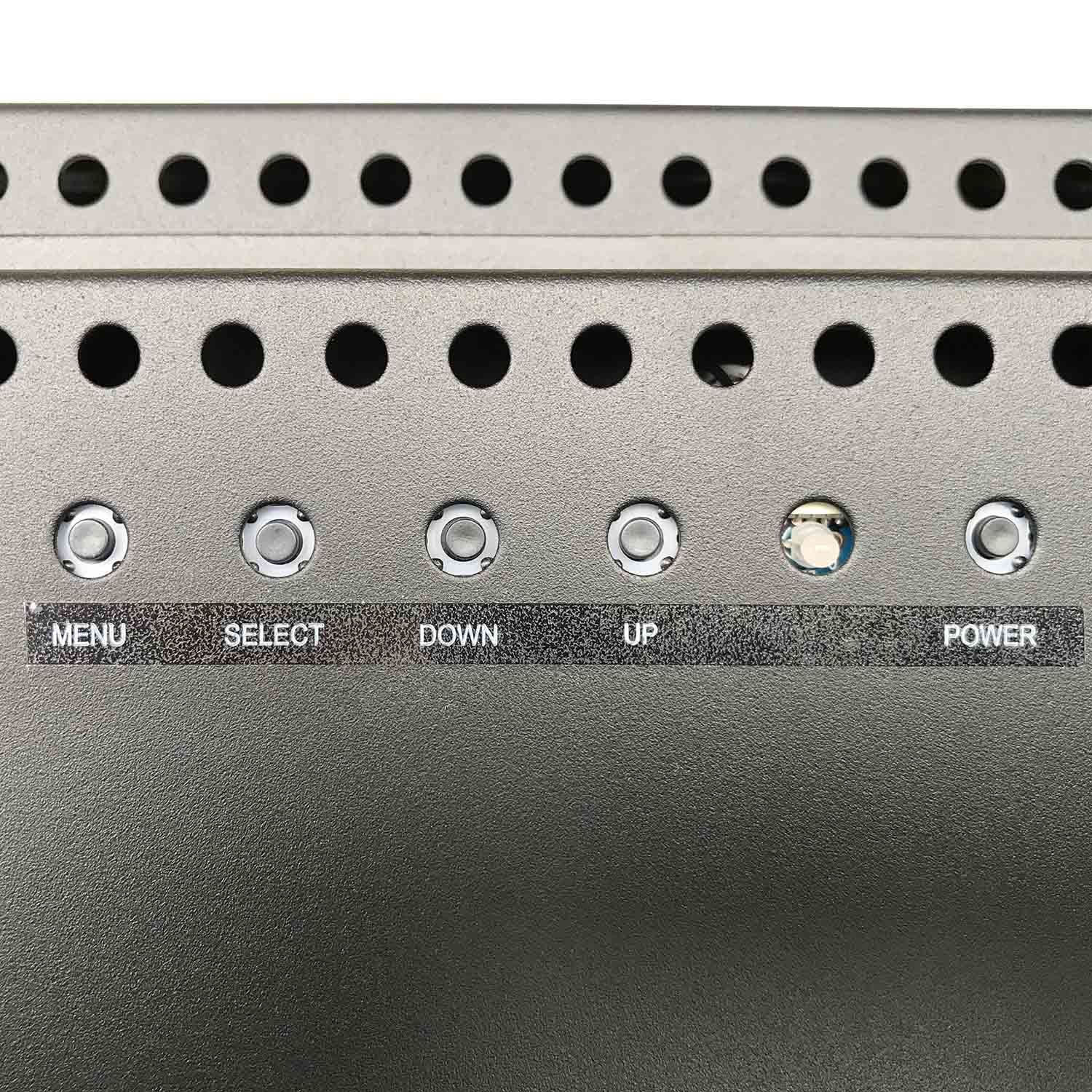

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Type of lcd display :  Native resolution 1366x768 px or FHD 1920x1080
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch for option "Mounting behind glass = YES":
Type of Touch:
Projected Capacitive A1touch
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
+ Projected Capacitive (A1touch): -For glass upto 5mm or Acrylic glass upto 2.5mm.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
-        with touch for option "Mounting behind glass = NO": 5 wire resitive or Projected Capacitive
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI

Specifications / Manual :

Specs 15.6 inch rear mount touch monitor manual
Dimensions : Dimensions 15.6 inch rear mount touch monitor
Driver downloads : More Info
