12.1" Black panel mount (touch)Monitor

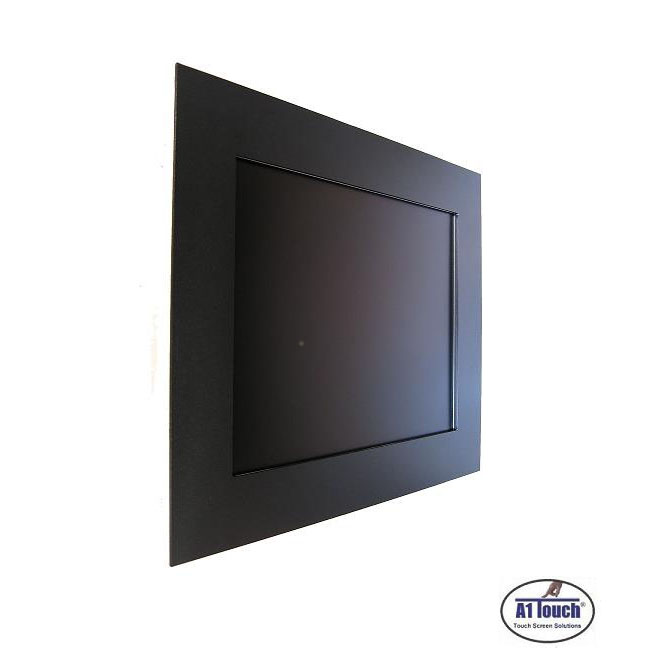

panel mnt aod black 3d front
12.1" Black panel mount (touch)Monitor
Net price (excl.VAT) €438,00
Art.No.:
1020153304
Brand:
A1Touch Solution
Name: AOD121-PMB; AOD / ATS 12,1" black panel mount (touch) monitor, VGA+DVI.
Descriptions: 12,1 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
Color panel: Black powder Coated (other colors on request)
Model: 12.1 inch XGA TFT LCD Monitor
Type: 12,1" Color Active Matrix TFT LCD (AUO G121XN01 V0 )
Resolution (max): 1024 x 768 (SVGA)
Color: 262,144 (6bit)
Pixel: 0.24 x 0.24 mm
Brightness: 500 cd/m²
Contrast ratio: 700:1
Viewing angle: 80°/80° horizontal & 80°/80° vertical
Respons time 35 ms
Active area: 246 (H) x 184,5 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 360x299x46mmmm (wxhxd)
Weight 2,4 Kg
Mounting: VESA 75mm

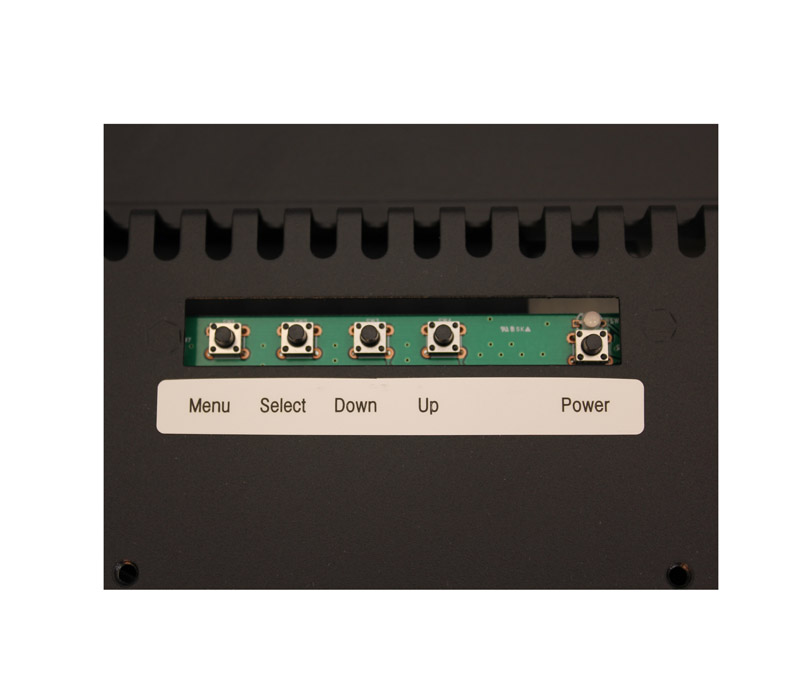

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.


Specifications / Manual :

specs AOD 12.1 black panel mount touch monitor
Dimensions : dimensions AOD 12.1 black panel mount touch monitor
Driver downloads : touchscreen driver downloads
