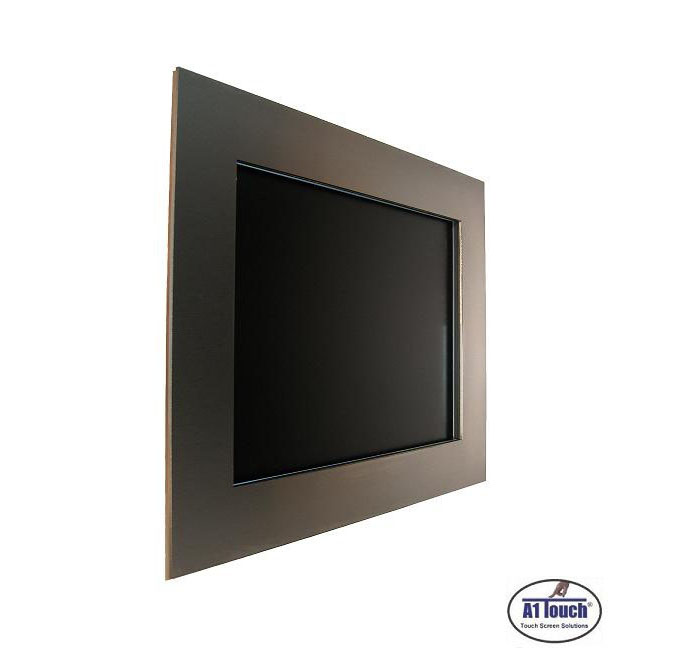

15" St.steel panel mount (touch)Monitor

panel mnt aod rvs 3d front
15" St.steel panel mount (touch)Monitor
Net price (excl.VAT) €385,00
Art.No.:
1020152969
Brand:
A1Touch Solution
Type: AOD150-PMR; AOD / ATS 15" brushed stainless steel panel mount (touch) monitor, VGA+DVI.
Description: 15 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
Color panel: Brushed Stainless Steel
Model: 15 inch XGA TFT LCD Monitor
Type:

15" Color Active Matrix TFT LCD
 (AUO G150XG03 V5)

Resolution (max): 1024 x 768 (XGA)
Color: 16,2 miljoen
Pixel: 0.297 x 0.297 mm
Brightness: 350 cd/m²
Contrast ratio: 700:1
Viewing angle: 85°/85° horizontal & 80°/80° vertical
Respons time 8 ms
Active area: 304,1 (H) x 228,1 (V) mm

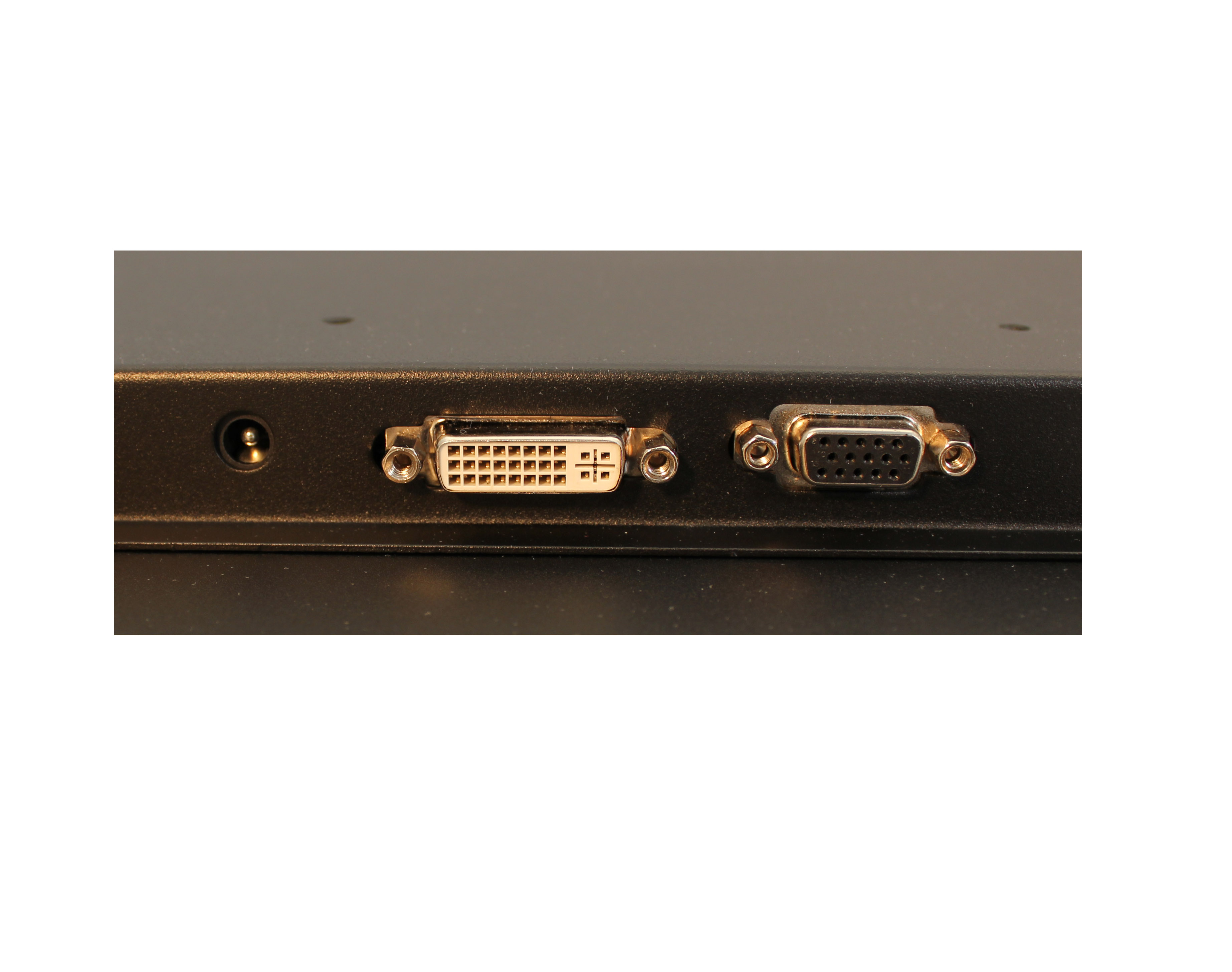

VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 410x334x48mm (wxhxd)
Weight 3,3 Kg
Mounting: VESA 75mm

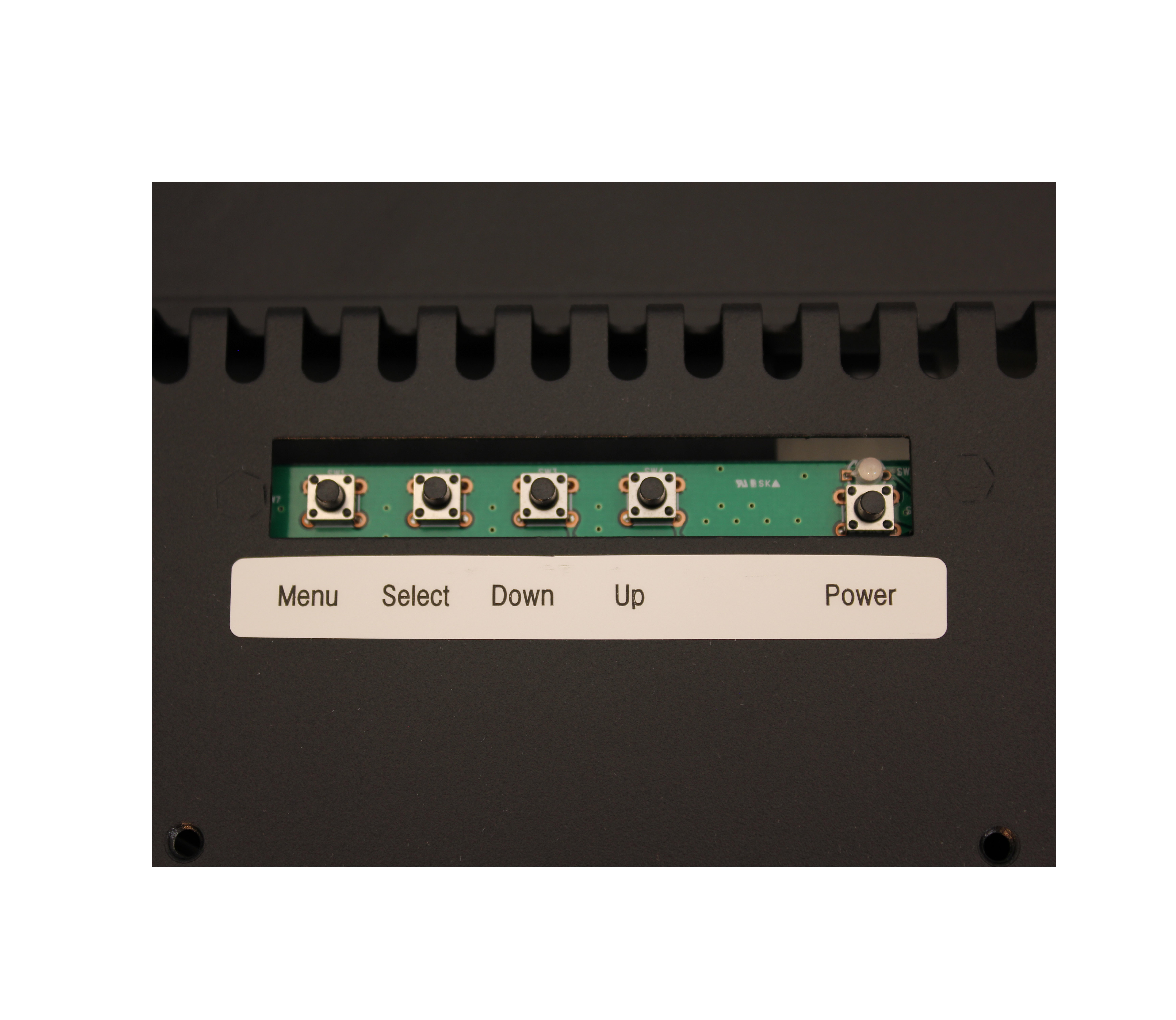

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touchLink verwijderen
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.

Specifications / Manual :

specs 15 inch AOD st.stell panel mount monitor
Dimensions : dimensions 15 inch AOD st.stell panel mount monitor
Driver downloads : Touchscreen driver downloads
