23.8" panel mount PCAP touchmonitor

pcap panelmount front 3d
23.8" panel mount PCAP touchmonitor
Net price (excl.VAT) €759,00
A1Touch Solution
Type: AOD238PG-GPCAP10-USBSC-PMB;  23.8 inch projected capacitive panel mount (touch) monitor with Tempered 4mm glass, VGA+DVI.
Description: 23,8 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with PCAP 10 points touchscreen. Unit can be delivered with USB or RS232 interface. Very stable and good looking solution for use with finger, gloves or pencil.
Unit is in stock.

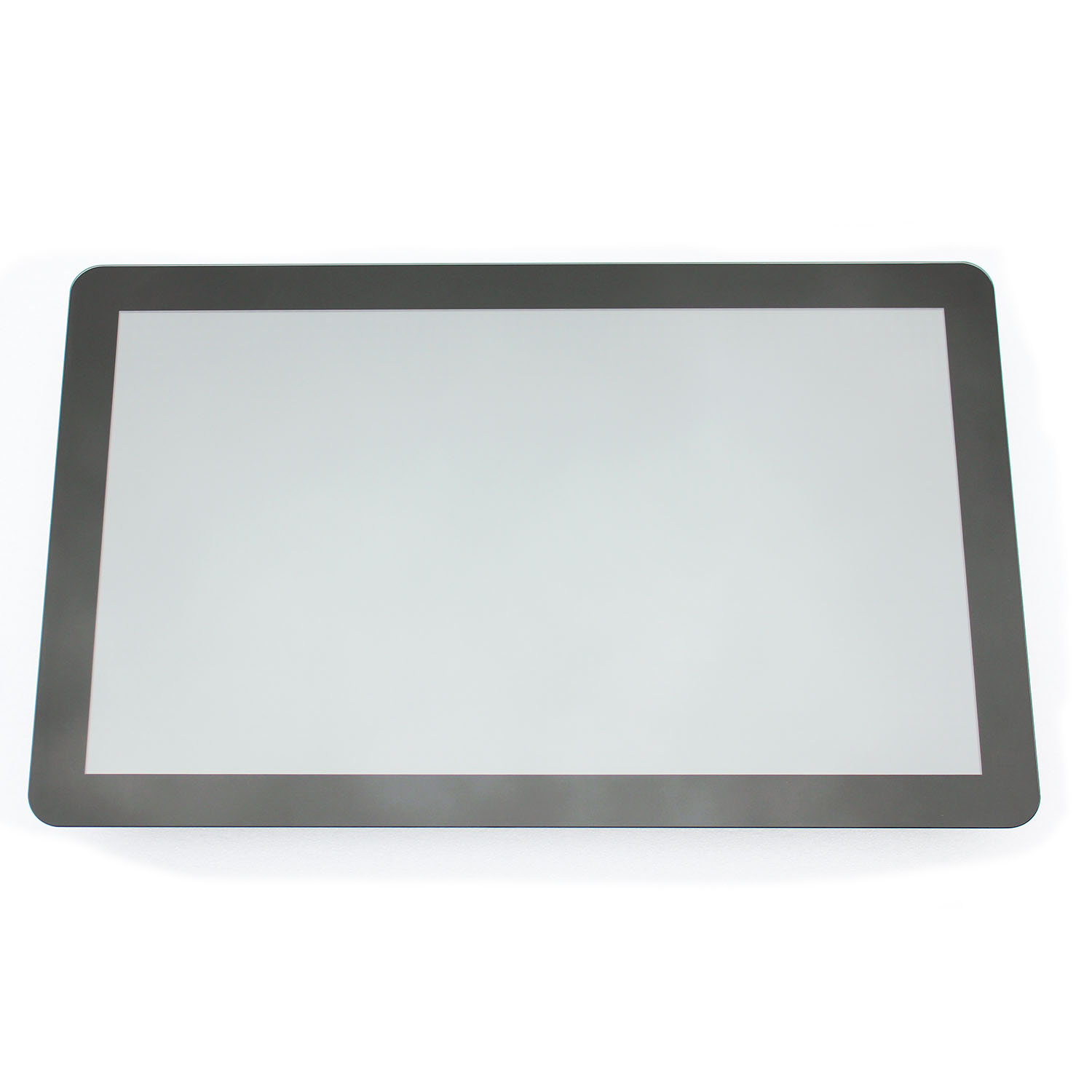

Color panel: Full tempered glass with black border, enclosure black powder coated
Model: M238HVN01.0 (AUO)
Type: 23.8 inch, 16:9, a-Si TFT-LCD
Resolution (max): 1920 x 1080 Full HD
Color: 16,7 miljoen
Pixel: 0.2745×0.2745 mm (H×V)
Brightness: 250 cd/m²
Contrast ratio: 3000:1
Viewing angle: 89°/89° horizontal & 89°/89° vertikal
Respons time 5 ms
Active area: 527.04×296.46 mm (H×V)

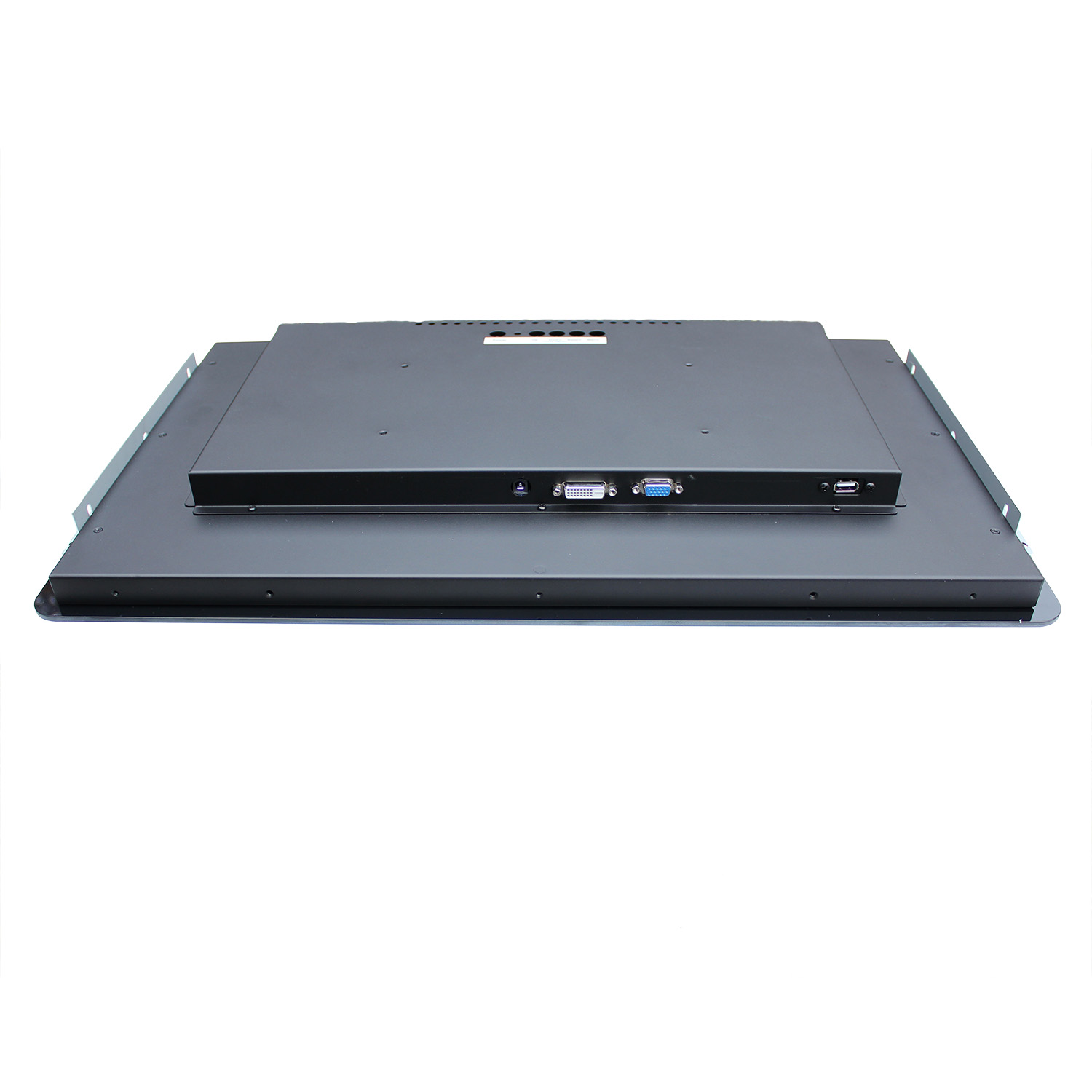

VGA input VGA + DVI
Plug and play: Yes VESA DDC 1/2B
Power: 12 Volts. included Adapter (24 volt on request)
Power consumption: 29 watt stand, 40 watt max.
Power consumption stand by: 4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size Outer dimension front pcap glass : 591x358x4 mm; enclosure560x337x50 mm (wxlxd)
Weight 9 Kg
Mounting: VESA 200x100mm

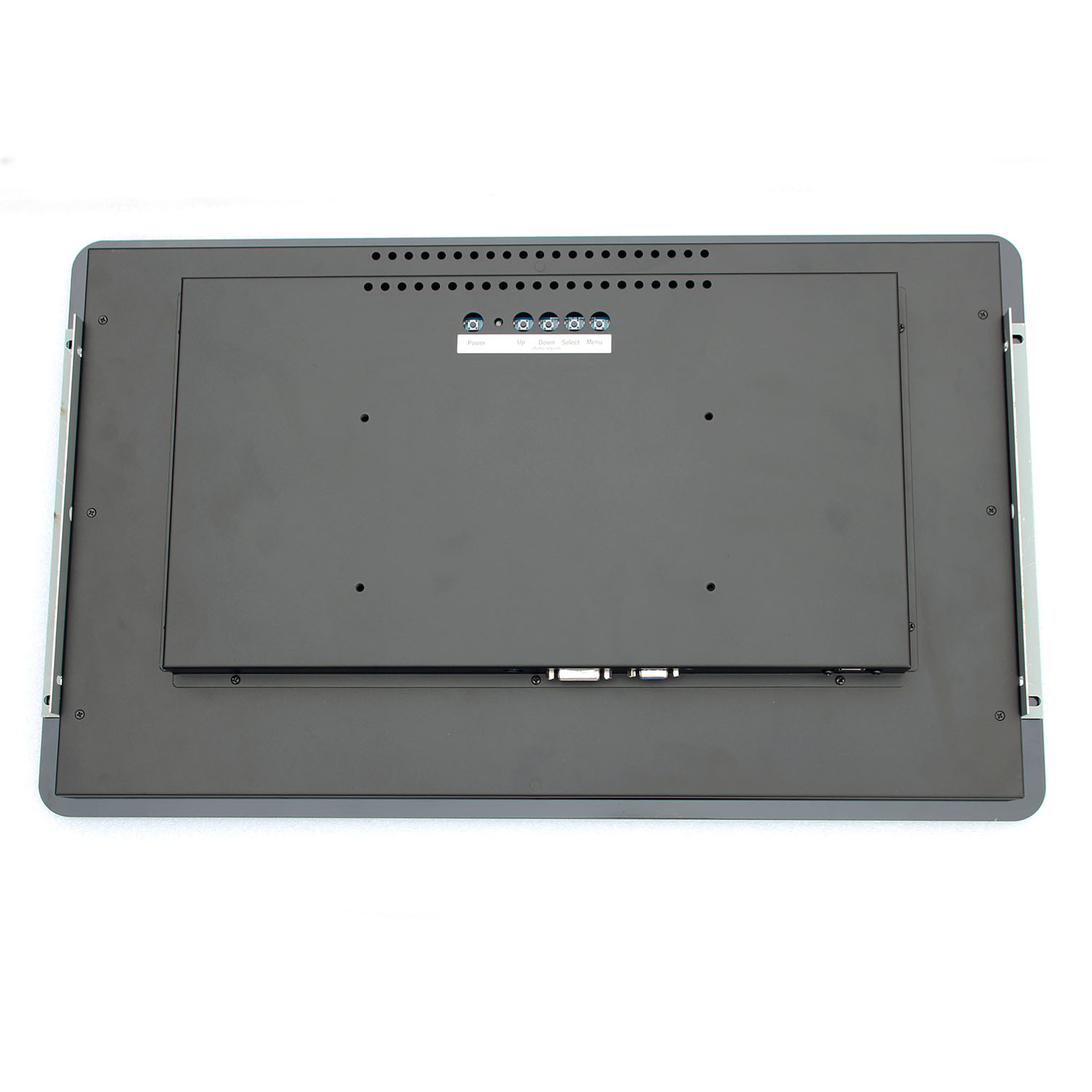

Users Mode: OSD Key: Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick TEMPERED glass with black borders. (other type of glass or colour on request)
Surface hardness: Mohs' hardness = 9
Responstime sensor: Max. 20 msec.
Touch controller interface: USB, RS232 with external power or RS232 with internal power

Specifications / Manual :

specs pcap 15 inch panel mount touchmonitor
Installation dimensions :
Mounting instructions :
Driver downloads : touchscreen driver downloads
