15" panel mount PCAP touchmonitor

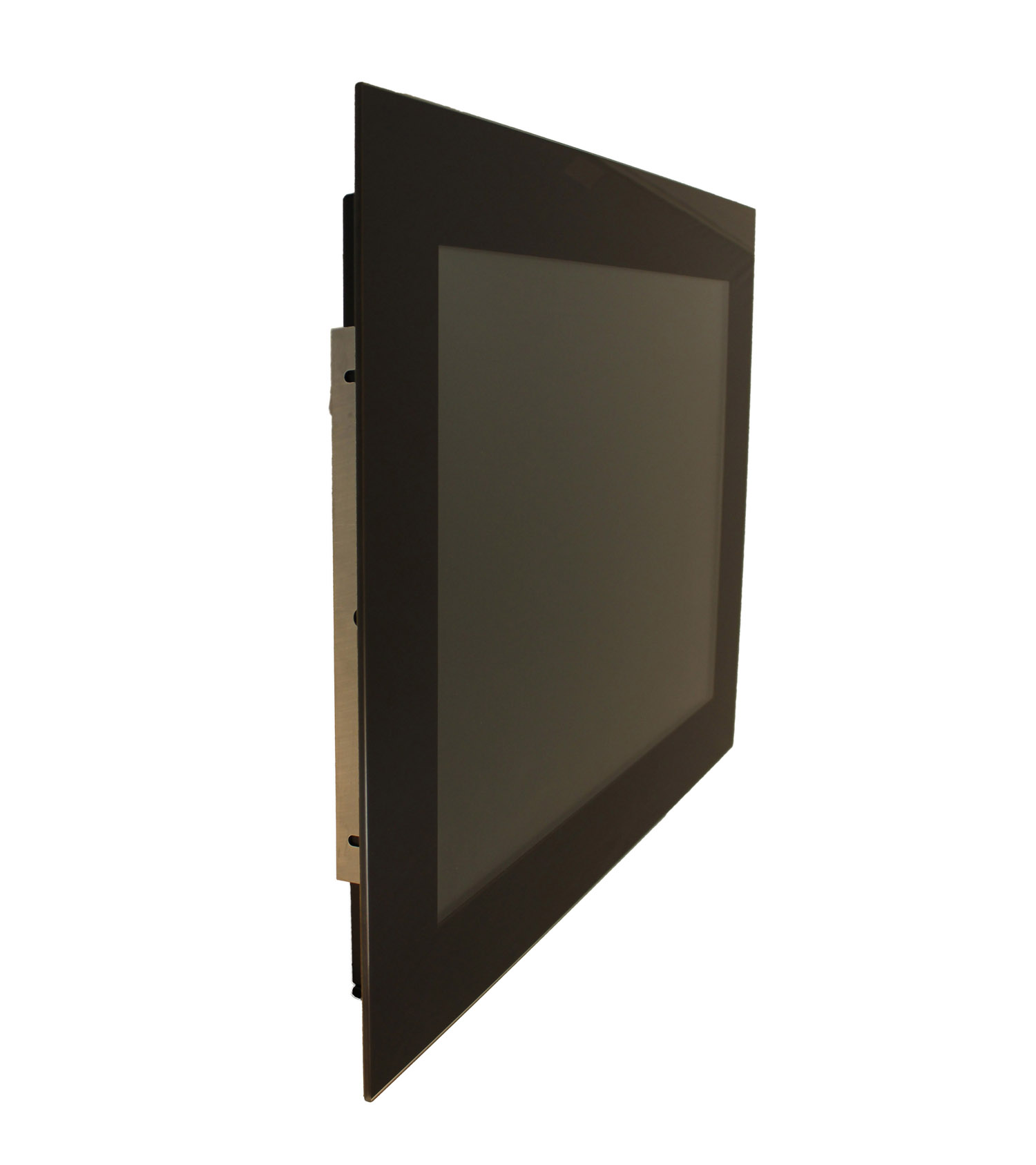

pcap panelmount front 3d
15" panel mount PCAP touchmonitor
Net price (excl.VAT) €748,00
Art.No.:
1020151199
Brand:
A1Touch Solution
Name: AOD150PG-GPCAP-...-TPMB;  AOD / ATS 15 inch projected capacitive panel mount (touch) monitor, VGA+DVI.

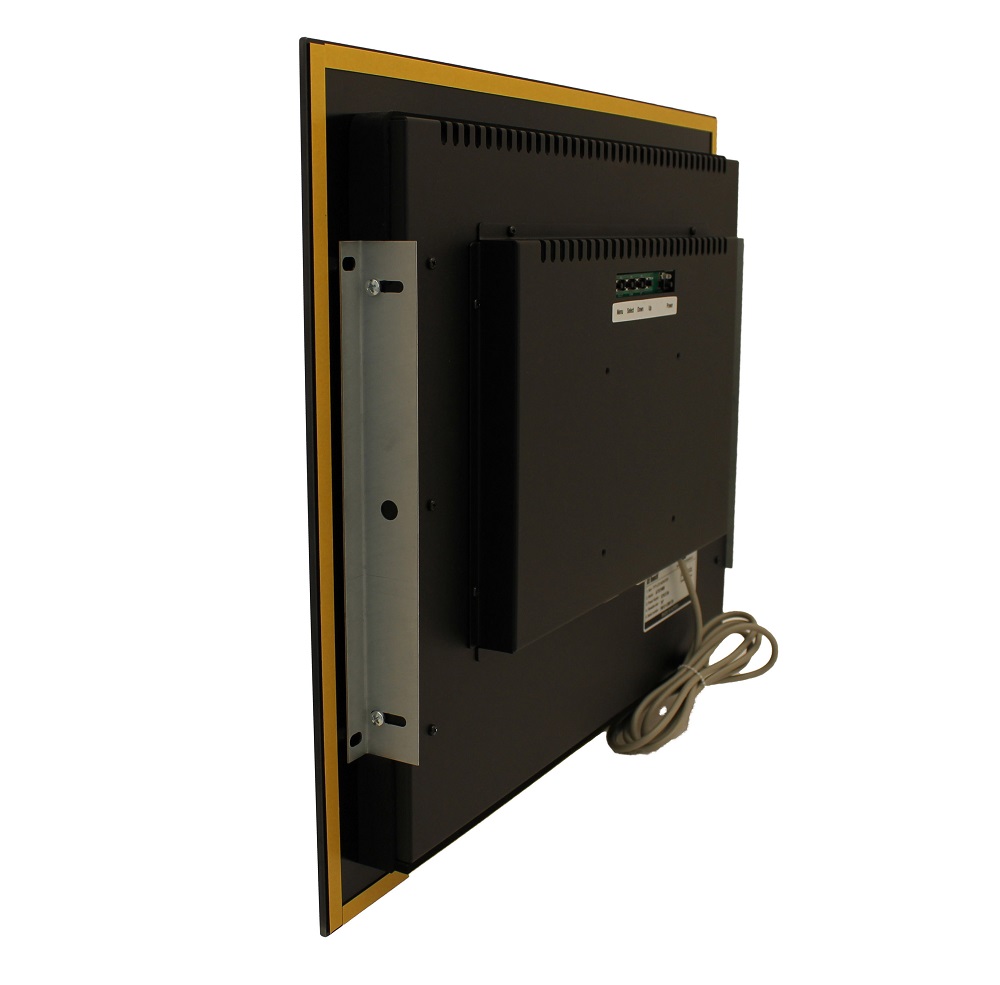

Description: 15 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
Color panel: Glass with black borders
Model: 15 inch XGA TFT LCD Monitor
Type:

15" Color Active Matrix TFT LCD
 (AUO G150XG03 V5)

Resolution (max): 1024 x 768 (XGA)
Color: 16,2 miljoen
Pixel: 0.297 x 0.297 mm
Brightness: 350 cd/m²
Contrast ratio: 700:1
Viewing angle: 85°/85° horizontal & 80°/80° vertikal
Respons time 8 ms
Active area: 304,1 (H) x 228,1 (V) mm

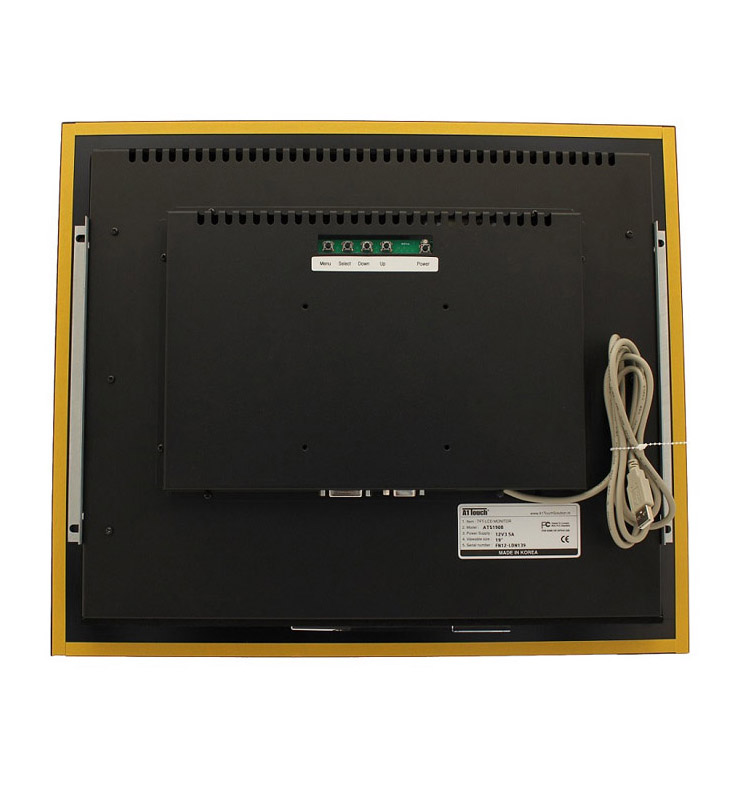

VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 395x326x48 (wxhxd)
Weight 3,3 Kg
Mounting: VESA 75mm

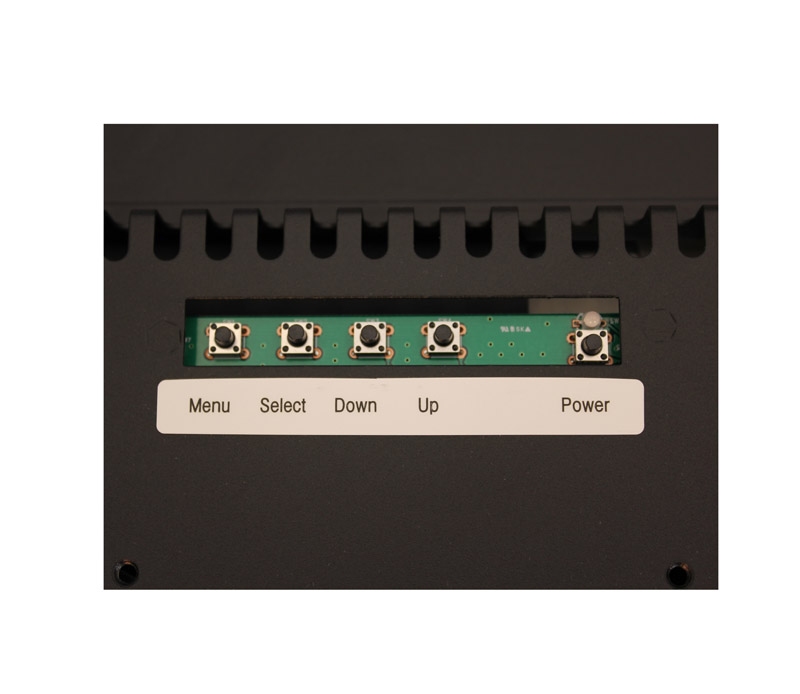

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.

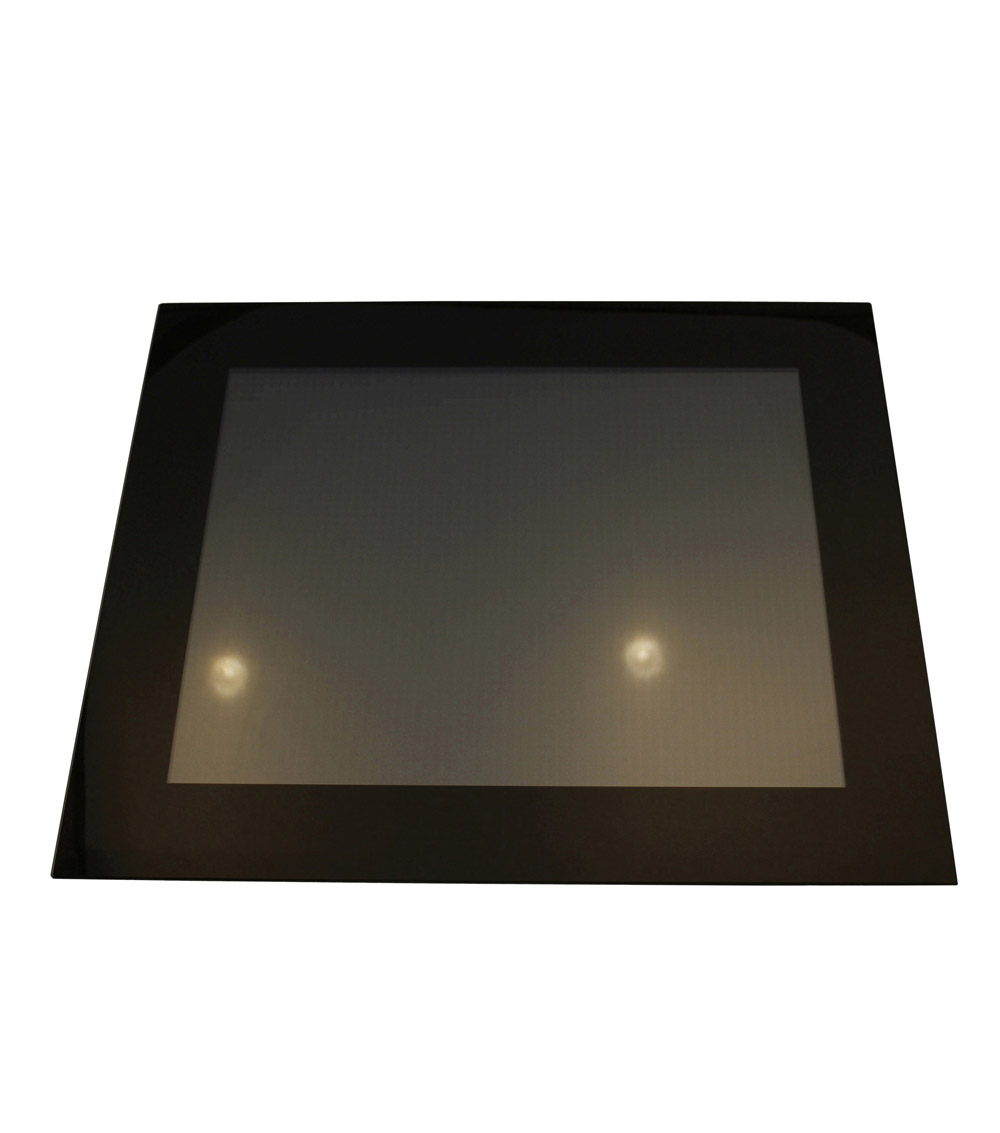

External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick heat tempered glass with black borders.
Surface hardness: Mohs' hardness = 7
Responstime: Max. 20 msec.

Options:
Touch controller interface: USB, RS232 with external power or RS232 with internal power

Specifications / Manual :

specs pcap 15 inch panel mount touchmonitor
Installation dimensions :
Drawing : dimensions pcap 15 inch panel mount touchmonitor
Mounting instructions :
Driver downloads : touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
