17" panel mount PCAP touchmonitor

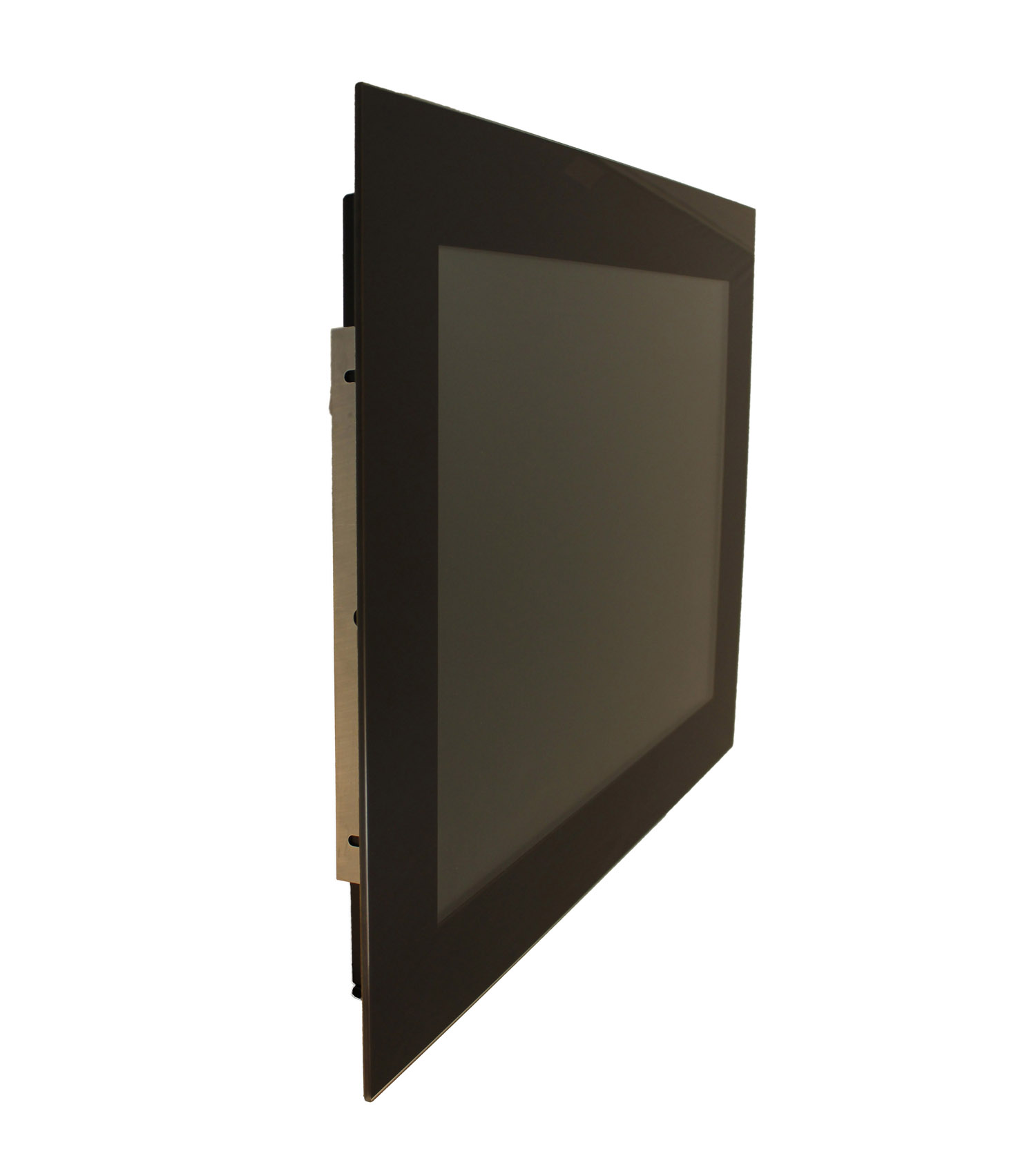

pcap panelmount front 3d
17" panel mount PCAP touchmonitor
Net price (excl.VAT) €766,00
Art.No.:
1020151247
Brand:
A1Touch Solution
Type: AOD 170 PG-GPCAP10-USBSC-TPMB; AOD / ATS 17 inch projected capacitive panel mount (touch) monitor, VGA+DVI.
Description: 17 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
Color panel: Glass with black borders
Model: 17 inch XGA TFT LCD Monitor
Type: 17 inch Color Active Matrix TFT LCD  (AUO M170ETN01.1)
Resolution (max): 1280 x 1024 (WVGA)
Color: 16,2 million
Pixel: 0.264 x 0.264 mm
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Viewing angle: 88°/88° horizontal & 85°/85° vertical
Response time 5 ms
Active area: 337,9 (H) x 270,3 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 440x372x52mm (wxhxd)
Weight 4,7 Kg
Mounting: VESA 100mm

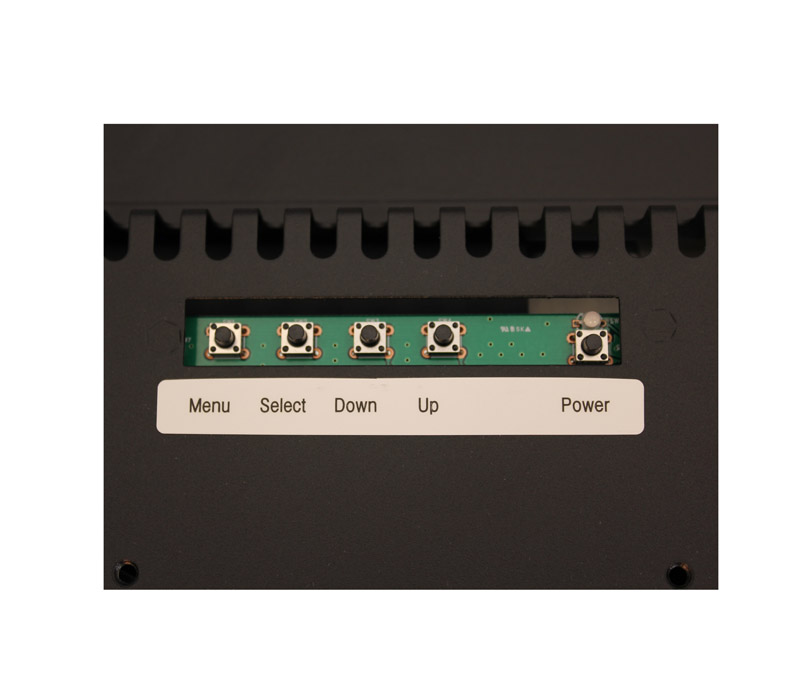

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-4 points touch
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick heat tempered glass with black ceramic borders, C-grinded r=2mm.
Surface hardness: Mohs' hardness = 7
Responstime: Max. 20 msec.

Options:
Touch controller interface: USB, RS232 with external power or RS232 with internal power

Specifications / Manual :

specs pcap panel 17 inch panel mount touchmonitor
Installation dimensions :
Drawing : dimensions pcap panel 17 inch panel mount touchmonitor
Mounting instructions :
Driver downloads : touchscreen driver downloads
