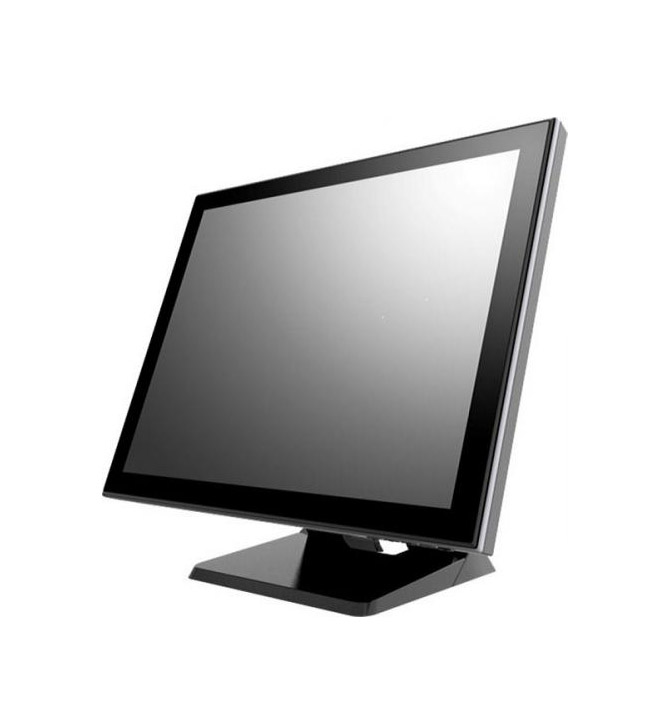

15" Wide PCAP 2pts Desktop Monitor

pcap monitor
15" Wide PCAP 2pts Desktop Monitor
Net price (excl.VAT) €349,00
End of life
Model WP15-PCAP (Bezel Free)
Case Color Dark Gray
Dimensions (including stand) 381.0 (W) X 285.3 (H) X 200.9 (D) mm
Net Weight (Approx.) 5.4 Kg
Power Supply AC 100 ~ 240 (V)
Power Consumption Operating: 20W (typ.) / Sleep: 3W / Off: 1W
Mounting Option Stand / 100 X 100 mm VESA Mount
LCD Size / Type 15.6" wide diagonal TFT active Matrix Panel
Active Area 344.232 (H) X 193.536 (V) mm
Pixel Pitch 0.252 (H) X 0.252 (V) mm
Panel Resolution 1366 X 768 (Max.)
Display Color 16.7M (6 bits + FRC)
Contrast Ratio 500:1
Brightness with pcap touch 225 nits (typical)
Response Time 8 ms (typical)
Viewing Angle - Horizontal  160° (typical)
Viewing Angle - Vertical 130° (typical)
Video Signal Input D-sub 15 pin Female (Analog) - RGB
Temperature - Operating 0°C  ~ +40°C
Temperature - Storage -20°C ~ +60°C
Hunidity - Operating 20%  ~ 80% (Noncondensing)
Control Key Power On/Off, Select, Down, Up, Menu
OSD Option Contrast, Brightness, Auto Adjust, Left / Right, Down / Up Horizontal Size, Fine,
  OSD Left / Right, OSD Down / Up, OSD Timeout, Factory Reset, Language, RGB, Audio
Audio -
Plug & Play  DDC 2B Compatible
Compliance  TUV, CE, UL, CUL, FCC-B, RoHS, IPX1
Touch Technology  Projected Capacitive
Touch Interface USB (Type-B)

Specifications :

Specs 15 inch wide pcap 2 pts desktop monitor manual

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
