21.5" Bezel free PCAP Touchscreen Monitor

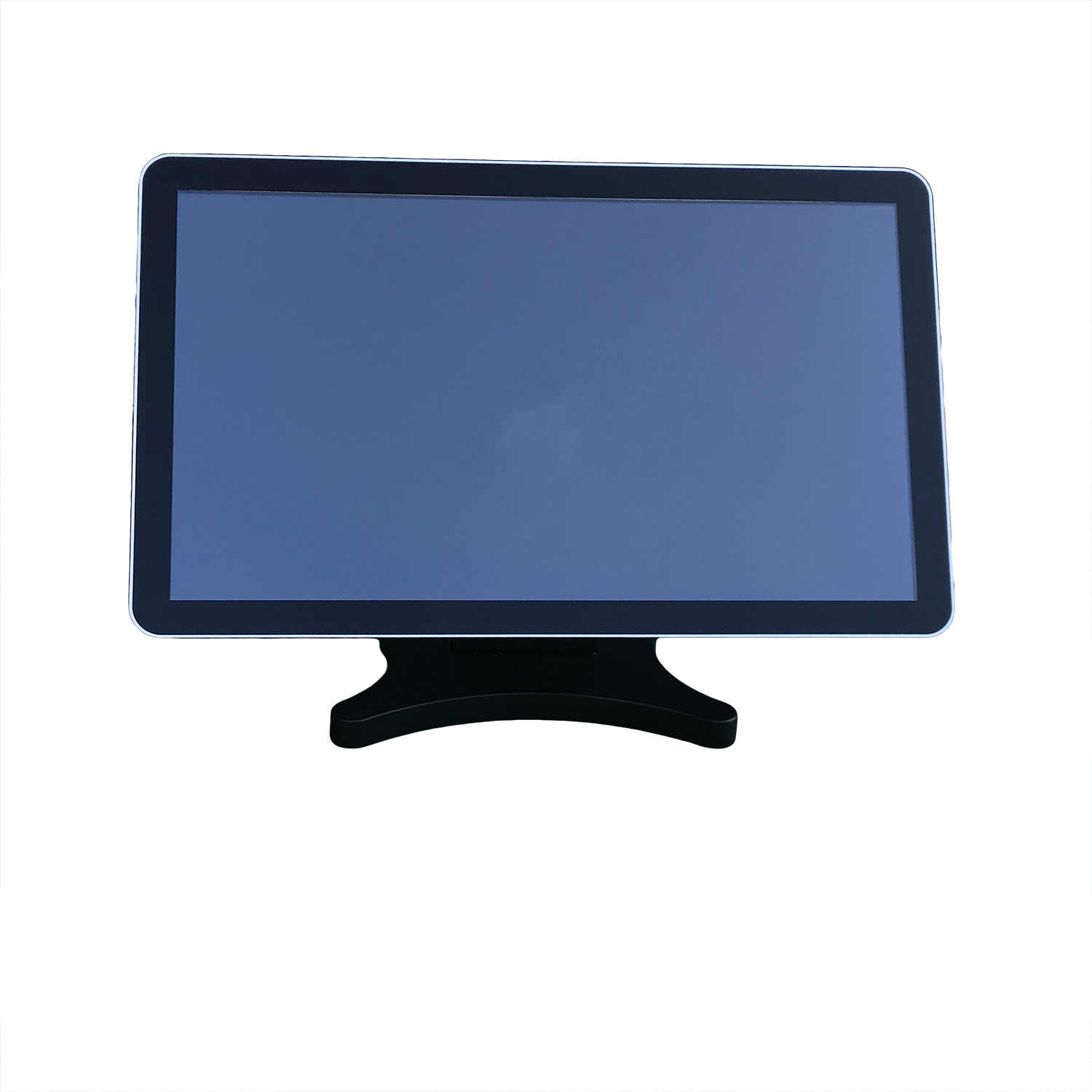

touchscreen monitor desktop 21.5 inch front
21.5" Bezel free PCAP Touchscreen Monitor
Net price (excl.VAT) €430,00
Art.No.:
1020153158
Brand:
A1Touch Solution
Name: BFR 21.5" desktop mount projected capacitive touchscreen monitor, VGA/ DVI and HDMI.
Descriptions: 21.5 inch desktop monitor with pcap touchscreen, bezel free with hardened glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock

Applications:

Television
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

- Bezel free design with glass surface.
- Precise multi-point (10 points) touching.
- Toughened glass capacitive screen 16:9 wide display screen
- Maintenance free.
- Complete metal monitor with strong stability.
- Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
- Unit can be touched with finger, hand gloves or stylus pencil.
- Fast touch response (less than 10 ms).


Specifications:

General



Model:

BFR215

Size:

21.5" ( 21.5” active area)

Panel Type:

TFT-LCD

Backlight:

LED

Display colour:

16.7M

Color:

Black

Material:

Alu/metal housing, Toughened glass cover glass

IP (between touchscreen and frame)

IP65

Mounting Option:

VESA 75x75 and 100x100 mm

Video Inputs

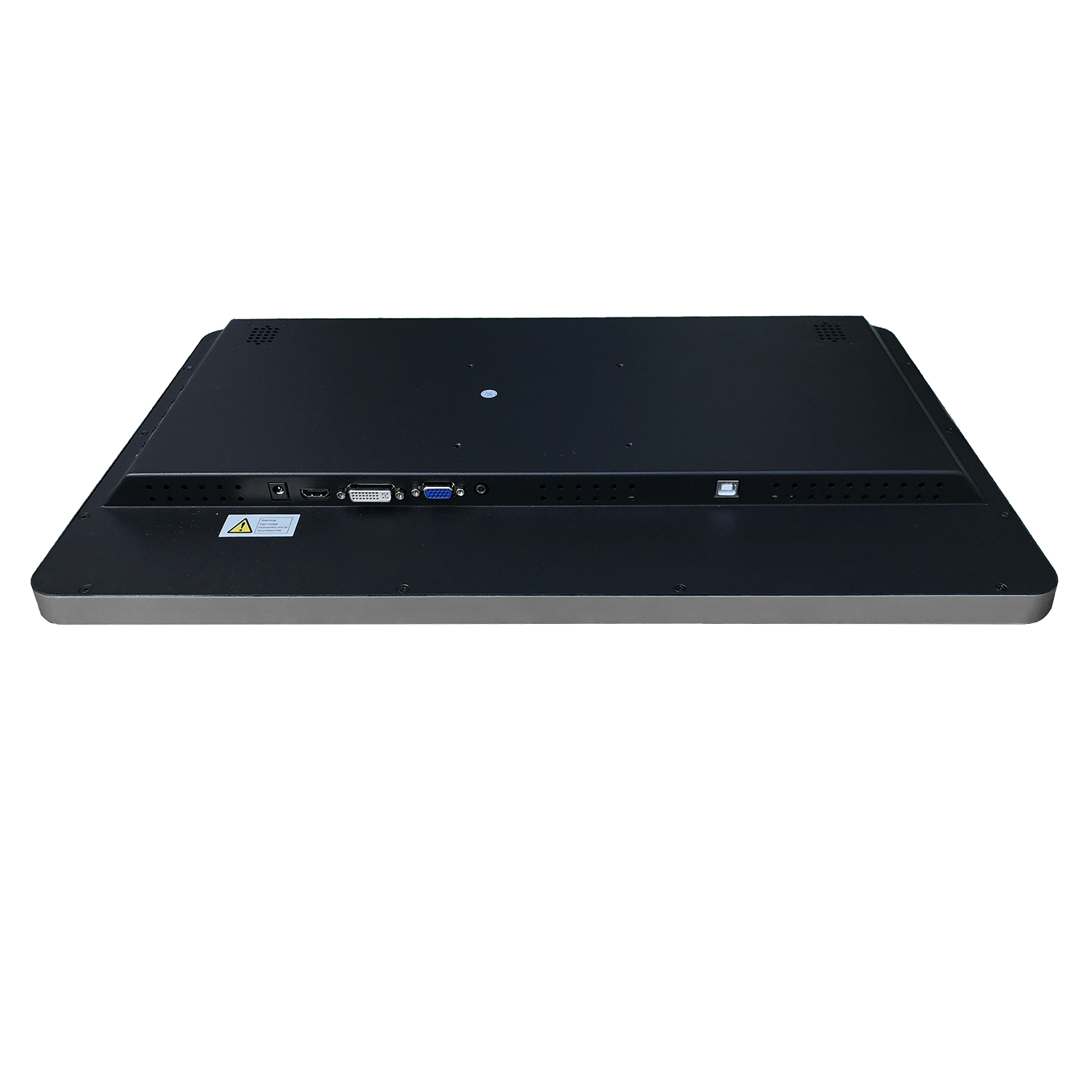

Inputs: VGA/ DVI/ HDMI

Dimensions



Outside dimensions frame (wxhxd)

526.01mm* 317.61mm* 40.8mm

Active area (wxh)

476.64 x 268.11 mm

Display



Native resolution:

1920 x 1080 @60HZ

Ratio:

16:9

Contrast:

3000:1

Brightness:

250 cd/m

Viewing Angle (H/V):

178 /178

Response time:

<18ms

Backlight life:

50.0000 hrs

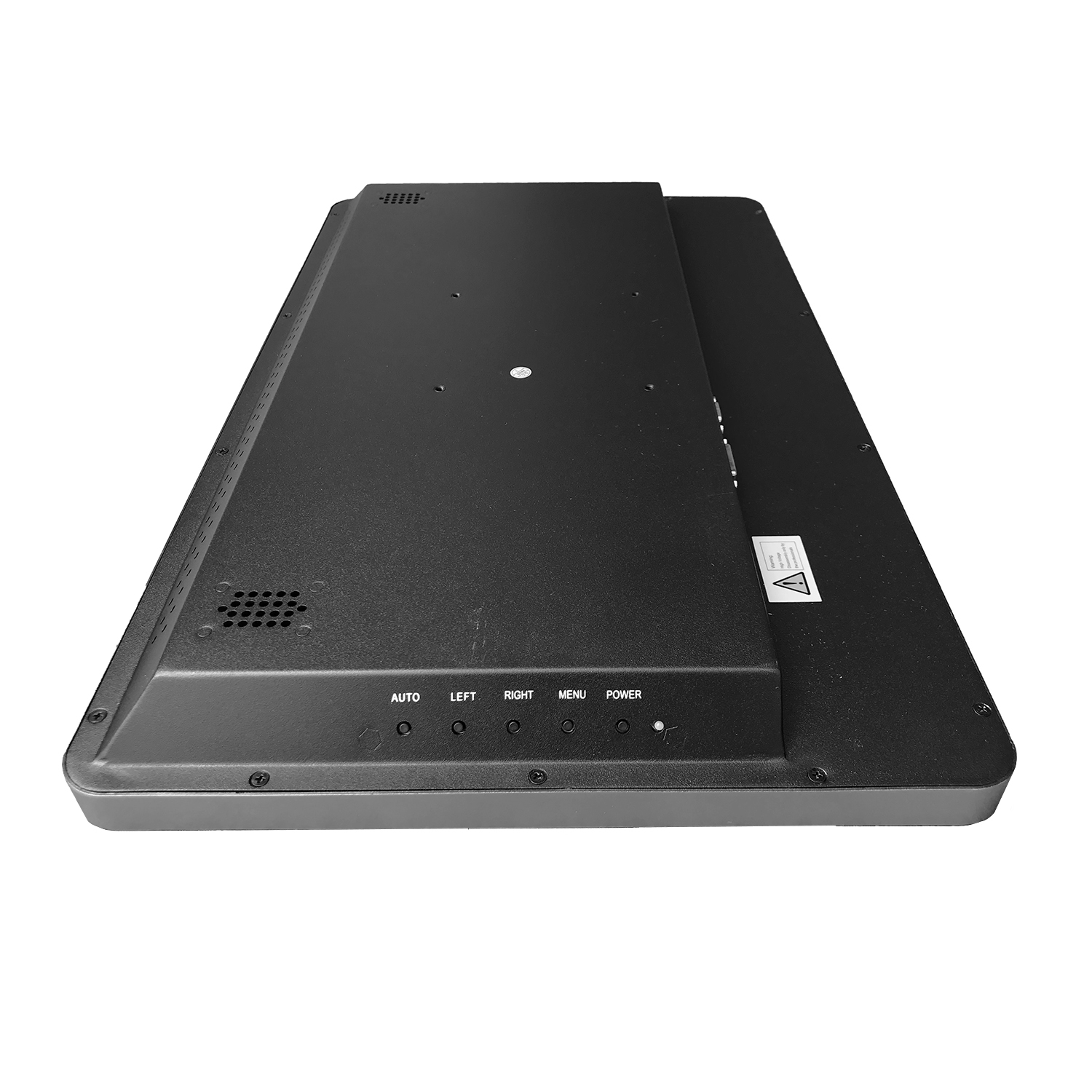

Control:

OSD Control

Touchscreen



Touch Technology:

Toughened Projected capacitive Touch (G+G)

Detected touches

10 touches.

Response time:

<10ms

Input Method:

Finger, hand gloves, or conductive stylus

Touch times:

Unlimited

Touch Activation Force:

No minimum touch activation force is required.

Controller type:

EETI chipset 31xx

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Environment



Temperature:

Operating:  0°C ~ 40°C

Storage: -20°C ~ 60°C

Relative Humidity:

Operating: 20-80%(non-condensing at max 40°C)

Storage: 10-90%(non-condensing at max 40°C)

Altitude:

Up to 3000m

Electrical



Scan frequency:

60Hz

Operation Voltage:

Typical +DC 12V, +/- 10%  (24 volt option).

Power Supply:

110-220V AC to 12Volt DC, min. 2A

Power:

15 W



Packing



Agency Approvals:

CE, FCC, RoHS

Weight net.:

5 kg

Options:


Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A/B cable 1.8 meter and 220 – 12 Volt Power Supply.
Power supply Cables:
- With power supply and (analog) vga cable  (power supply is 110-220VAC to 12VDC).  Ask us if you need 24VDC on monitor. Power supply delivered with EU connection.
- With power supply and (digital) HDMI cable.
-Without power supply or cables

Vesa desktop mount bracket:
- Without stand (standard). You can use your own vesa standard.
- With our heavy duty desktop stand:


- With height adjustable desktop stand from brand Newstar:

Accessories:
- No accessories (standard)
- With stylus pen and holder:




Specifications :

Specs 07 inch AOD desktop touch Monitor manual
Driver downloads : Touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
