21.5" Desktop (touch)Monitor

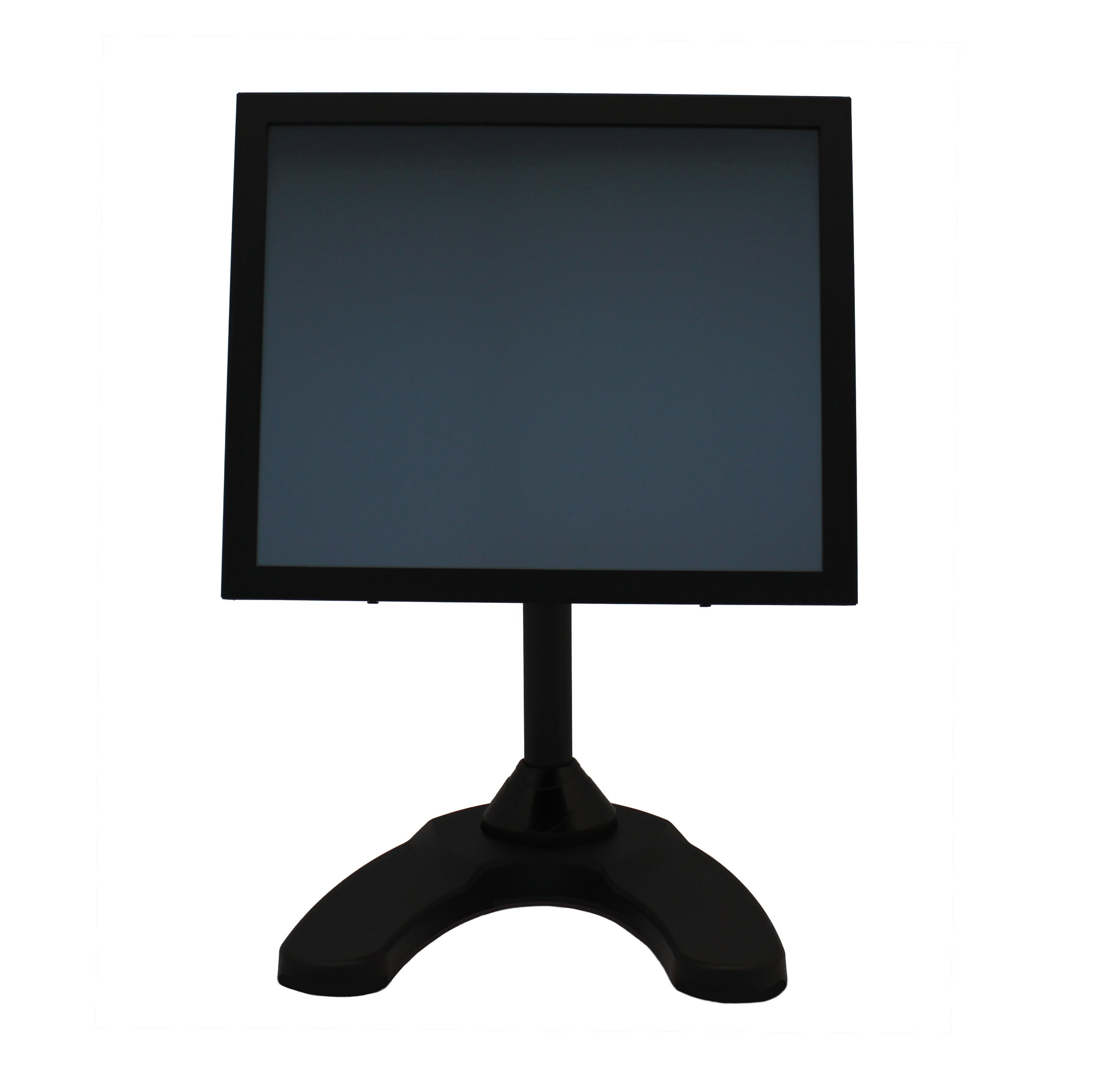

Desktop touchscreen computer voorzijde
21.5" Desktop (touch)Monitor
Net price (excl.VAT) €365,00
Art.No.:
AOD215-....-DNB / -DEB
Brand:
A1Touch Solution
Name: AOD / ATS 21.5" desktop (touch) monitor, VGA+DVI.
Descriptions: 21,5 inch desktop monitor with or without touchscreen, touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
Color panel: Black powder Coated (other colors on request)
Model: 21,5 inch XGA TFT LCD Monitor
Type: 21.5 inch, 16:9 Color Active Matrix TFT LCD LM215WF3 (LG Philips LCD)
Resolution (max): 1920 x 1080 (Full HD)
Color: 16,7 million
Pixel: 0.2475mm x 0.2475mm
Brightness: 300 cd/m²
Contrast ratio: 300:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 5 ms
Active area: 476.64 (H) x 268.11 (V) mm

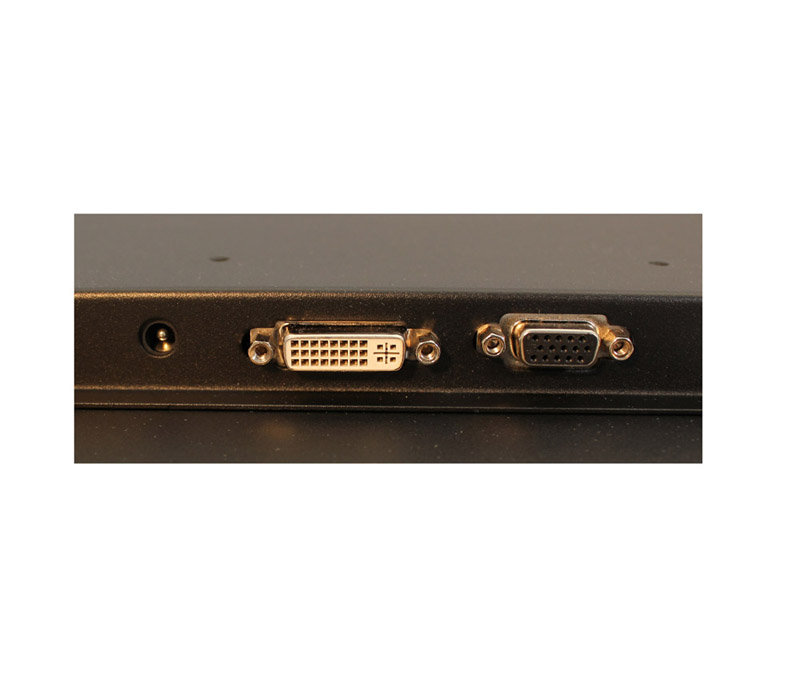

VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: 29 watt stand, 40 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 519x323x53mm (wxlxd)
Weight ~9 Kg
Mounting: VESA 200x100mm; (No bracket/ stand included in delivery; See: mounting_brackets)

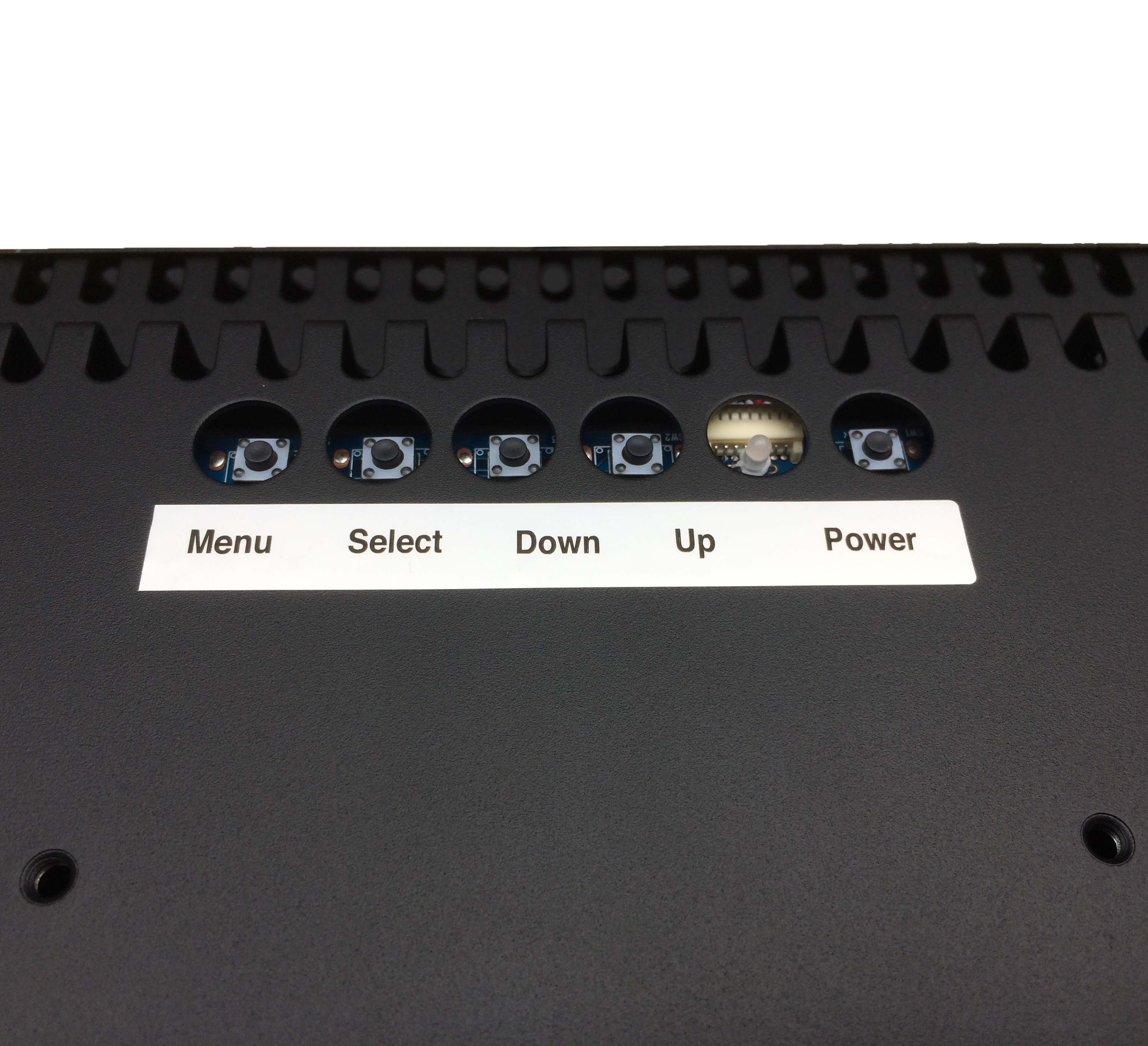

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Standard delivery:

With PSU, EU power cable and 1.8 m DVI cable but without vesa stand. Other options than below on request.
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI.

Specifications / Manual :

specs 21.5 inch AOD desktop touch monitor manual
Dimensions : Dimensions 21.5 inch AOD desktop touch monitor
Driver downloads : Touchscreen driverdownloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
