10.1" Desktop (touch)Monitor

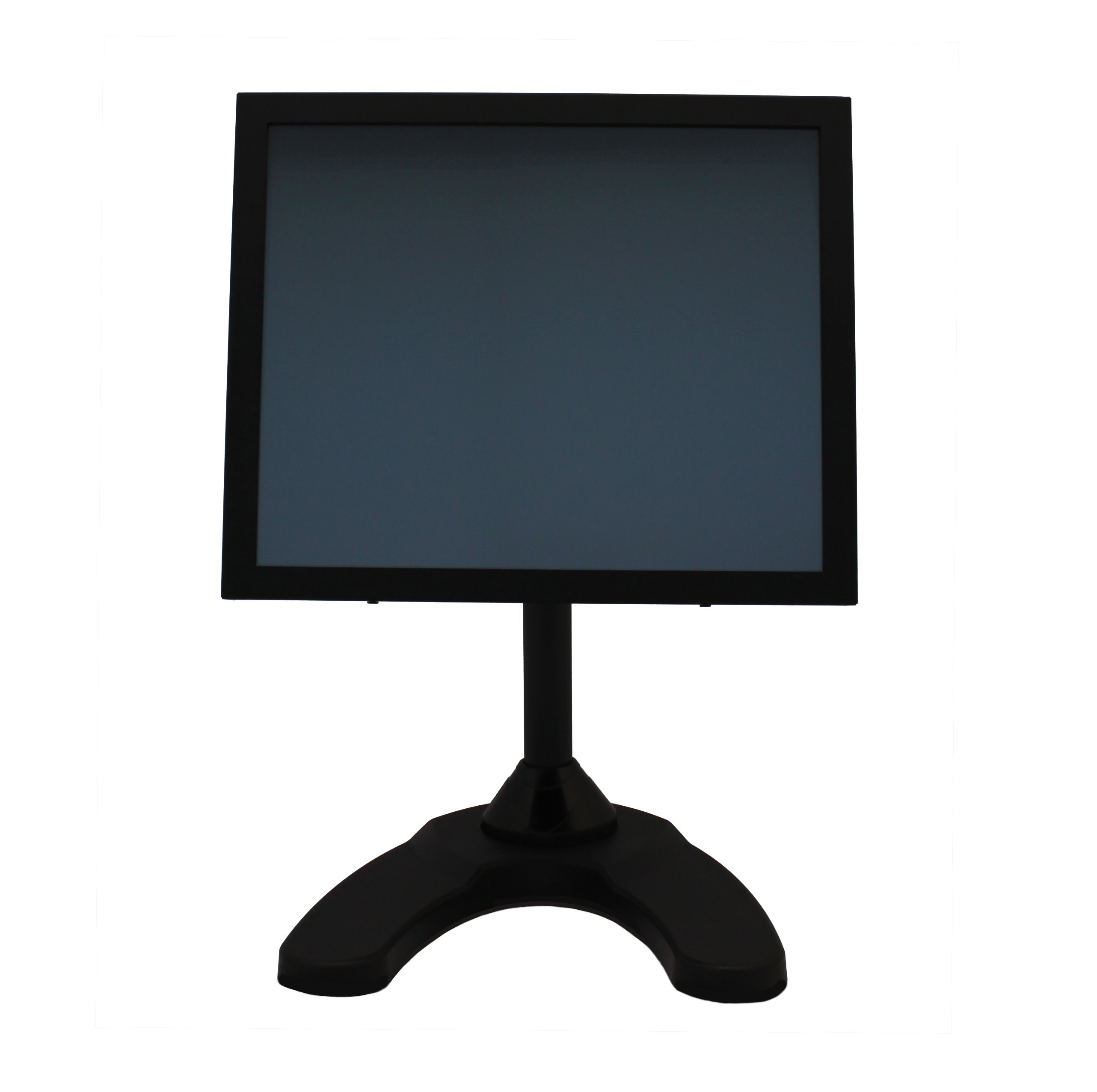

Desktop touchscreen computer voorzijde
10.1" Desktop (touch)Monitor
Net price (excl.VAT) €352,00
Art.No.:
AOD101-....-DNB / -DEB
Brand:
A1Touch Solution
Name: AOD / ATS 10.1" desktop (touch) monitor, VGA+DVI.
Descriptions: 10,1 inch desktop monitor with or without touchscreen, touchscreen options like pcap, resistive, saw or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
Color/material panel: Black powder Coated, metal chassis (other colors on request)
Model: 10,1 inch SVGA TFT LCD Monitor
Type: 10,1" Color Active Matrix TFT LCD (AUO G101EVN01.0)
Resolution (max): 1280 x 3(RGB) x 800
Color: 262,144 (6bit)
Pixel: 0.1695 X 0.1695 mm
Brightness: 300 cd/m²
Contrast ratio: 1300:1
Viewing angle: 85°/85° & 85°/85° (vert/Hor)
Respons time 35 ms
Active area: 216.96(H) x 135.6(V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <13 watt max.
Power consumption stand by: <3 watt max.
Temperature opration mode: -20 °C - +60 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 260x178.8x42mm (bxhxd)
Weight 1,9 Kg
Mounting: VESA 75mm,  (No bracket/ stand included in delivery; See: mounting_brackets)

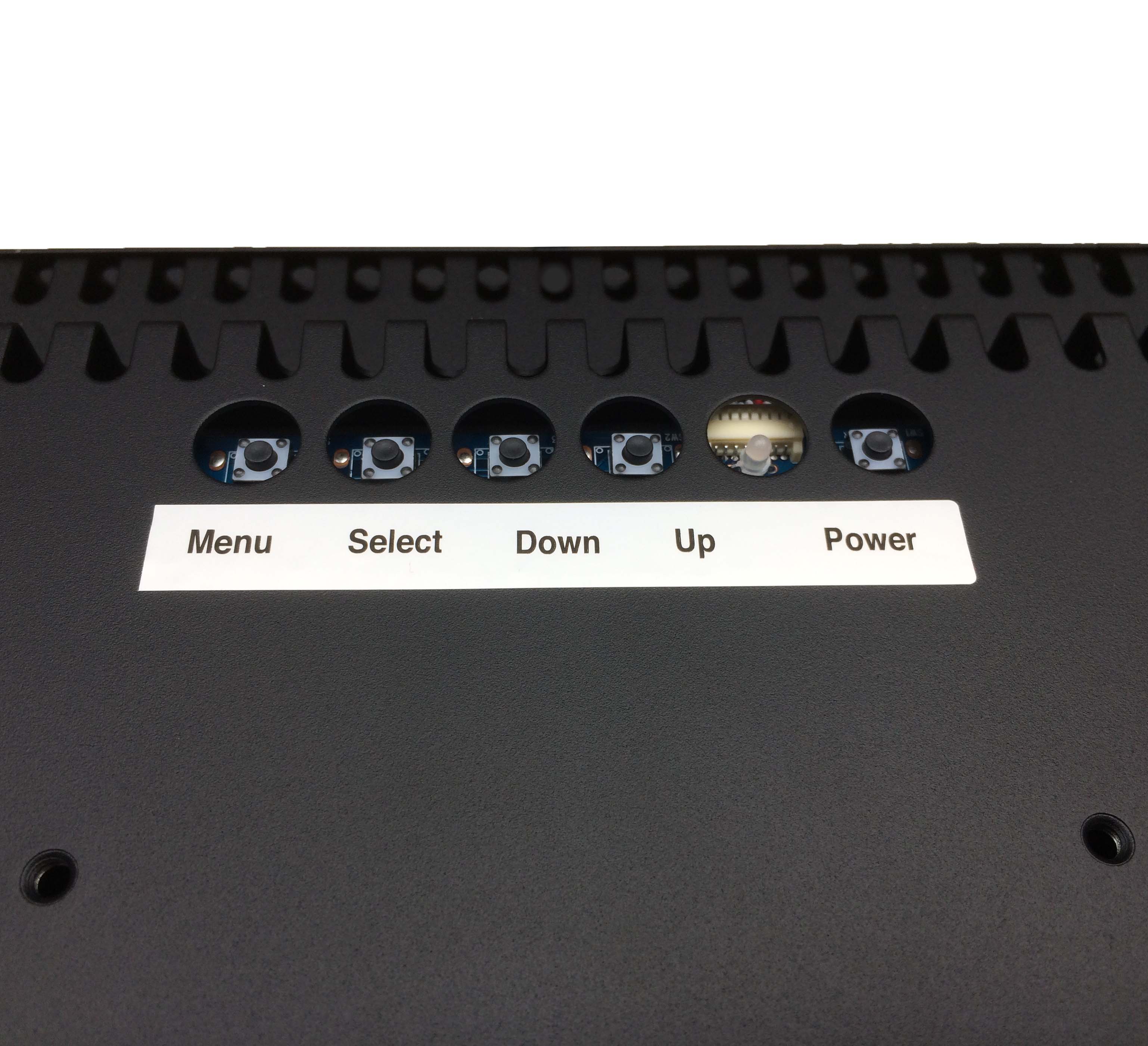

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touchscreen specs: See tab "Options"
Options:
Standard delivery: With PSU, EU power cable and 1.8 m DVI cable but without vesa stand. Other options than below on request.
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.


Specifications / Manual :

Specs 10.1 inch desktop touch monitor manual
Dimensions : Dimensions  10.1 inch desktop touch monitor
Driver downloads : Touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
