19" Bezel free PCAP Touchscreen Monitor

touchscreen monitor desktop 19 inch
19" Bezel free PCAP Touchscreen Monitor
Net price (excl.VAT) €439,00
Art.No.:
1020152701
Brand:
A1Touch Solution
Name:BFR 19" desktop mount projected capacitive touchscreen monitor, VGA/ HDMI/ DVI.
Descriptions: 19 inch desktop monitor with pcap touchscreen, bezel free with 4mm thick full glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock

Applications:

Television
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

- Bezel free design with glass surface.
- Precise multi-point (10 points) touching.
- Camera and Television function (via BNC) and Digital Picture Frame (via USB).
- Maintenance free.
- Complete metal monitor with strong stability.
- Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
- Unit can be touched with finger, hand gloves or stylus pencil.
- Fast touch response (less than 10 ms).


Specifications:

General

Model:
BFR190
Size:
19" ( 19” active area)
Panel Type:
TFT-LCD
Backlight:
LED
Display colour:
16.7M
Color:
Black
Material:
Metal housing, Glass cover glass
Mounting Option:
VESA 75x75 and 100x100 mm
Video Inputs

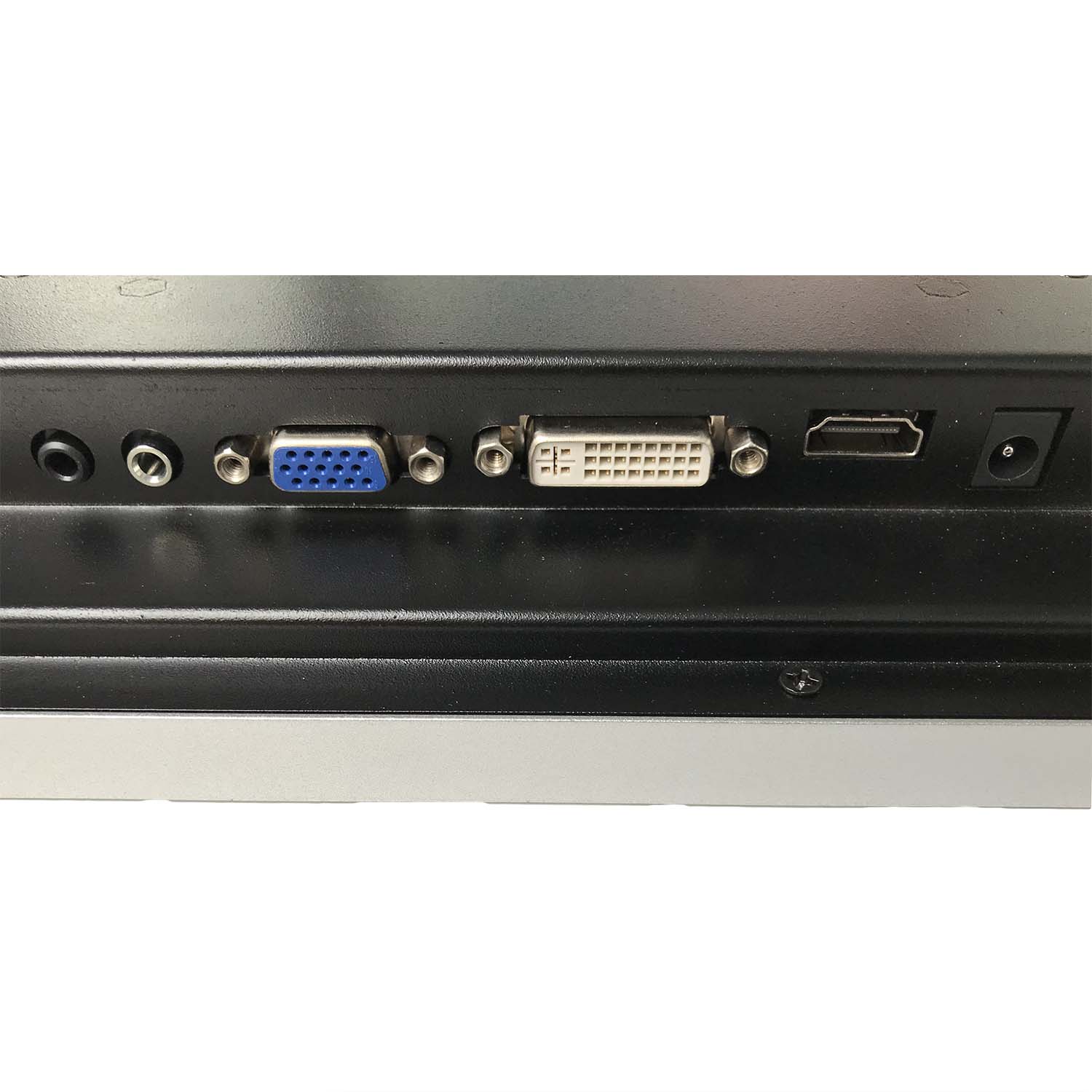

Inputs: VGA/ HDMI/ DVI
Dimensions

Outside dimensions frame (wxhxd)
446 x 370 x 43 mm
Active area (wxh)
376.32 x 301.06 mm
Display

Native resolution:
1280 x 1024 @60HZ
Ratio:
5:4
Contrast:
1000:1
Brightness:
250 cd/m
Viewing Angle (H/V):
175/165
Response time:
<5ms
Backlight life:
50.0000 hrs
Control:
OSD Control (Remote control is option)
Touchscreen

Touch Technology:
Projected capacitive Touch (G+G)
Detected touches
10 touches.
Response time:
<10ms
Input Method:
Finger, hand gloves, or conductive stylus
Touch times:
Unlimited
Touch Activation Force:
No minimum touch activation force is required.
Controller type:
EETI chipset 31xx
Operating System Support:
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
Environment

Temperature:
Operating:  -10°C ~ 70°C
Storage: -20°C ~ 80°C
Relative Humidity:
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
Altitude:
Up to 3000m
Electrical

Scan frequency:
60Hz
Operation Voltage:
Typical +DC 12V, +/- 10%  (24 volt option).
Power Supply:
110-220V AC to 12Volt DC, min. 2A
Power:
17 W


Packing

Agency Approvals:
CE, FCC, RoHS
Weight net.:
4.5 kg



Options:


Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A cable 0.5 meter and 220 – 12 Volt Power Supply.
Power supply Cables:
- With power supply and (analog) vga cable  (power supply is 110-220VAC to 12VDC).  Ask us if you need 24VDC on monitor. Power supply delivered with EU connection.
- With power supply and (digital) HDMI cable.
-Without power supply or cables

Vesa desktop mount bracket:
- Without stand (standard). You can use your own vesa standard.
- With our heavy duty desktop stand:


- With height adjustable desktop stand from brand Newstar:

Accessories:
- No accessories (standard)
- With stylus pen and holder:

- With remote controller:

-With Stylus pencil, holder and remote controller.



Specifications :

Specs 07 inch AOD desktop touch Monitor manual
Driver downloads : Touchscreen driver downloads
