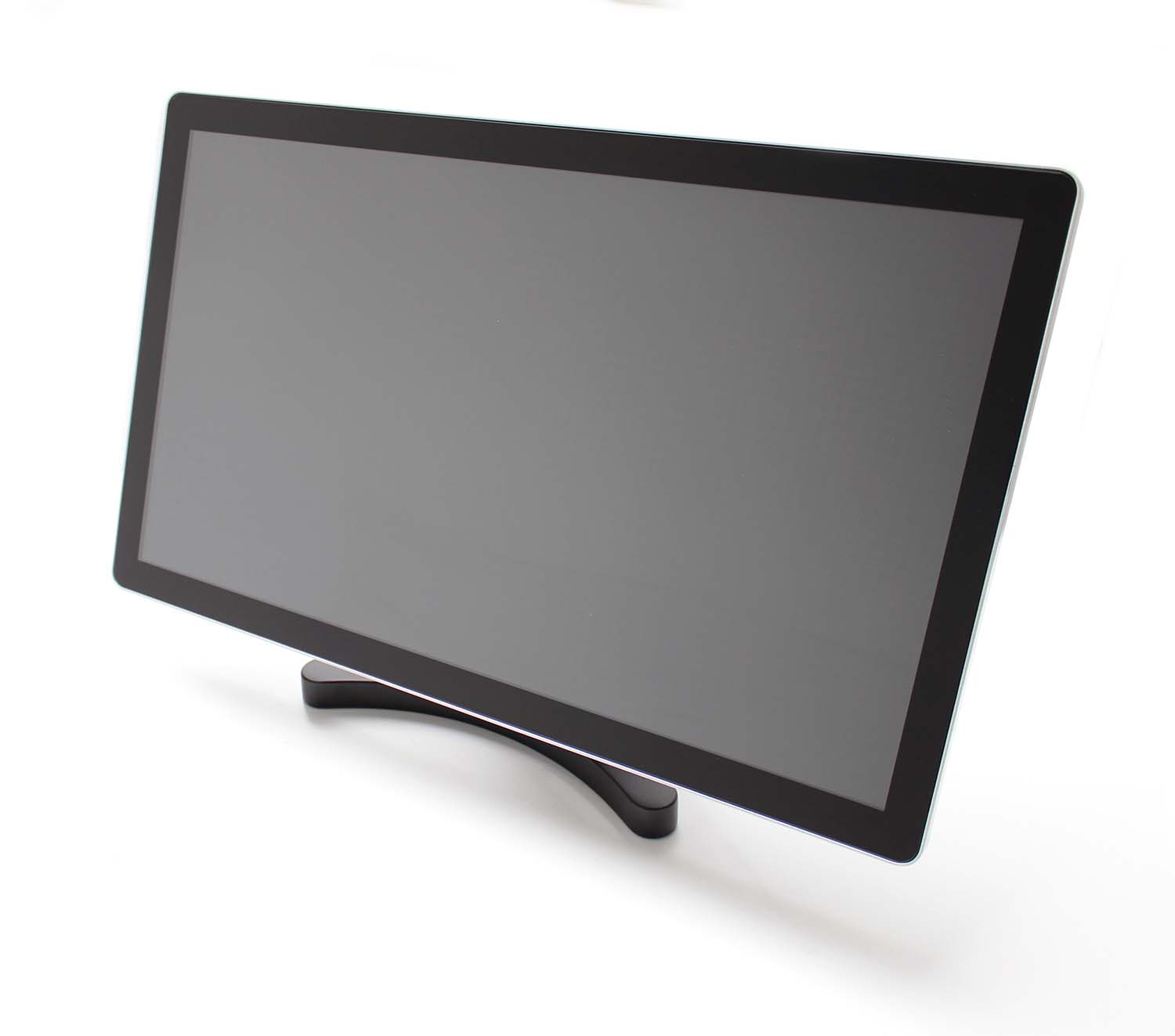

27" Bezel free PCAP Touchscreen Monitor

touchscreen monitor desktop 27 inch
27" Bezel free PCAP Touchscreen Monitor
Net price (excl.VAT) €920,00
Art.No.:
1020153192
Brand:
A1Touch Solution
Type: AOD270-GPCAP-DMB, 27" desktop mount projected capacitive touchscreen monitor, VGA+DVI.
Descriptions: 27 inch desktop monitor with 10pts pcap touchscreen, bezel free with 4mm thick tempered glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock

Applications:

Television
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

  • Bezel free design with glass surface.
  • Precise multi-point (10 points) touching.
  • Camera and Television function (via BNC) and Digital Picture Frame (via USB).
  • Maintenance free.
  • Complete metal monitor with strong stability.
  • Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
  • Unit can be touched with finger, hand gloves or stylus pencil.
  • Fast touch response (less than 10 ms).



Specifications:

General

Model:
AOD270-GPCAP-DMB
Size:
27" ( 27” active area)
Panel Type:
TFT-LCD
Backlight:
LED
Display colour:
1.07B colors (8bit+Hi+FRC)
Color:
Black
Material:
Metal housing, Glass: 4mm hardened cover glass
Mounting Option:
VESA 200x100 mm
Video Inputs
Inputs: VGA/ DVI
Dimensions

Outside dimensions frame (wxhxd)
668 x 410 x 58 mm
Active area (wxh)
600.88 x 339.31 mm
Display

Native resolution:
1920 x 1080 @60HZ
Ratio:
16:9
Contrast:
1000:1
Brightness:
300 cd/m
Viewing Angle (H/V):
178/178
Response time:
<12ms
Backlight life:
50.0000 hrs
Control:
OSD Control (Remote control is option)
Touchscreen

Touch Technology:
Projected capacitive Touch (G+G)
Detected touches
10 touches.
Response time:
<10ms
Input Method:
Finger, hand gloves, or conductive stylus
Touch times:
Unlimited
Touch Activation Force:
No minimum touch activation force is required.
Controller type:
EETI chipset 31xx
Operating System Support:
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
Environment

Temperature:
Operating:  -10°C ~ 70°C
Storage: -20°C ~ 80°C
Relative Humidity:
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
Altitude:
Up to 3000m
Electrical

Scan frequency:
60Hz
Operation Voltage:
Typical +DC 12V, +/- 10%  (24 volt option).
Power Supply:
110-220V AC to 12Volt DC, min. 2A
Power:
22 W


Packing

Agency Approvals:
CE, FCC, RoHS
Weight net.:
8.15 kg


Applications:
Promotions viewer
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Options:


Our touchscreen monitor standard includes: pcap touchscreen with integrated USB chassis controller +  USB-A-A cable 1.8 meter and 220 – 12 Volt Power Supply + DVI Cable


Power supply Cables:
- With power supply and (analog) vga cable  (power supply is 110-220VAC to 12VDC).  Ask us if you need 24VDC on monitor. Power supply delivered with EU connection.
- With power supply and (digital) HDMI/DVI cable.
-Without power supply or cables

Vesa desktop mount bracket:
- Without stand (standard). You can use your own vesa standard.
- With our heavy duty desktop stand:


- With height adjustable desktop stand from brand Newstar:

Accessories:
- No accessories (standard)
- With stylus pen and holder:


-With Stylus pencil, holder and remote controller.



Specifications :

Specs 27 inch AOD desktop touch Monitor
Driver downloads : Touchscreen driver downloads
