15" Black In-wall mount PC (Passive Cooled)

panel AOD touchscreen - paneel aod touchsceen
15" Black In-wall mount PC (Passive Cooled)
Net price (excl.VAT) €789,00
Art.No.:
1020153078
Brand:
A1Touch Solution
Type: All in one A1Touch J3455/AOD150-PMB-DOMO-L (passive cooled)

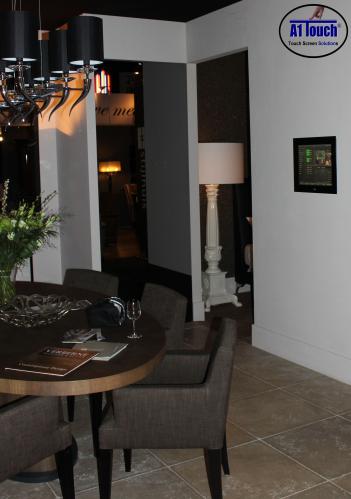

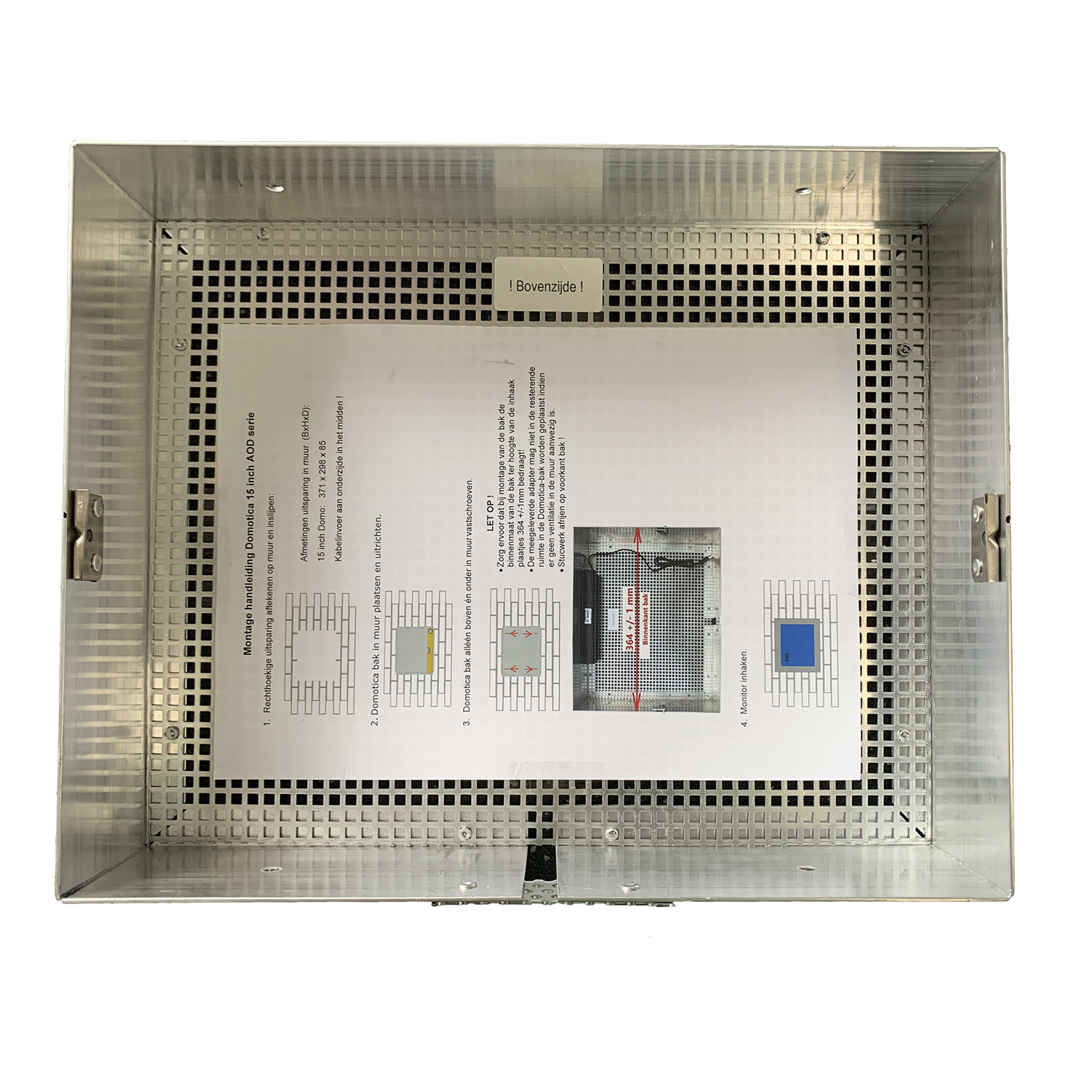

Description: 15 inch domotics computer with or without touchscreen for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock
Monitor specificaties:

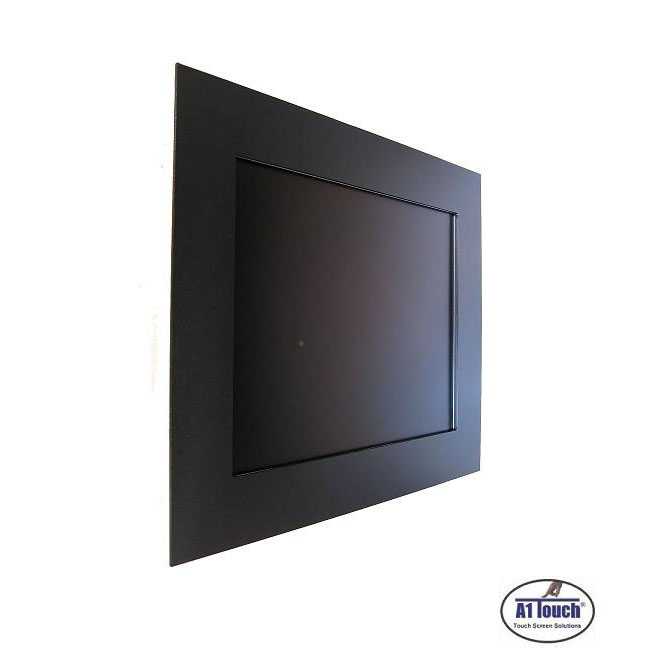

Kleurenpaneel: Zwart poeder gecoat (andere kleuren op aanvraag)
Model: 15 inch XGA TFT LCD-monitor
Type:

15-inch kleuren Active Matrix TFT LCD
(AUO G150XG03 V5)

Resolutie (max): 1024 x 768 (XGA)
Kleur: 16,2 miljoen
Pixel: 0.297 x 0.1297 mm
Helderheid: 350 cd / m²
Contrast ratio: 700: 1
Kijk hoek: 85 ° / 85 ° horizontaal 80 ° / 80 ° verticaal
Reactietijd 8 ms
Actief gebied: 304,1 (H) x 228,1 (V) mm
Specificaties voor touchscreen: Zie tabblad "Opties"
Computer specificaties:
Typ computerboard Intel J3455 Quad core tot 2,3 Ghz, passief gekoeld
chipset Geen aparte chipset
Geheugen 2 x DDR3 / DDR3L SO-DIMM-slots
Bios
  • 64 MB AMI UEFI Legal BIOS met GUI-ondersteuning
  • Ondersteunt Plug en Play
  • Compatibele ontwaakgebeurtenissen volgens ACPI 5.0
  • Ondersteunt jumperfree
  • Ondersteuning voor SMBIOS 3.0
bewerker Intel J3455 Quad core tot 2.3 Ghz-processor
Flashmodule / Harddisk Sata SSD en SATA Harddisk.mogelijk
grafiek
  • Geïntegreerde Intel® HD Graphics 500: 12 EU's binnen (tot 750 MHz)
  • DirectX 12, Pixel Shader 5.0
  • Drie grafische uitvoeropties: D-Sub, DVI-D en HDMI
  • Ondersteunt Triple Monitor
  • Ondersteunt HDMI 2.0 met max. resolutie tot 4K x 2K (4096x2160) @ 60Hz
  • Ondersteunt DVI-D met max. resolutie tot 1920x1200 bij 60Hz
  • Ondersteunt D-Sub met max. resolutie tot 2048x1536 bij 60Hz
  • Ondersteunt Auto Lip Sync, xvYCC en HBR (High Bit Rate Audio) met HDMI 2.0-poort (compatibele HDMI 2.0-monitor is vereist)
  • Ondersteunt HW-versnelde decoders: H.264 @ niveau 5.2, HEVC (H.265) 10b @ MP niveau 5.1 (GPU versneld), JPEG, VP8, VP9
  • Ondersteunt HDCP met DVI-D- en HDMI 2.0-poorten
  • Ondersteunt Full HD 1080p Blu-ray (BD) -weergave met DVI-D- en HDMI 2.0-poorten
LAN (RJ-45)
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111GR
  • Supports Wake-On-WAN
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  • Supports LAN Cable Detection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Audio
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  • Premium Blu-ray Audio support
  • Supports Surge Protection (ASRock Full Spike Protection)
  • ELNA Audio Caps
IDE, SATA, Flash 2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and
Hot Plug
Hardware Monitor + Power Management Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

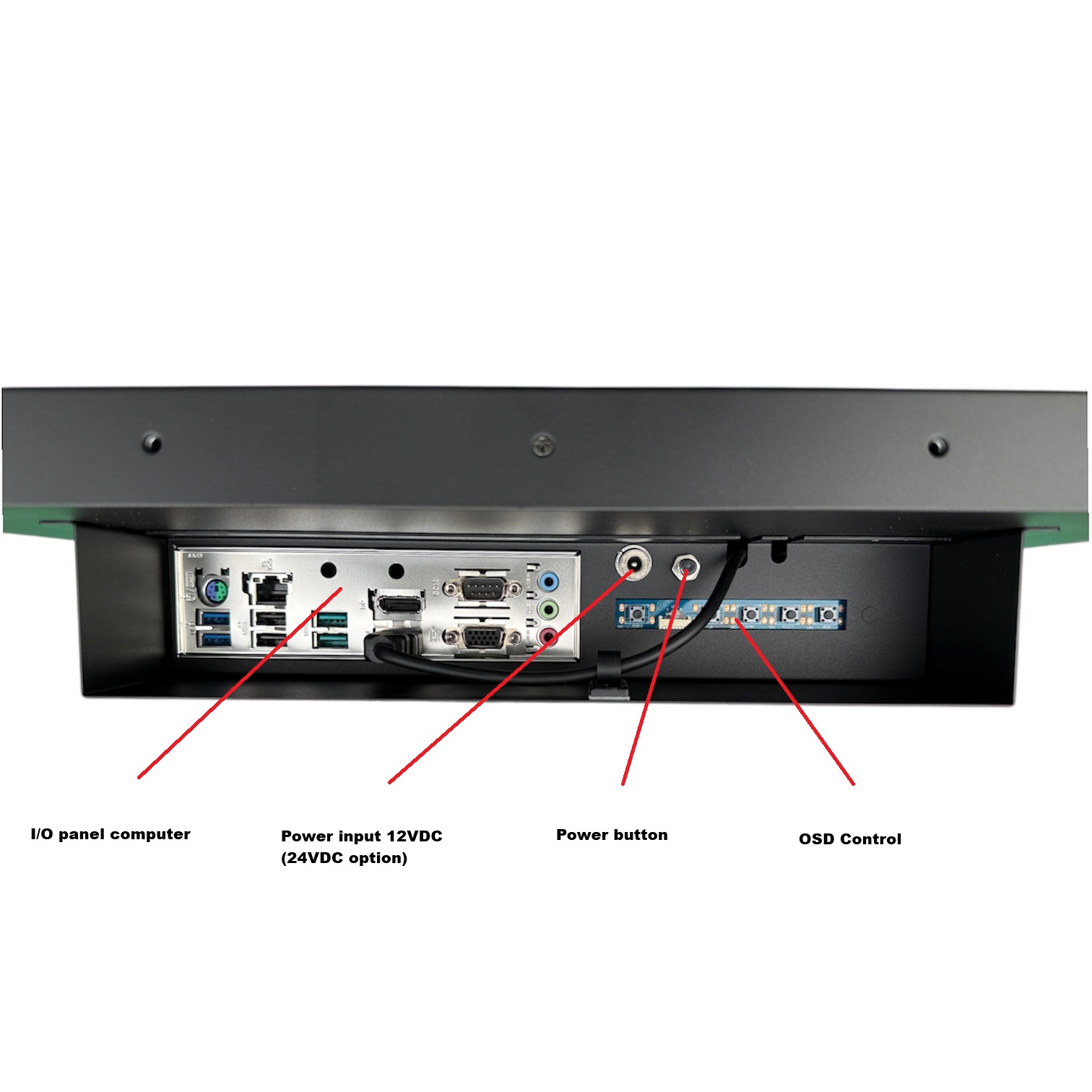

I/O system:
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port (occupied)
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O:
  • 1 x PCI Express 2.0 x1 Slot
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (3-pin)
  • 1 x Chassis Fan Connector (3-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Energy requirements 35W normaal gebruik; 80 W max .; 5 W staat klaar.
macht Stroomvoorziening 84 W extern
Gewicht 4 Kg
Montage: VESA 100 mm
Afmetingen systeem (B x H x D) 410x334x95 mm
Options:
Functionality: With or without touch
- without touch: Acrylic or glass
- with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform
- 5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:

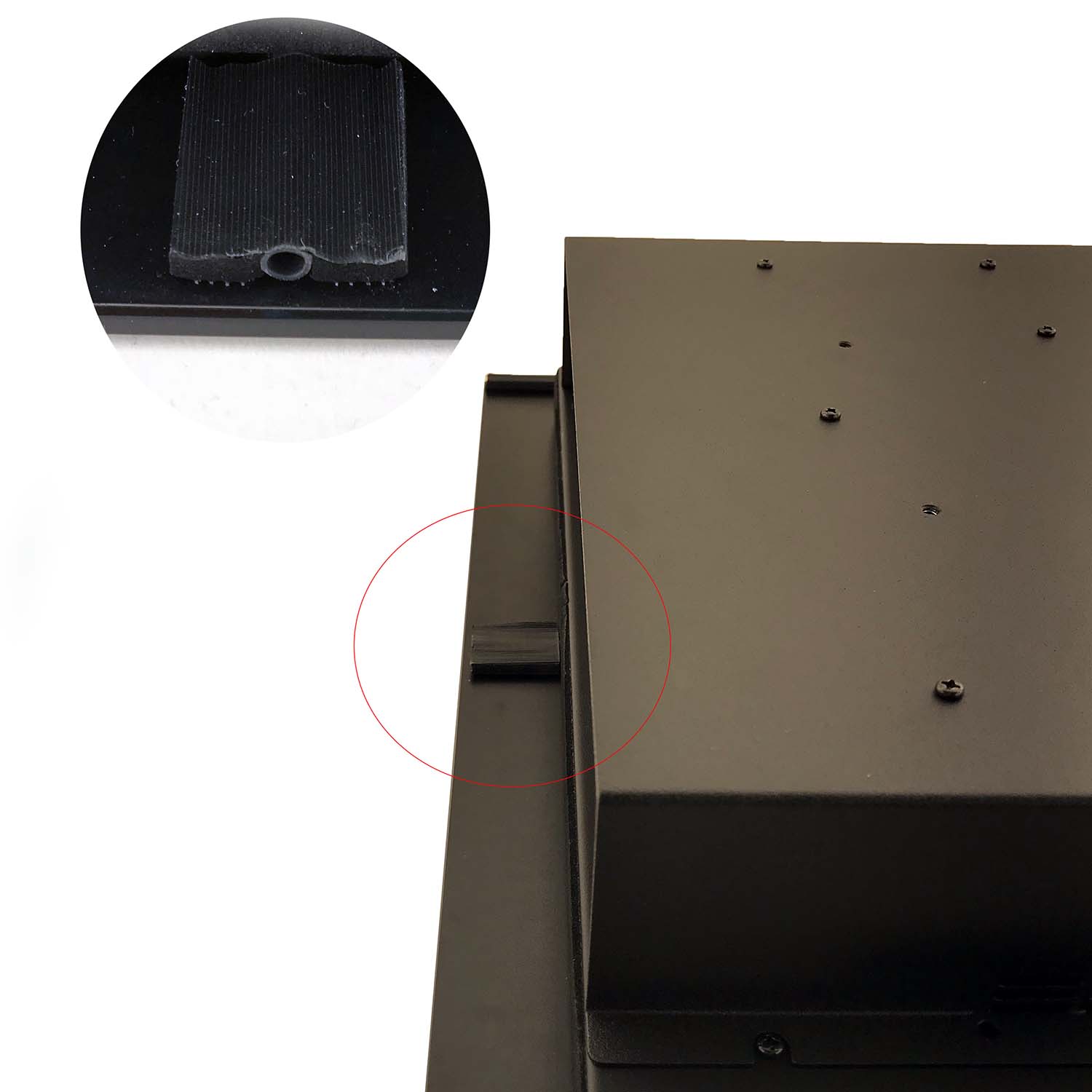

- No speakers/microphone (Standard),

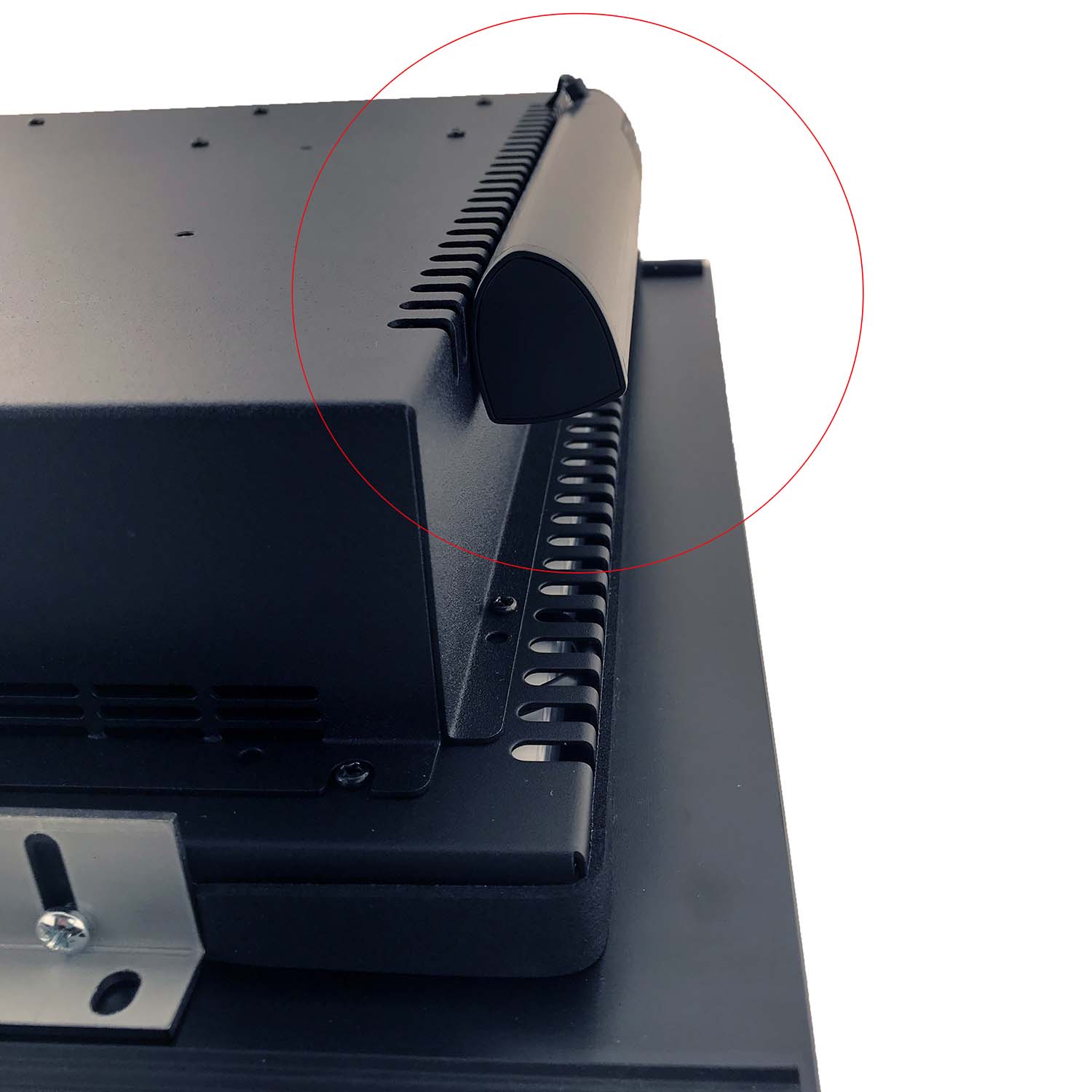

- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.

Specificaties / Handleiding:

Dimensies :
Stuurprogramma downloads: Meer informatie

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
