10.5" PCAP In-wall mount PC CUSTOM MADE (Passive Cooled)

10.5 inch custom made panel pc domotics front
10.5 inch custom made panel pc domotics front10.5 inch custom made panel pc domotics 3d10.5 inch custom made panel pc domotics front10.5 inch custom made panel pc domotics back10.5 inch custom made panel pc domotics with psu10.5 inch custom made panel pc domotics enclosure10.5 inch custom made panel pc domotics with fasteners
10.5" PCAP In-wall mount PC CUSTOM MADE (Passive Cooled)
Net price (excl.VAT) €1540,00
Art.No.:
1020153303
Brand:
A1Touch Solution
Type: All in one A1Touch-Samsung-10.5-4-64-Android-Domo-Custom (passive cooled)
​​Description: 10.5" pcap touchsystem for IN-WALL mounting, 4mm glare float glass, black borders, 325x240mm (wxh) with domo enclosure and psu.
This version is exchanged for our own system, ask for more information...
This touchscreen system can meet your highest expectations:
  • The panel pc for home automation has a borderless  touchscreen glass that can be used in all kind of buildings.
  • The unit can be made waterproof by sealing the frontglass, ideal for use in bathrooms or toilets.

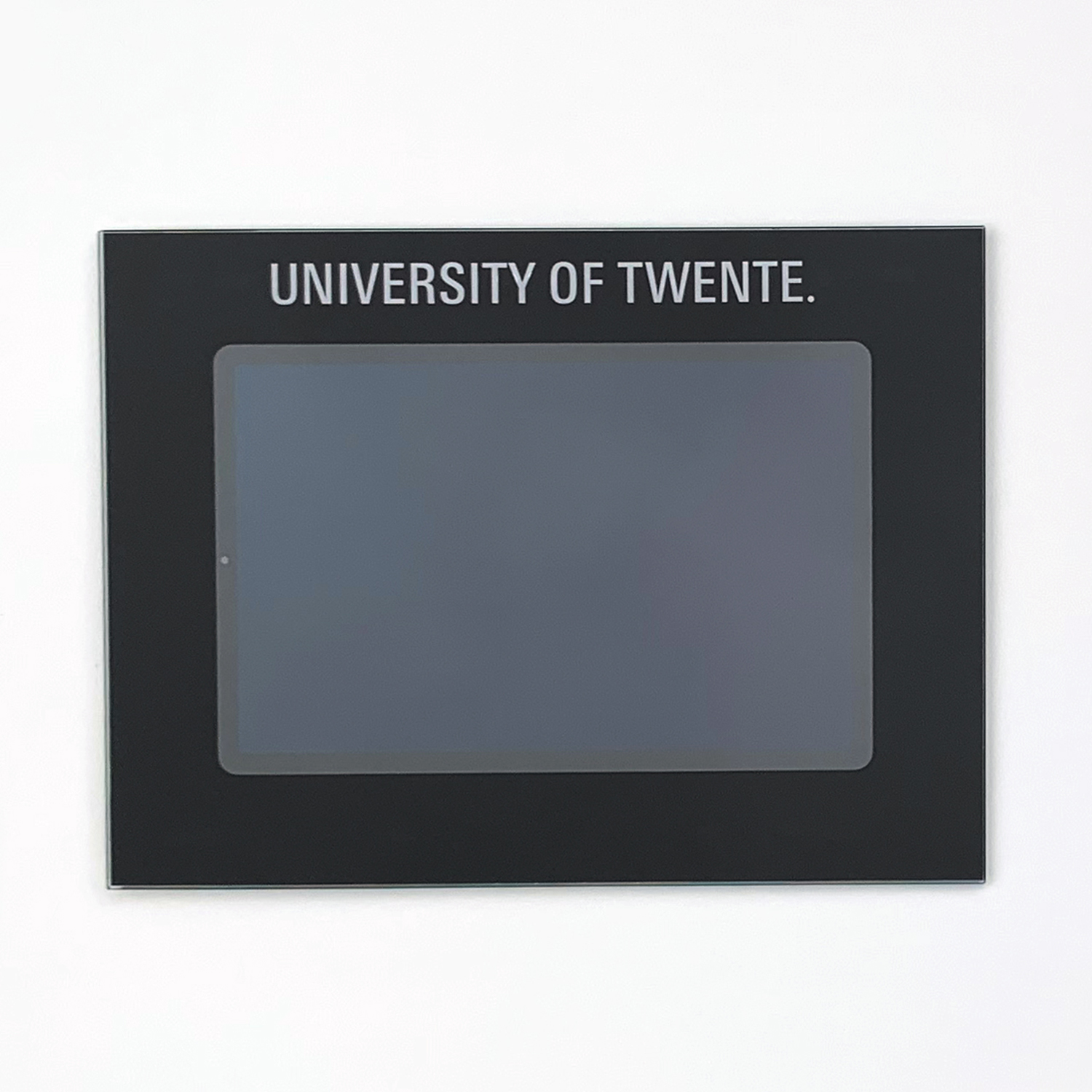

  • We make border with your design of logo and color. Just send us your design in pdf or eps file.
  • Unit can be built inside all walls with minimum thickness of 5 cm.

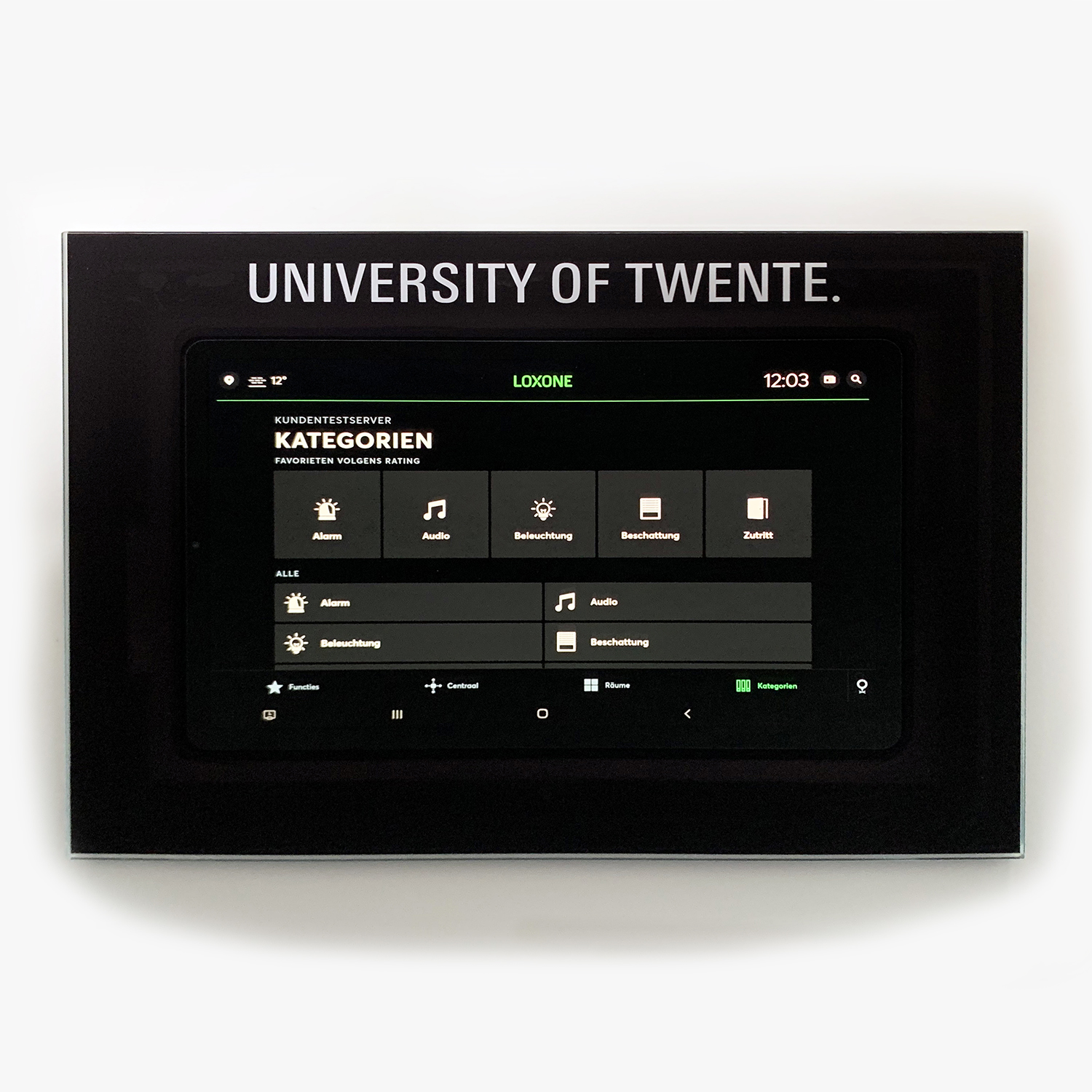

  • Android apps like loxone can be installed to connect via Wifi or LAN with your other smart home devices
  • This unit is made based on Samsung technology with benefit of their worldwide platform of knowledge.
  • Unit will be delivered with license for kiosk app to start only your app and block other information for customers.
Display specs:
Hufterproof glass panel: Glare Float Glass with your customized design of borders, wxhxt= 325x240x4mm..
Touchscreen type: Projected Capacitive PCAP 10 pts touch
LCD Type: Super AMOLED (WQXGA)
Size: 10.5 inches, 319.7 cm2
Resolution (max): 2560x1600 pixels, 16:10 ratio (~288 ppi density)
Brightness: 450 cd/m²
Computer specs:
OS: Android 9.0 (Pie), upgradable to Android 10, One UI 2.5
Chipset: Qualcomm SDM670 Snapdragon 670 (10 nm)
CPU: Octa-core (2x2.0 GHz 360 Gold & 6x1.7 GHz Kryo 360 Silver)
GPU: Adreno 615
Memory: 64GB 4GB RAM eMMC 5.1;  internal Card slot: microSDXC, Max 512Gb (option)
Camera / Video: 8 MP, f/2.0, 26mm, 1/4", 1.12µm / 1080p@30fps
Sound: With internal 4 stereo Speakers tuned by AKG/Harman

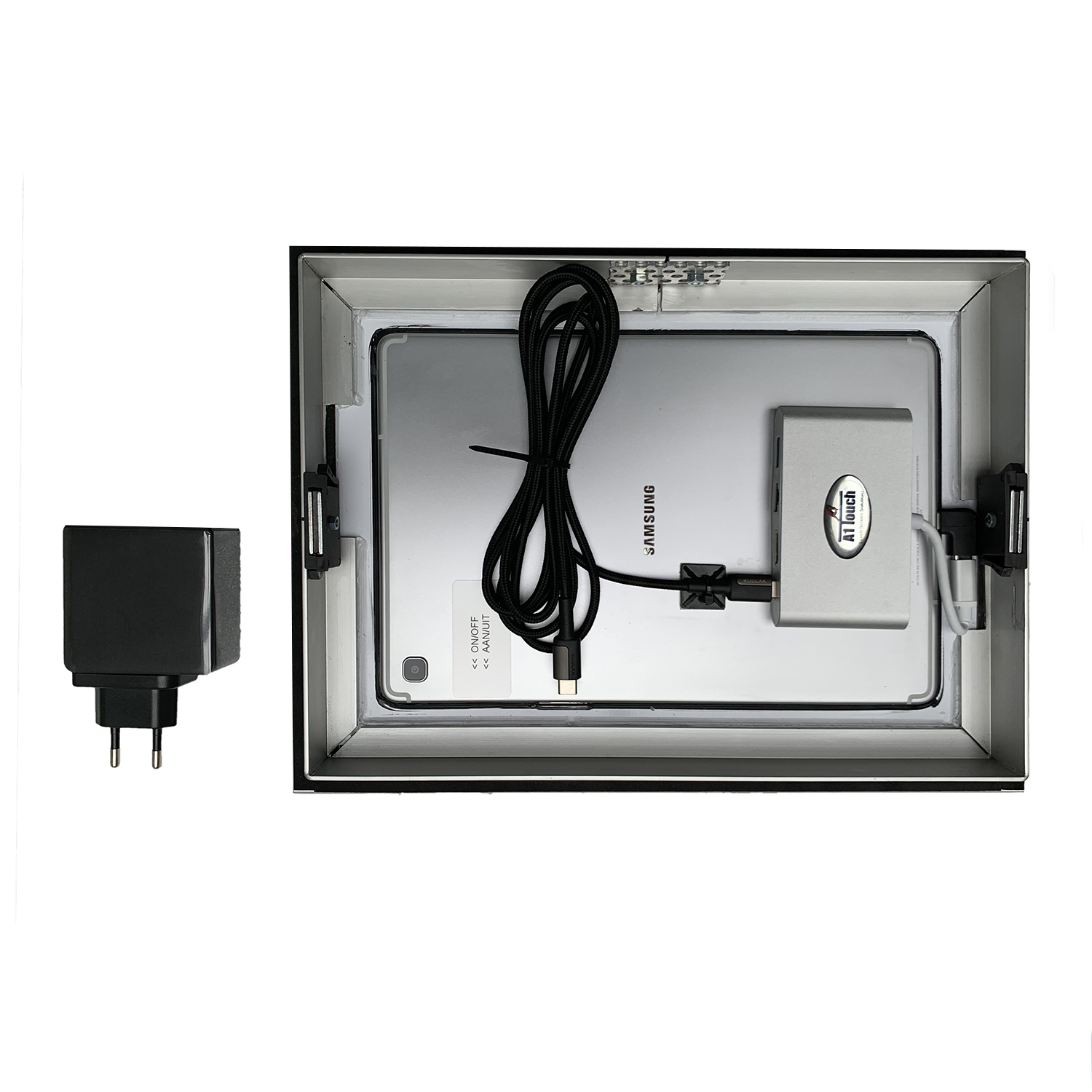

Power:  Delivered with PS 60W PSU 110/240V AC to 5 VDC,  Internal battery 7040 mAh typical (UPS function)
Power cable: Standard delivered with 1.1 meter power cable. On request we deliver 2 or max 3 meter cable length.
Communication:
  • LAN: 1Gbps ethernet port.
  • Wlan: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
  • Bluetooth: 5.0, A2DP, LE
  • GPS: Yes, with A-GPS, GLONASS, BDS, GALILEO
  • USB: 3.0
External connections:
  • 3x USB3.0,
  • 1x USB 3.1 (charge connection 5Vdc )
  • 1x Eternet RJ45 upto 1000Mb
  • 1x HDMI
  • 1x SD card slot
  • 1x TF card slot
  • input: 110/240V AC to 5 VDC. incl. psu PD 60W.
Dimensions:
  • Dimensions Front module: 325x240x35mm (WxHxD)

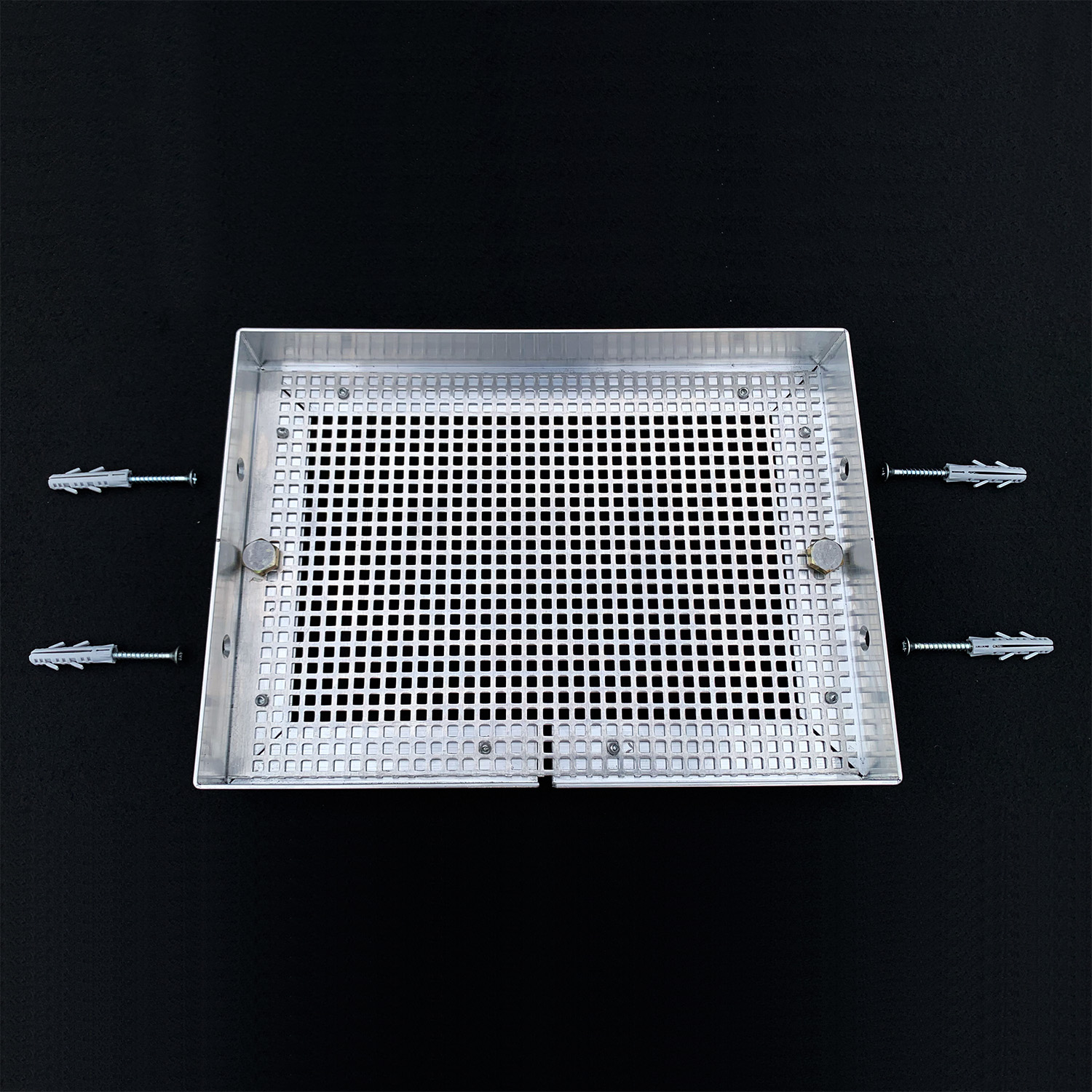

  • Dimensions Domo enclosure: 300x215x45mm (WxHxD)

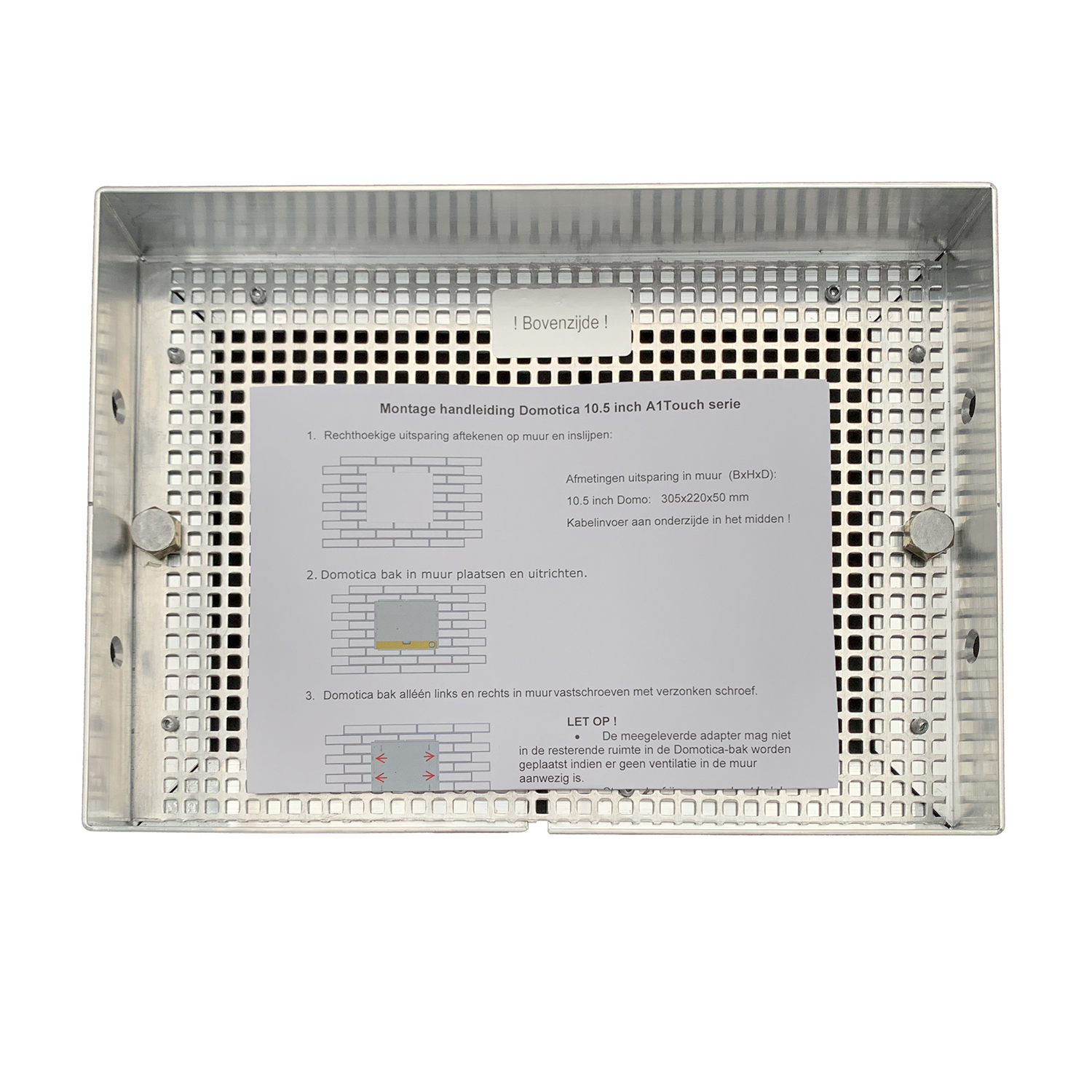

  • Advised dimension hole in wall: 305x220x50mm (WxHxD)

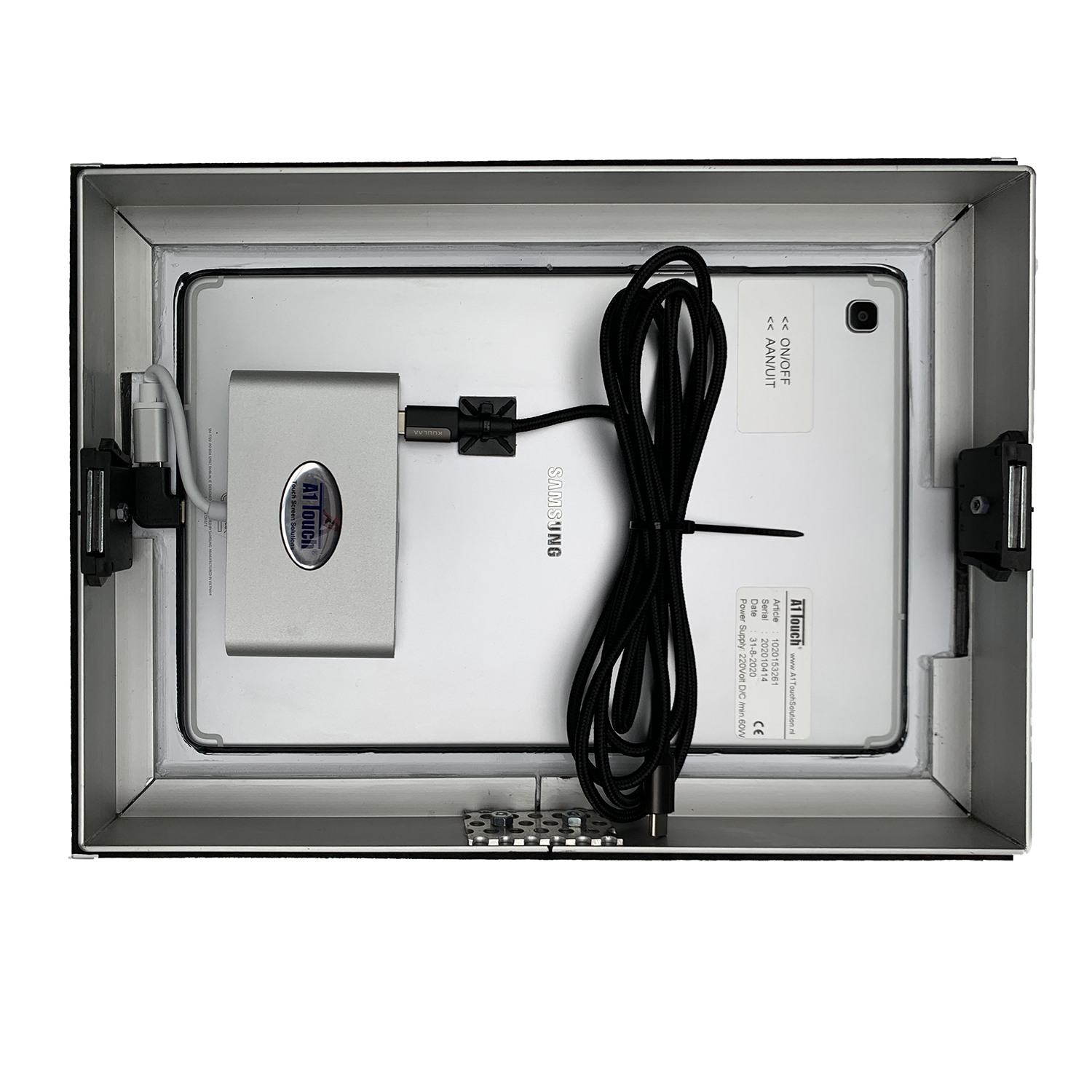

Enclosure: Enclosure with magnetic closing system, height adjustable to cover wall thickness deviations.
Weight +/-4 Kg

Specifications / Manual :
Instruction built in unit :
Driver downloads : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
