15" St.Steel In-wall mount PC (Extreme)

panel stainless steel AOD touchscreen  - RVS paneel aod touchsceen
15" St.Steel In-wall mount PC (Extreme)
Net price (excl.VAT) €1545,00
Art.No.:
1020153747
Brand:
A1Touch Solution
Type: All in one A1Touch Z690M-i5-12400/AOD150-PMR-DOMO-L2 (active cooled)

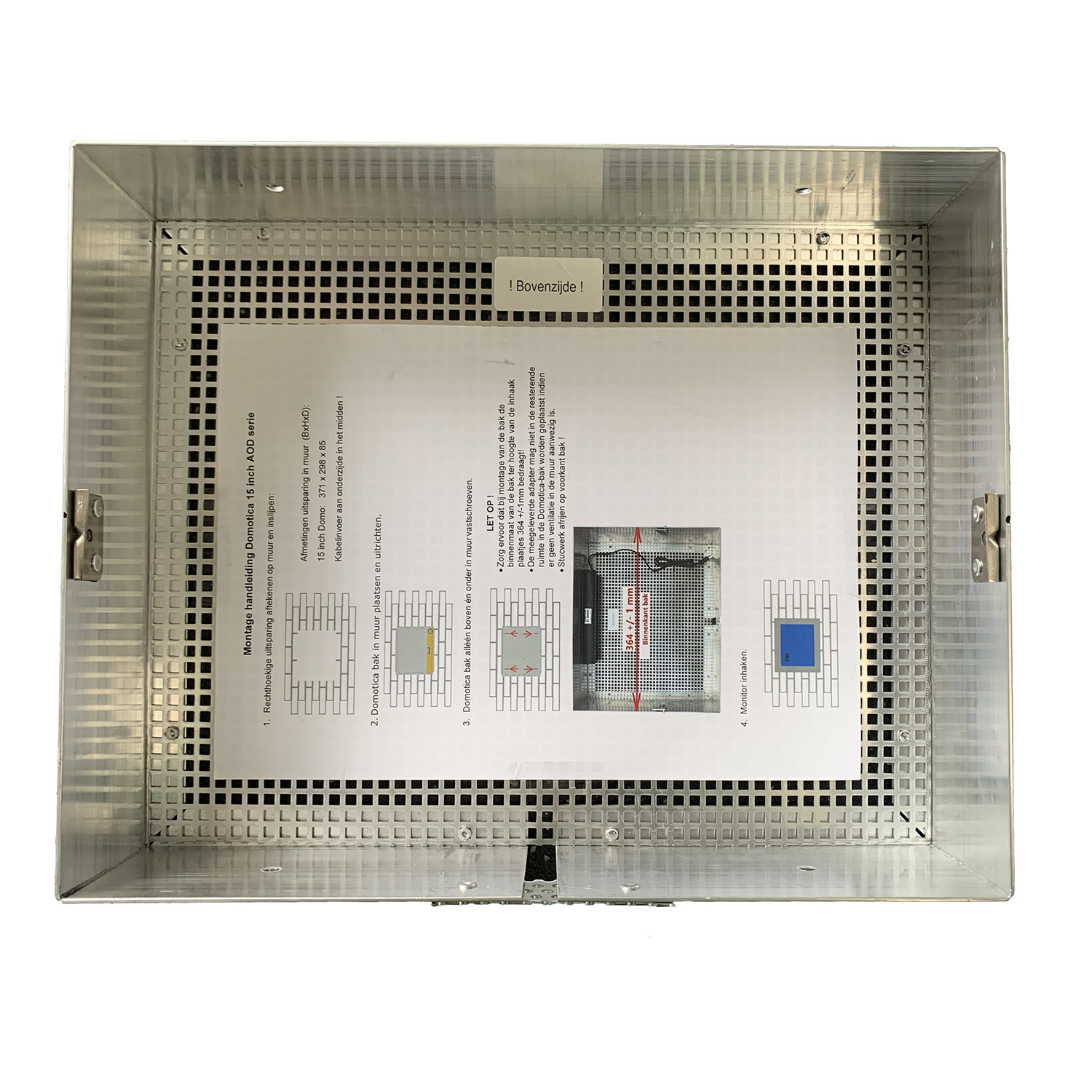

​​Description: 15 inch domotics computer with Intel Core I5-12400 6 core 12 threads 2.5 up to 4.4 Ghz processor, with brushed stainless steel panel with or without touchscreen for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock
Monitor specs:

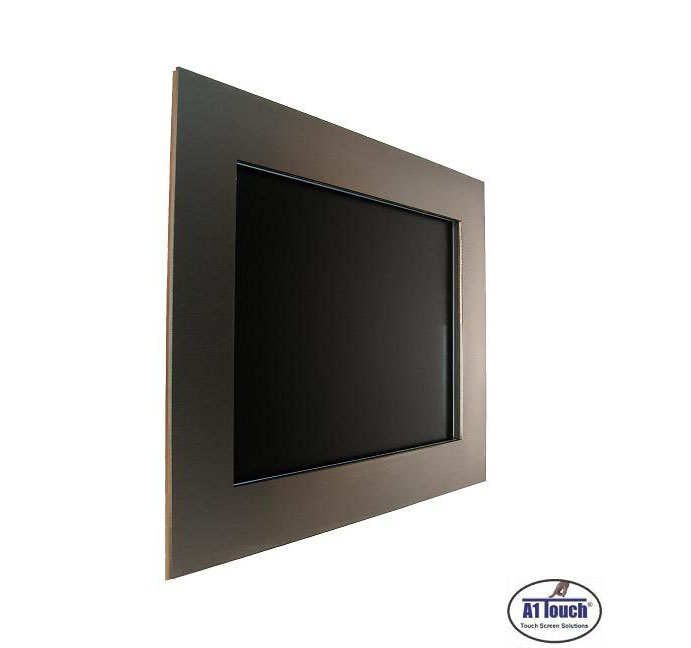

Color/material  panel: Brushed Stainless Steel
Model: 15 inch XGA TFT LCD Monitor
Type: 15" Color Active Matrix TFT LCD
 (AUO G150XG03 V5)
Resolution (max): 1024 x 768 (XGA)
Color: 16,2 million
Pixel: 0.297 x 0.1297 mm
Brightness: 350 cd/m²
Contrast ratio: 700:1
Viewing angle: 85°/85° horizontal & 80°/80° vertical
Respons time 8 ms
Active area: 304,1 (H) x 228,1 (V) mm
Touchscreen specs: See tab : Options"

Computer specs:
Type computerboard: Intel Z690M-ITX
Chipset: Intel® Z690M
Processor: Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730
Memory Supported memory types DDR4-UDIMM Non-ECC mode
Amount of memory slots 2
Memory slot type DIMM
Memory Channel Dual
Non-ECC yes
Supported memory clock speeds 3200 Mhz Natively
Maximum internal memory 64 GB
Not gebufferd memory yes
Bios BIOS type UEFI AMI
BIOS-memory size 256 Mbit
ACPI version 6.0
Clear CMOS jumper yes
Plug and play yes
System Management BIOS (SMBIOS) version 2.7 support
Graphics Architecture (Gen 12) Intel Xe Graphics
Built-in grafical adapter yes
Grafical adapter-family Intel
Maximum resolution 4096 x 2160 Pixels HDMI, 7680x4320 Pixels via DP
Network Ethernet LAN yes, 2 x LAN
Ethernet interface type 2.5 Gigabit Ethernet and 1 Gb Ethernet
LAN controller Realtek RTL8125BG (2.5Gb) and Intel I219V (1Gb)
Wi-Fi Yes, 802.11ax Wi-Fi 6E  Module, supports IEEE 802.11a/b/g/n/ax
Bluetooth Yes, 5.3 High speed class II
Audio Realtek® ALC897 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3  6.0 Gb/s Connectors, 1 x M.2 Socket M2_1 Key M, supports type 2280 PCIe Gen4x4 (64Gb/s) Mode Chipset, 1 x M.2 Socket M2_2 Key M, support type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64Gb/s) modes
RAID: Yes, Raid 0, 1, and 5
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

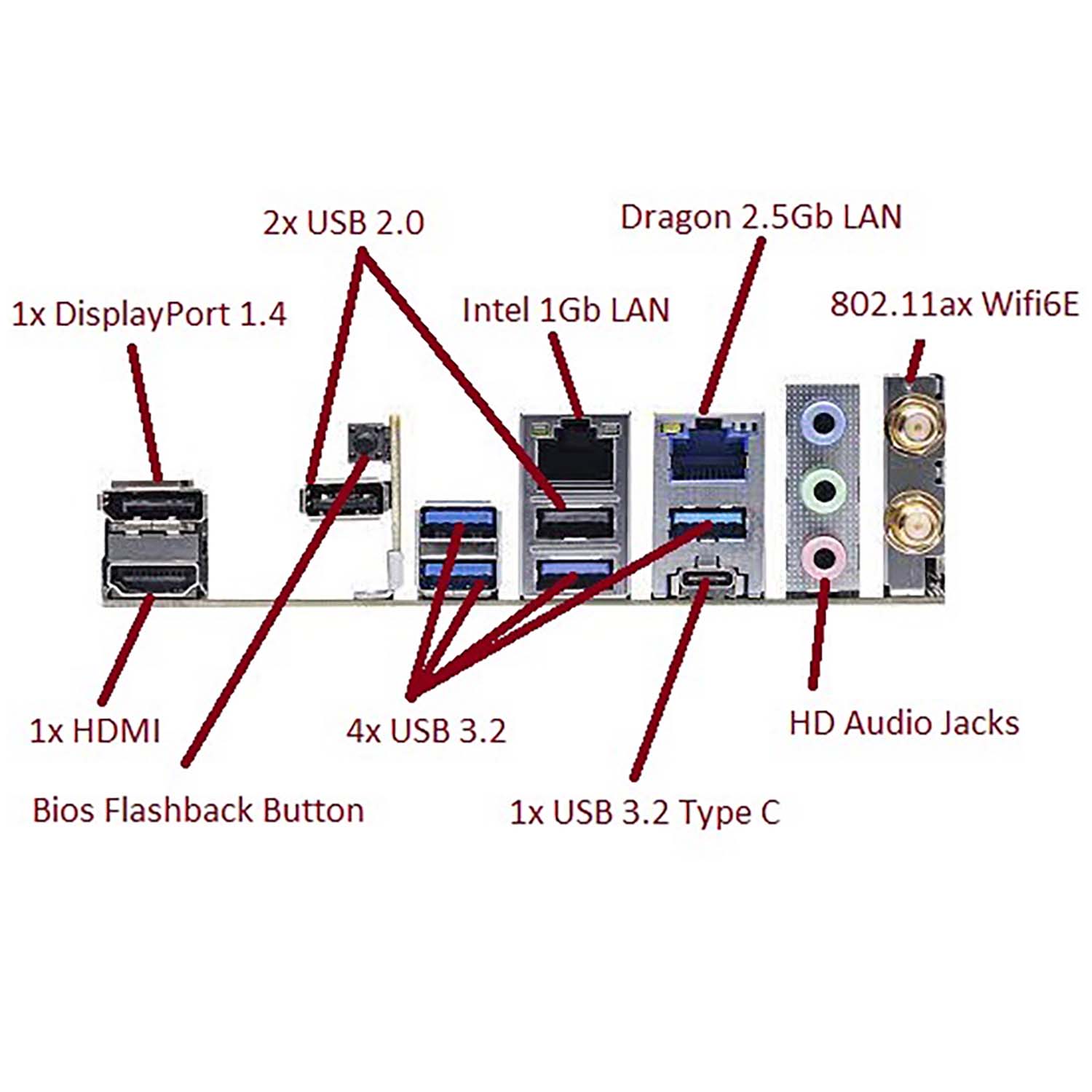

I/O connections back: USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) : 4
USB 3.2 Gen 2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) : 1
Ethernet LAN (RJ-45)-ports : 2
HDMI-ports : 1
Display ports : 1
Bios Flashback Button : 1
Audio jack(s) – Mic – Line in – Line out : 3
Internal I/O: PCI Express 5.0x16 Slot (PCIE1), supports x16 mode : 1
USB 2.0 connections : 1
USB 3.1 Gen 1 (up to 5Gbps) connectors : 1
Amount of SATA 6Gb/s connectors : 4
Audioconnector : yes

General:
Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 4 Kg
Mounting: VESA 100mm
Dimensions system(B x H x D) 410x334x95 mm
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.
