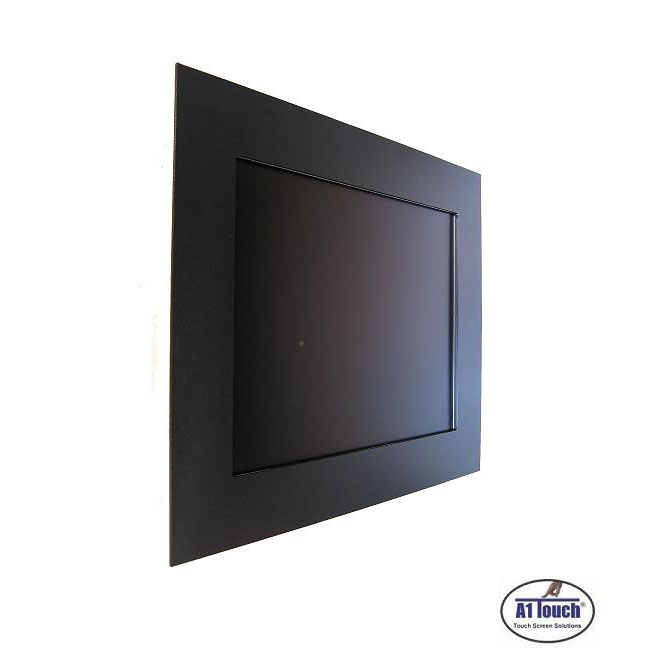

19" Black In-wall mount PC (Passive Cooled)

panel AOD touchscreen - paneel aod touchsceen
19" Black In-wall mount PC (Passive Cooled)
Net price (excl.VAT) €859,00
Art.No.:
1020153100
Brand:
A1Touch Solution
Type: All in one A1Touch J3455/AOD190-PMB-DOMO-L (passive cooled)

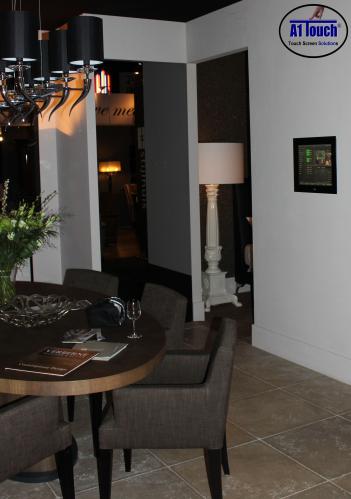

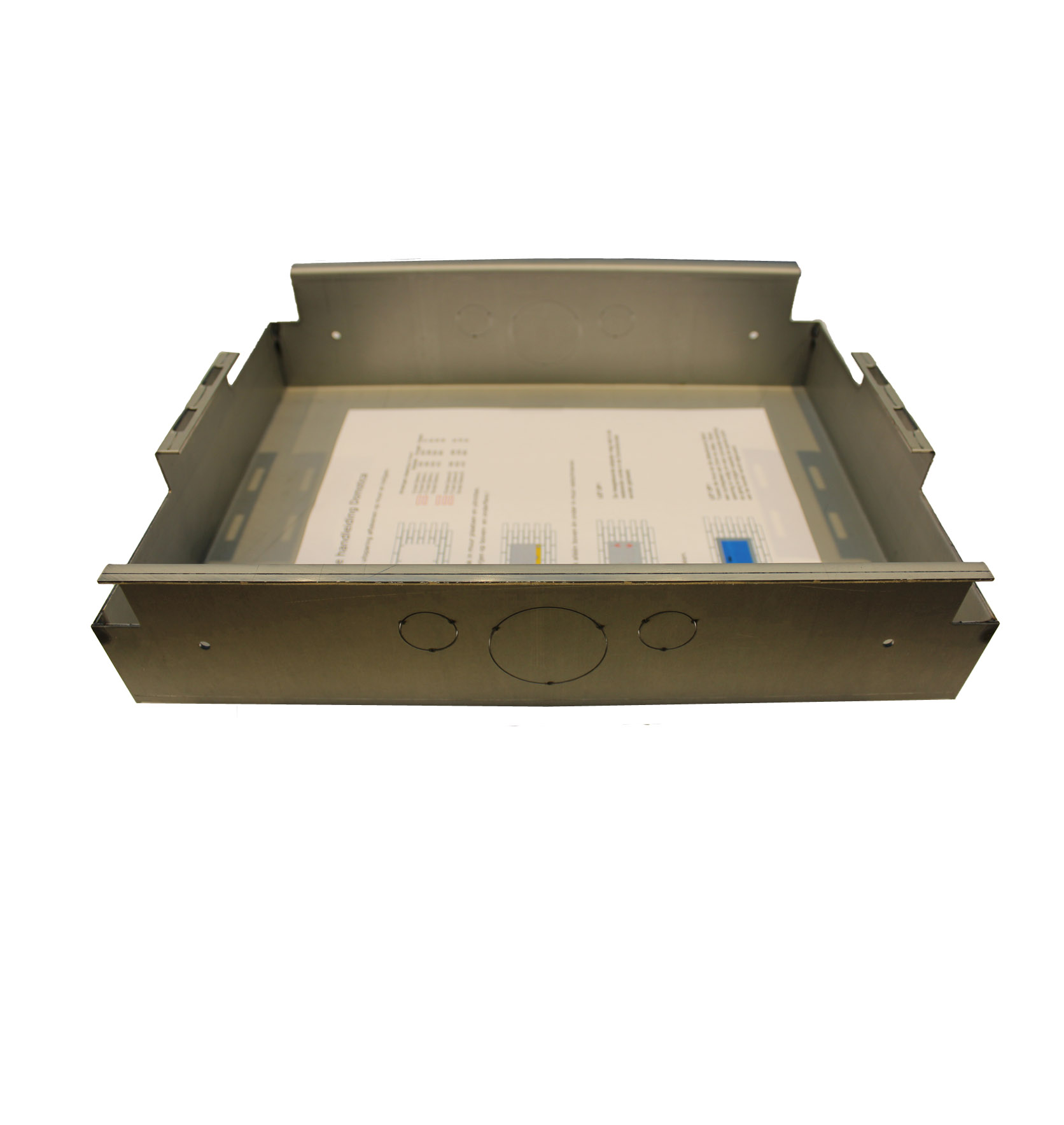

Description: 19 inch domotics computer with or without touchscreen for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock
Monitor specs:
Color panel: Black powder Coated (other colors on request)
Model: 19 inch XGA TFT LCD Monitor
Type: 19 inch Color Active Matrix TFT LCD  (LG LM190EOA)
Resolution (max): 1280 x 1024 (SXGA)
Color: 16,7 million
Pixel: 0.0976 x 0.2928 mm
Brightness: 300 cd/m²
Contrast ratio: 800:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 8 ms
Active area: 376,32 (H) x 301,056 (V) mm
Touchscreen specs: See tab "Options"
Computer specs:
Type computerboard Intel J3455 Quad core upto 2.3 Ghz, passive cooled
Chipset No seperate chipset
Memory 2 x DDR3/DDR3L SO-DIMM Slots
Bios
  • 64Mb AMI UEFI Legal BIOS with GUI support
  • Supports Plug and Play
  • ACPI 5.0 compliant wake up events
  • Supports jumperfree
  • SMBIOS 3.0 support
Processor Intel J3455 Quad core upto 2.3Ghz processor
Flashmodule/ Harddisk Sata SSD and SATA Harddisk.possible
Graphics
  • Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz)
  • DirectX 12, Pixel Shader 5.0
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports Triple Monitor
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  • Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
  • Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
  • Supports HDCP with DVI-D and HDMI 2.0 Ports
  • Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
LAN (RJ-45)
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111GR
  • Supports Wake-On-WAN
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  • Supports LAN Cable Detection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Audio
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  • Premium Blu-ray Audio support
  • Supports Surge Protection (ASRock Full Spike Protection)
  • ELNA Audio Caps
IDE, SATA, Flash 2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and
Hot Plug
Hardware Monitor + Power Management Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

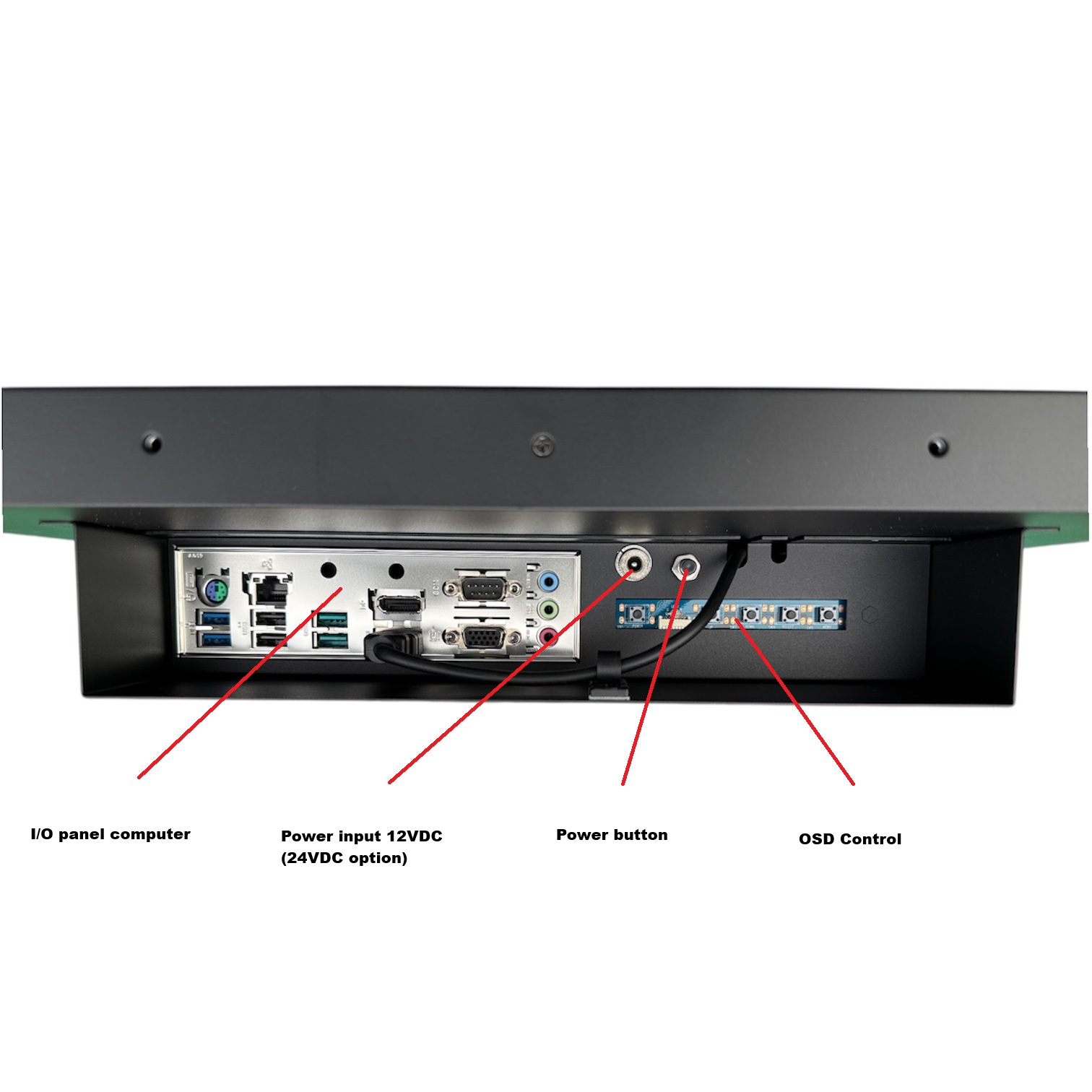

I/O system:
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port (occupied)
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O:
  • 1 x PCI Express 2.0 x1 Slot
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (3-pin)
  • 1 x Chassis Fan Connector (3-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 5 Kg
Mounting: VESA 100mm
Dimensions system(B x H x D) 485x410x95 mm
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),

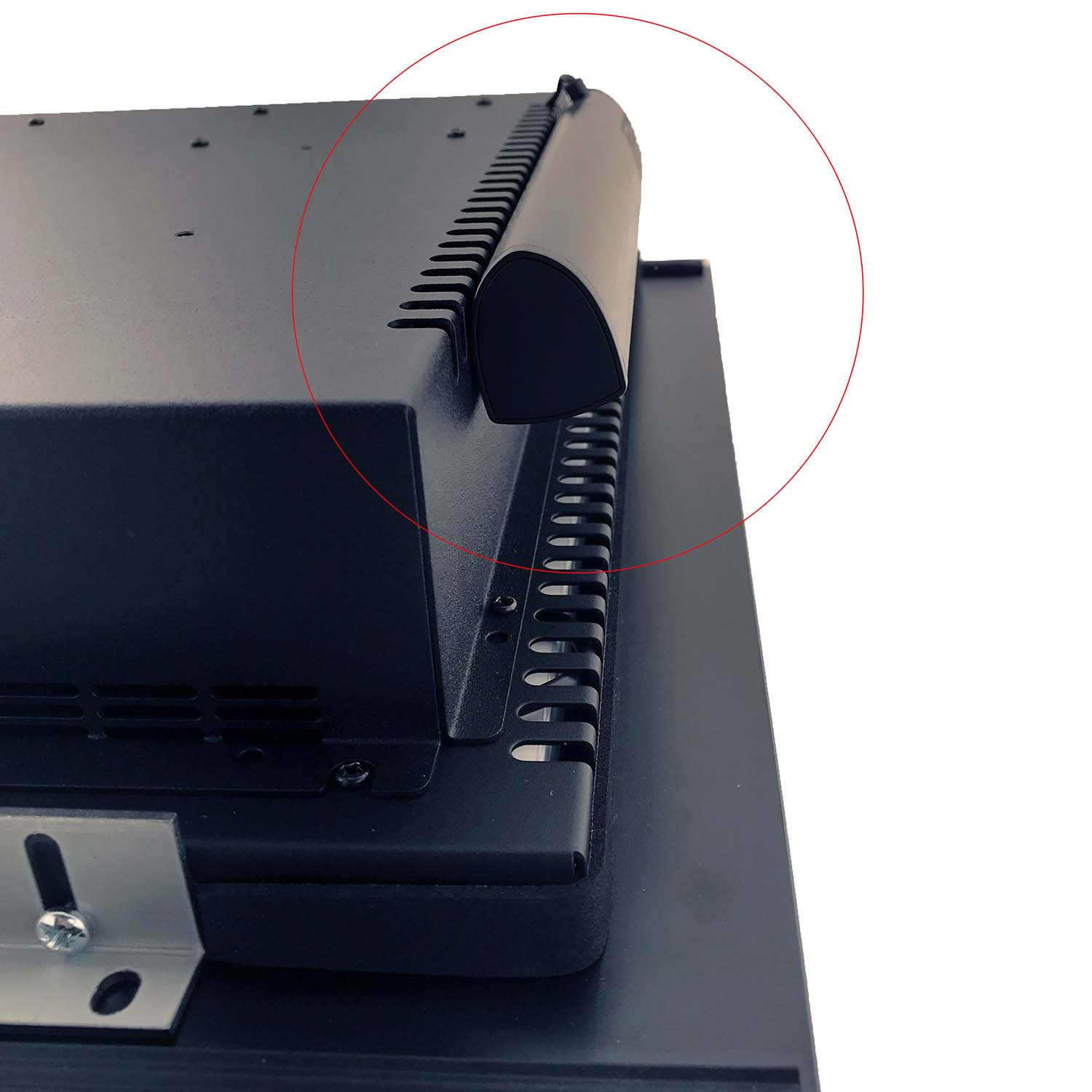

- with usb stereo soundbar 2x2 Watt/ no microphone or

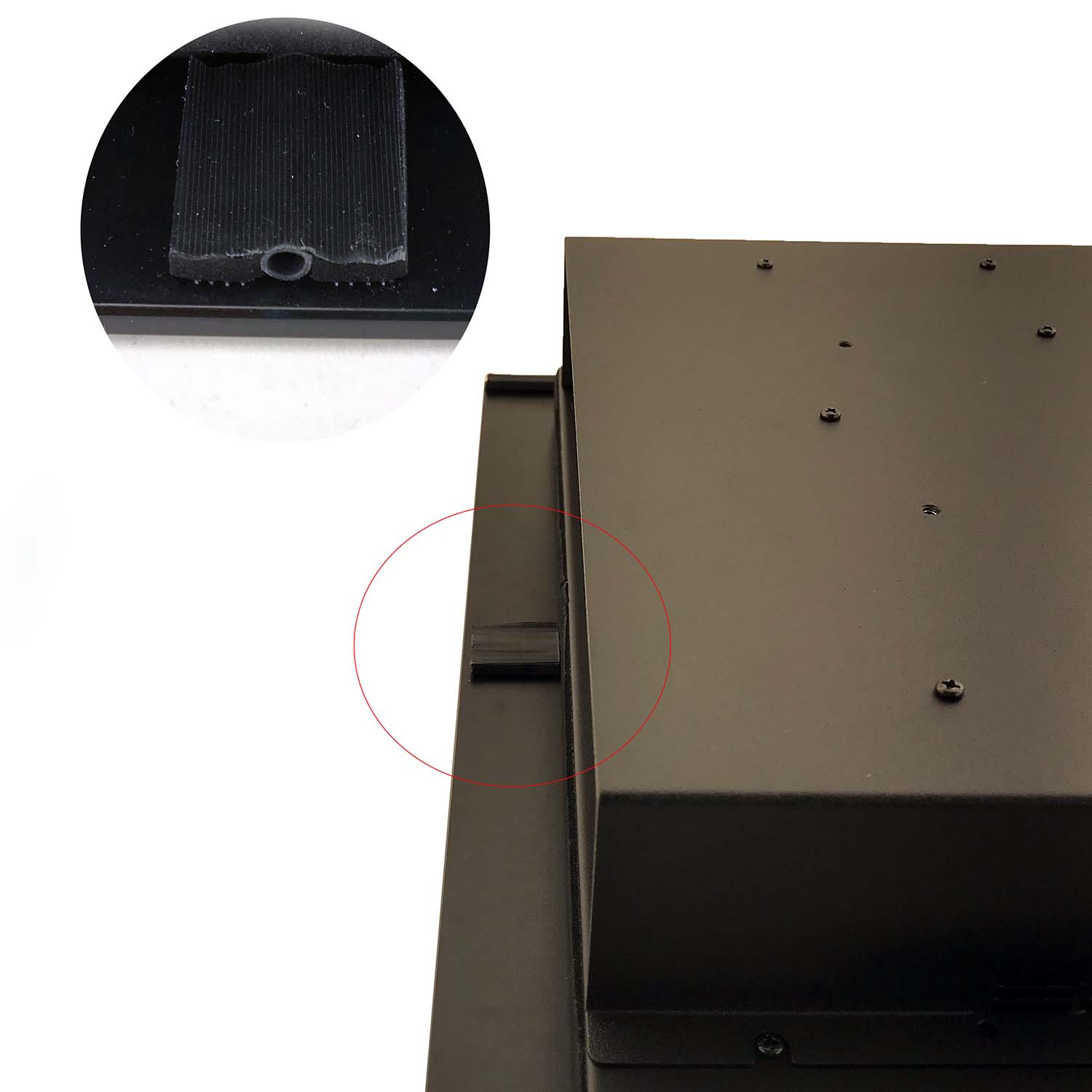

- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.
