15" PCAP In-wall mount PC (Extreme)

pcap touchscreen - pcap touchscreen
15" PCAP In-wall mount PC (Extreme)
Net price (excl.VAT) €1359,00
Art.No.:
1020153352
Brand:
A1Touch Solution
Type: All in one A1Touch H310-i5-9400/AOD150-GPCAP-TPMB-DOMO-L (passive cooled)
​​Description: 15 inch domotics bezel free pcap touchsreen computer with Intel Core I5-9400 6 core 6 threads 2.9 up to 4.1 Ghz processor, for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock
Monitor specs:
Color/material  panel: 4mm tempered Glass with black ceramic borders
Model: 15 inch XGA TFT LCD Monitor
Type: 15" Color Active Matrix TFT LCD
 (AUO G150XG03 V5)
Resolution (max): 1024 x 768 (XGA)
Color: 16,2 million
Pixel: 0.297 x 0.1297 mm
Brightness: 350 cd/m²
Contrast ratio: 700:1
Viewing angle: 85°/85° horizontal & 80°/80° vertical
Respons time 8 ms
Active area: 304,1 (H) x 228,1 (V) mm

Computer specs:
Type computerboard: Intel H310-I
Chipset: Intel® H310
Processor: Processor Intel Core i5 9400, 55W, 9th gen. 2.9Ghz, 6 core, 6 thread, UHD Graphics 630,
Memory Supported memory types DDR4-SDRAM
Amount of memory slots 2
Memory slot type DIMM
Memory Channel Dual
Non-ECC yes
Supported memory clock speeds 2133,2400,2666 MHz
Maximum internal memory 32 GB
Not gebufferd memory yes
Bios BIOS type UEFI AMI
BIOS-memory size 128 Mbit
ACPI version 6.1
Clear CMOS jumper yes
Plug and play yes
System Management BIOS (SMBIOS) version 3.1
Graphics Maximum memory grafical adapter 1024 MB
Built-in grafical adapter yes
Grafical adapter-family Intel
Maximum resolution 4096 x 2160 Pixels
Network Ethernet LAN yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Wi-Fi No (option)
Bluetooth No (option)
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3 Connectors, 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
RAID: No
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

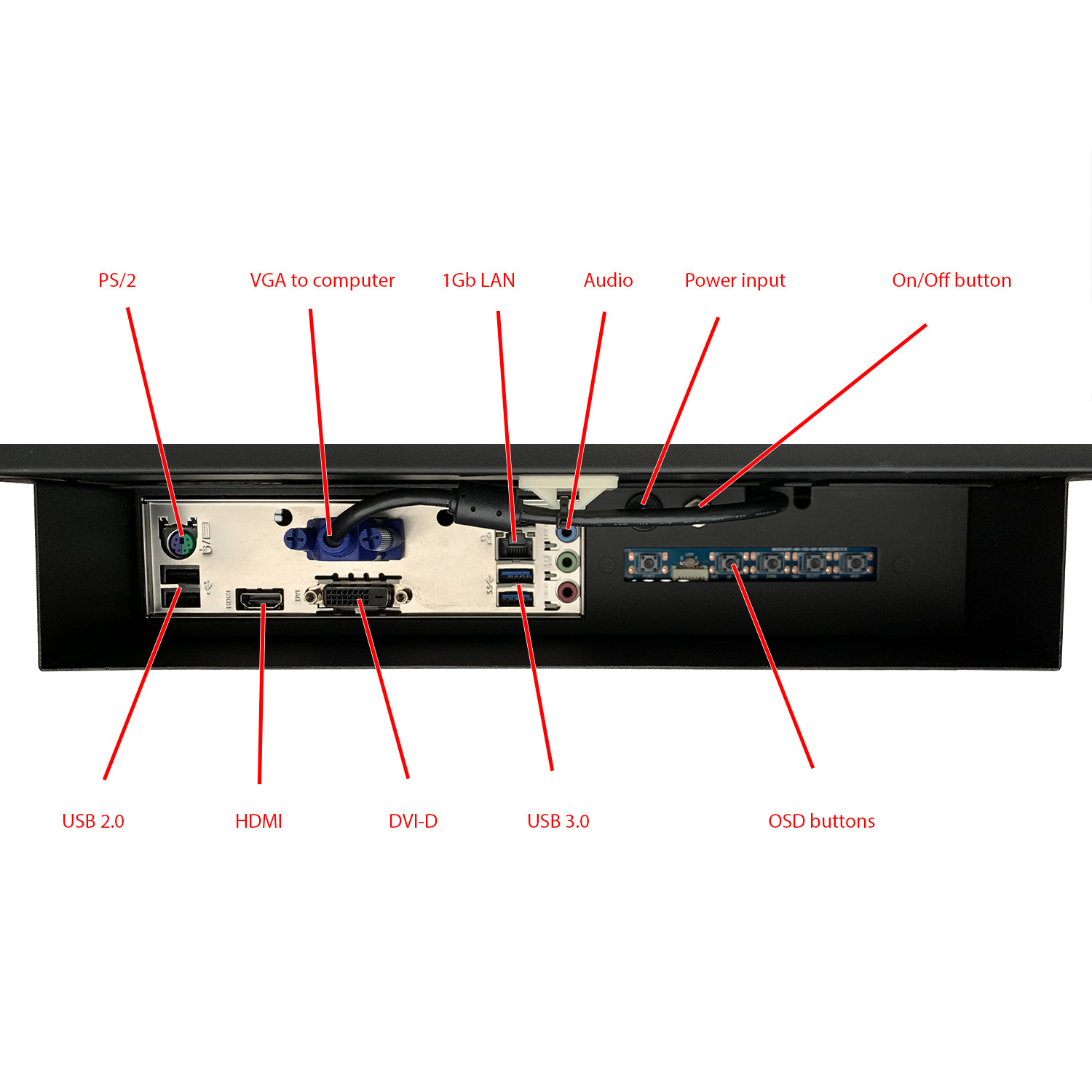

I/O connections back: USB 3.1 Gen1 (blue) Type-A up to 5Gbps : 2
USB 2.0 : 2
Ethernet LAN (RJ-45)-ports : 1
HDMI-ports : 1
DVI-D ports : 1
S/PDIF-out : yes
Audio jack(s) – Mic – Line in – Line out : 3
PS/2 keyboard/mouse combo port(s) : 1
Internal I/O: PCI Express x16 (Gen 3.x) slots : 1
USB 2.0 connections : 1
USB 3.1 Gen 1 (up to 5Gbps) connectors : 1
Amount of SATA 6Gb/s connectors : 4
Audioconnector : yes

Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 4 Kg
Mounting: VESA 100mm
Dimensions system(B x H x D) 409x334x95mm
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-2, 4 and 10 points touch (2 default)
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick hardened glass with black ceramic borders..
Surface hardness: Mohs' hardness = 6
Responstime: Max. 20 msec.
Options:
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.

Specifications / Manual :

Dimensions :
Driver downloads : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
